Front Turn Signal Lamp Bulb Replacement (Left hand)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

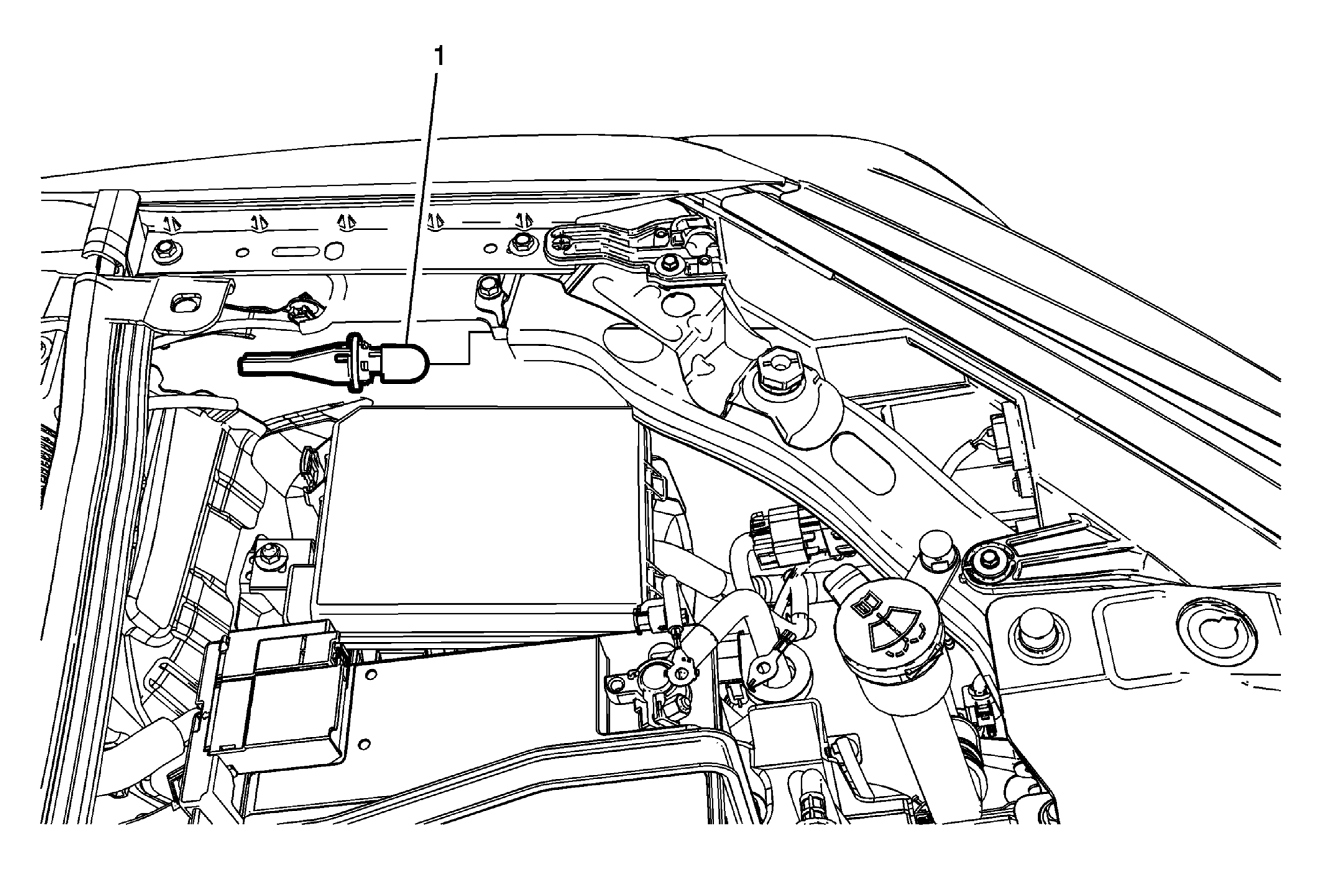

Fig 1: Front Turn Signal Lamp Bulb (Left Hand)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open and support the hood assembly.
1	Front Turn Signal Lamp Bulb Socket Procedures Rotate the front turn signal lamp bulb socket counter-clockwise and remove from the headlamp housing. Hold the front turn signal lamp socket, pull the front turn signal lamp bulb out of the front turn signal lamp socket.
