Front Fog Lamp Cover Replacement (Trax With T3U)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

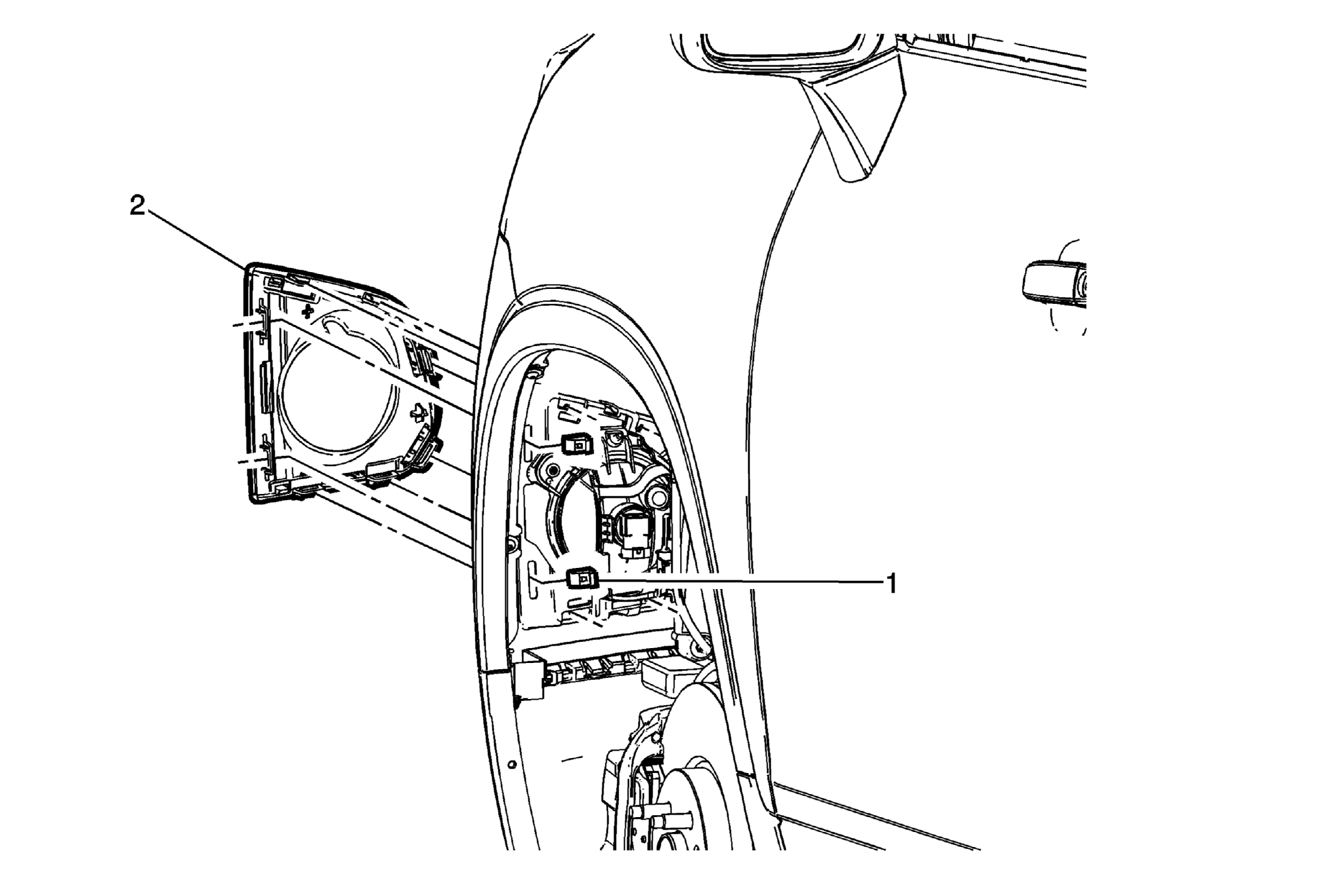

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Trax) |
|
| 1 | Front Fog Lamp Bezel Retainer (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Fog Lamp Bezel Procedure Release the locking tabs on the front fog lamp bezel and pull forward from the front bumper fascia. |
