Backup Lamp Bulb Replacement (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

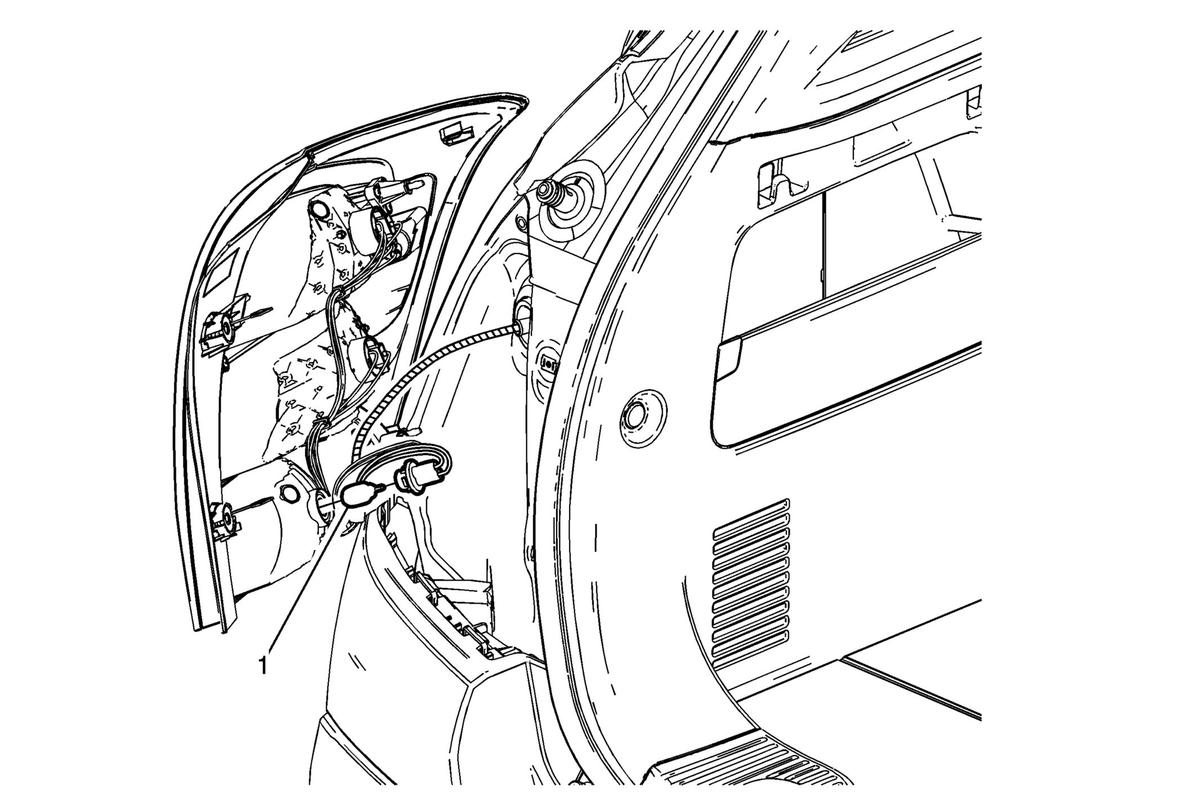

Fig 1: Backup Lamp Bulb (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Reposition and support the tail lamp. Refer to Tail Lamp Replacement (Trax)
1	Backup Lamp Bulb Procedure Rotate the backup lamp bulb socket counter-clockwise and remove from the tail lamp. Pull the backup lamp bulb straight out from the backup lamp bulb socket.

Callout

Component Name

Preliminary Procedure
Reposition and support the tail lamp. Refer to Tail Lamp Replacement (Trax)

Backup Lamp Bulb

Procedure

Rotate the backup lamp bulb socket counter-clockwise and remove from the tail lamp.
Pull the backup lamp bulb straight out from the backup lamp bulb socket.
