Section 50 (Steering Wheel And Steering Column)
>>
Schematic Wiring Diagrams
>>
Steering Wheel Wiring Schematics (Encore)
>>
Heated Steering Wheel (Encore with UVD)
Heated Steering Wheel (Encore with UVD)
WARNING:
This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

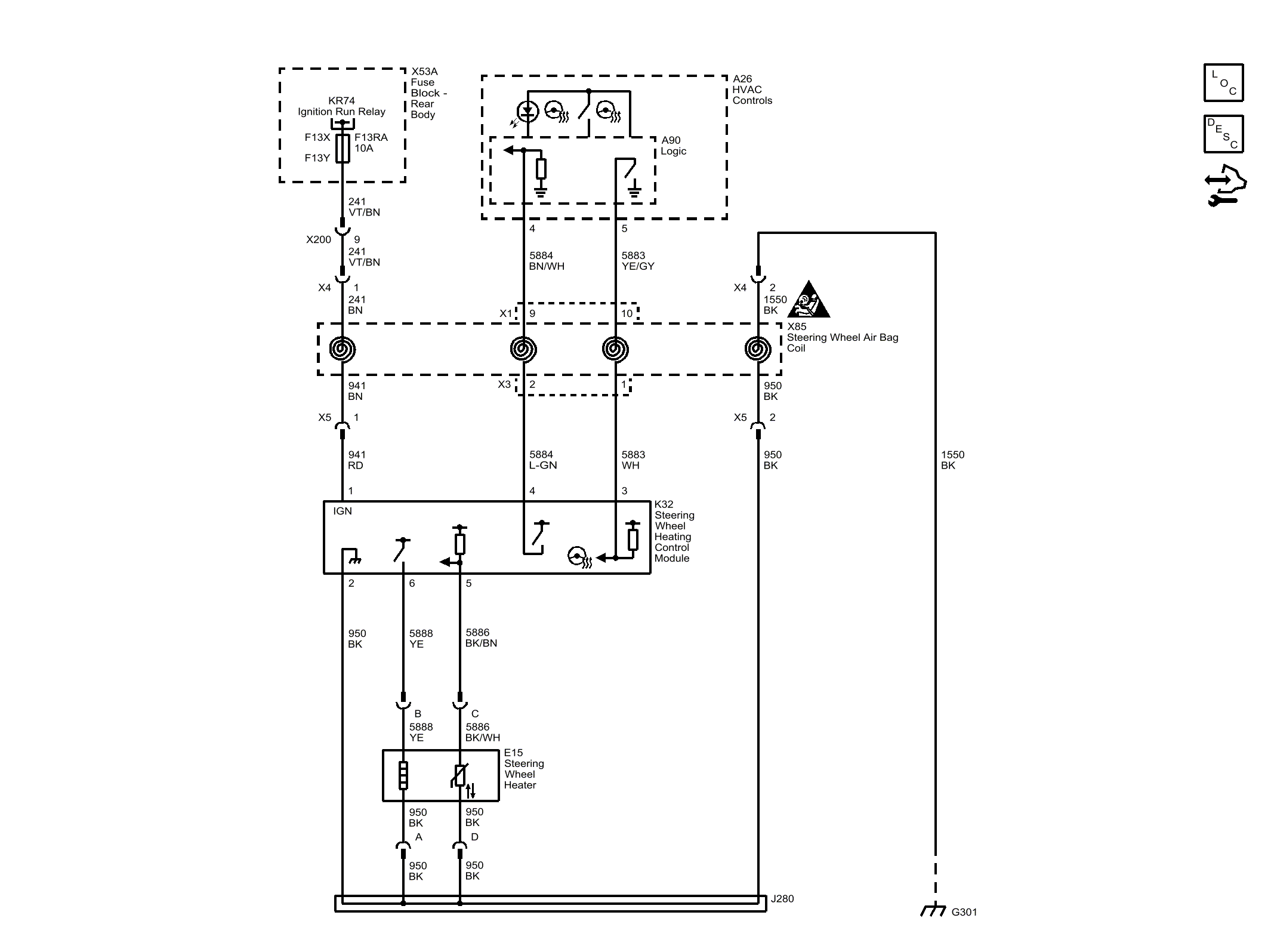

Fig 1: Heated Steering Wheel (Encore with UVD)
Courtesy of GENERAL MOTORS COMPANY
