Steering Shaft Replacement (N40)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

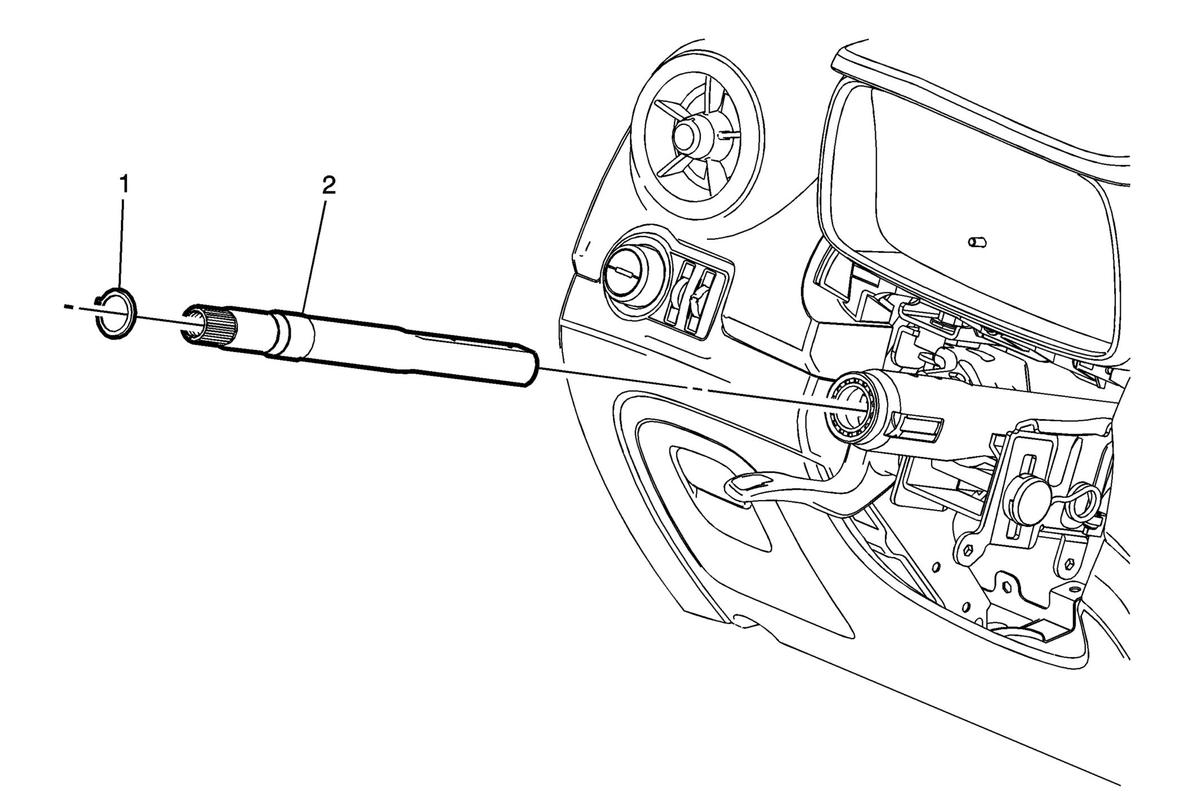

Fig 1: Steering Shaft (N40)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the ignition and start switch housing. Refer to Ignition and Start Switch Housing Replacement (Encore)Ignition and Start Switch Housing Replacement (Trax) .
1	Steering Shaft Retaining Ring
2	Steering Shaft Procedure Note the orientation of the steering wheel alignment mark on the steering shaft before removing. Install the old or new shaft in the proper orientation.

Callout

Component Name

Preliminary Procedures
Remove the ignition and start switch housing. Refer to Ignition and Start Switch Housing Replacement (Encore)Ignition and Start Switch Housing Replacement (Trax) .

Steering Shaft Retaining Ring

Steering Shaft

Procedure

Note the orientation of the steering wheel alignment mark on the steering shaft before removing.
Install the old or new shaft in the proper orientation.
