Intermediate Steering Shaft Replacement (NJ1)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

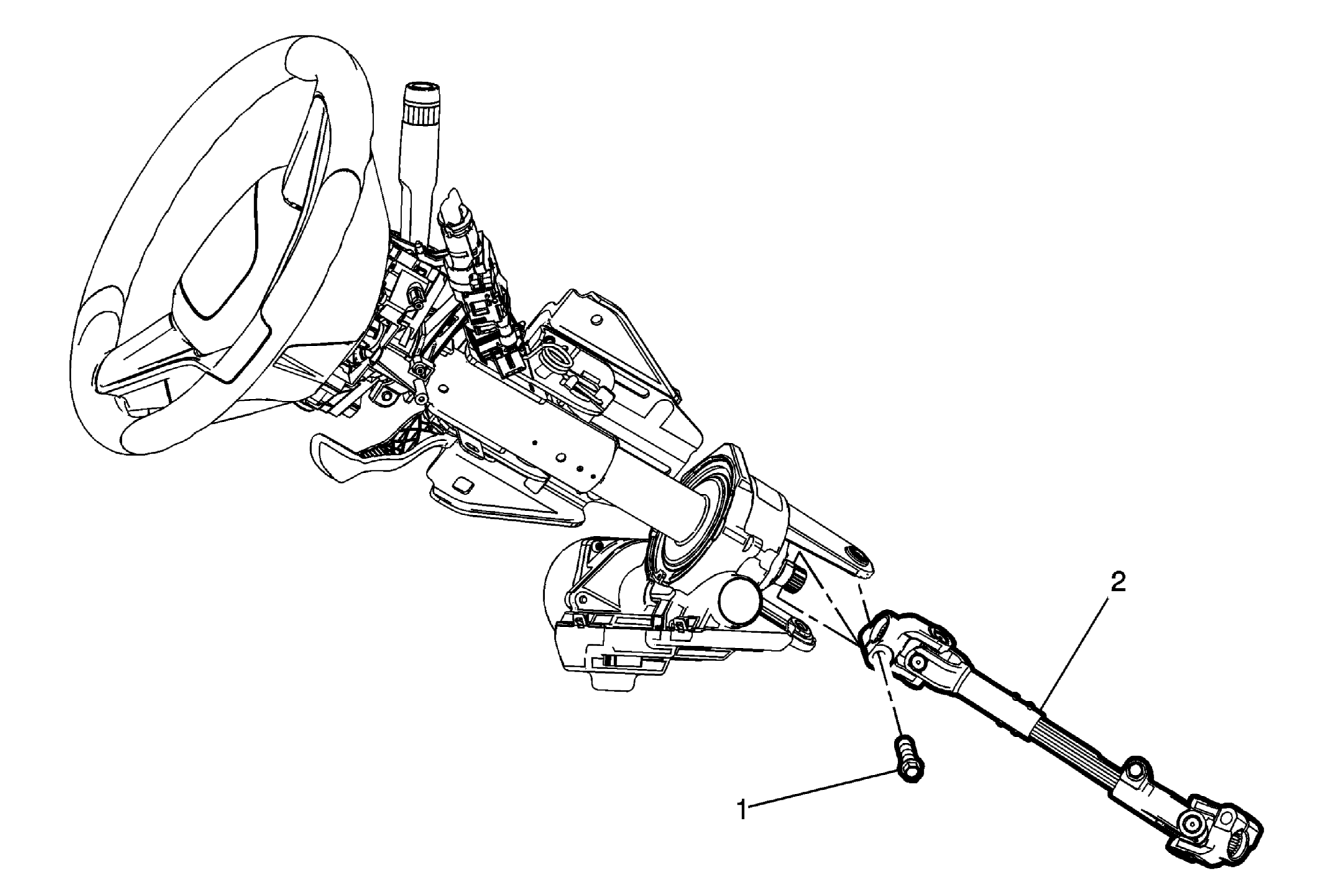

Fig 1: Intermediate Steering Shaft & Upper Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Column Replacement (Mexico, N40) Steering Column Replacement (Canada, NJ1) Steering Column Replacement (United States, NJ1)
1	Intermediate Steering Shaft Upper Bolt CAUTION: Refer to Fastener Caution . Tighten 49 N.m (36 lb ft)
2	Intermediate Steering Shaft Procedure Place match marks on the intermediate steering shaft and the steering column shaft to aid in installation. If replacing the steering column or intermediate steering shaft, copy the match marks from the OLD steering column to the NEW steering column. Align the match marks when installing the intermediate steering shaft to the steering column shaft. Program the power steering control module. Power Steering Control Module Programming and Setup Center the steering angle sensor. Steering Angle Sensor Centering NOTE: If the intermediate steering shaft upper universal joint is difficult to separate, insert a wide blade flat screw driver and tap with a hammer to open up the slot as necessary.

Callout

Component Name

Preliminary Procedure
Steering Column Replacement (Mexico, N40) Steering Column Replacement (Canada, NJ1) Steering Column Replacement (United States, NJ1)

Intermediate Steering Shaft Upper Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
49 N.m (36 lb ft)

Intermediate Steering Shaft

Procedure

Place match marks on the intermediate steering shaft and the steering column shaft to aid in installation.
If replacing the steering column or intermediate steering shaft, copy the match marks from the OLD steering column to the NEW steering column.
Align the match marks when installing the intermediate steering shaft to the steering column shaft.
Program the power steering control module. Power Steering Control Module Programming and Setup
Center the steering angle sensor. Steering Angle Sensor Centering

NOTE:

If the intermediate steering shaft upper universal joint is difficult to separate, insert a wide blade flat screw driver and tap with a hammer to open up the slot as necessary.
