X21 Manual Service Disconnect Receptacle X2
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|

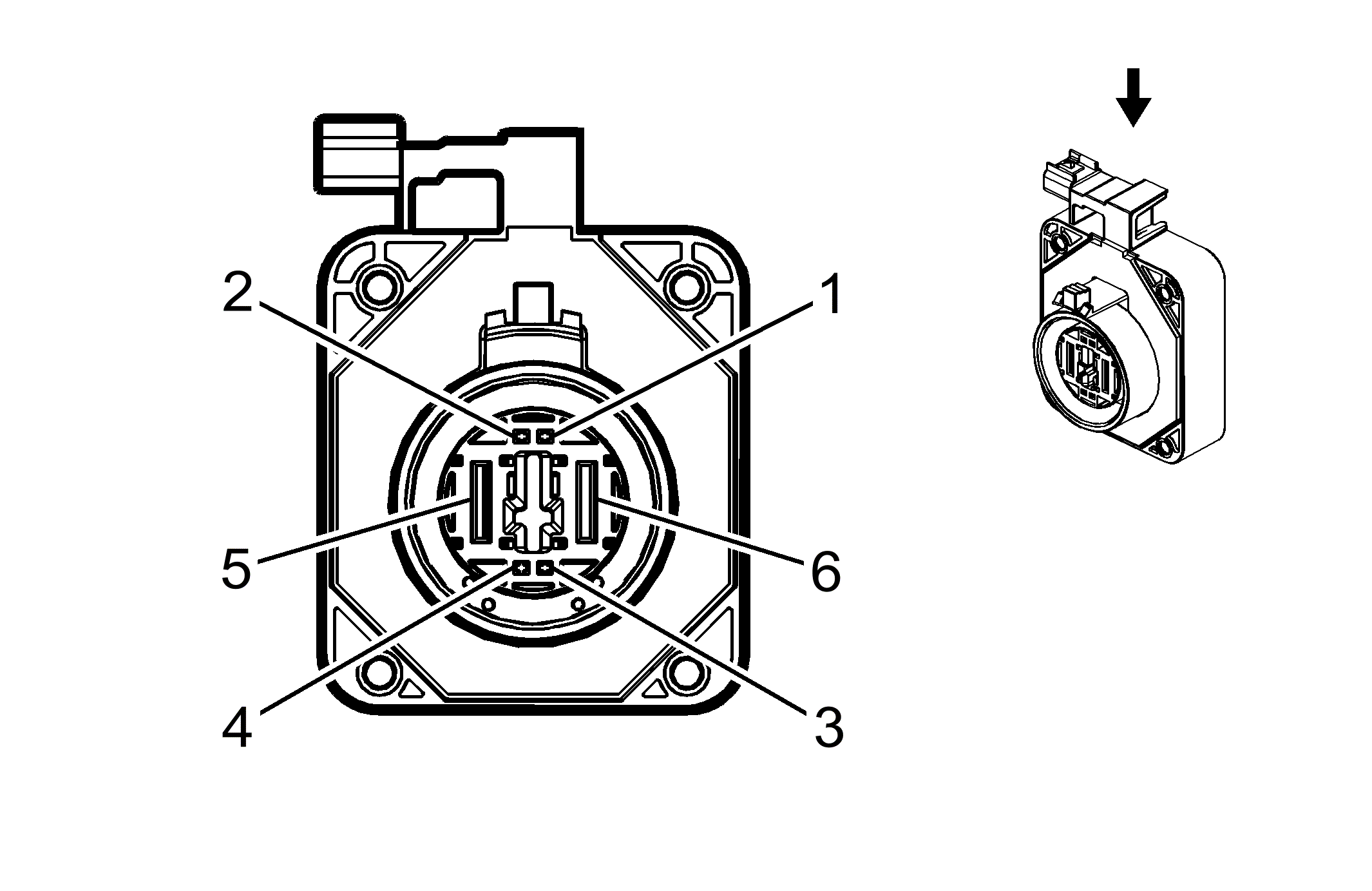

Connector Part Information
- Harness Type: Hybrid/EV Battery Pack High Voltage Manual Disconnect Lever
- OEM Connector: Not Available
- Service Connector: Service by Component Assembly - See Part Catalog
- Description: 6-Way F (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT |
5087 |
High Voltage Interlock Loop Signal (1) |
I |
- |
| 2 |
0.5 |
VT/WH |
5087 |
High Voltage Interlock Loop Signal (1) |
I |
- |
| 3 |
0.5 |
GY |
5595 |
High Voltage Interlock Loop Signal (2) |
I |
- |
| 4 |
0.5 |
GY/VT |
5595 |
High Voltage Interlock Loop Signal (2) |
I |
- |
| 5 |
35 |
BK/VT |
5403 |
300V - High Voltage |
I |
- |
| 6 |
35 |
BK/VT |
5403 |
300V - High Voltage |
I |
- |
