T6 Power Inverter Module X8
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|

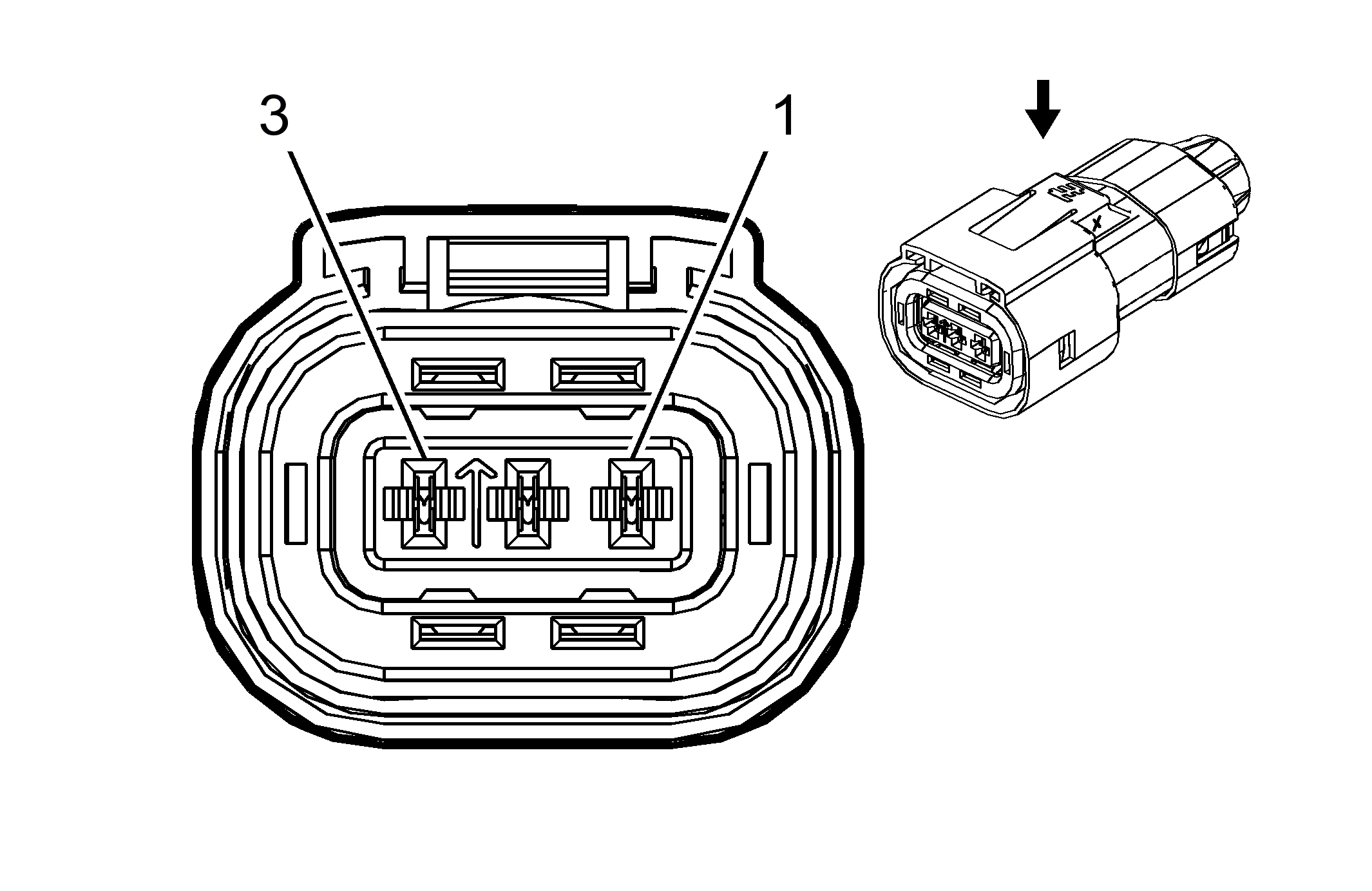

Connector Part Information
- Harness Type: Auxiliary Transmission Fluid Pump
- OEM Connector: Not Available
- Service Connector: Service by Component - See Part Catalog
- Description: 3-Way F (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
OG |
3770 |
Transmission Fluid Pump 300V W Phase |
I |
- |
| 2 |
2.5 |
OG |
3771 |
Transmission Fluid Pump 300V V Phase |
I |
- |
| 3 |
2.5 |
OG |
3772 |
Transmission Fluid Pump 300V U Phase |
I |
- |
