T6 Power Inverter Module X7
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 101428-S02
- Service Connector: Service by Cable Assembly - See Part Catalog

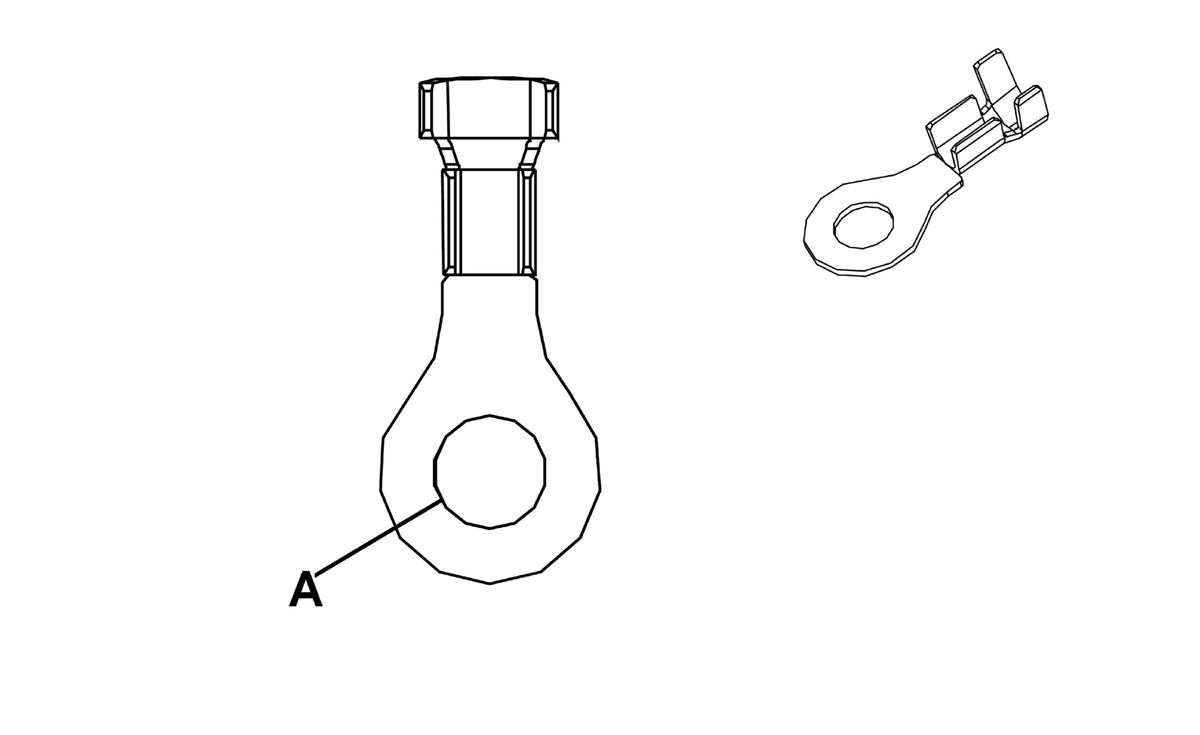

- Description: 1-Way Ring Terminal
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
1 |
BK/WH |
651 |
Signal Ground |
I |
- |
