T6 Power Inverter Module X3
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|

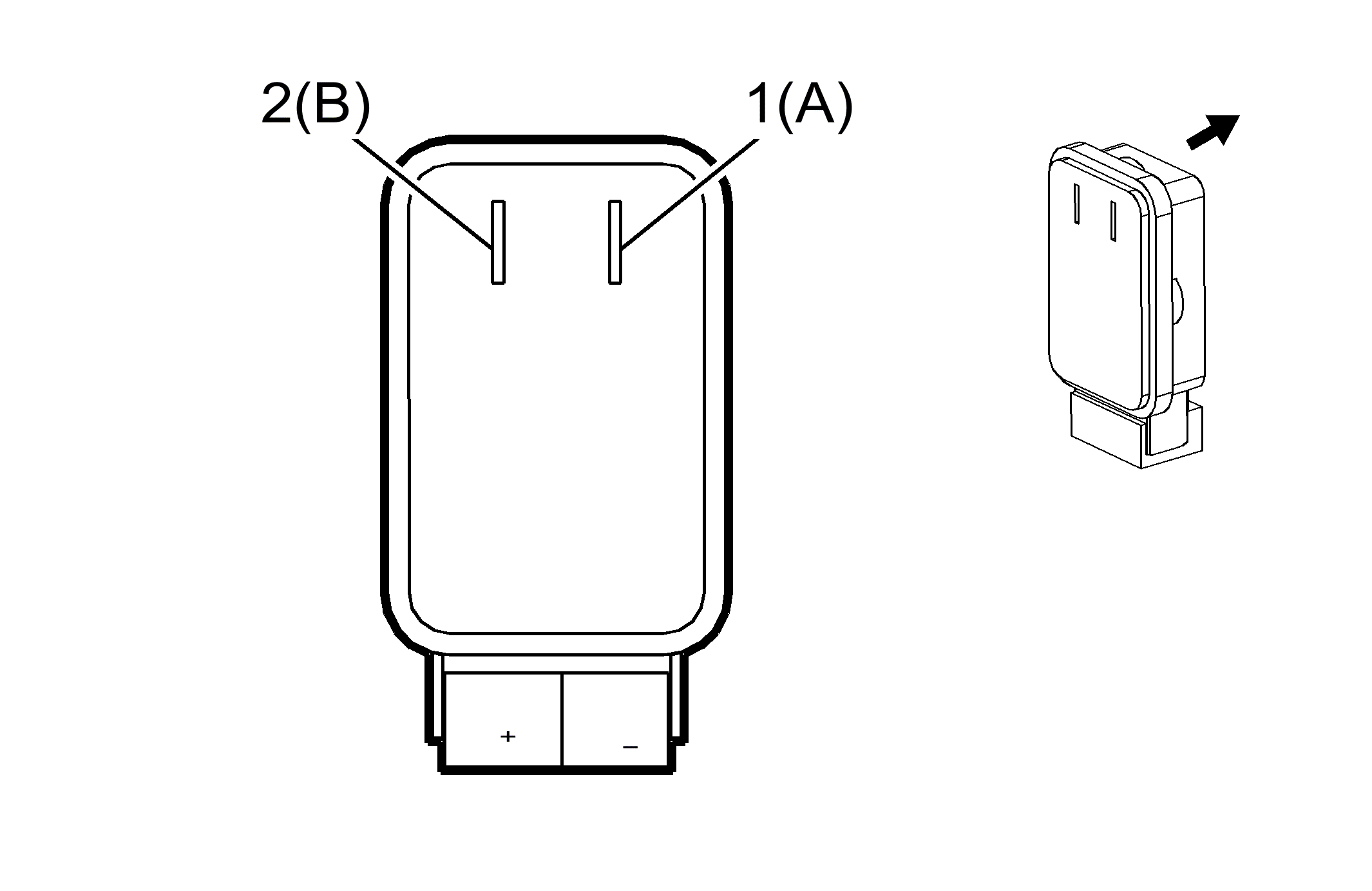

Connector Part Information
- Harness Type: Traction Power Inverter Module
- OEM Connector: 13505765
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F (Aluminum)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-35 (VT) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
35 |
OG |
5083 |
High Voltage Battery (-) |
I |
- |
| 2 |
35 |
OG |
5084 |
High Voltage Battery (+) |
I |
- |
