T6 Power Inverter Module X1

WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

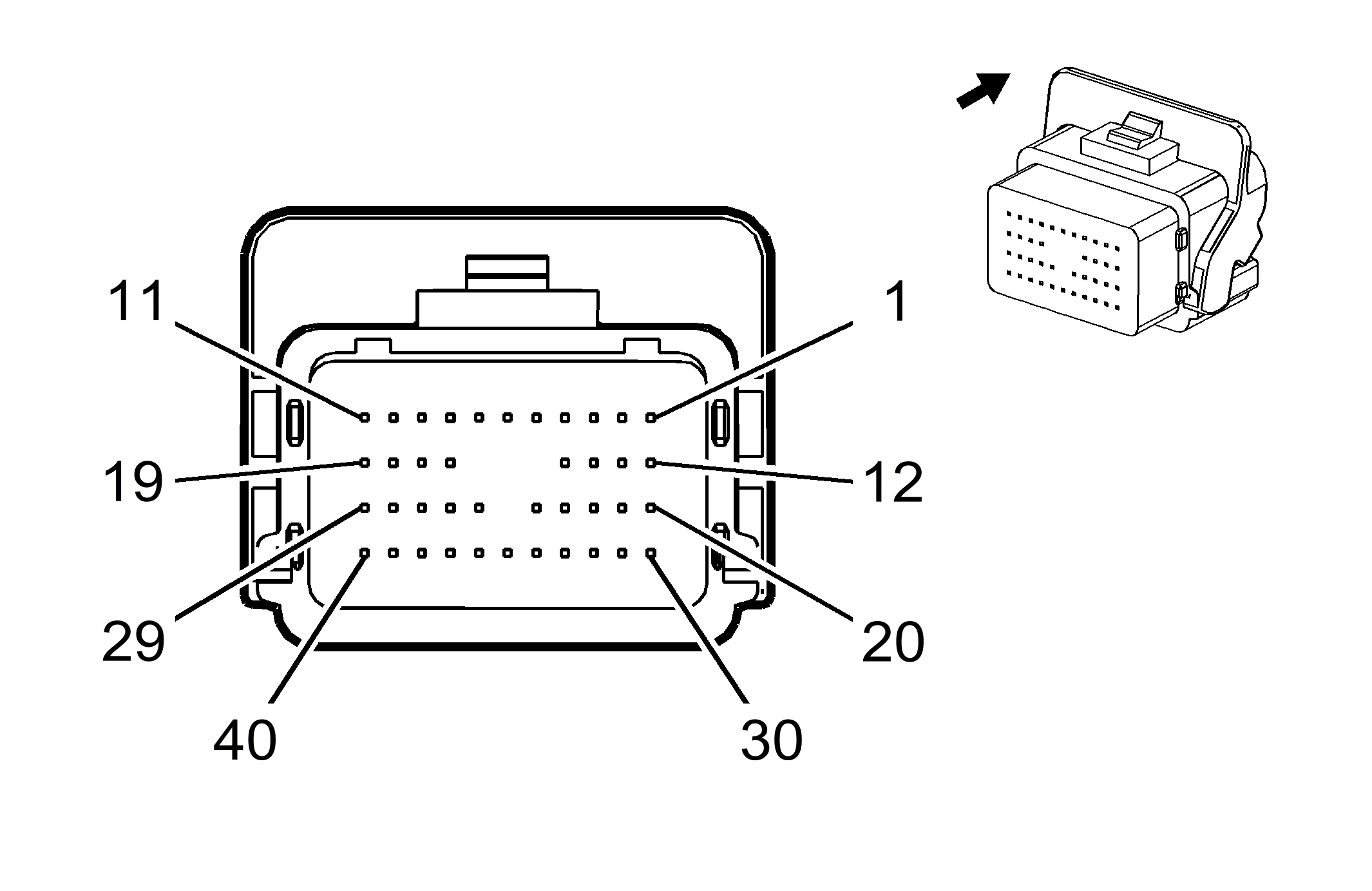

GM2474745
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: HPSPB-C40C31-BH
  • Service Connector: 19330330
  • Description: 40-Way F 0.64 Series, Sealed (GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 13505805 J-35616-64B (LT BU) J-38125-215A Not Available Not Available Not Available Not Available
II 13575865 J-35616-64B (LT BU) J-38125-215A SAIT-A03GF-M064 27 P P
III 19303558 J-35616-64B (L-BU) J-38125-215A SAIT-A03GF-M064 27 Not Available Not Available
IV 13575864 J-35616-64B (L-BU) J-38125-215A SAIT-A03GF-M064 27 P P
Pin Size Color Circuit Function Terminal Type ID Option
1 0.75 GY 3487 Traction Power Inverter Module Resolver #2 S3 Signal I -
2 0.75 L-GN 3491 Traction Power Inverter Module Resolver #2 S2 Signal I -
3 0.75 L-BU 3486 Traction Power Inverter Module Resolver #2 Excitation Signal Positive I -
4 0.5 WH 6106 High Speed GMLAN Serial Data (-) (2) II -
5 0.5 WH 6106 High Speed GMLAN Serial Data (-) (2) II -
6 0.5 WH 6106 High Speed GMLAN Serial Data (-) (2) II -
7 0.5 L-BU/YE 6105 High Speed GMLAN Serial Data (+) (2) II -
8 0.5 WH 7494 High Speed GMLAN Serial Data (-) (3) II -
9 0.5 L-BU/BK 7493 High Speed GMLAN Serial Data (+) (3) II -
10 0.5 WH 2501 High Speed GMLAN Serial Data (-) (1) II -
11 0.5 L-BU 2500 High Speed GMLAN Serial Data (+) (1) II -
12 0.75 L-BU/YE 3488 Traction Power Inverter Module Resolver #2 S1 Signal I -
13 0.75 BN/YE 3492 Traction Power Inverter Module Resolver #2 S4 Signal I -
14 0.75 WH/L-GN 3485 Transmission Traction Power Inverter Module Resolver #2 Excitation Signal Negative I -
15 0.5 L-BU/YE 6105 High Speed GMLAN Serial Data (+) (2) II -
16 0.5 WH 7494 High Speed GMLAN Serial Data (-) (3) II -
17 0.5 L-BU/BK 7493 High Speed GMLAN Serial Data (+) (3) II -
18 0.5 WH 2501 High Speed GMLAN Serial Data (-) (1) II -
19 0.5 L-BU 2500 High Speed GMLAN Serial Data (+) (1) II -
20 20 BN 7652 Traction Power Inverter Module Resolver #1 S3 Signal III -
21 20 VT/L-GN 7647 Transmission Traction Power Inverter Module Resolver #1 S2 Signal IV -
22 0.5 L-BU 7645 Traction Power Inverter Module Resolver #1 Excitation Signal Positive II -
23 - - - Not Occupied - -
24 0.5 RD/VT 1940 Battery Positive Voltage II -
25 0.5 L-BU/YE 6105 High Speed GMLAN Serial Data (+) (2) II -
26-29 - - - Not Occupied - -
30 20 YE 7649 Traction Power Inverter Module Resolver #1 S1 Signal IV -
31 20 GY 7646 Transmission Traction Power Inverter Module Resolver #1 S4 Signal IV -
32 0.5 WH/L-GN 7648 Traction Power Inverter Module Traction Power Inverter Module Resolver #1 Excitation Signal Negative II -
33 0.75 BN/WH 3489 Traction Power Inverter Module Motor #2 Temp Signal I -
34 0.75 BN 3490 Traction Power Inverter Module Motor #2 Temp Sensor Return I -
35 0.75 WH/L-BU 7653 Traction Power Inverter Motor #1 Temperature Sensor Signal I -
36 0.75 L-GN 7654 Traction Power Inverter Motor #1 Temperature Sensor Return I -
37-40 - - - Not Occupied - -
