Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

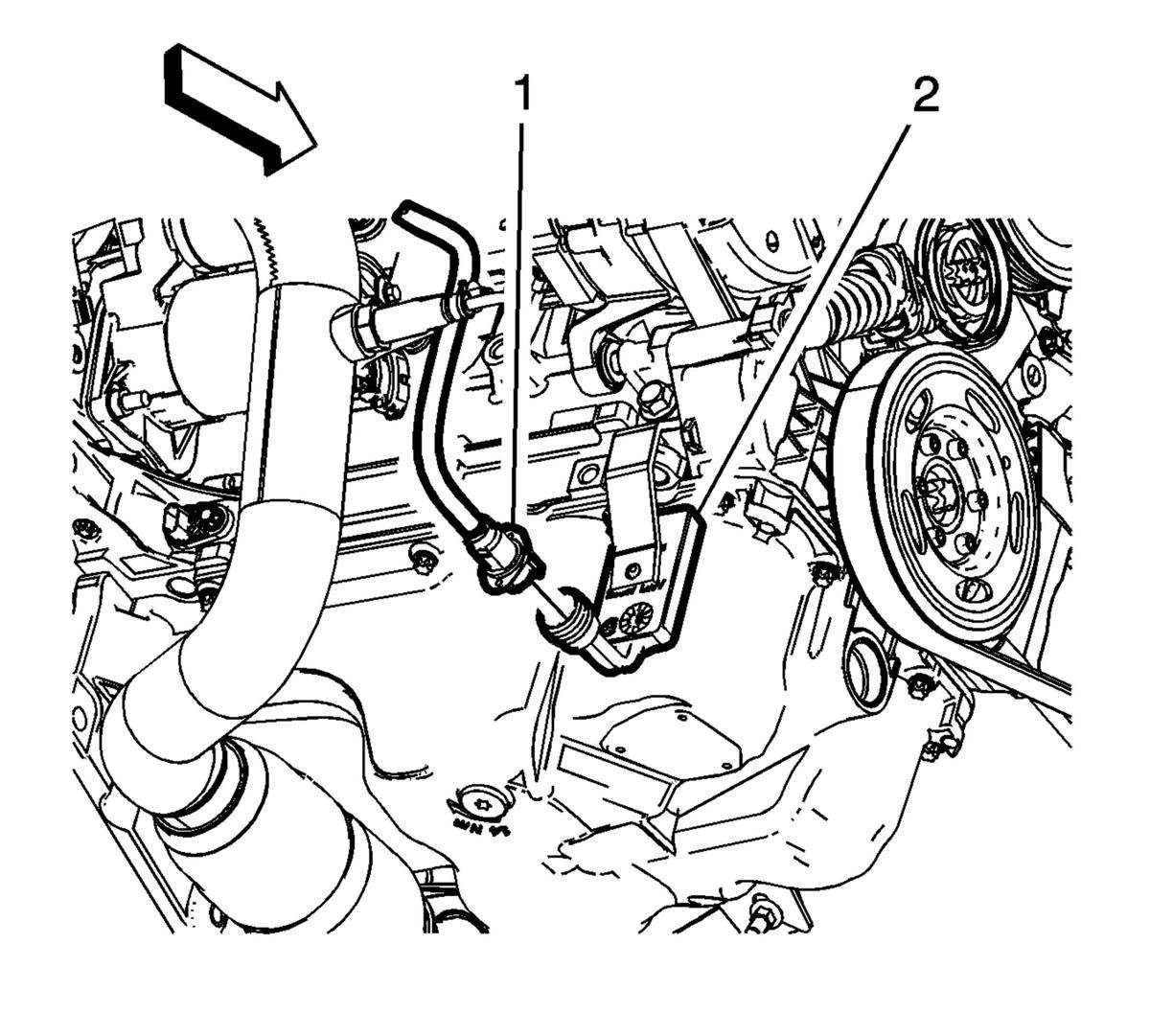

    Fig 1: Oil Pan Heater
    GM2885114Courtesy of GENERAL MOTORS COMPANY
  1. Install the connector (1) to the oil pan heater (2), if equipped.

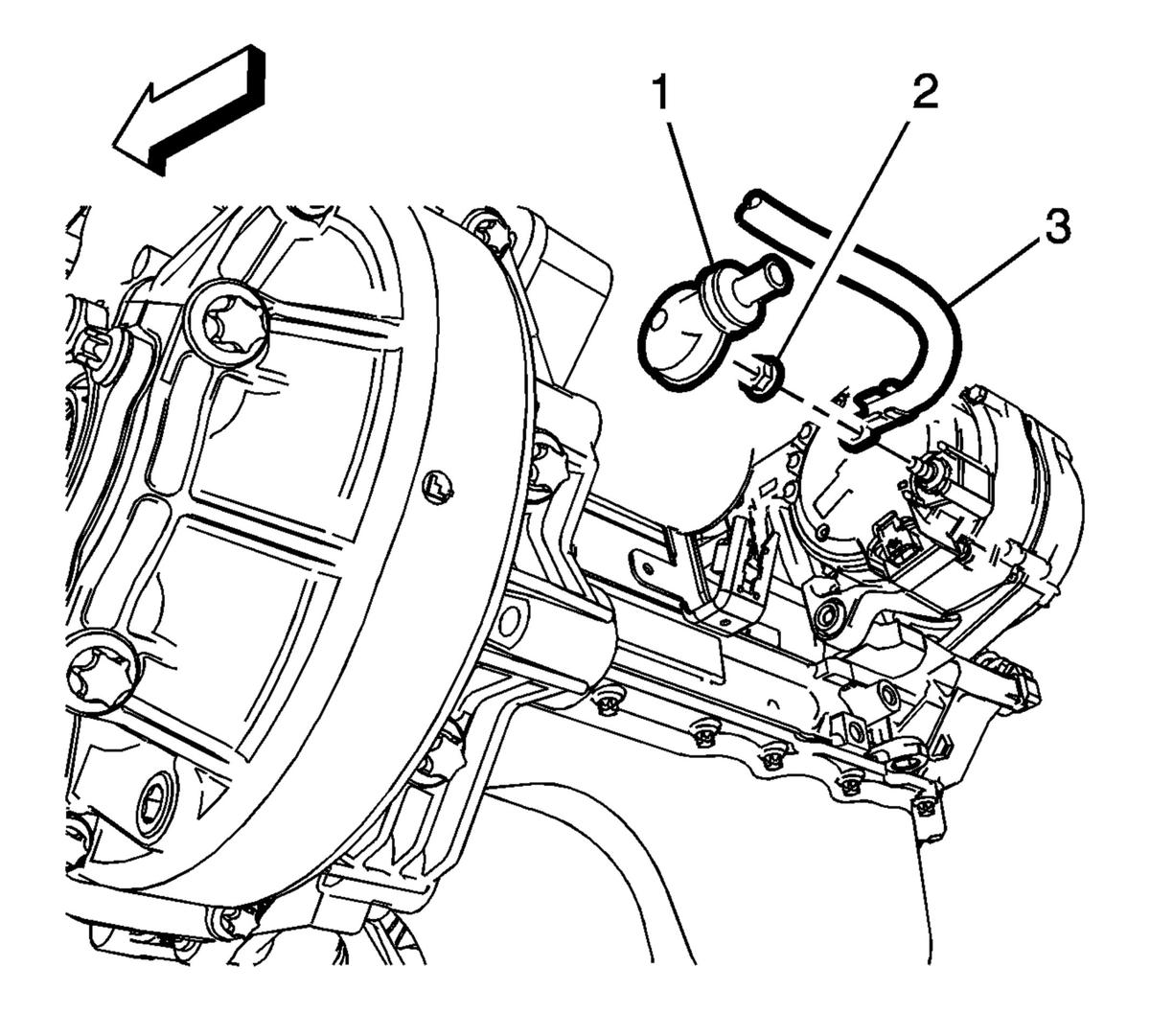

    2. Fig 2: Generator Protective Cover
    GM2775262Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the battery positive cable (3) to the generator and tighten the fastener (2) to 17 N.m (13 lb ft).
  3. Install the protective cover (1).

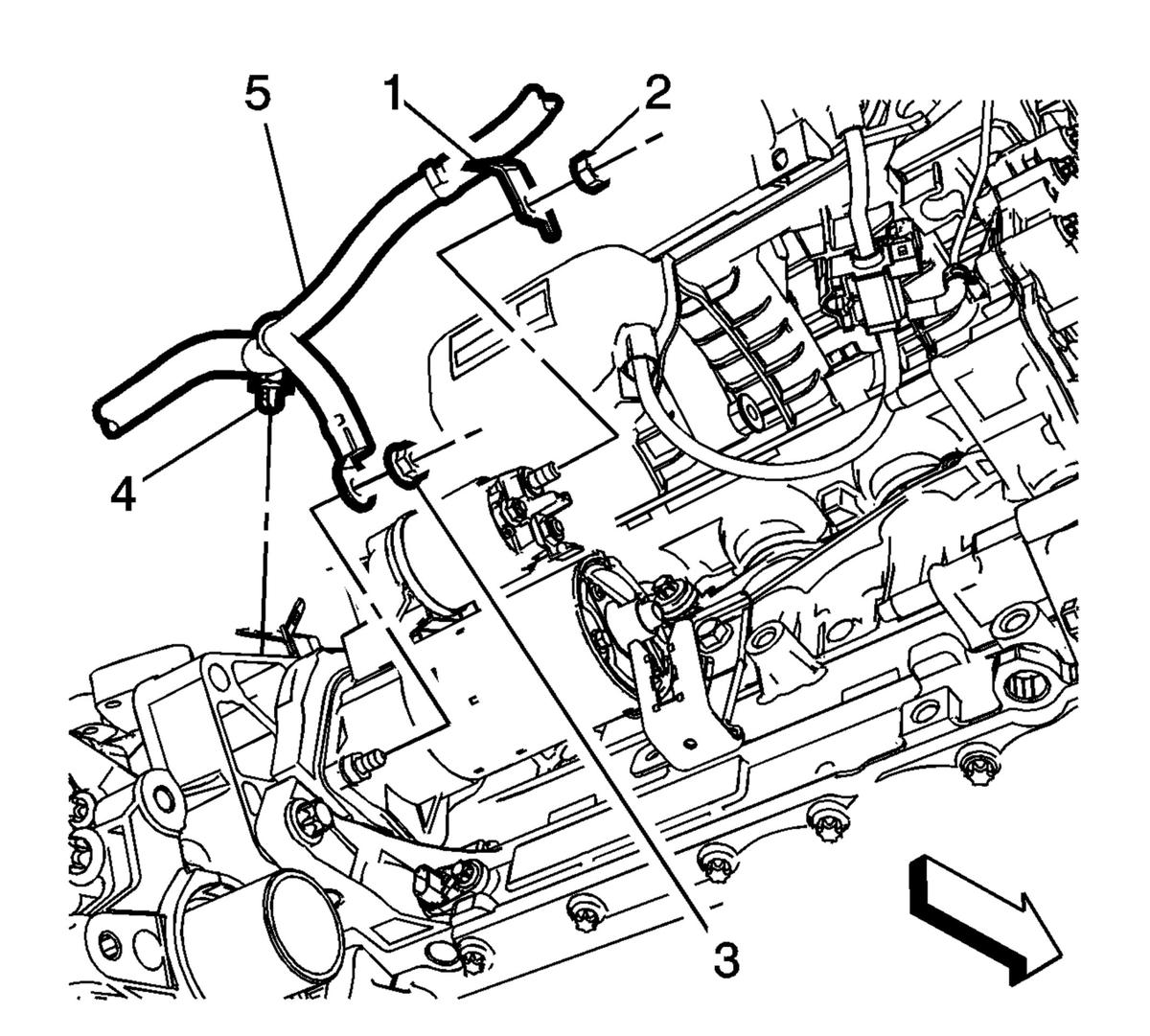

    4. Fig 3: Battery Positive Cable And Starter Solenoid
    GM2775170Courtesy of GENERAL MOTORS COMPANY
  4. Install the battery positive cable terminal (1) to the starter solenoid and tighten the fastener (2) to 13 N.m (115 lb in).
  5. Install the battery negative cable (5) to the starter mounting stud and tighten the fastener (3) to 13 N.m (115 lb in).
  6. Install the battery positive and negative cable retainer (4) to the transmission bracket.
  7. Install the transfer case, if equipped. Refer to Transfer Case Replacement .
  8. Install the drivetrain and front suspension frame transmission protector. Refer to Drivetrain and Front Suspension Frame Transmission Protector Replacement .

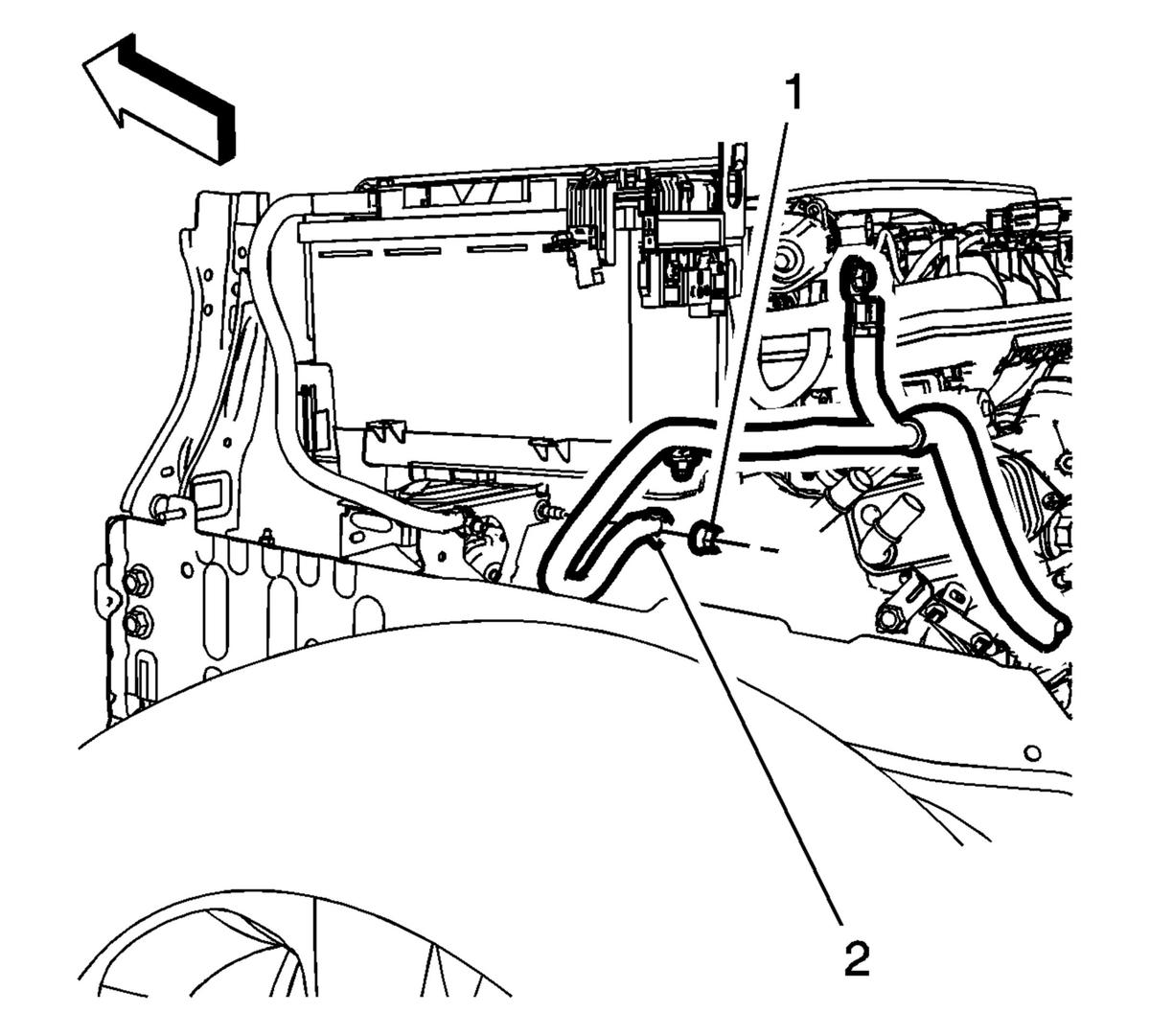

    9. Fig 4: Negative Battery Cable
    GM2774808Courtesy of GENERAL MOTORS COMPANY
  9. Install the battery negative cable (2) to the frame rail stud and tighten the fastener (1) to 9 N.m (80 lb in).
  10. Install the battery tray. Refer to Battery Tray Replacement .

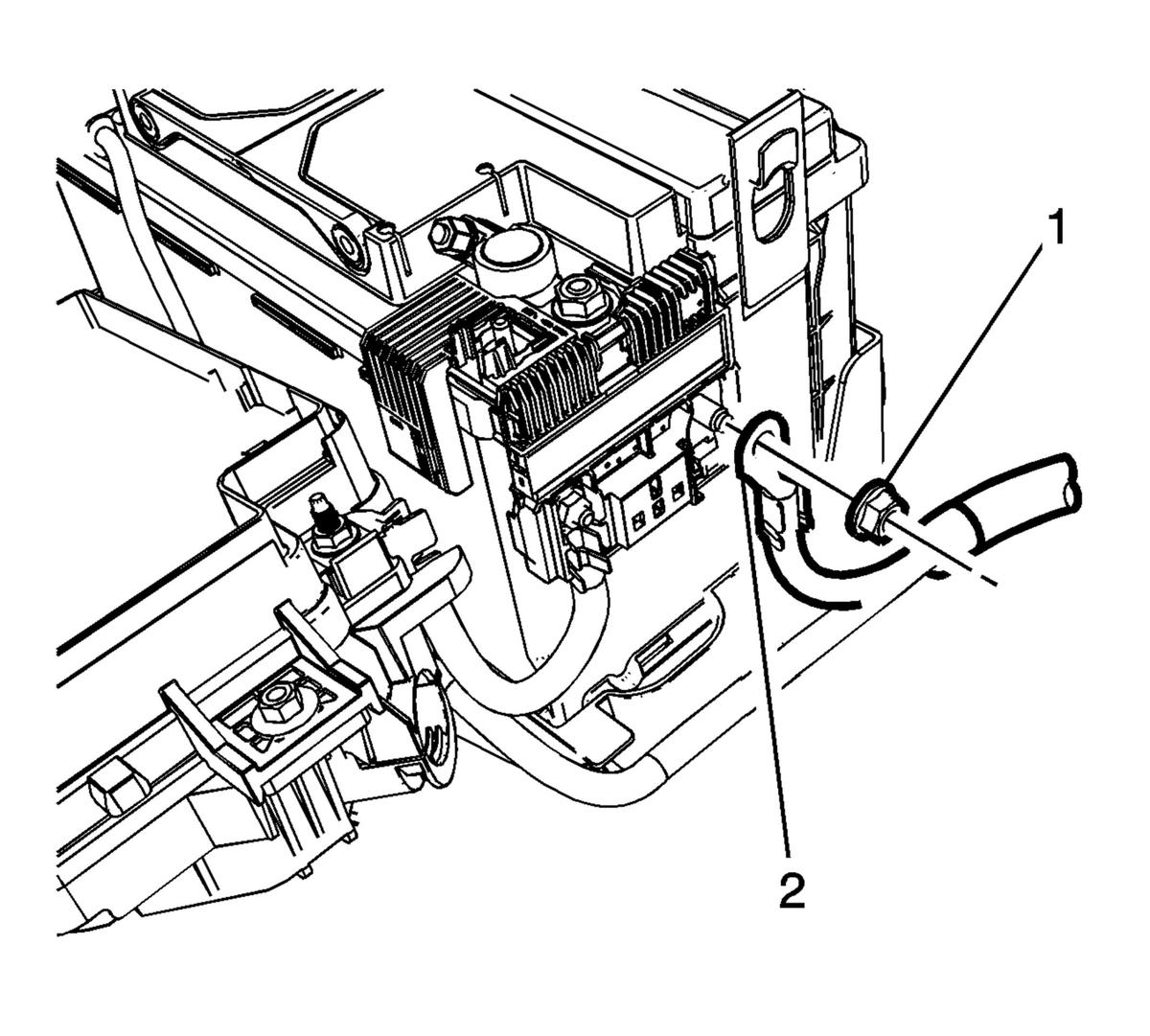

    11. Fig 5: Positive Battery Cable And Fastener
    GM2552159Courtesy of GENERAL MOTORS COMPANY
  11. Install the battery positive cable (2) to the battery fuse block and tighten the fastener (1) to 12 N.m (106 lb in).
  12. Install the transfer case, if equipped. Refer to Transfer Case Replacement .

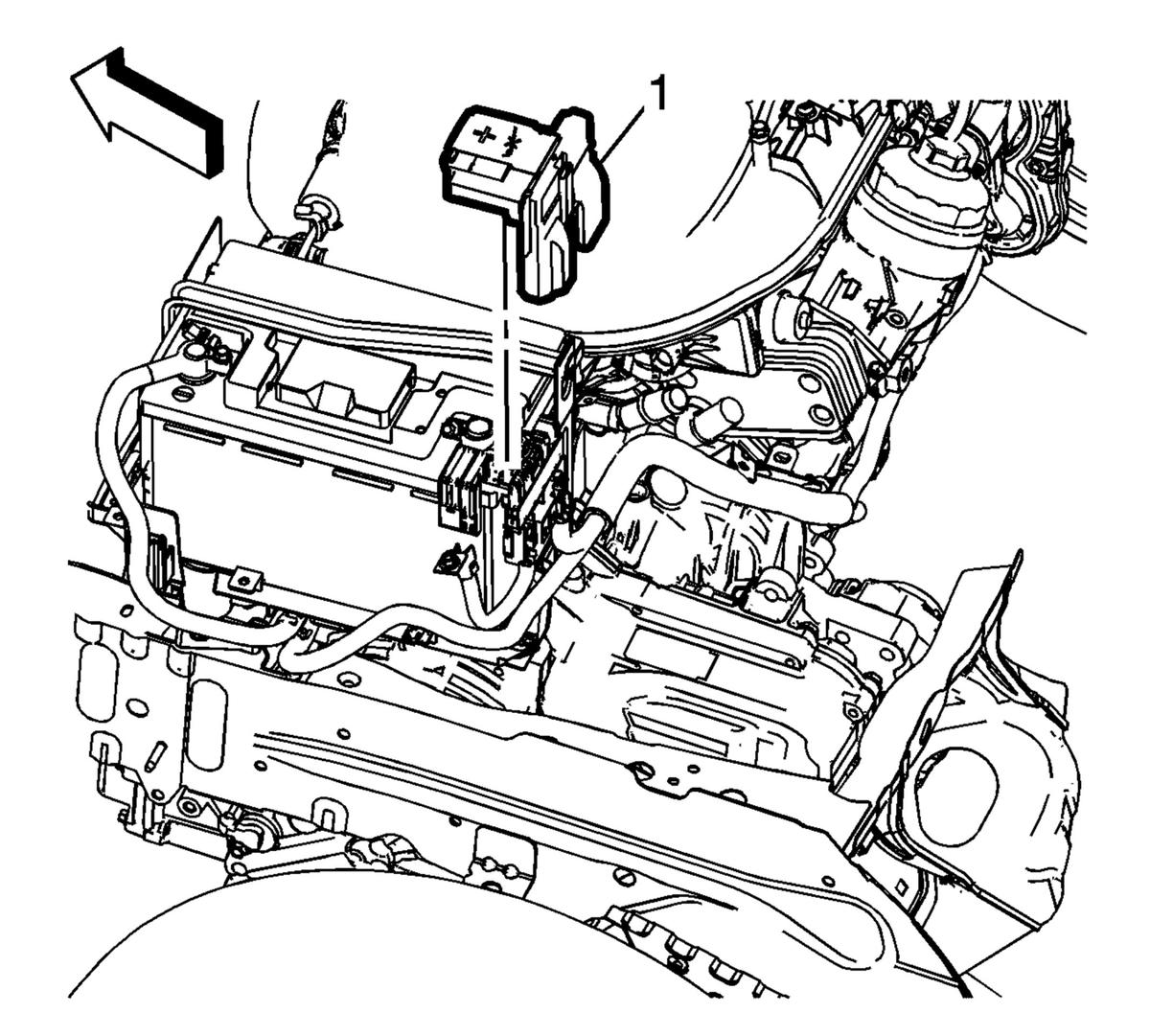

    13. Fig 6: Battery Fuse Block Cover
    GM2774807Courtesy of GENERAL MOTORS COMPANY
  13. Install the battery fuse block cover (1) and install the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
