Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

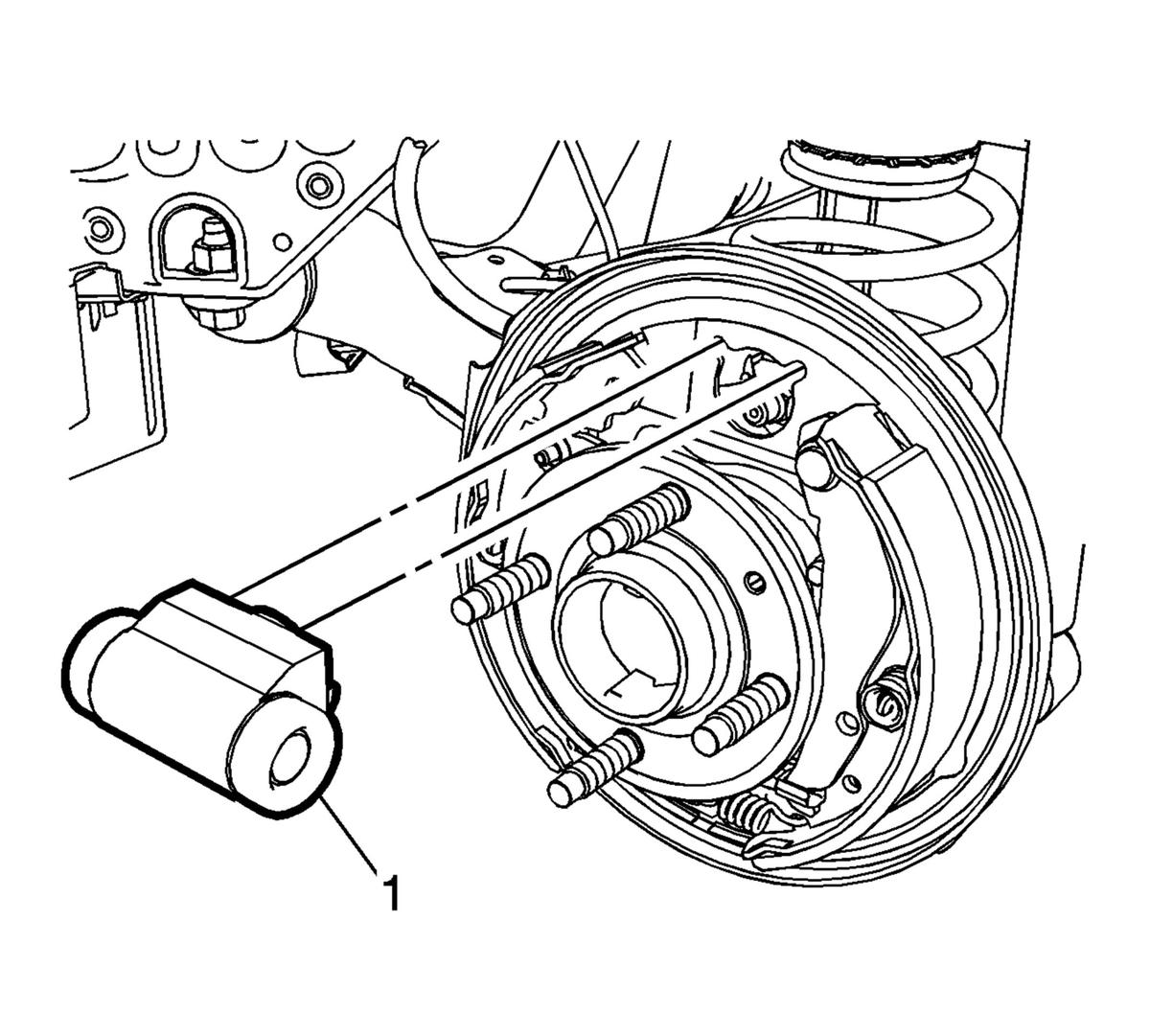

    Fig 1: Rear Brake Cylinder
    GM2507688Courtesy of GENERAL MOTORS COMPANY
  1. Spread the top of the brake shoes slightly and install the rear brake cylinder (1).

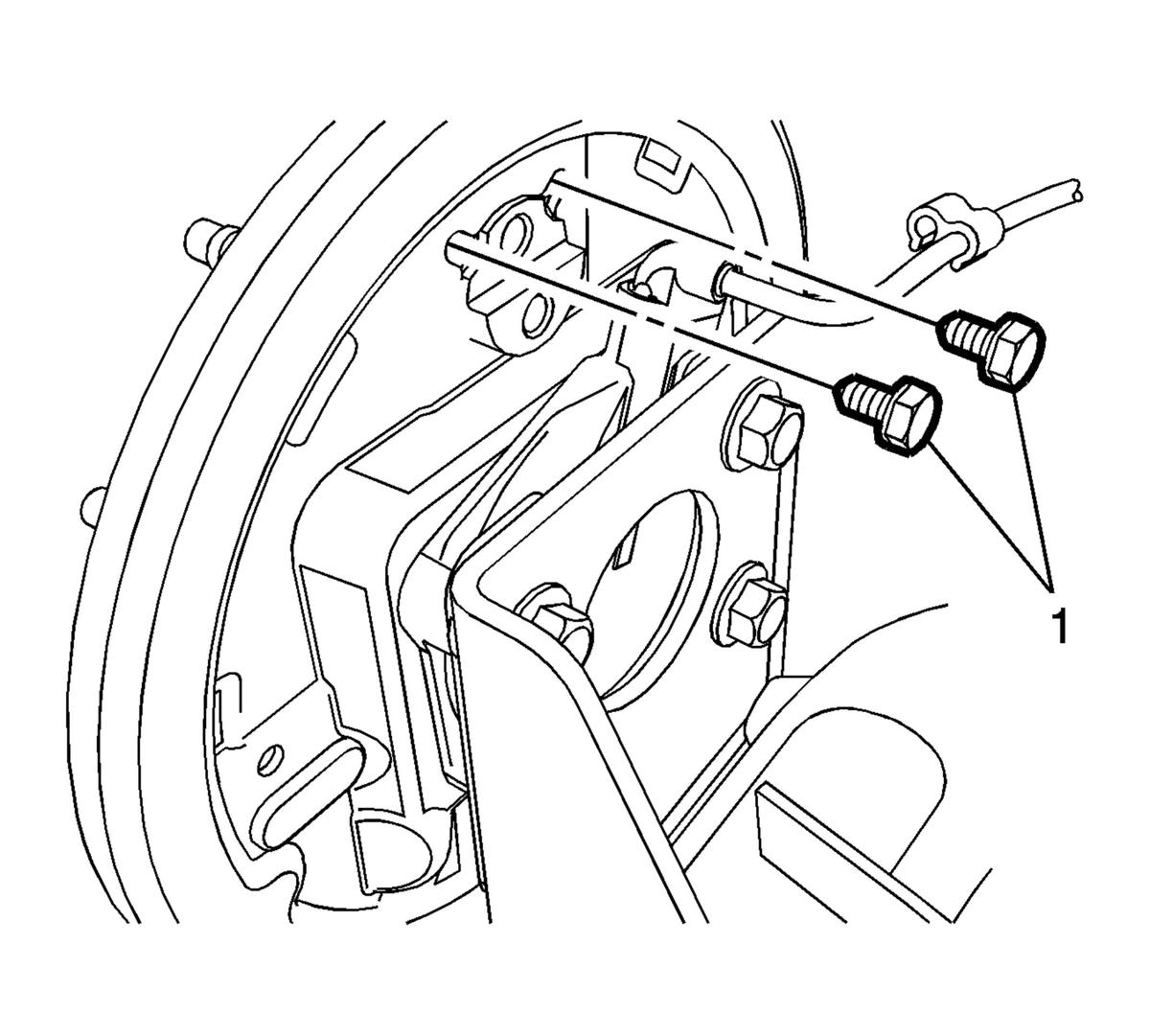

    2. Fig 2: Rear Brake Cylinder Bolts
    GM2507686Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the rear brake cylinder bolts (1) and tighten to 10 N.m (89 lb in).

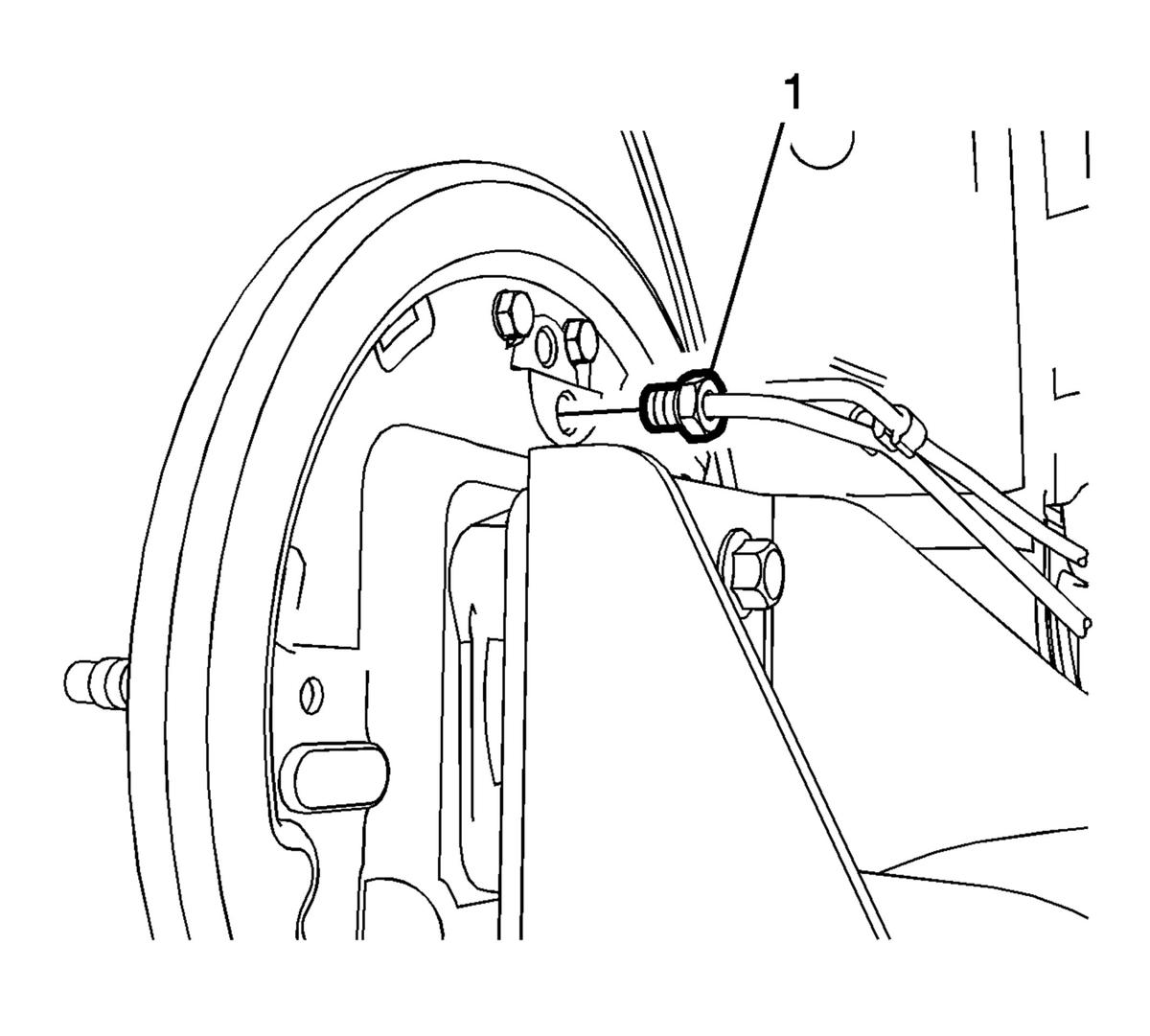

    3. Fig 3: Brake Pipe Fitting
    GM2507684Courtesy of GENERAL MOTORS COMPANY
  3. Connect the brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).
  4. Install the drum brake adjusting hardware. Refer to Drum Brake Adjusting Hardware Replacement .
  5. Adjust the drum brakes. Refer to Drum Brake Adjustment .
  6. Install the brake drum. Refer to Brake Drum Replacement .
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  8. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual)Hydraulic Brake System Bleeding (Pressure) .
