Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the CH-42450-A  wheel hub resurfacing kit to clean the wheel hub flange of any corrosion.
  2. Adjust the drum brakes. Refer to Drum Brake Adjustment .

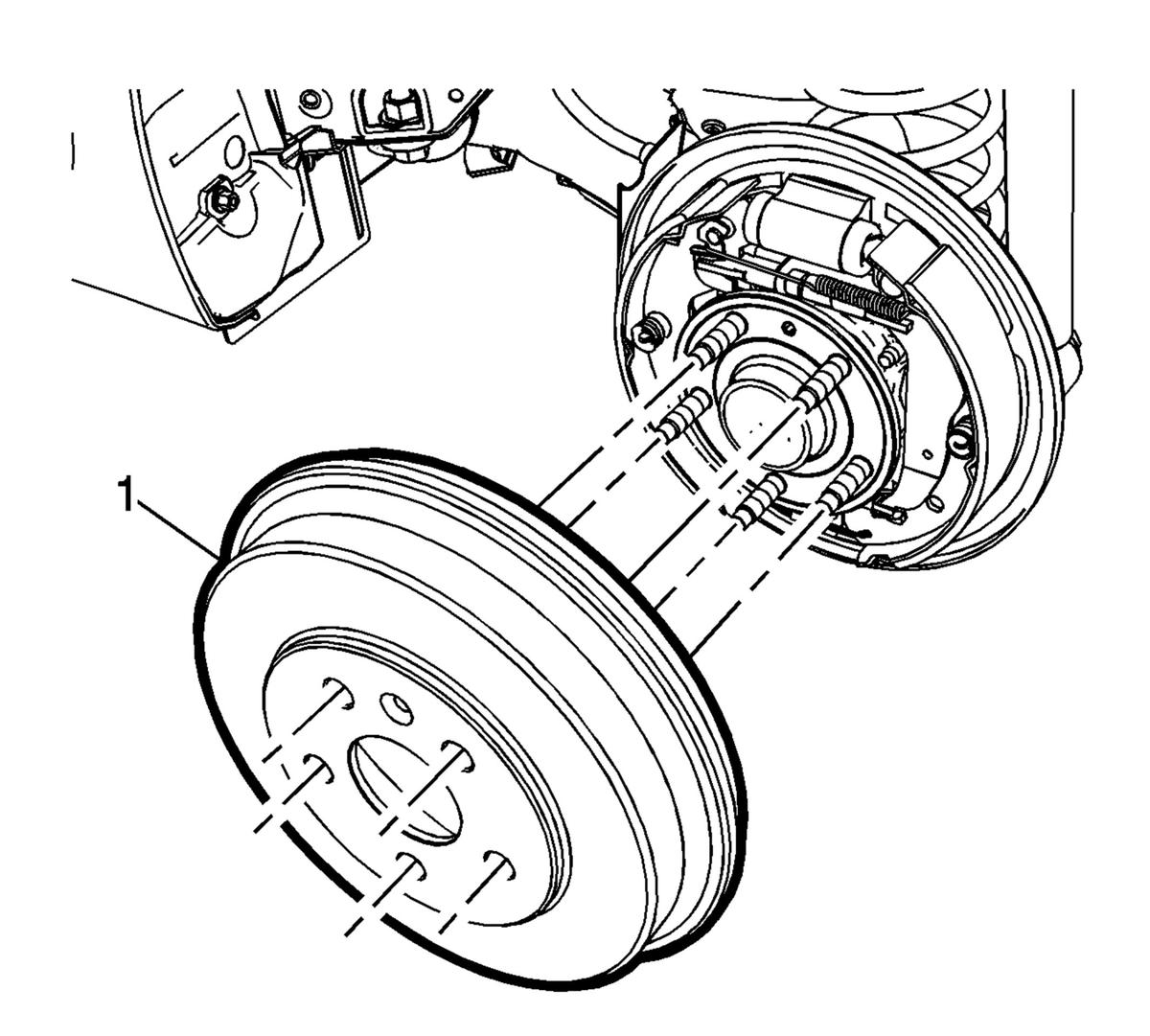

    3. Fig 1: Brake Drum
    GM2511176Courtesy of GENERAL MOTORS COMPANY
  3. Install the brake drum (1).

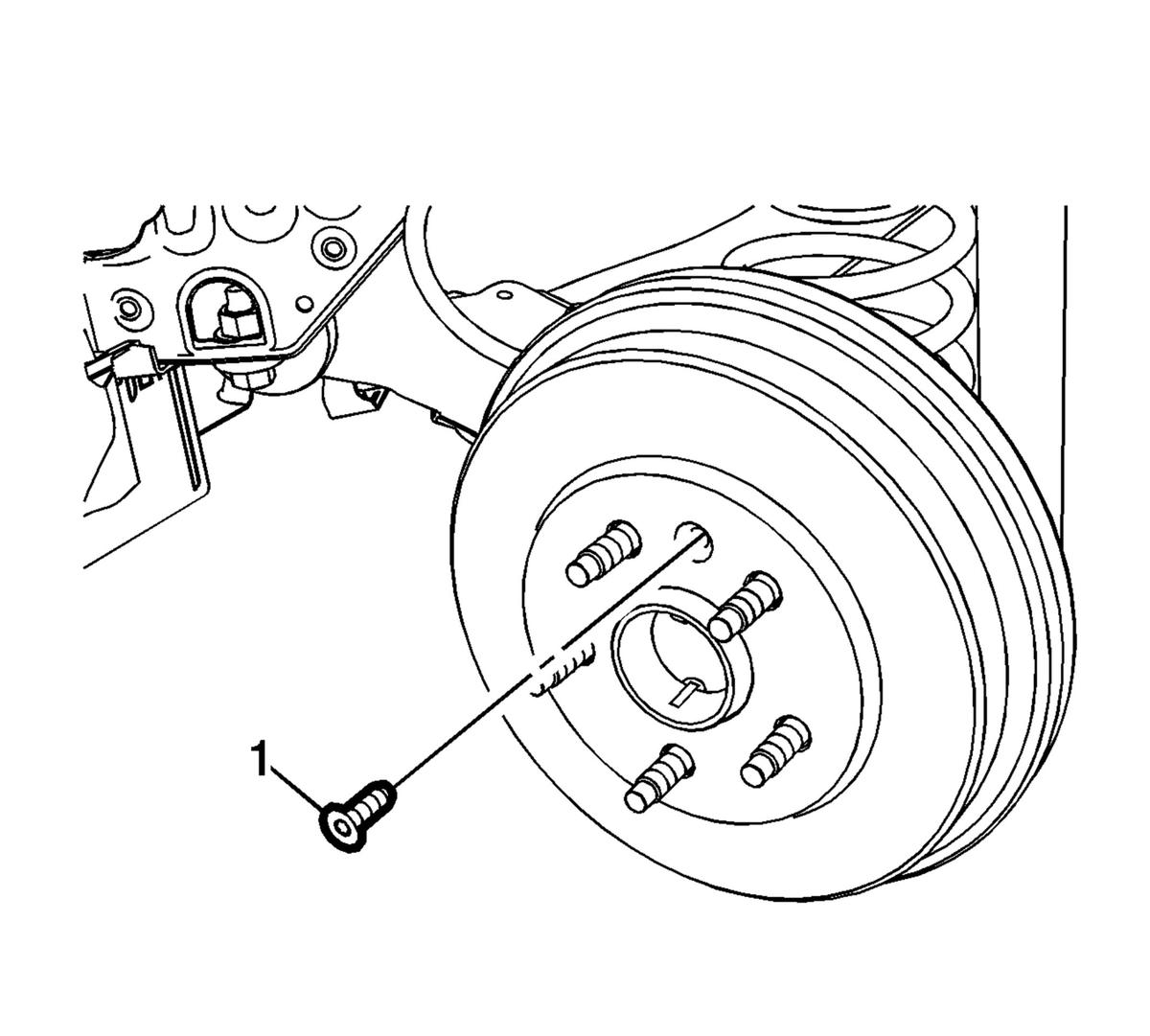

    4. Fig 2: Brake Drum Bolt
    GM2511170Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install the brake drum screw (1) and tighten to 9 N.m (80 lb in).
  5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  6. Apply the brakes 2 or 3 times to seat and center the brake shoes on the brake drum.
