Drum Brake Adjusting Hardware Inspection
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

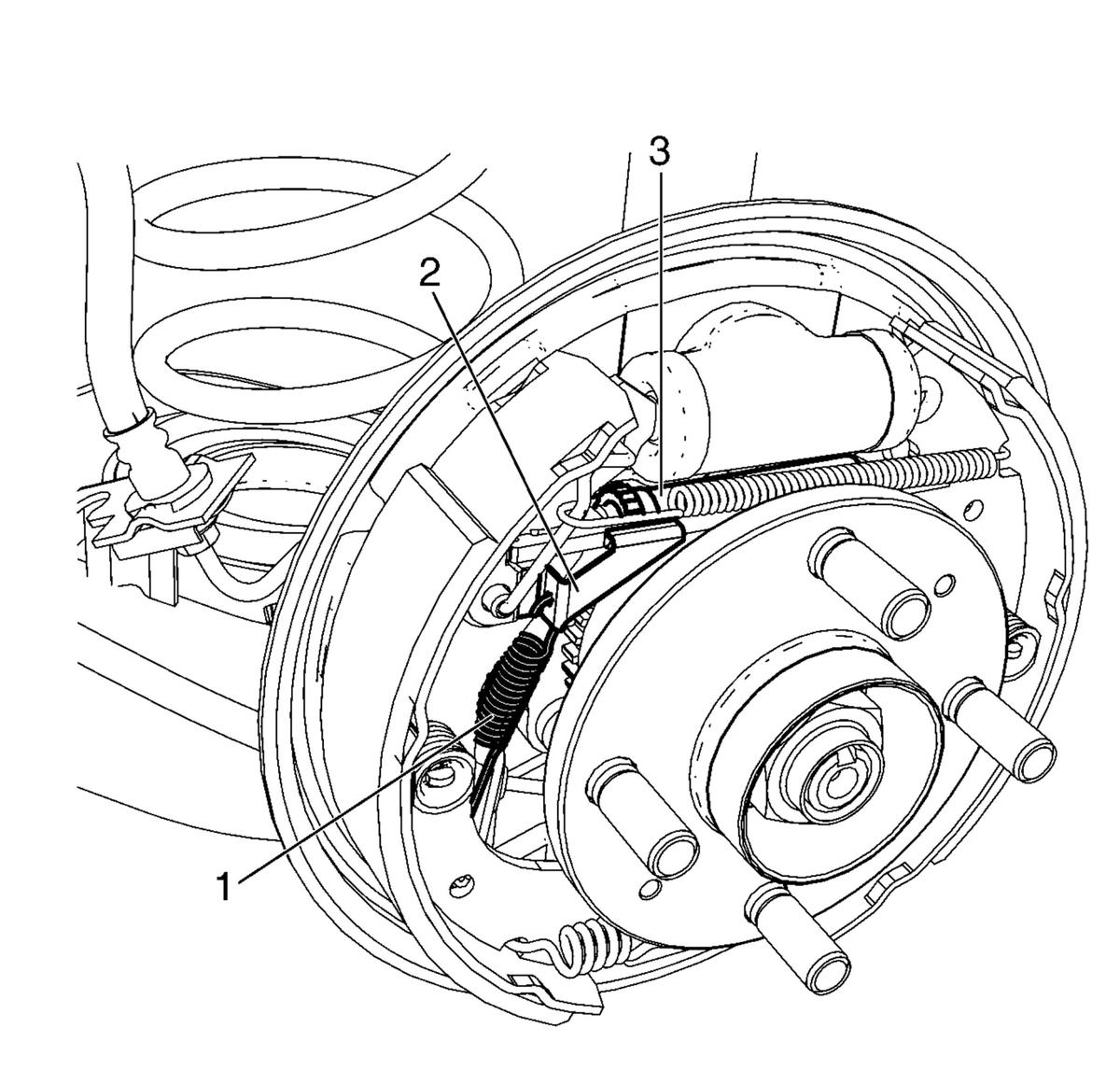

- Visually inspect the adjuster actuator spring (1) for the following conditions:
- Excessive stretching
- Excessive bending
- Excessive corrosion
- Broken
- Missing
- If any of the conditions listed were found, the adjuster actuator spring requires replacement.
- Visually inspect the adjuster actuator lever (2) for the following conditions:
- Bent
- Broken
- The lever engagement surface excessively worn
- Excessively bent or broken spring attachment tab
- Missing
- If any of the conditions listed were found, the adjuster actuator lever requires replacement.
- Visually inspect the adjuster assembly (3) for the following conditions:
- Bent
- Broken
- Seized adjuster wheel threads
- Excessively worn, damaged, or missing teeth
- If any of the conditions listed were found, the adjuster assembly requires replacement.
WARNING:
Refer to Brake Dust Warning .
