Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

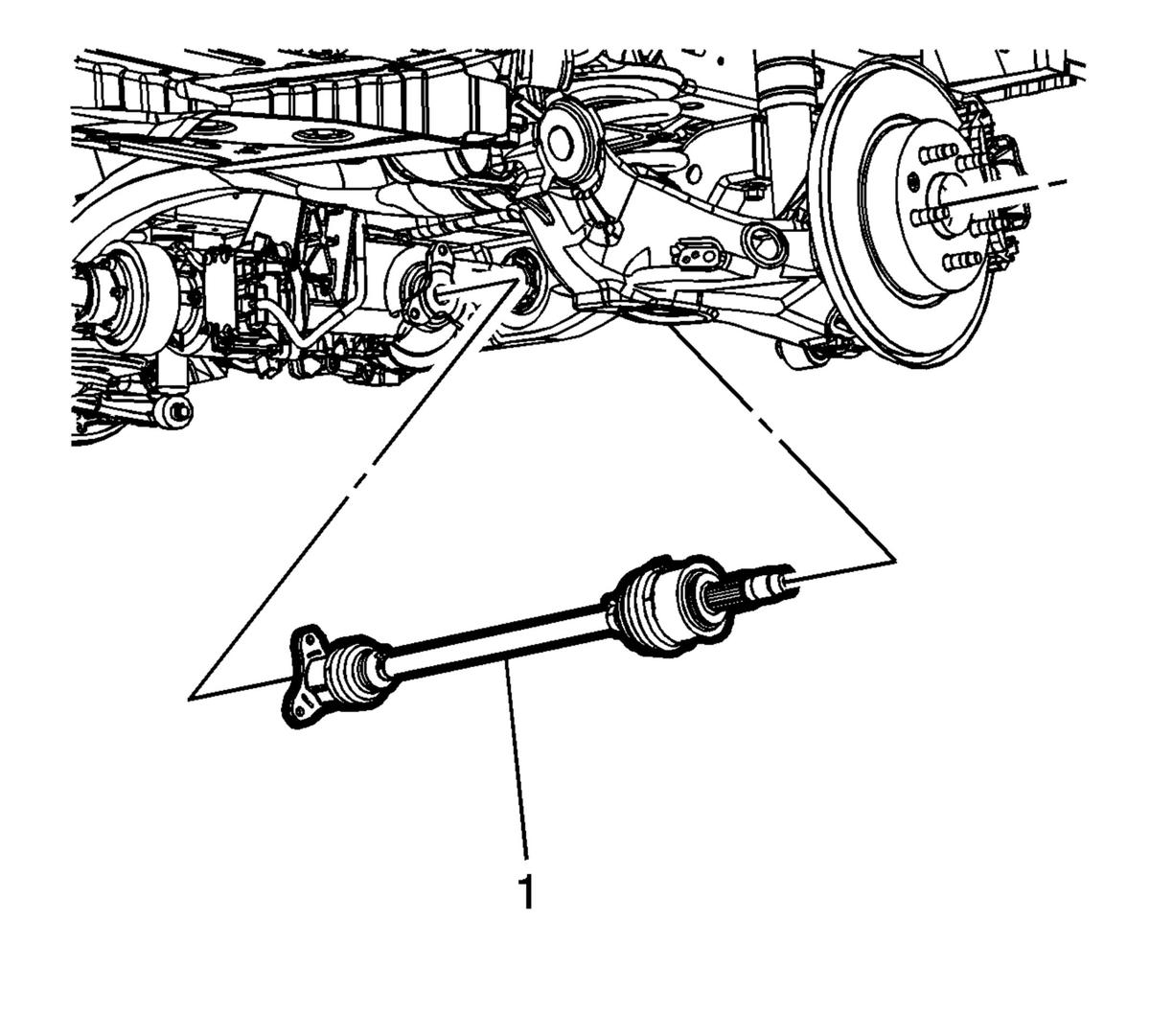

Fig 1: Wheel Drive Shaft

Courtesy of GENERAL MOTORS COMPANY

Position the wheel drive shaft (1) in the vehicle.

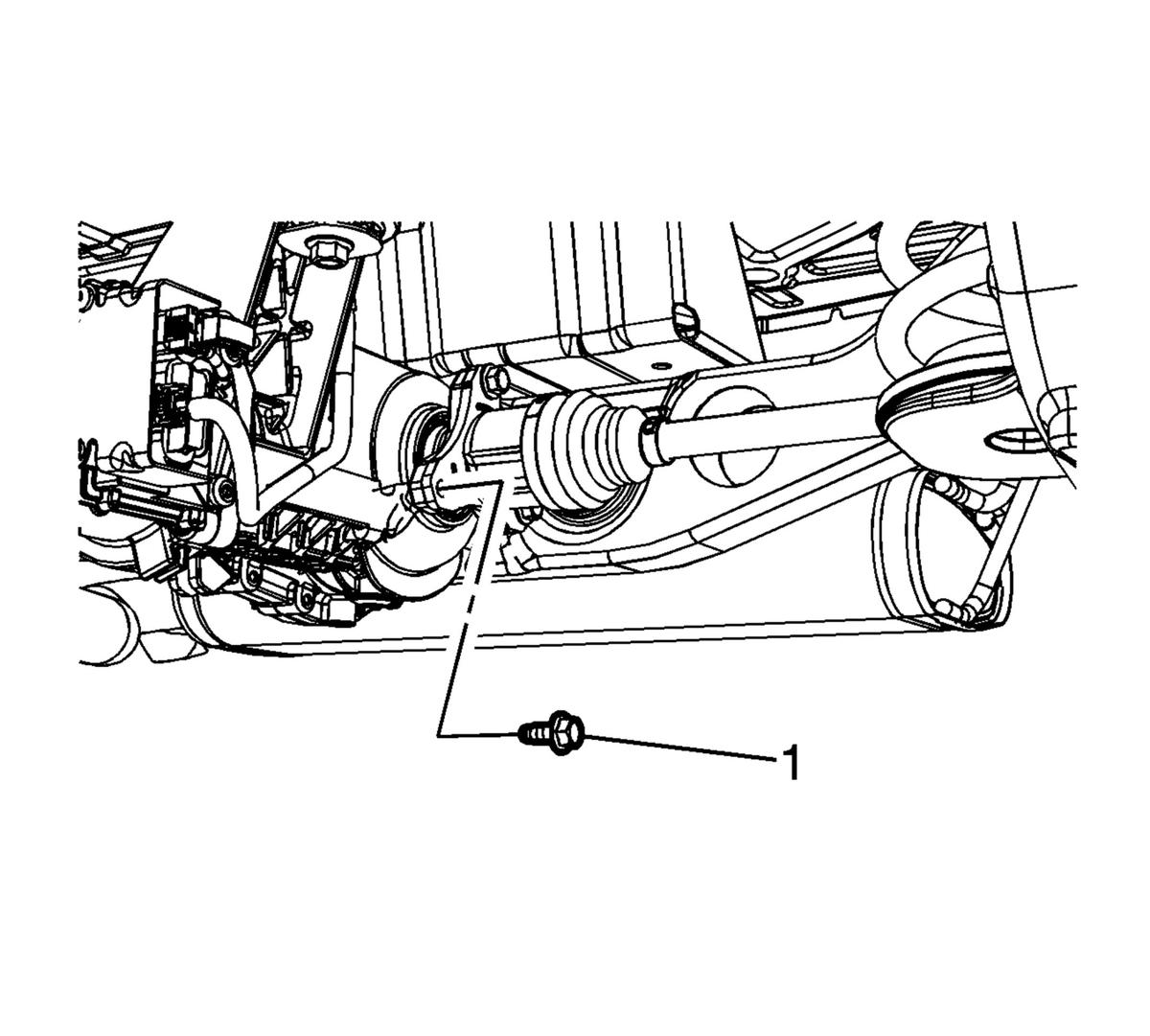

Fig 2: Wheel Drive Shaft Bolts

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install and tighten the 3 wheel drive shaft bolts (1) to 58 N.m (43 lb ft)

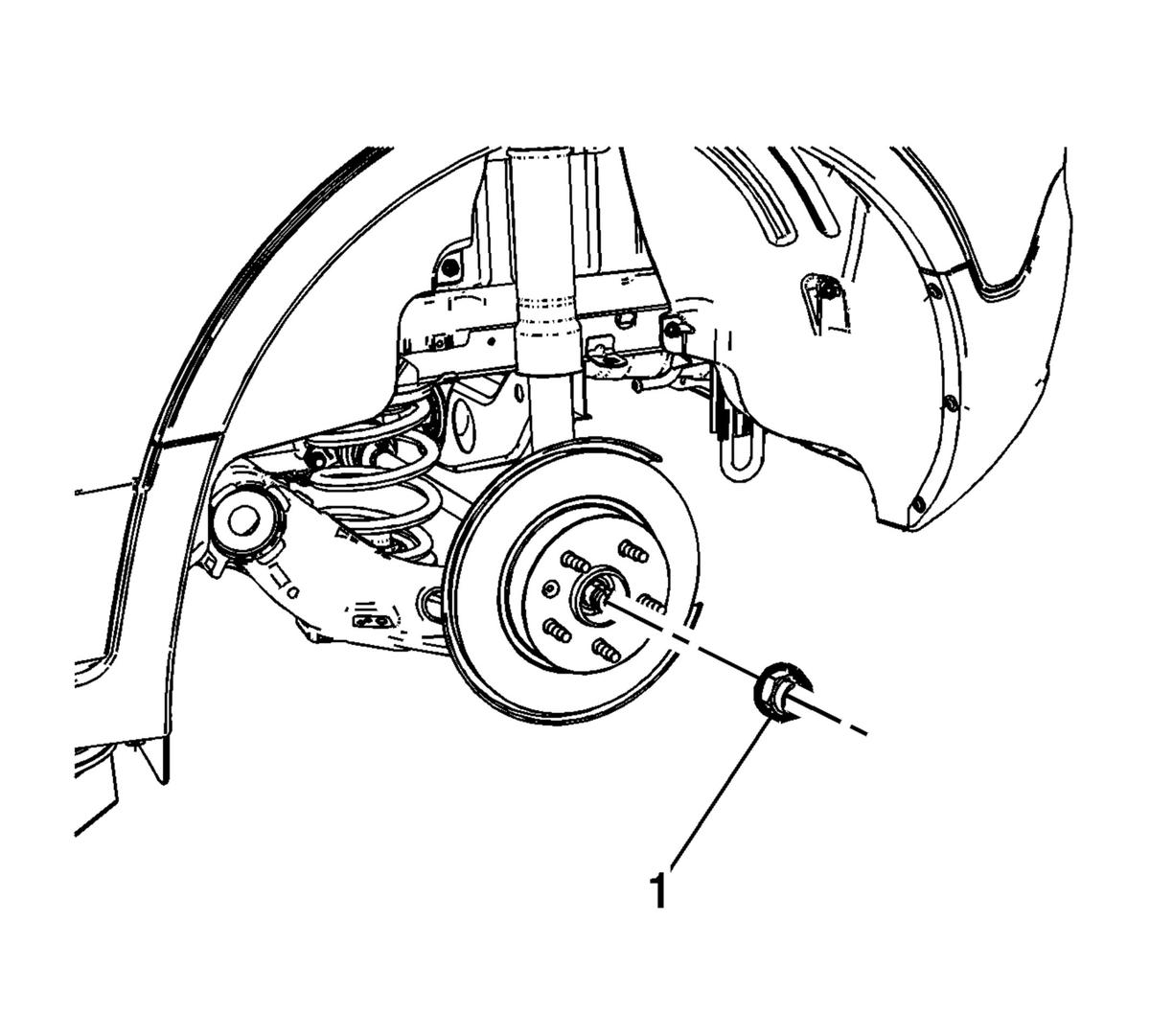

Fig 3: Wheel Drive Shaft Nut

Courtesy of GENERAL MOTORS COMPANY

Install the wheel drive shaft nut (1).
Install the rear brake caliper assembly. Refer to Rear Brake Caliper Replacement
With the aid of an assistant, apply the brakes

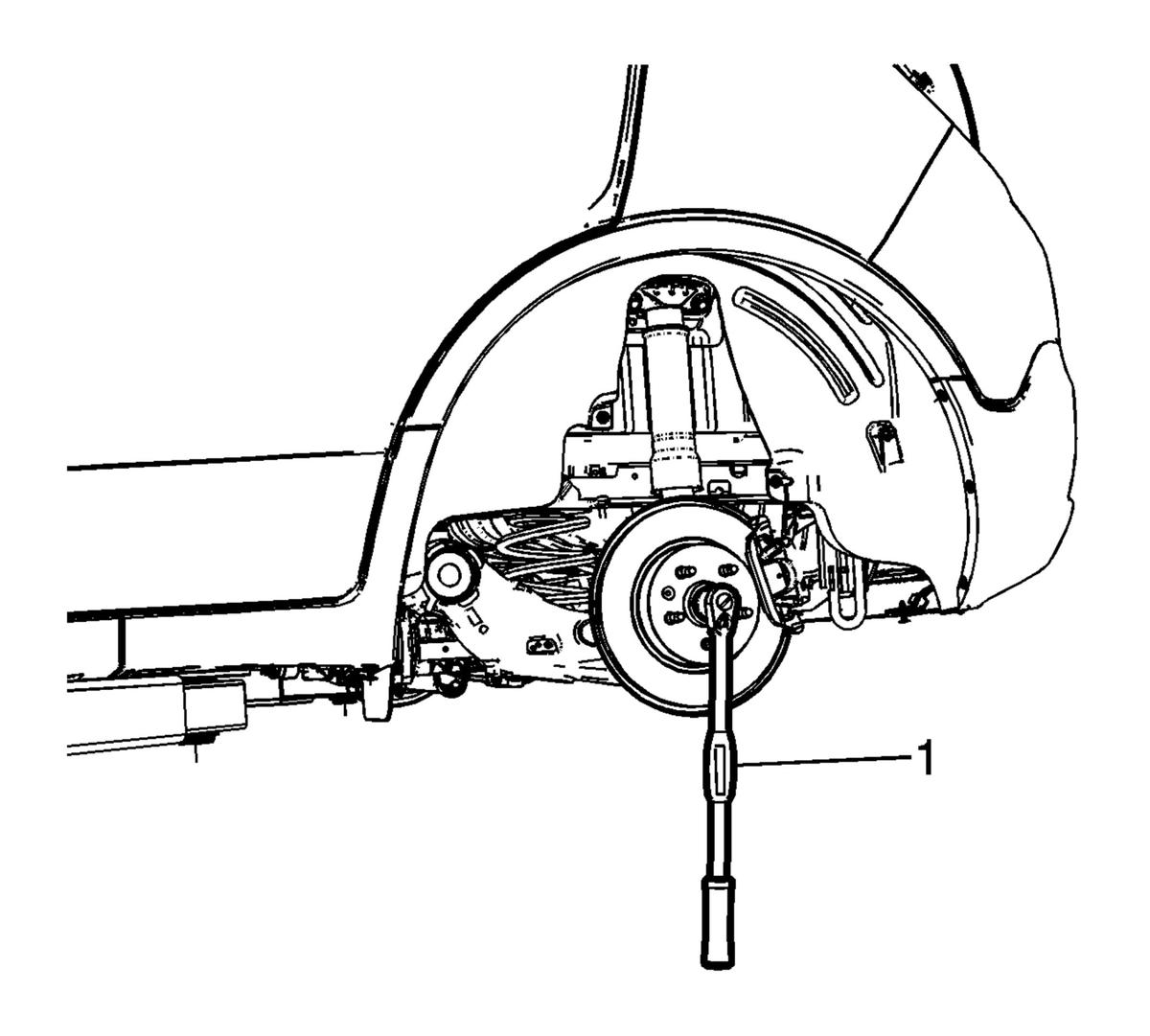

Fig 4: Torque Wrench And Wheel Drive Shaft Nut

Courtesy of GENERAL MOTORS COMPANY

Using the proper size socket and torque wrench (1), tighten the wheel drive shaft nut to:
- First Pass 50 N.m (37 lb ft)
- Final Pass plus 60 degrees

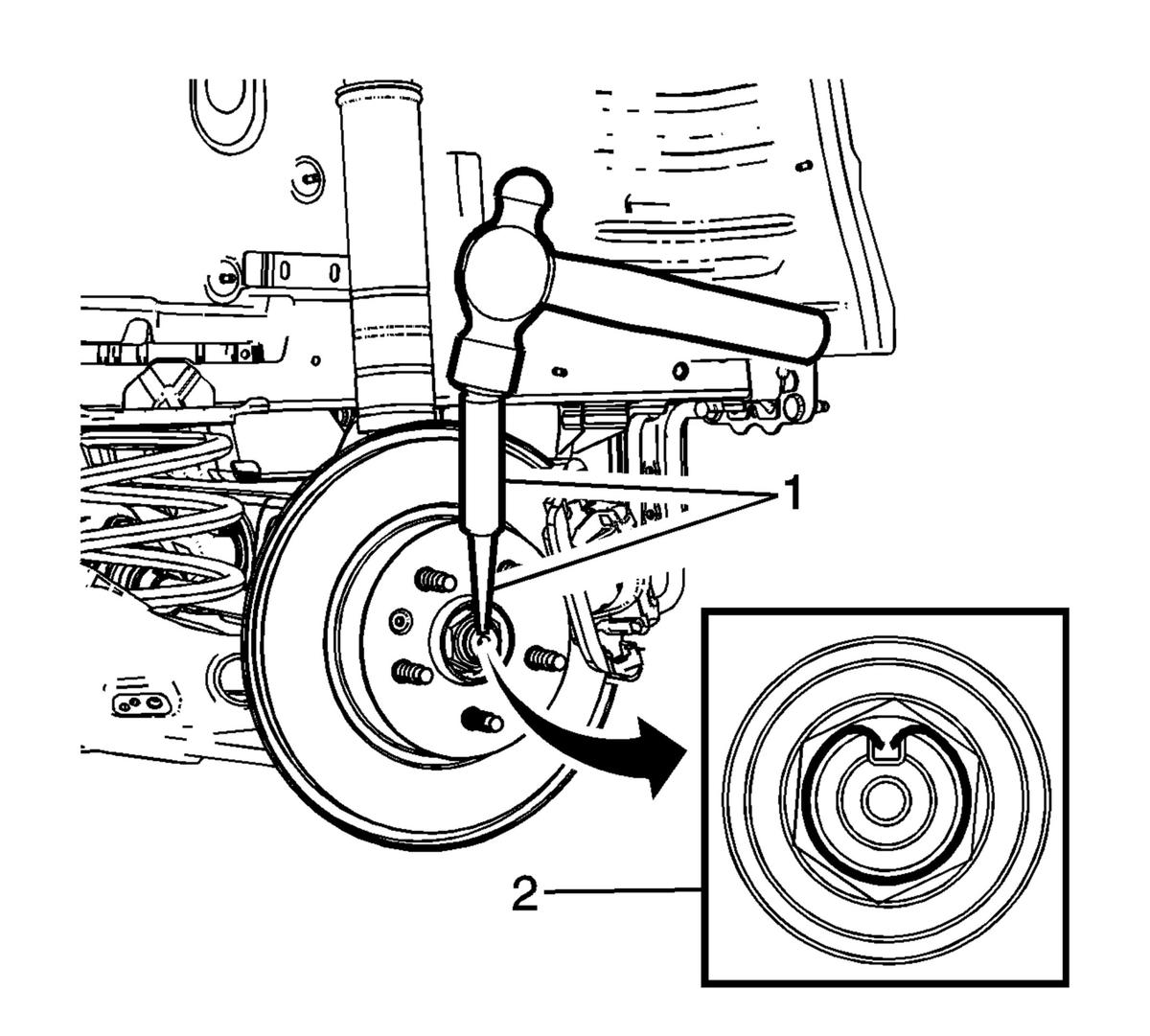

Fig 5: Splitting Center Of Wheel Drive Shaft Nut

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Evenly split the center of the wheel drive shaft nut (2) and ensure that it is fully staked. Each side of the stake should be in contact and approximately 45 degrees to each side of the slot in the wheel drive shaft.

Using the punch (1) and hammer, stake the wheel drive shaft nut (2) collar into the slot on the wheel drive shaft.
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the support and lower the vehicle.
