Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

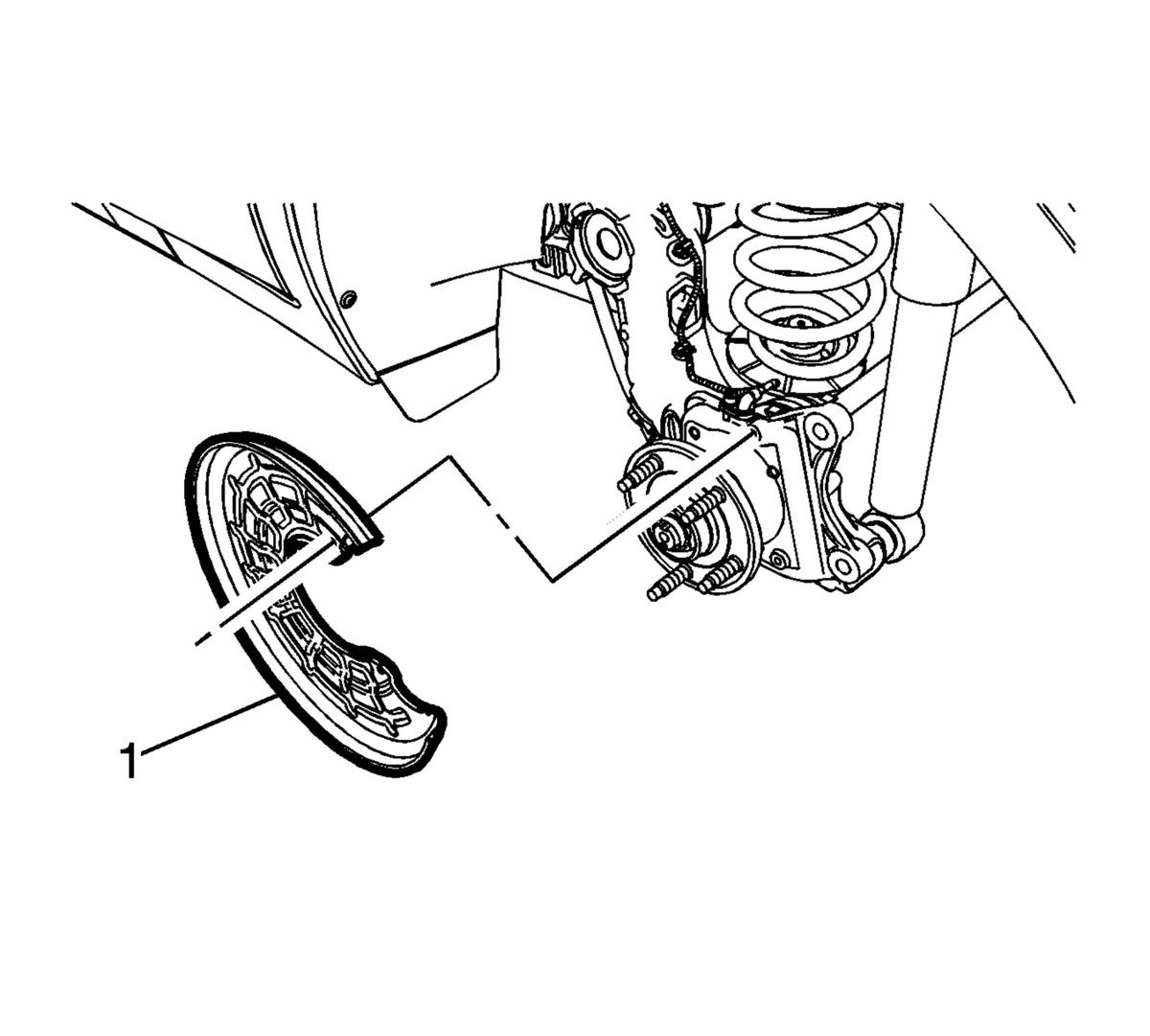

    Fig 1: Rear Brake Shield
    GM2771881Courtesy of GENERAL MOTORS COMPANY
  1. Install the rear brake shield (1).

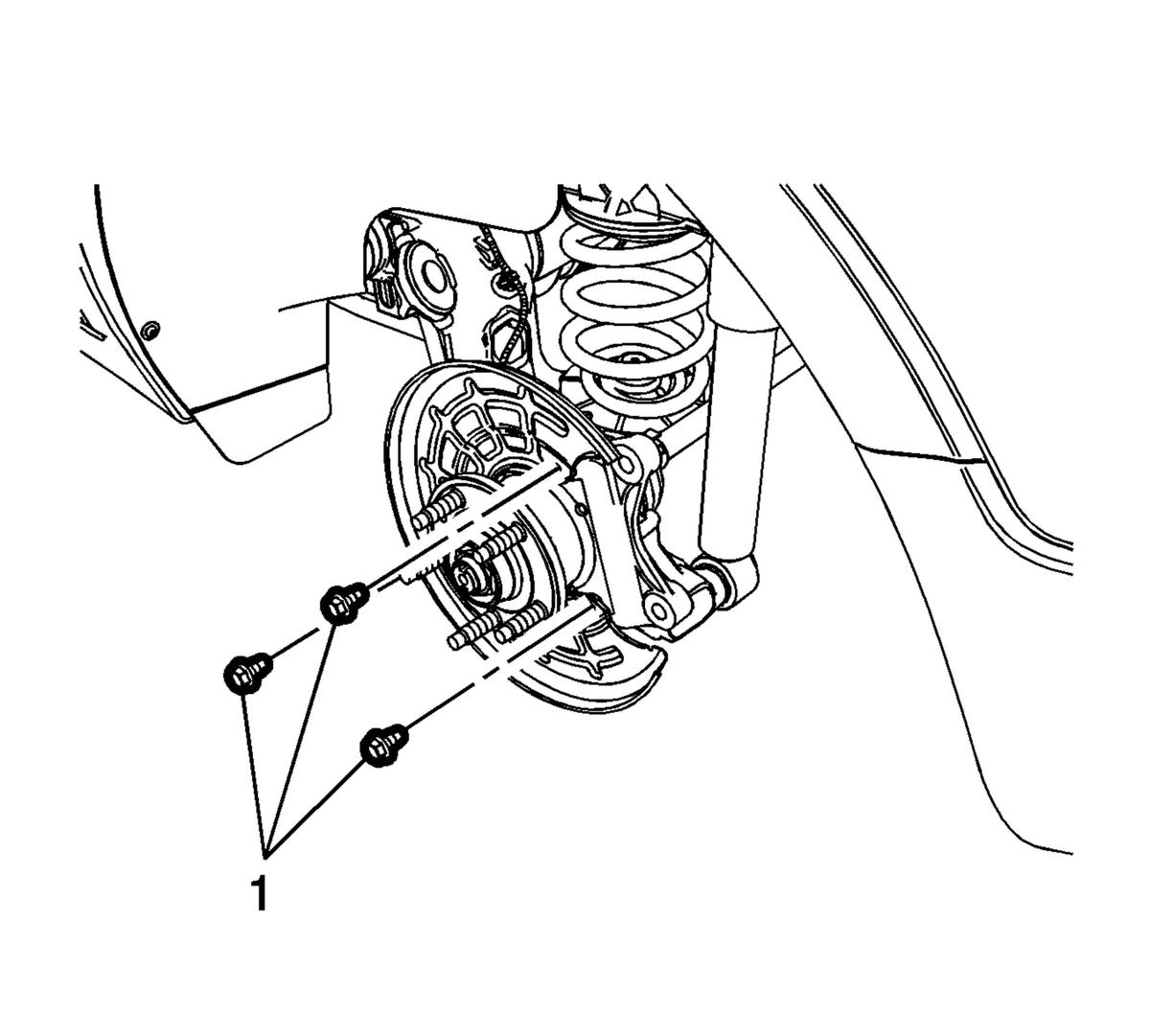

    2. Fig 2: Rear Brake Shield Bolts
    GM2771880Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the rear brake shield bolts (1) and tighten to 9 N.m (80 lb in).
  3. Install the rear brake rotor. Refer to Rear Brake Rotor Replacement .
  4. Install the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
