Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

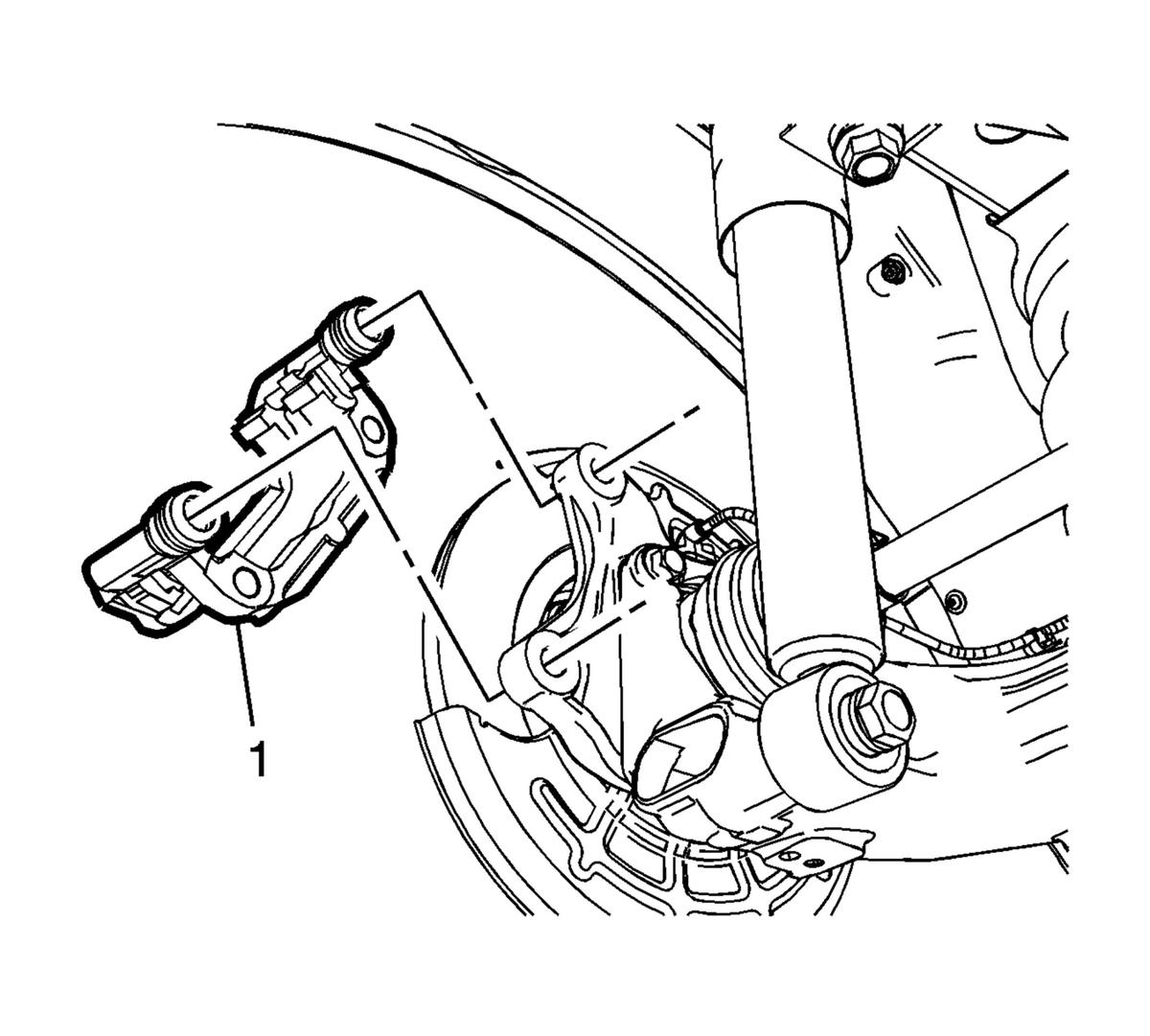

    Fig 1: Rear Brake Caliper Bracket
    GM2771553Courtesy of GENERAL MOTORS COMPANY
  1. Install the rear brake caliper bracket (1).

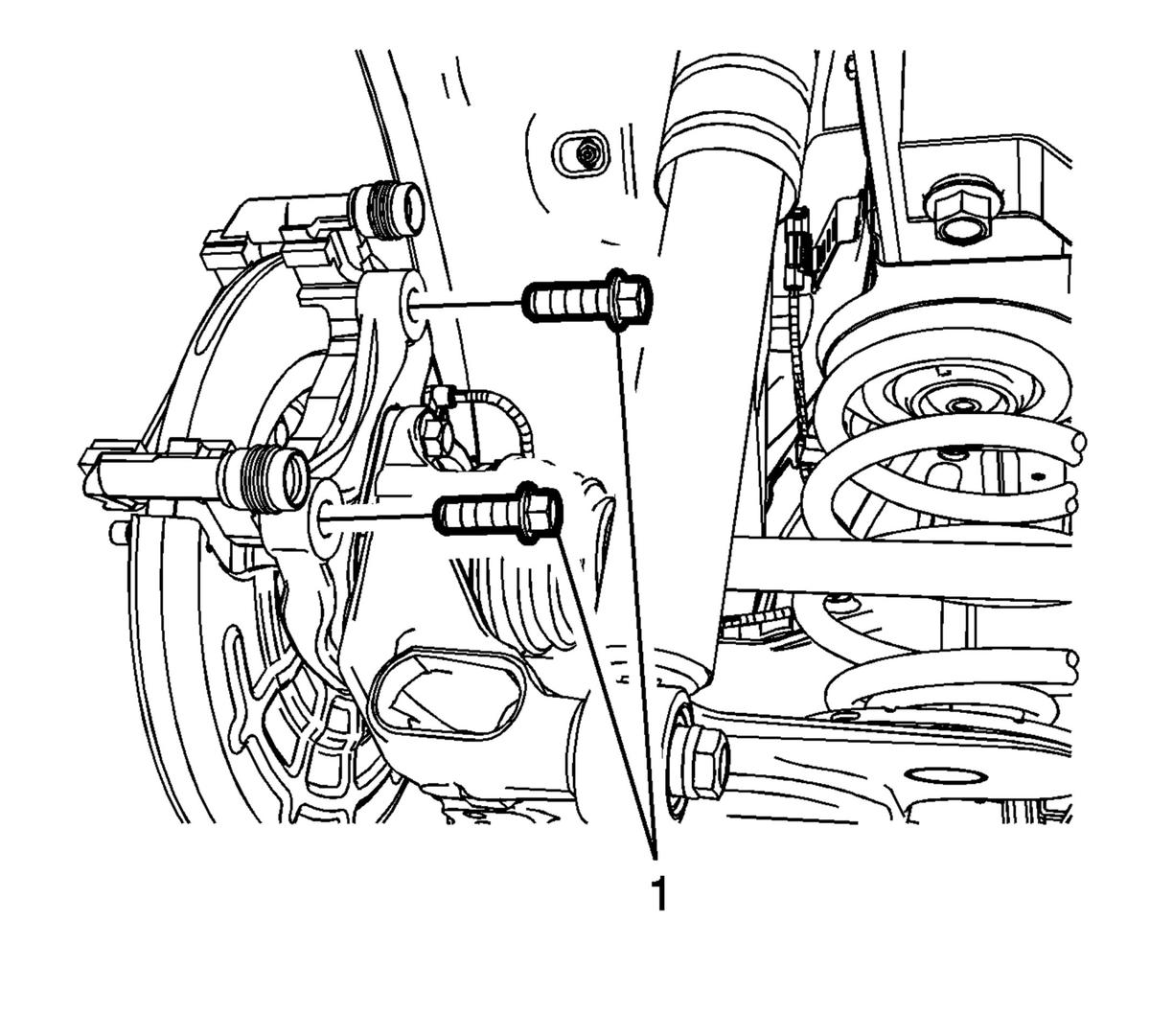

    2. Fig 2: Brake Caliper Bracket Bolts
    GM2771551Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install new brake caliper bracket bolts (1) and tighten to 100 (74 lb ft).

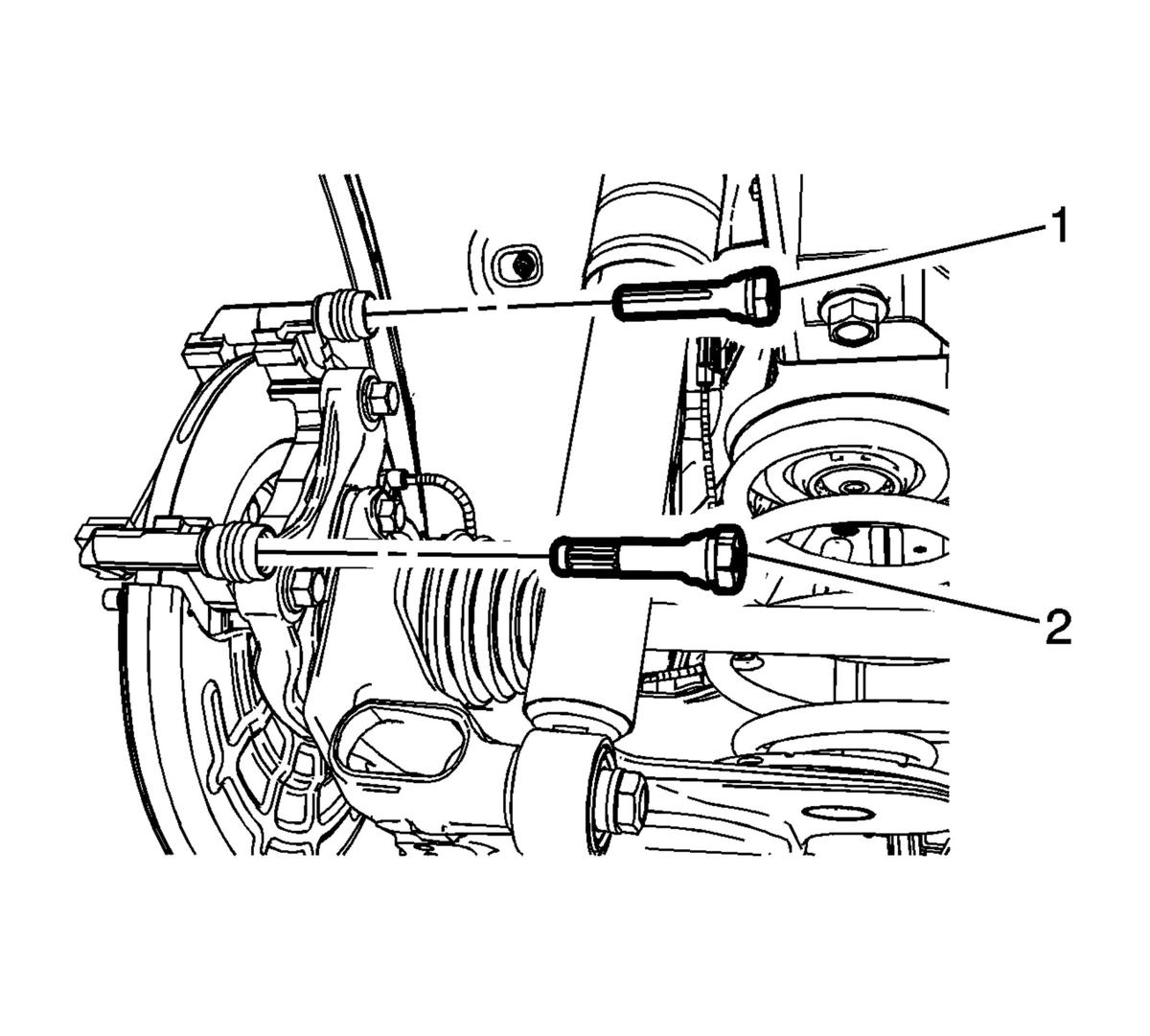

    3. Fig 3: Upper Brake Caliper Guide Pin
    GM2771549Courtesy of GENERAL MOTORS COMPANY
  3. Install the upper brake caliper guide pin (1).
    4. NOTE:

    The lower brake caliper guide pin is equipped with a bushing and must be installed in the same location.

  4. Install the lower brake caliper guide pin (2).
    5. Fig 4: Lower Brake Pad Springs
    GM2771545Courtesy of GENERAL MOTORS COMPANY
  5. Install the upper and lower brake pad springs (1).
    6. Fig 5: Disc Brake Pads
    GM2771543Courtesy of GENERAL MOTORS COMPANY
  6. Install the outer brake pad (1).
    7. NOTE:

    The inner brake pad is equipped with the wear sensor.

  7. Install the inner brake pad (2).
  8. Install the rear brake caliper. Refer to Rear Brake Caliper Replacement .
  9. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
