Steering Linkage Inner Tie Rod Replacement (NJ1)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

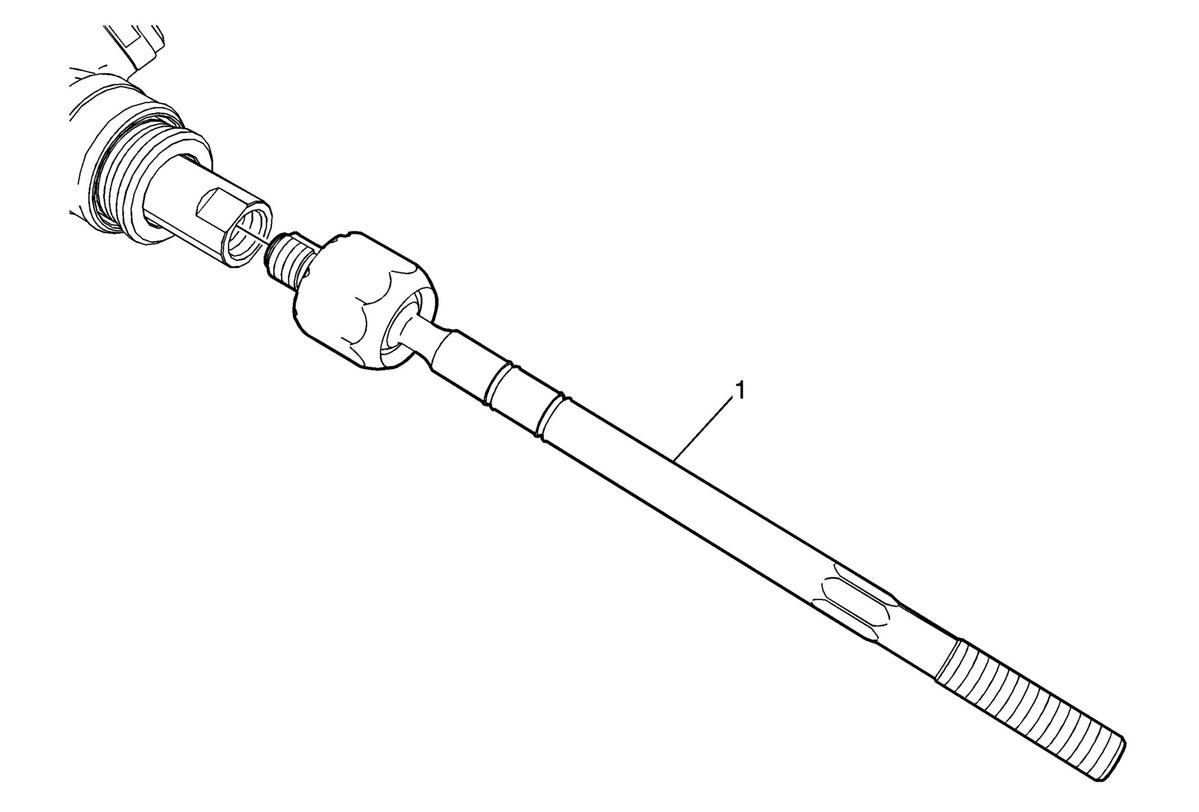

Fig 1: Steering Linkage Inner Tie Rod (NJ1)
GM2264216Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Gear Replacement (N40) Steering Gear Replacement (NJ1)
  2. Steering Gear Boot Replacement
1 Steering Linkage Inner Tie Rod
CAUTION:

Refer to Component Fastener Tightening Caution .

CAUTION:

Do not change the steering gear preload adjustment before moving the inner tie rod from the steering gear. Changing the steering gear preload adjustment before moving the inner tie rod could result in damage to the pinion and the steering gear.

Procedure

  1. Place a pipe wrench on the flats of the steering gear rack. Position the pipe wrench between the steering gear housing and the steering linkage inner tie rod housing.
  2. Place a wrench on the flats of the steering linkage inner tie rod housing.
  3. Rotate the steering linkage inner tie rod housing counterclockwise to remove the steering linkage inner tie rod from the steering gear rack.
  4. Rotate the steering linkage inner tie rod housing clockwise to install the steering linkage inner tie rod to the steering gear rack.

Tighten
70 N.m (52 lb ft)
