Power Steering Pump Pulley Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

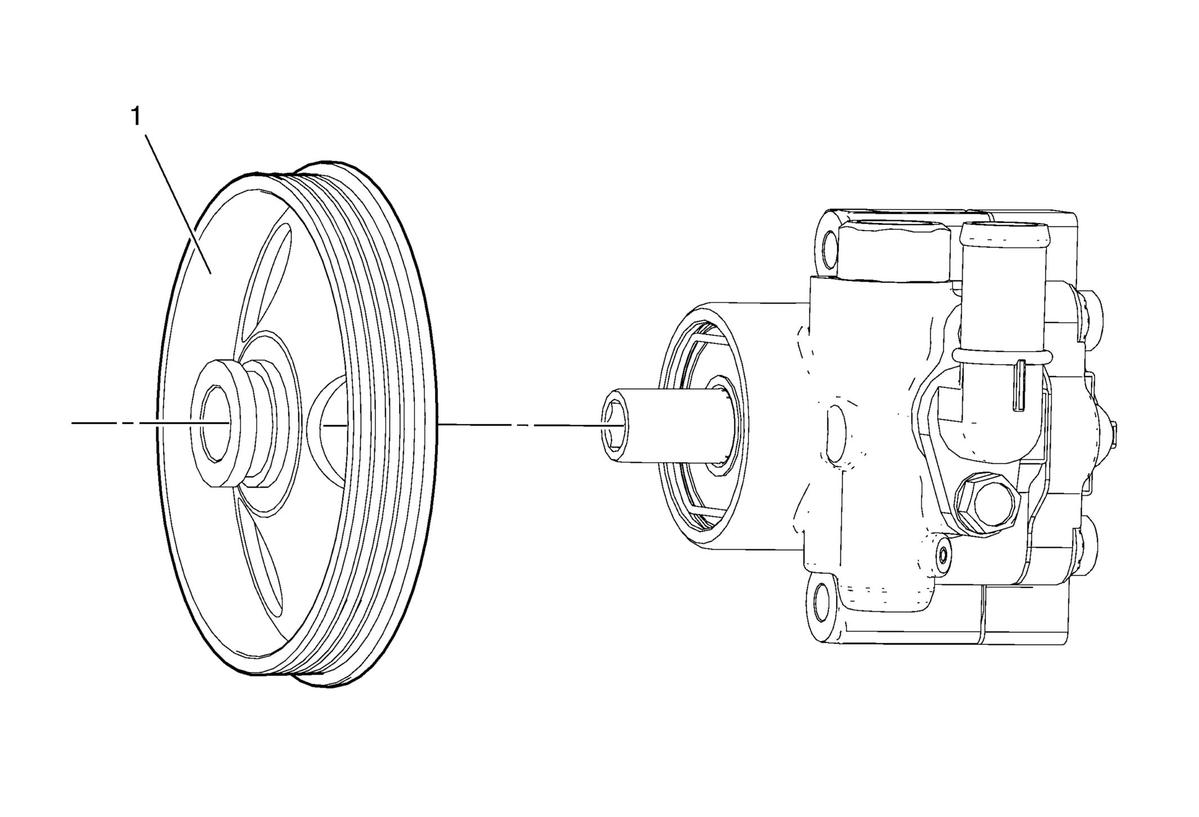

Fig 1: Power Steering Pump Pulley
GM2028041Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Power Steering Pump Replacement
1 Power Steering Pump Pulley

Procedure

  1. Use the CH-25034-C  pulley remover to remove the power steering pump pulley.
  2. Use the CH-25033-C  pulley installer to install the power steering pump pulley.

Special Tools<!--Title-->

  • CH-25033-C  Pulley Installer
  • CH-25034-C  Pulley Remover

Equivalent regional tools:Special Tools
