Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove as much power steering fluid from the power steering fluid reservoir as possible.
  2. Remove the right front tire and wheel assembly. Tire and Wheel Removal and Installation

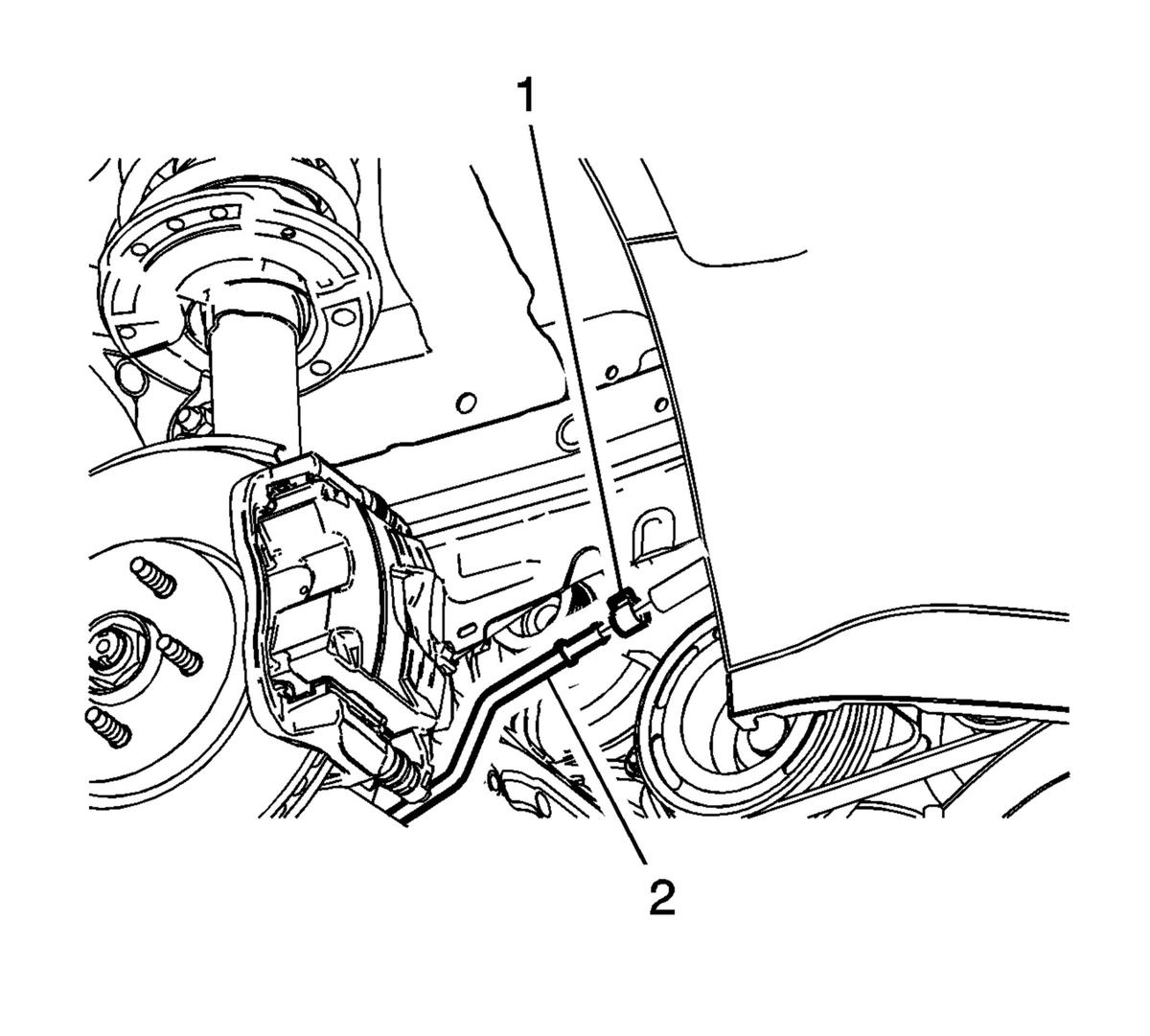

    3. Fig 1: Steering Gear Outlet Hose Clamp
    GM2809971Courtesy of GENERAL MOTORS COMPANY
  3. Power Steering Gear Outlet Hose Clamp to Power Steering Fluid Cooler - Loosen
  4. Power Steering Gear Outlet Hose to Power Steering Fluid Cooler - Separate

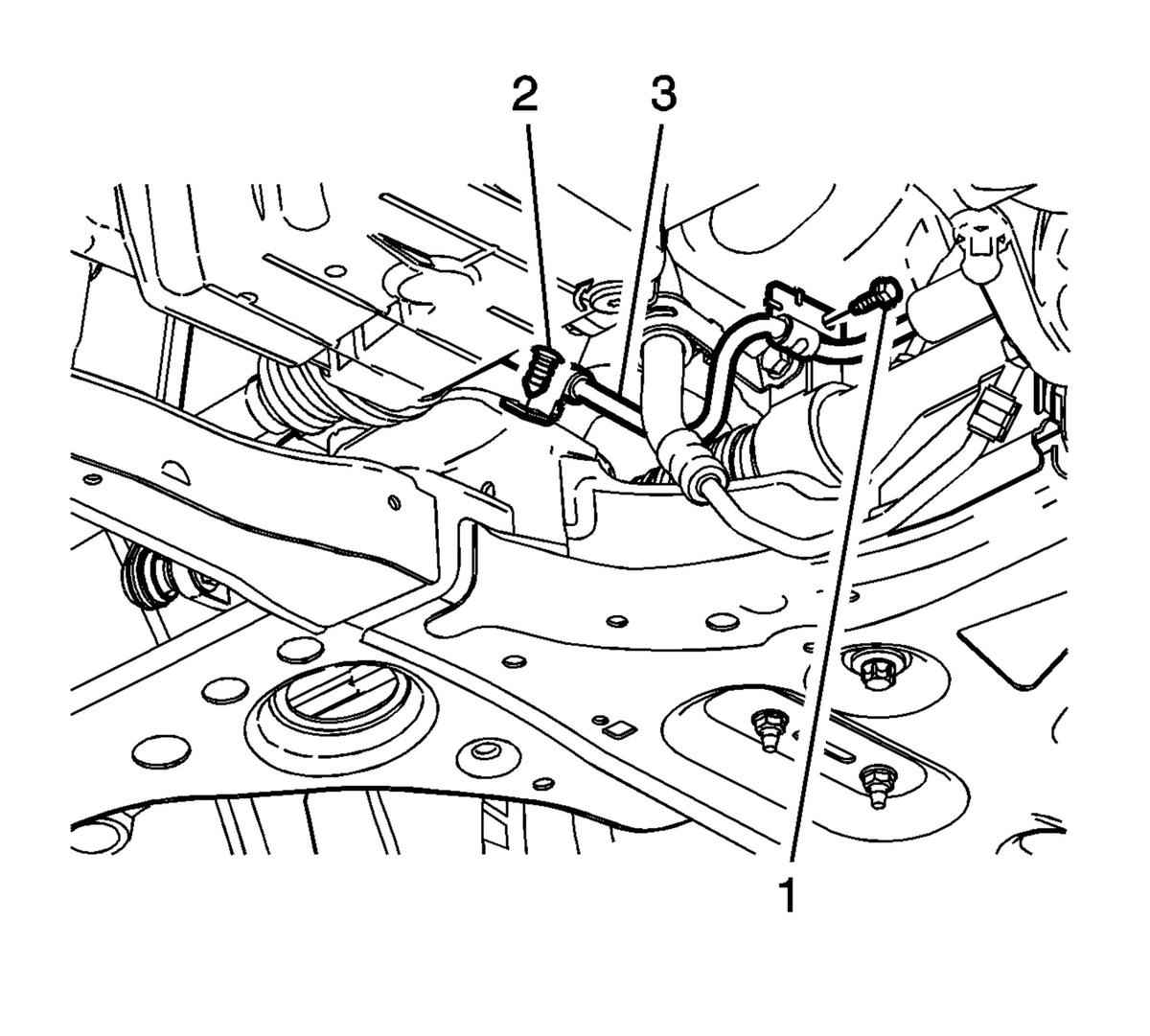

    5. Fig 2: Power Steering Gear Outlet Hose Bracket
    GM2809970Courtesy of GENERAL MOTORS COMPANY
  5. Remove the power steering gear outlet hose bracket bolt (1) and the plastic push pin (2) and separate the power steering gear inlet hose (3) from the vehicle frame.

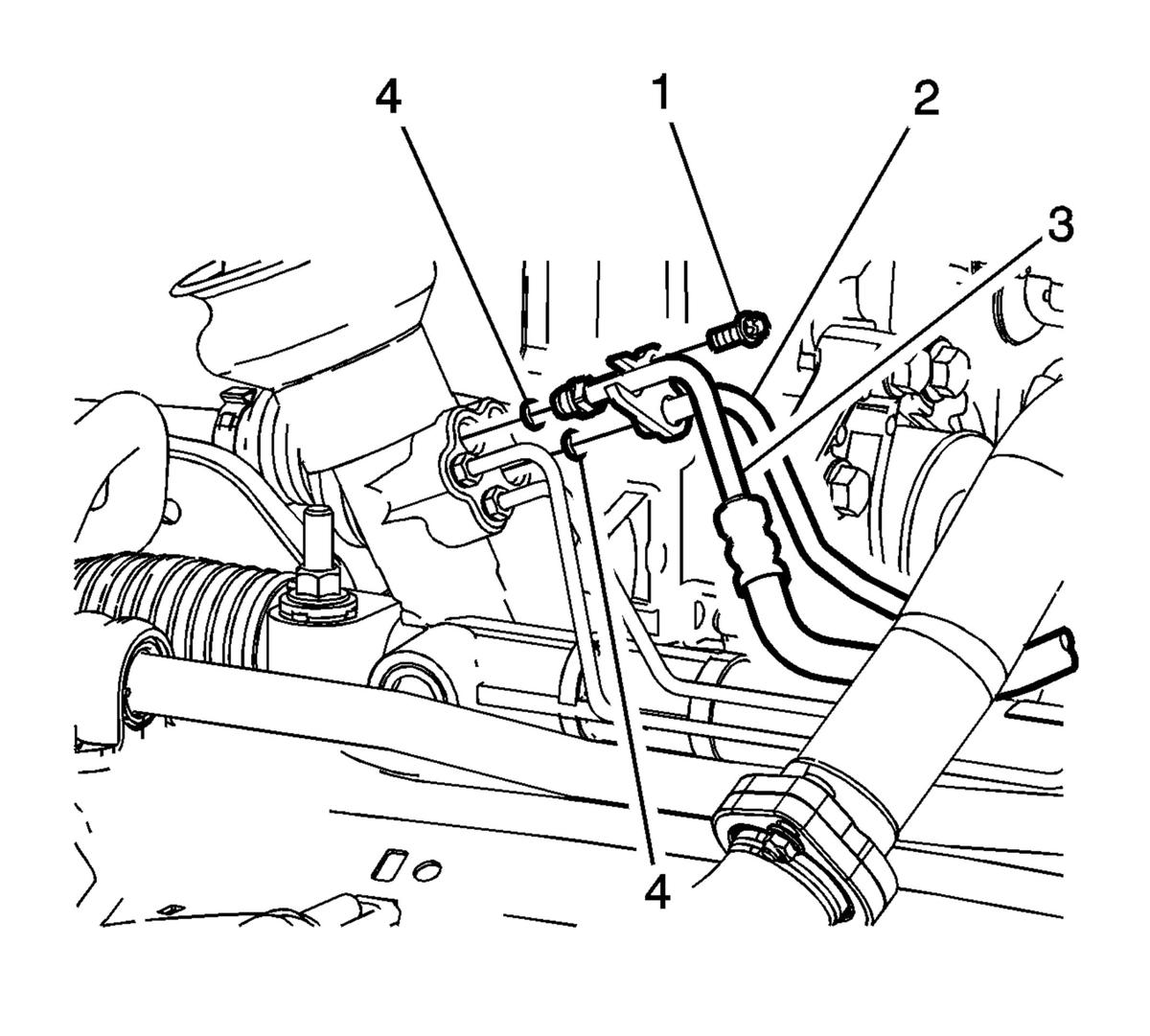

    6. Fig 3: Power Steering Gear Inlet And Outlet Hoses
    GM2808015Courtesy of GENERAL MOTORS COMPANY
  6. Power Steering Gear Inlet and Outlet Hose Bolt to Steering Gear - Remove
  7. Power Steering Gear Inlet Hose to Steering Gear - Separate
  8. Power Steering Gear Outlet Hose to Steering Gear - Separate
  9. Remove the power steering gear inlet and outlet hose seals (4) from the power steering gear inlet and outlet hoses.

    DISCARD the seals.

  10. Remove the power steering gear outlet hose from the vehicle.
