Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Position the power steering gear inlet hose on the vehicle.
- Install the power steering gear inlet and outlet hose seals (4) on the power steering gear inlet and outlet hoses.
Use NEW seals.
- Power Steering Gear Outlet Hose to Steering Gear - Install
- Power Steering Gear Inlet Hose to Steering Gear - Install
- Power Steering Gear Inlet and Outlet Hose Bolt to Steering Gear - Install and tighten 11 N.m (97 lb in)
- Secure the power steering gear inlet hose (3) to the vehicle frame using the power steering gear inlet hose bracket bolt (1) and the plastic push pin (2).
- Tighten the power steering gear inlet hose bracket bolt (1) to 9 N.m (80 lb in).

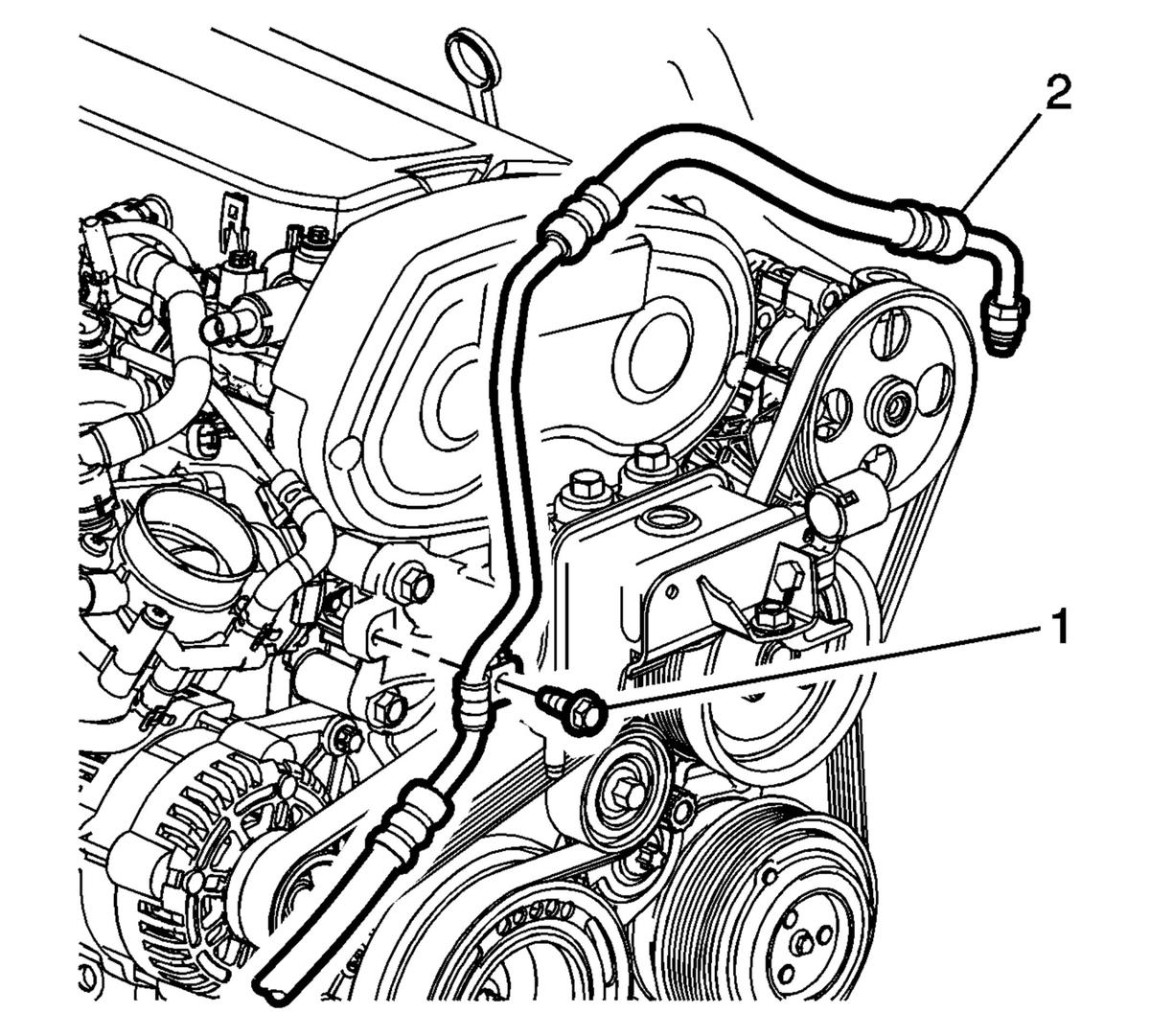

- Secure the power steering gear inlet hose (2) to the vehicle engine using the power steering gear inlet hose bracket bolt (1).
- Install the power steering gear inlet hose bracket bolt (1) and tighten to 22 N.m (16 lb ft).

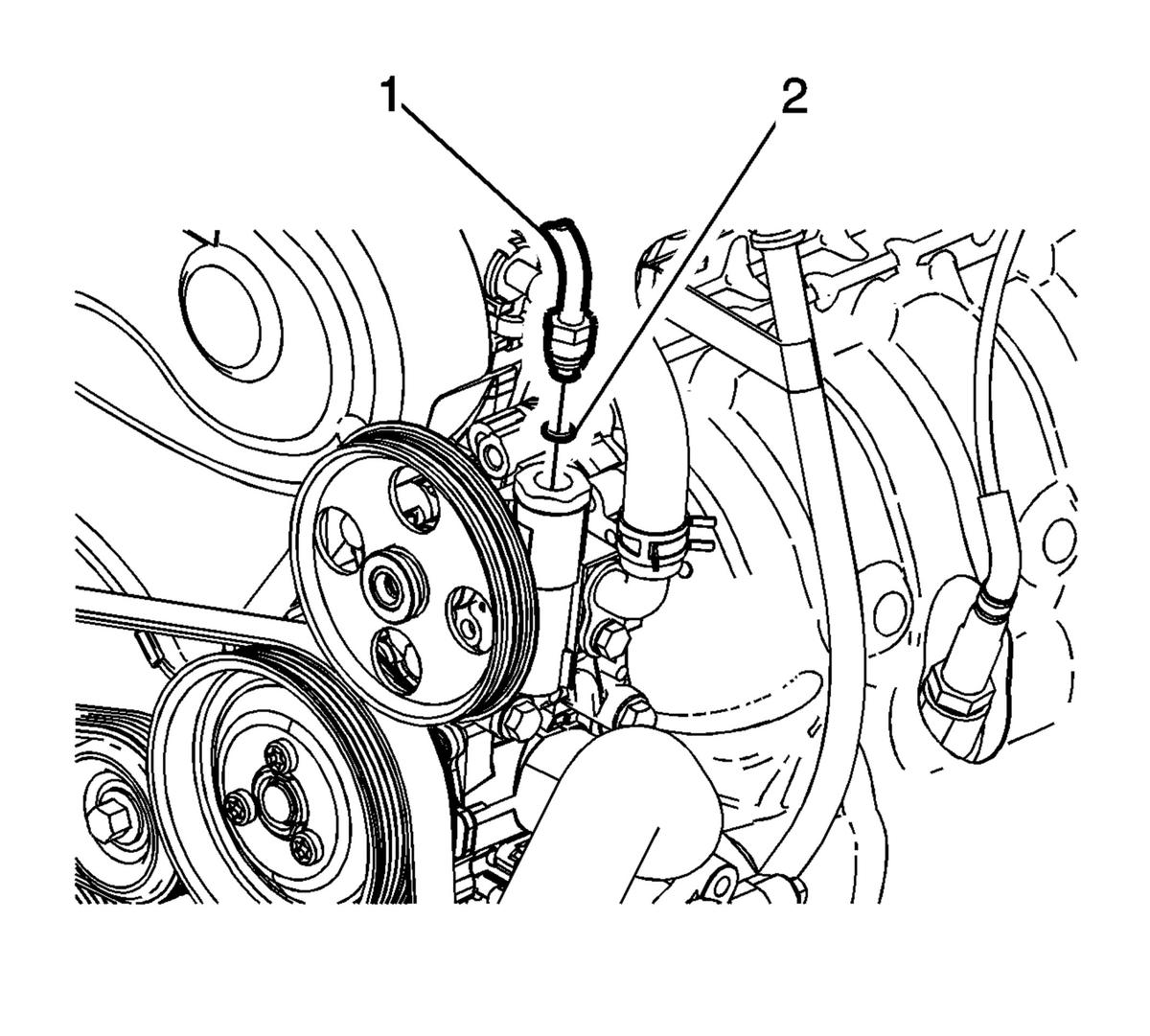

- Power Steering Gear Inlet Hose Seal to Power Steering Gear Inlet Hose - Install
Use a NEW seal.
- Power Steering Gear Inlet Hose to fPower Steering Pump - Install and tighten 34 N.m (25 lb ft)
- Fill and bleed the power steering system. Power Steering System Bleeding
CAUTION:
Refer to Fastener Caution .
CAUTION:
Refer to Component Fastener Tightening Caution .
