Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the power steering fluid reservoir outlet hose on the vehicle.

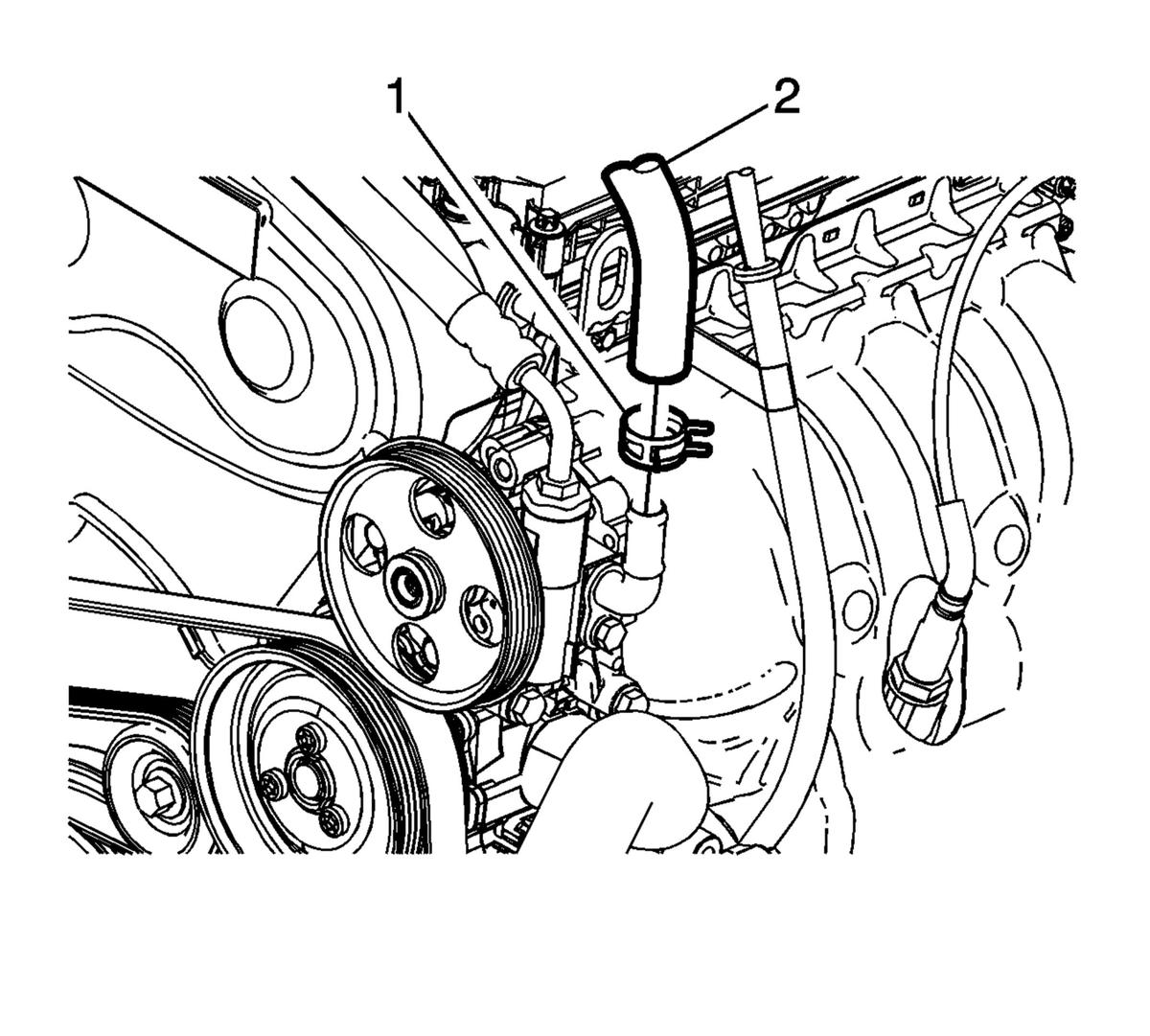

    2. Fig 1: Power Steering Fluid Reservoir Outlet Hose
    GM2807373Courtesy of GENERAL MOTORS COMPANY
  2. Power Steering Fluid Reservoir Outlet Hose to Power Steering Pump - Install
  3. Power Steering Fluid Reservoir Outlet Hose Clamp to Power Steering Pump - Install

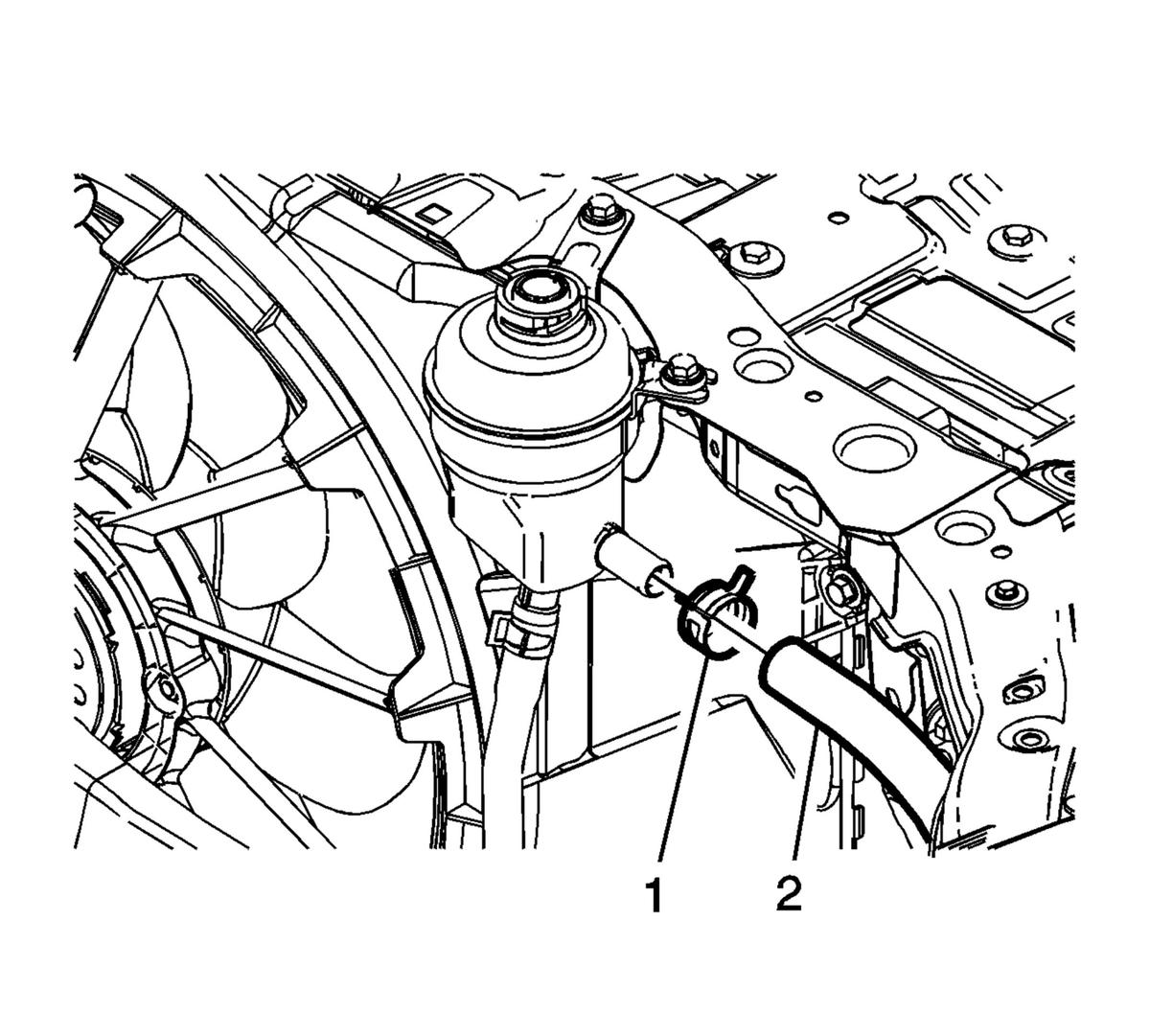

    4. Fig 2: Steering Fluid Reservoir Outlet Hose And Clamp
    GM2807370Courtesy of GENERAL MOTORS COMPANY
  4. Power Steering Fluid Reservoir Outlet Hose to Power Steering Fluid Reservoir - Install
  5. Power Steering Fluid Reservoir Outlet Hose Clamp to Power Steering Fluid Reservoir - Install
  6. Fill and bleed the power steering system. Power Steering System Bleeding
