Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the power steering fluid reservoir inlet pipe on the vehicle.

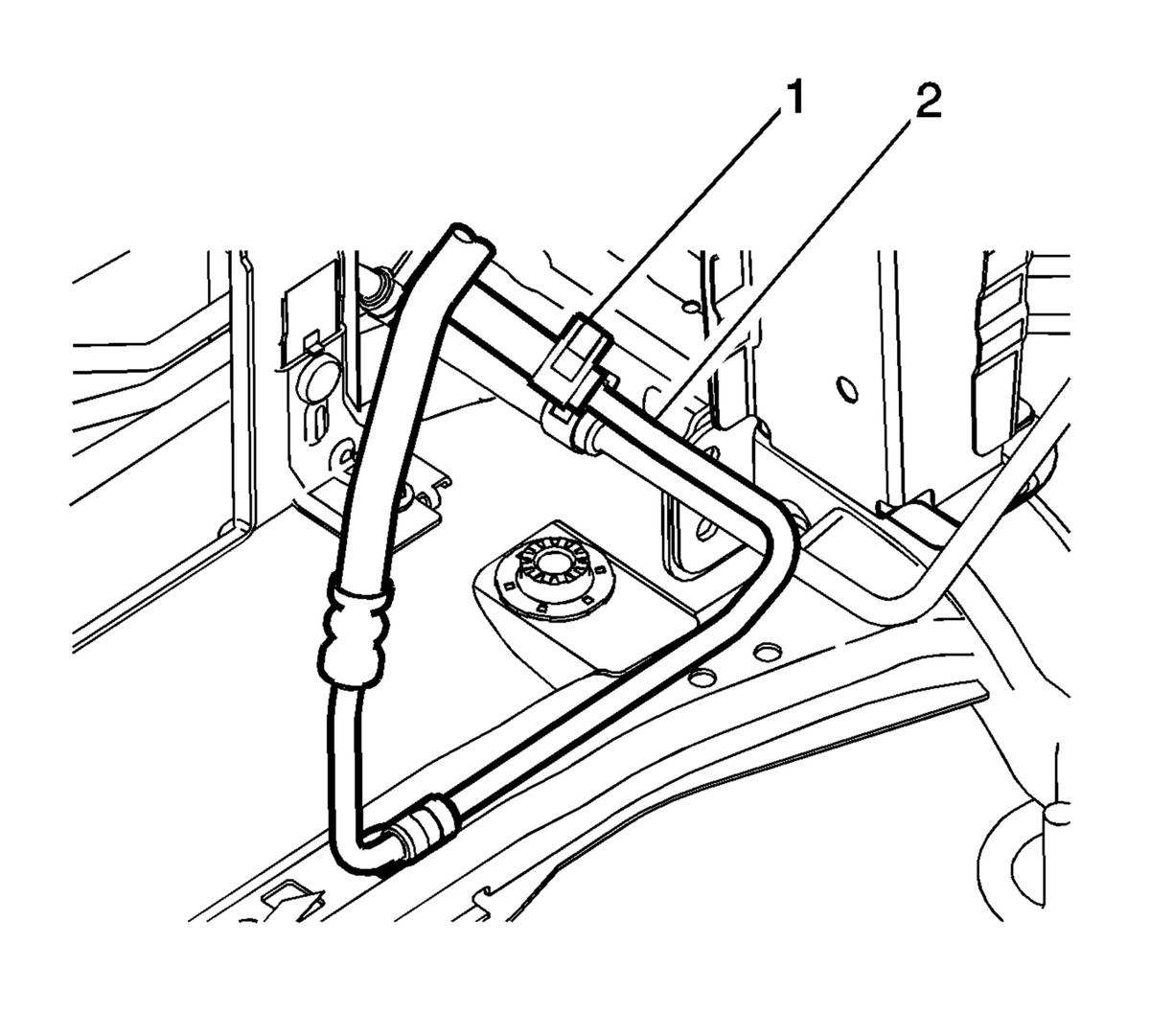

    2. Fig 1: P/S Fluid Reservoir Inlet Pipe
    GM2810052Courtesy of GENERAL MOTORS COMPANY
  2. Power Steering Fluid Reservoir Inlet Pipe to Power Steering Fluid Cooler - Install
  3. Power Steering Fluid Reservoir Inlet Pipe Clamp to Power Steering Fluid Cooler - Install

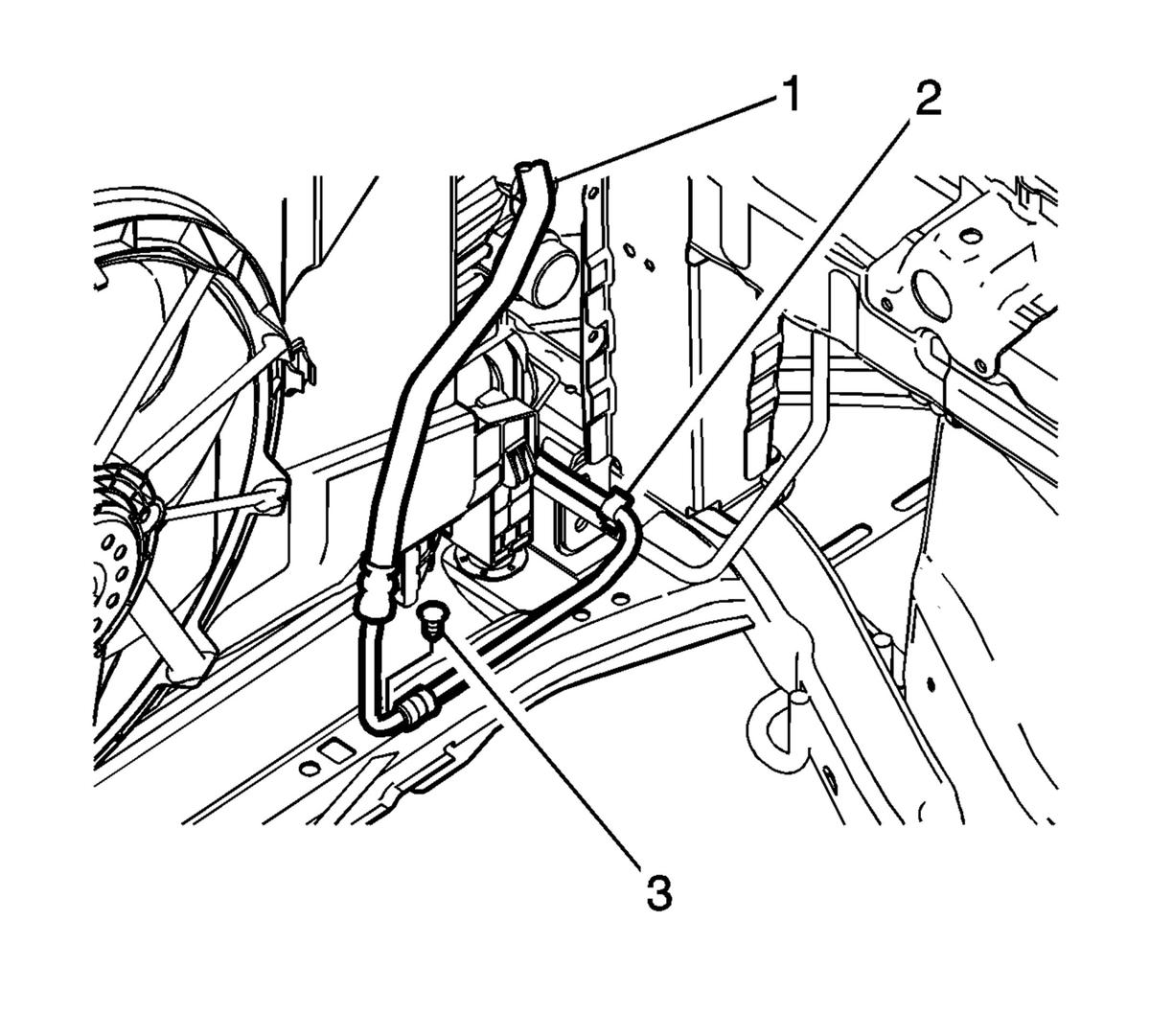

    4. Fig 2: Power Steering Fluid Reservoir Inlet Hose
    GM2810051Courtesy of GENERAL MOTORS COMPANY
  4. Install the plastic push pin retainer (3) and secure the power steering fluid reservoir inlet pipe clamp (1) in the plastic clip (2).

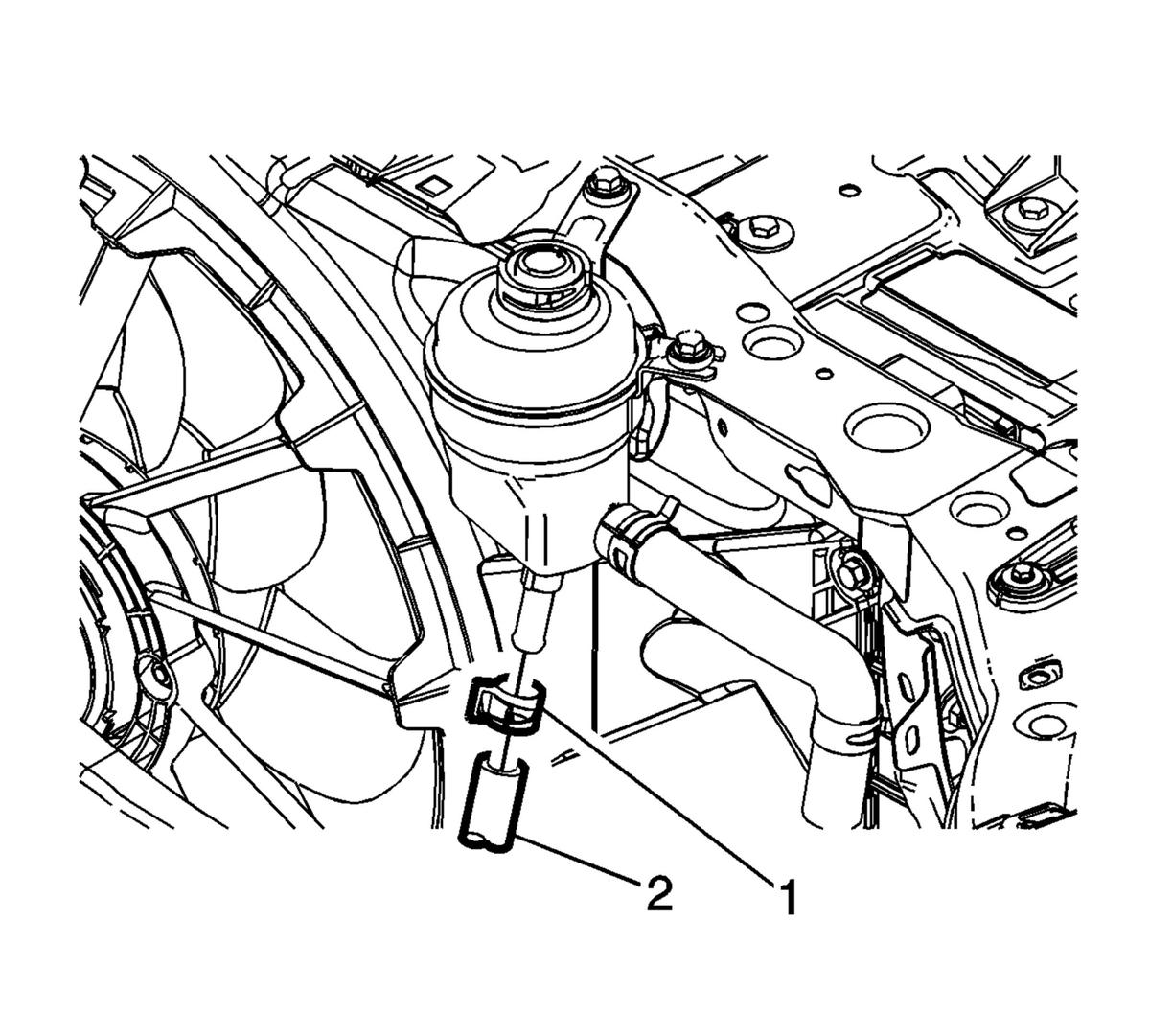

    5. Fig 3: Steering Fluid Reservoir Inlet Pipe
    GM2808003Courtesy of GENERAL MOTORS COMPANY
  5. Power Steering Fluid Reservoir Inlet Pipe Clamp to Power Steering Fluid Reservoir - Install
  6. Power Steering Fluid Reservoir Inlet Pipe to Power Steering Fluid Reservoir - Install
  7. Fill and bleed the power steering system. Power Steering System Bleeding
