Section 41 (Antilock Brake System)
>>
Schematic Wiring Diagrams
>>
Antilock Brake System Wiring Schematics (Buick Encore)
>>
Module Power, Ground and Subsystem References
Module Power, Ground and Subsystem References
WARNING:
This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

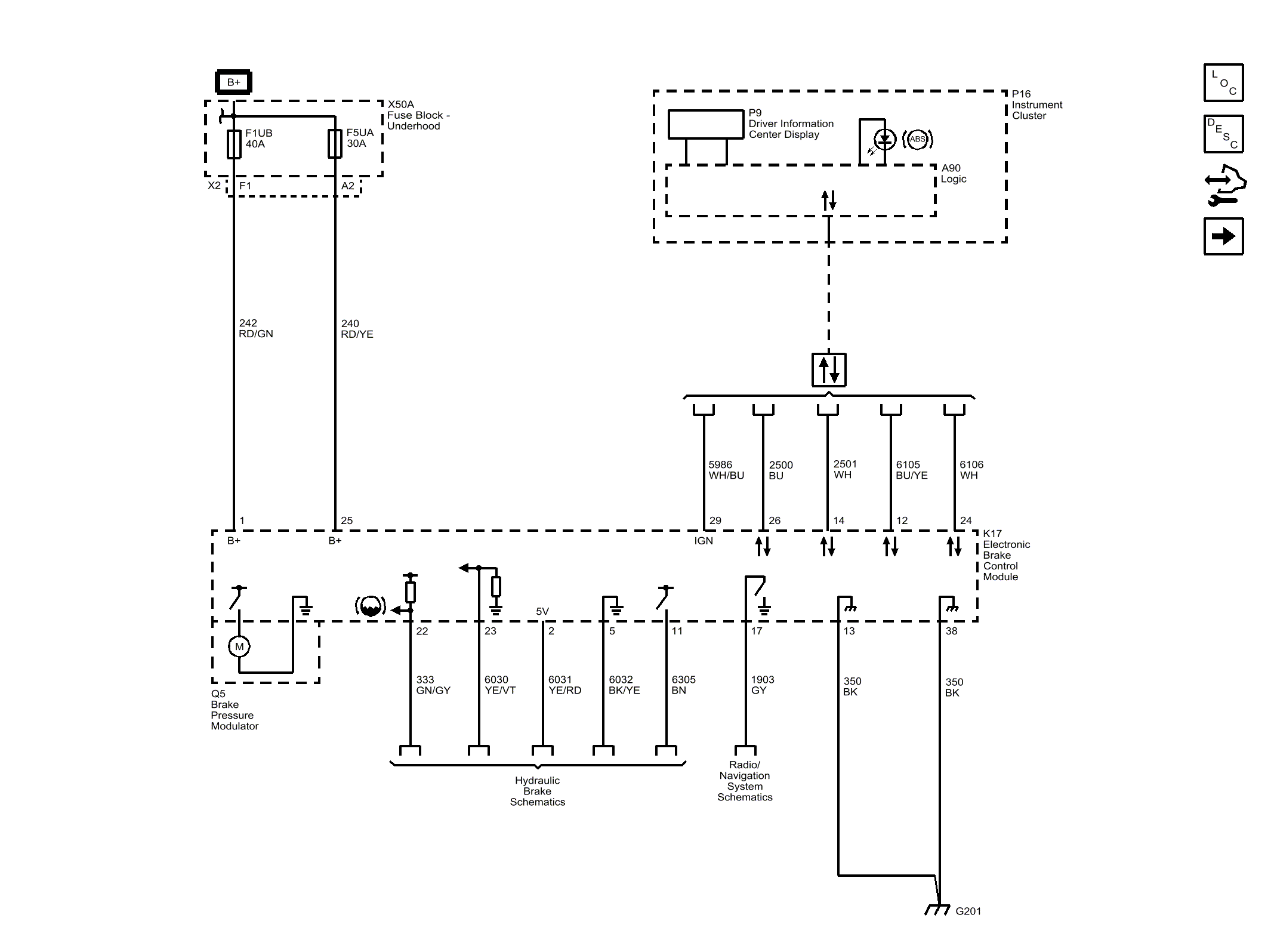

Fig 1: Module Power, Ground and Subsystem References (Buick)
Courtesy of GENERAL MOTORS COMPANY
