Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to Brake Dust Warning .

WARNING:

Refer to Brake Fluid Irritant Warning .

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .

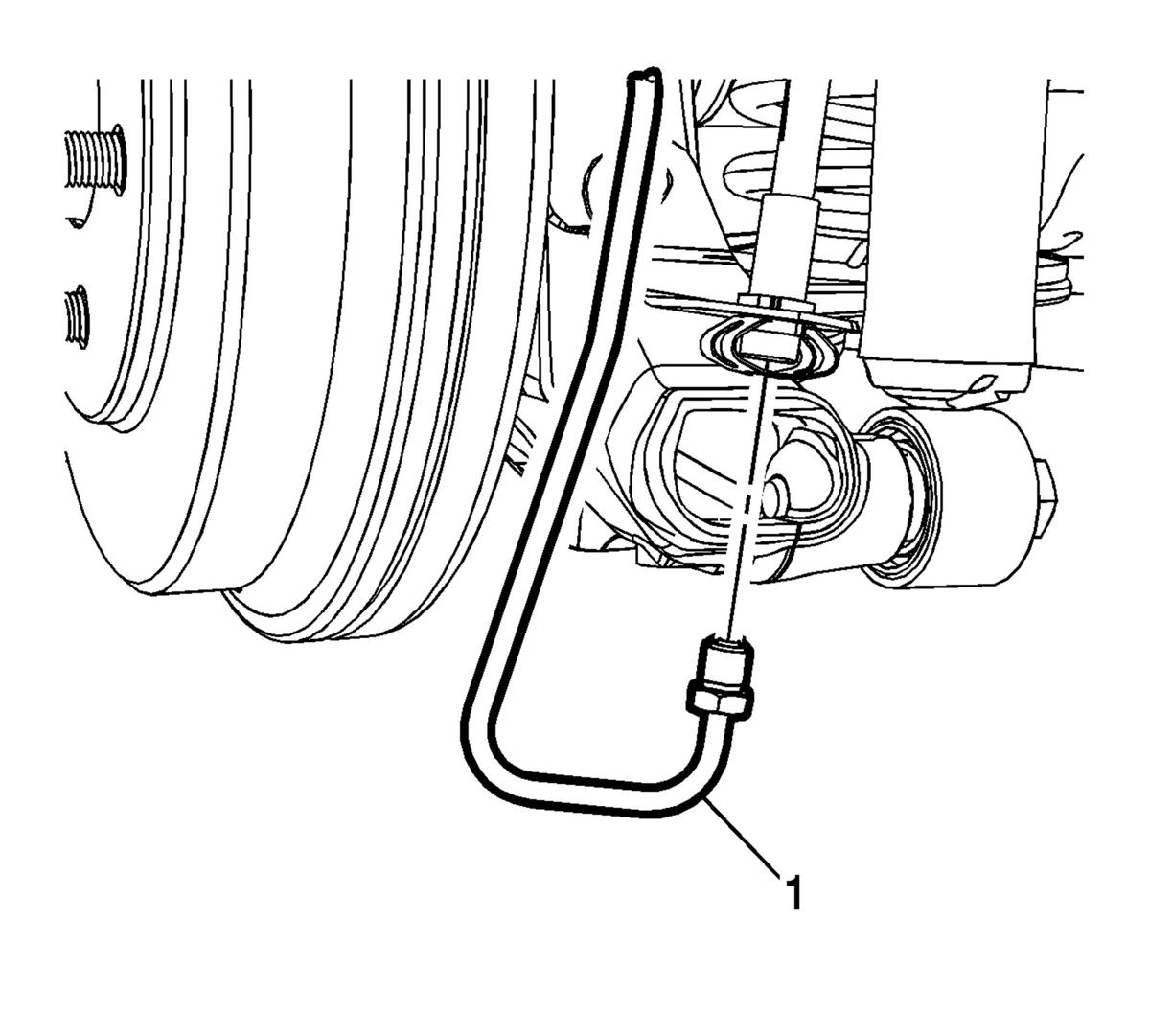

    3. Fig 1: Rear Brake Rear Pipe Fitting And Rear Brake Hose
    GM2778567Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the rear brake rear pipe fitting (1) from the rear brake hose.
  4. Cap the brake hose fitting to prevent brake fluid loss and contamination.

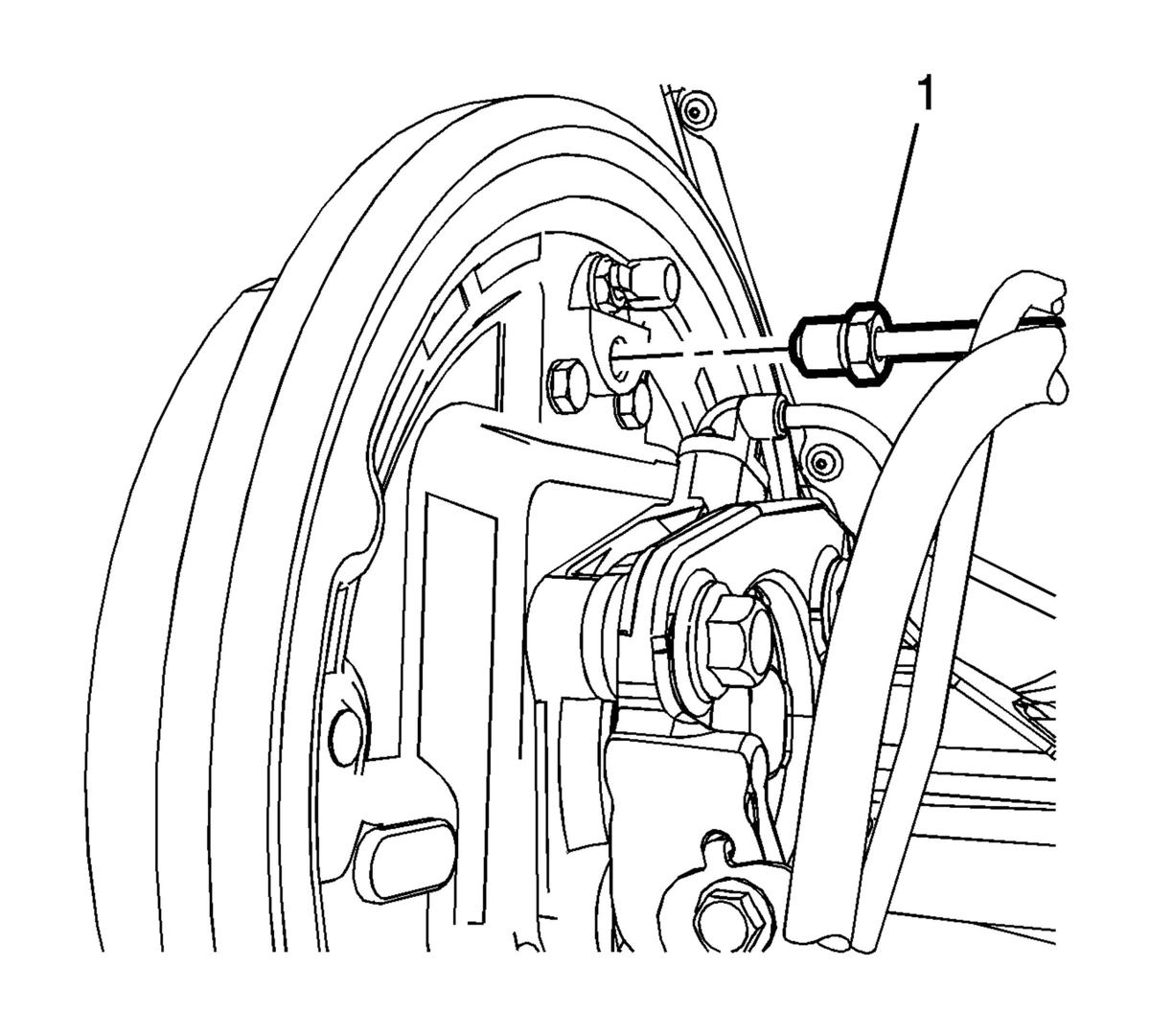

    5. Fig 2: Rear Brake Rear Pipe Fitting And Rear Brake Cylinder
    GM2778644Courtesy of GENERAL MOTORS COMPANY
  5. Disconnect the rear brake rear pipe fitting (1) from the rear brake cylinder.
  6. Remove the rear brake rear pipe from the vehicle.
