Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right rear intermediate pipe to the vehicle.
  2. Position, but do not secure, the right rear intermediate pipe to the retaining clips.

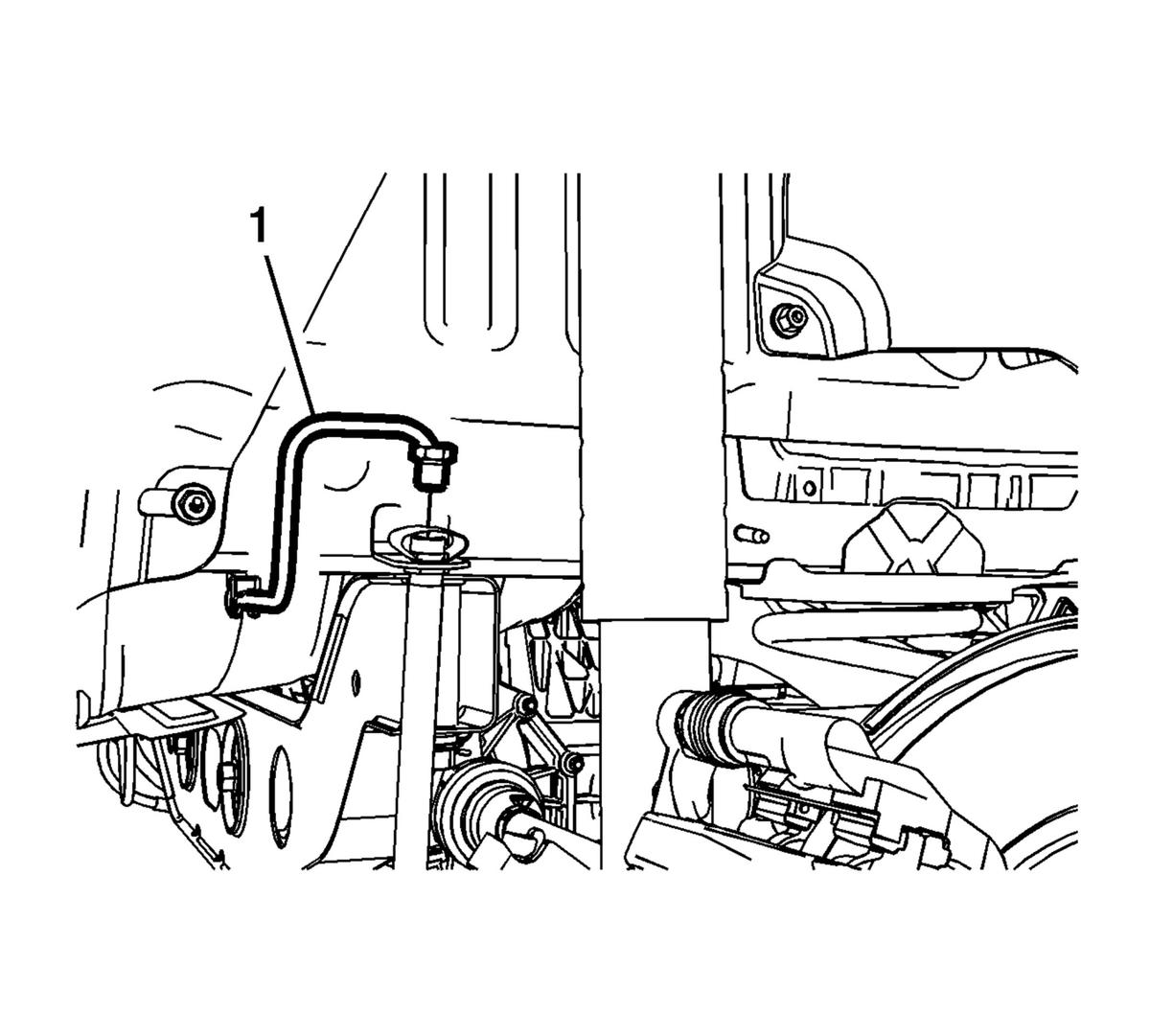

    3. Fig 1: Right Rear Intermediate Pipe Fitting
    GM2777883Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the right rear intermediate pipe fitting (1) to the rear brake hose fitting and tighten the fitting to 18 N.m (13 lb ft).

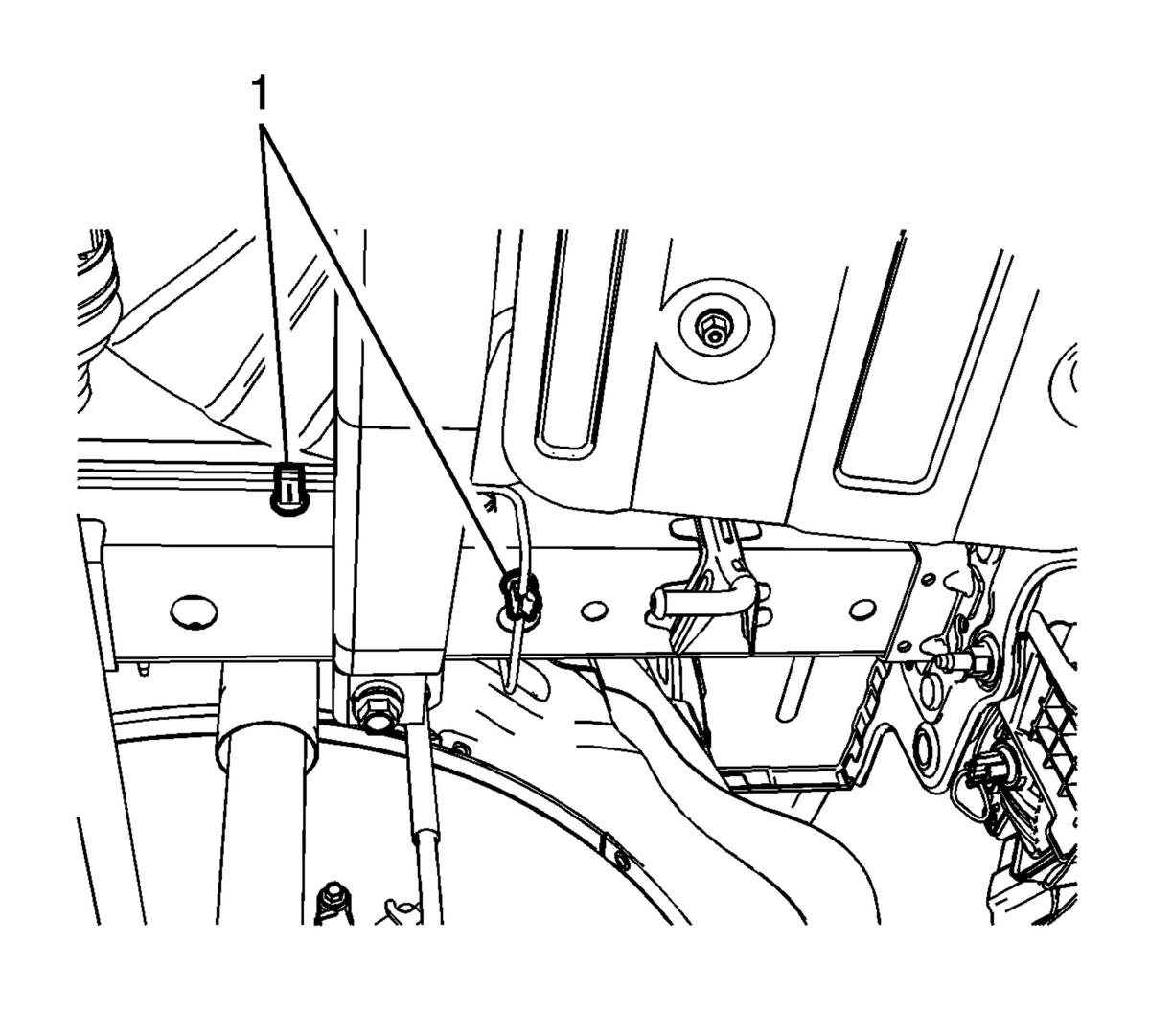

    4. Fig 2: Right Rear Rail Retaining Clips
    GM2777882Courtesy of GENERAL MOTORS COMPANY
  4. Secure the right rear intermediate pipe to the right rear rail retaining clips (1).

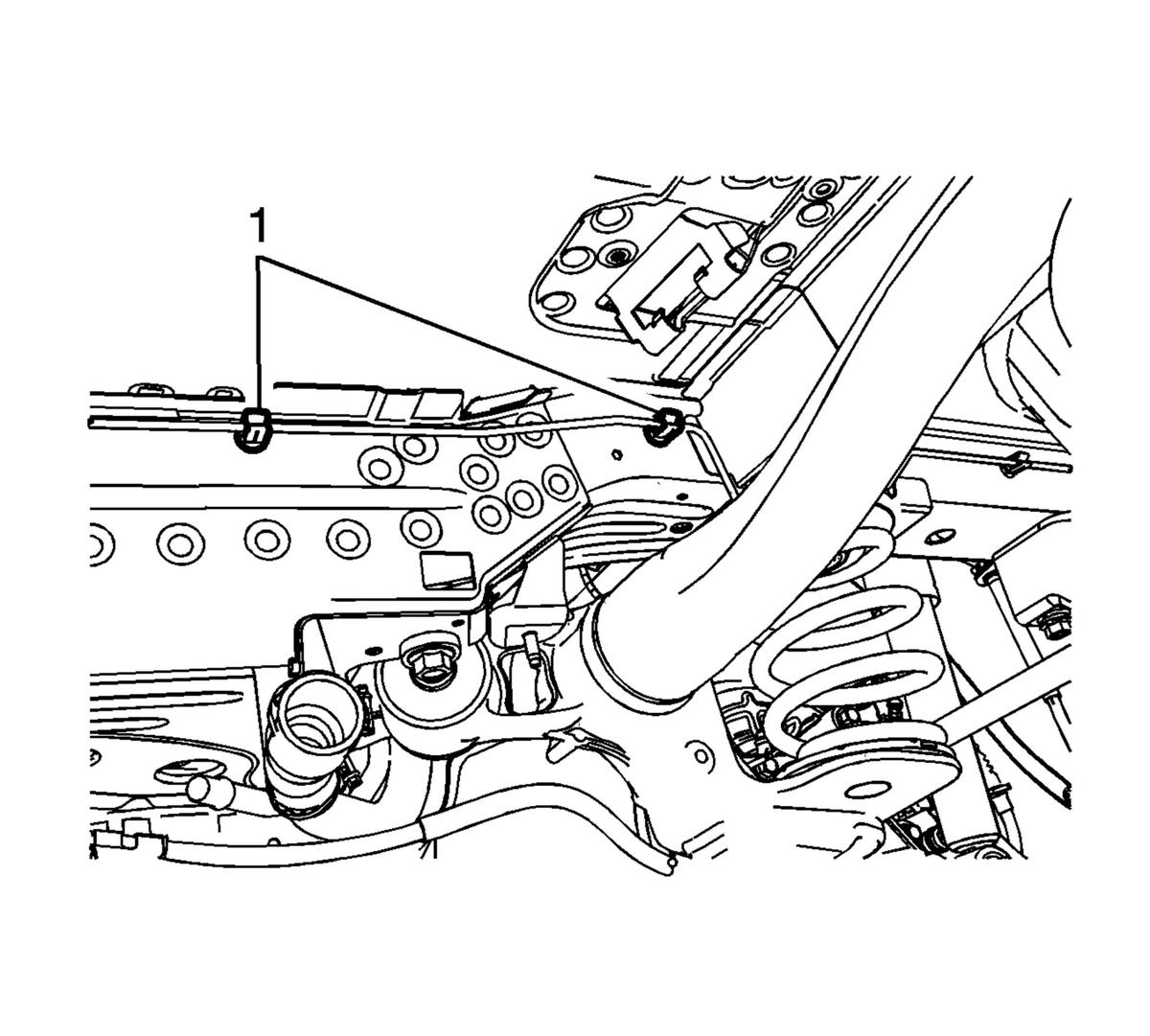

    5. Fig 3: Right Rear Intermediate Pipe And Right Rail
    GM2777881Courtesy of GENERAL MOTORS COMPANY
  5. Secure the right rear intermediate pipe to the right rail retaining clips (1).
    6. Fig 4: Left Rear Intermediate Pipe
    GM2777518Courtesy of GENERAL MOTORS COMPANY
  6. Secure the right rear intermediate pipe to the retaining clips (1).
    7. Fig 5: Rear Floor Retaining Clips
    GM2777427Courtesy of GENERAL MOTORS COMPANY
  7. Secure the right rear intermediate pipe to the rear floor retaining clips (1).
  8. Install the fuel tank. Refer to Fuel Tank Replacement (AWD) .
    9. Fig 6: Underbody Cross Sill Shield
    GM2777420Courtesy of GENERAL MOTORS COMPANY
  9. Install the underbody cross sill shield (1) and the 2 nuts.
    10. Fig 7: Rear Intermediate Pipe
    GM2599510Courtesy of GENERAL MOTORS COMPANY
  10. Secure the right rear intermediate pipe to the front floor retaining clips (1).
    11. Fig 8: Rear Intermediate Pipe And Retaining Clip
    GM2599512Courtesy of GENERAL MOTORS COMPANY
  11. Secure the right rear intermediate pipe to the retaining clip (1).
    12. Fig 9: Front Brake Pipe Retaining Clips
    GM2599513Courtesy of GENERAL MOTORS COMPANY
  12. Secure the right rear intermediate pipe to the retaining clips (1).

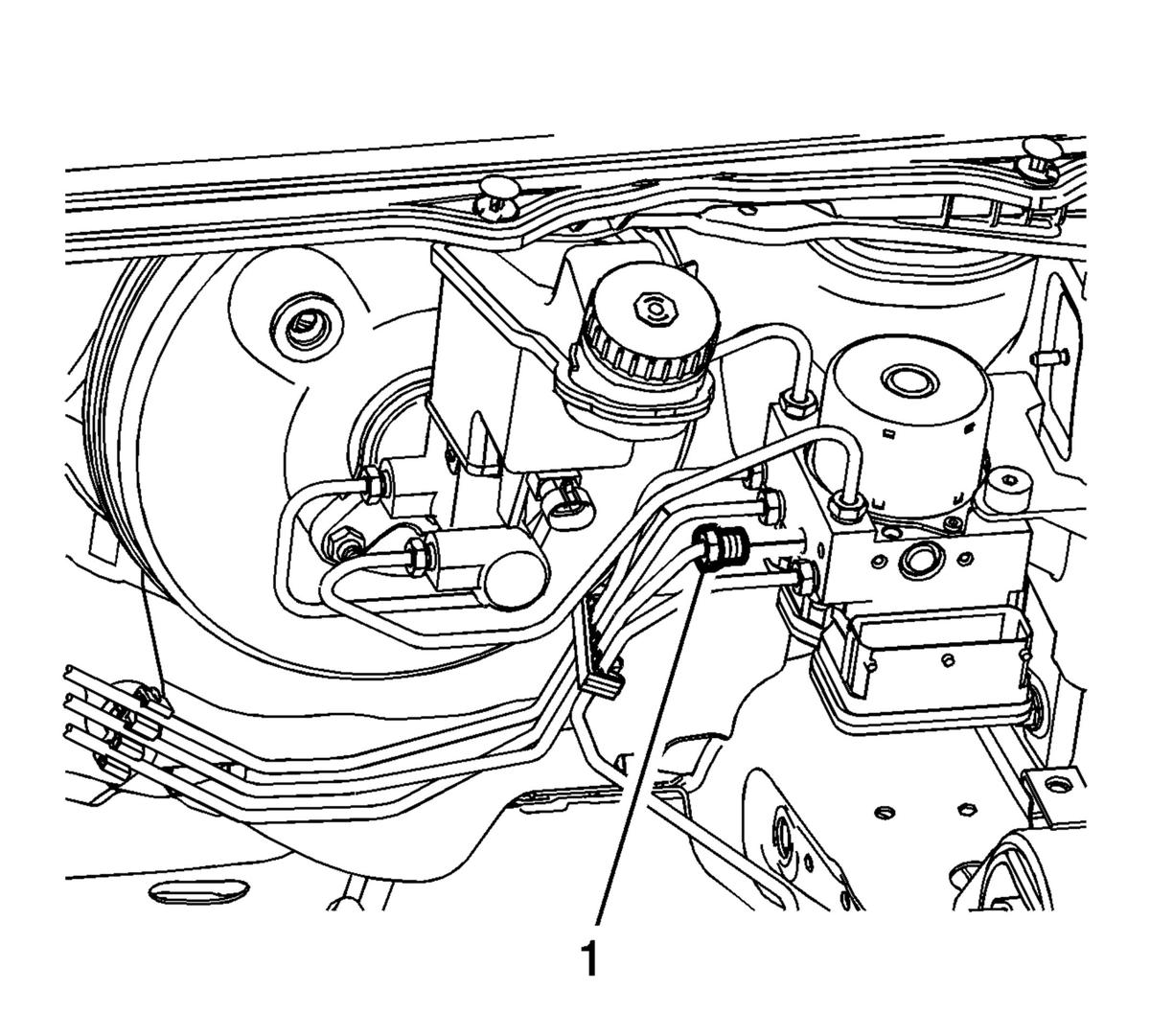

    13. Fig 10: Brake Pressure Modulator Valve (BPMV) And Rear Intermediate Pipe Fitting
    GM2599516Courtesy of GENERAL MOTORS COMPANY
  13. Connect the right rear intermediate pipe fitting (1) to the BPMV and tighten the fitting to 18 N.m (13 lb ft).
  14. Install the battery. Refer to Battery Replacement .
  15. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure) .
