Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to Brake Fluid Irritant Warning .

  1. Remove the battery. Refer to Battery Replacement .

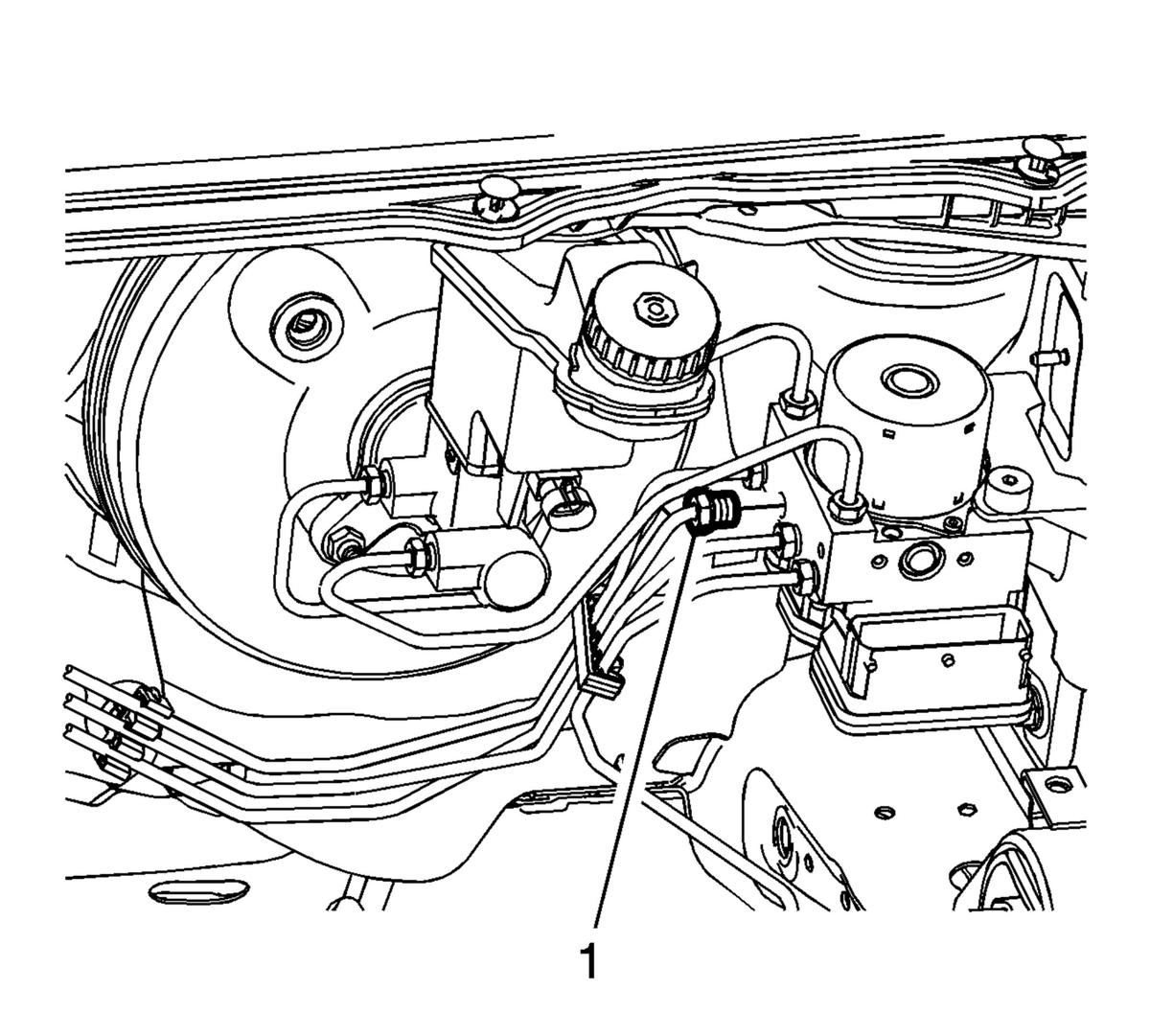

    2. Fig 1: Left Rear Intermediate Pipe Fitting
    GM2599517Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the left rear intermediate pipe fitting (1) from the brake pressure modulator valve (BPMV).
  3. Plug the BPMV outlet port to prevent brake fluid loss and contamination.

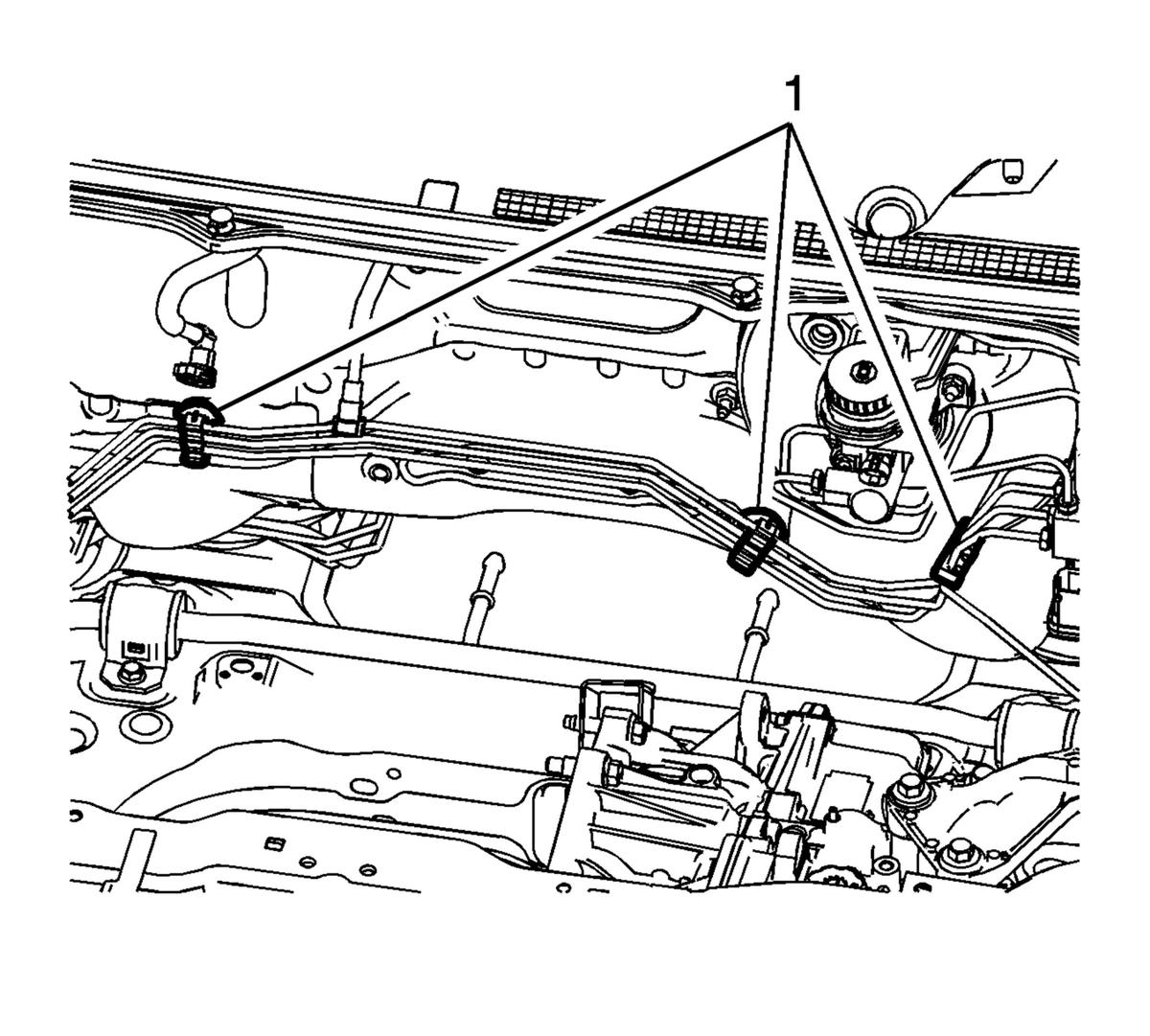

    4. Fig 2: Front Brake Pipe Retaining Clips
    GM2599513Courtesy of GENERAL MOTORS COMPANY
  4. Release the left rear intermediate pipe from the retaining clips (1).
  5. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

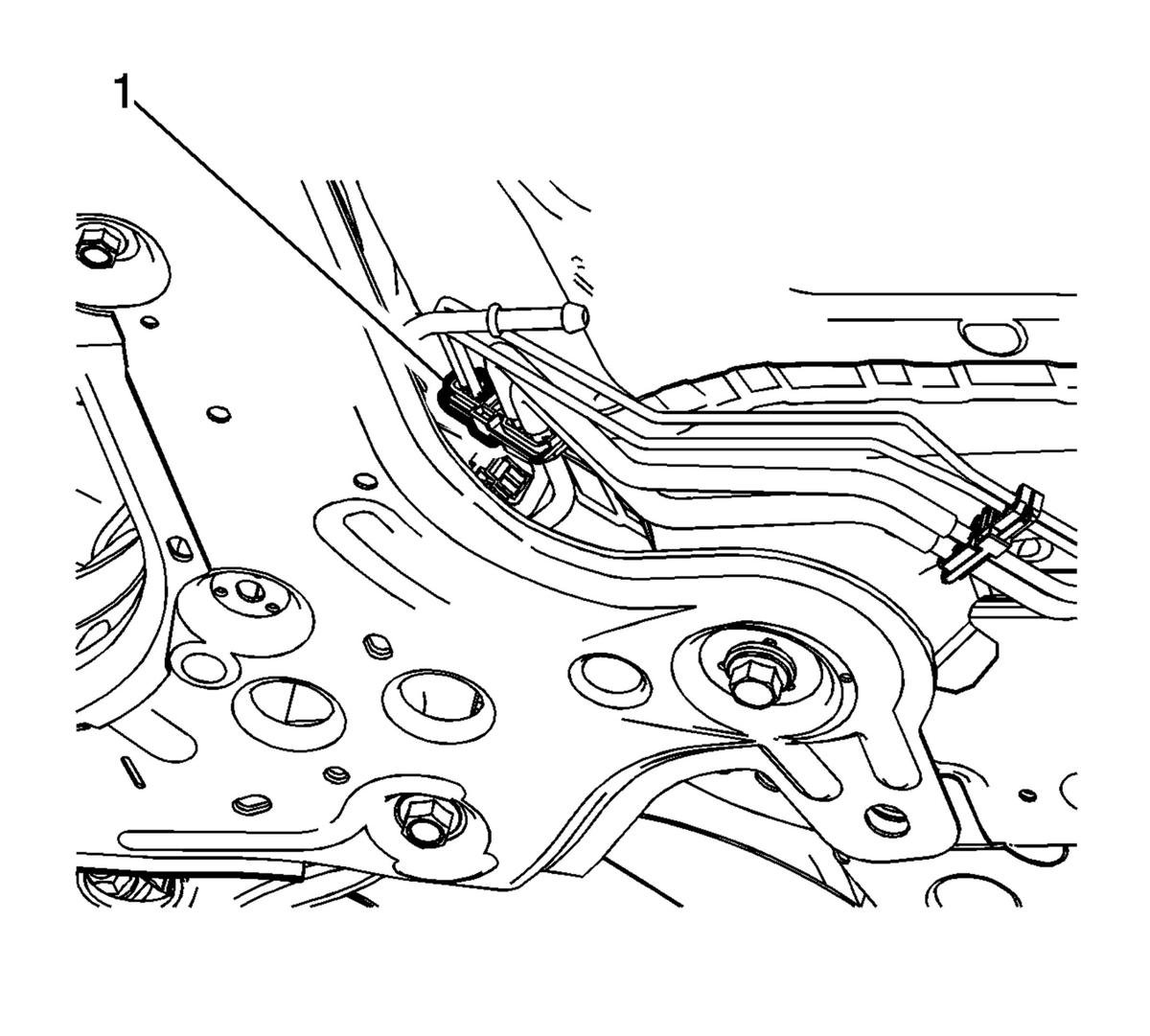

    6. Fig 3: Rear Intermediate Pipe And Retaining Clip
    GM2599512Courtesy of GENERAL MOTORS COMPANY
  6. Release the left rear intermediate pipe from the retaining clip (1).

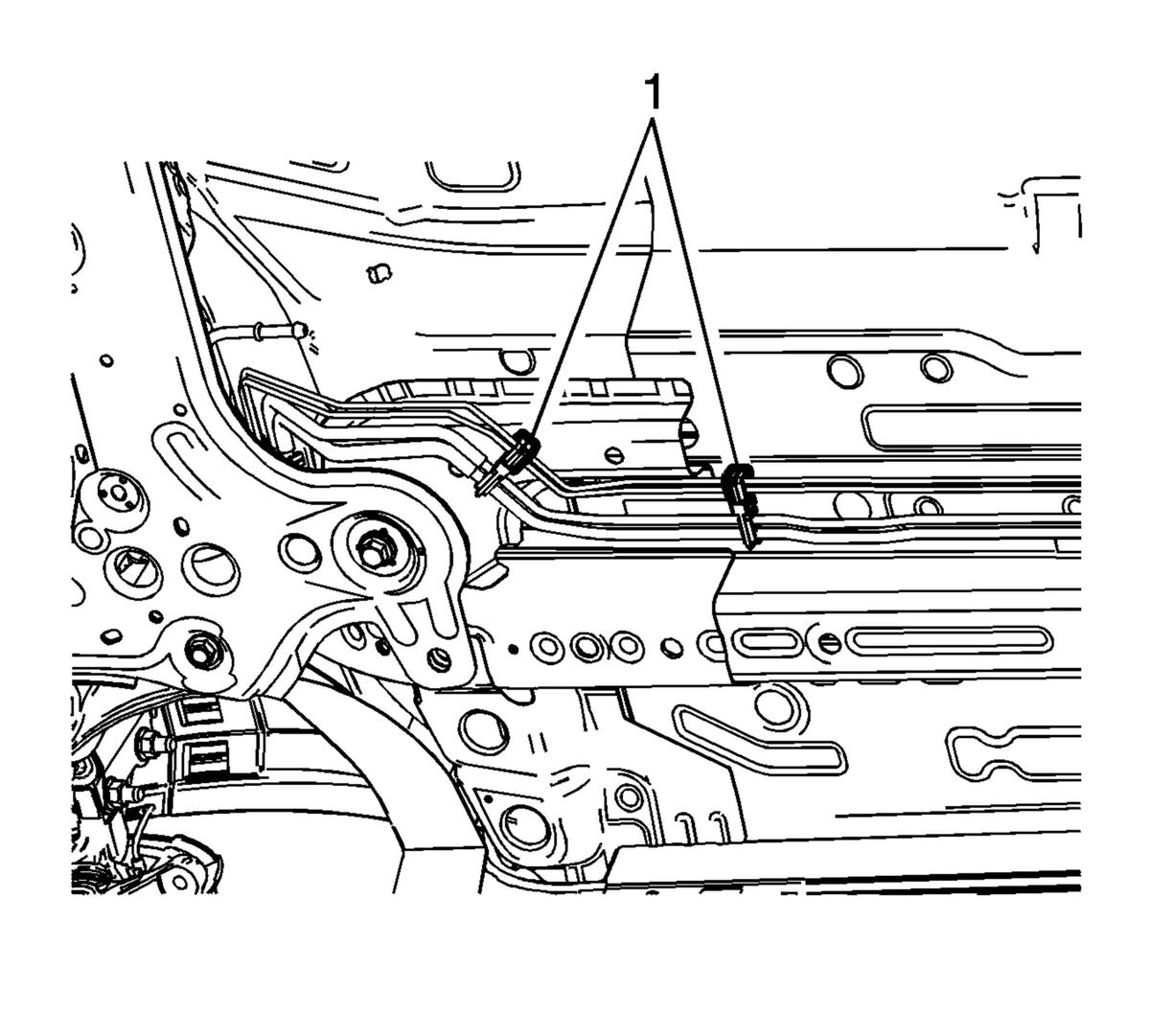

    7. Fig 4: Rear Intermediate Pipe
    GM2599510Courtesy of GENERAL MOTORS COMPANY
  7. Release the left rear intermediate pipe from the front floor retaining clips (1).

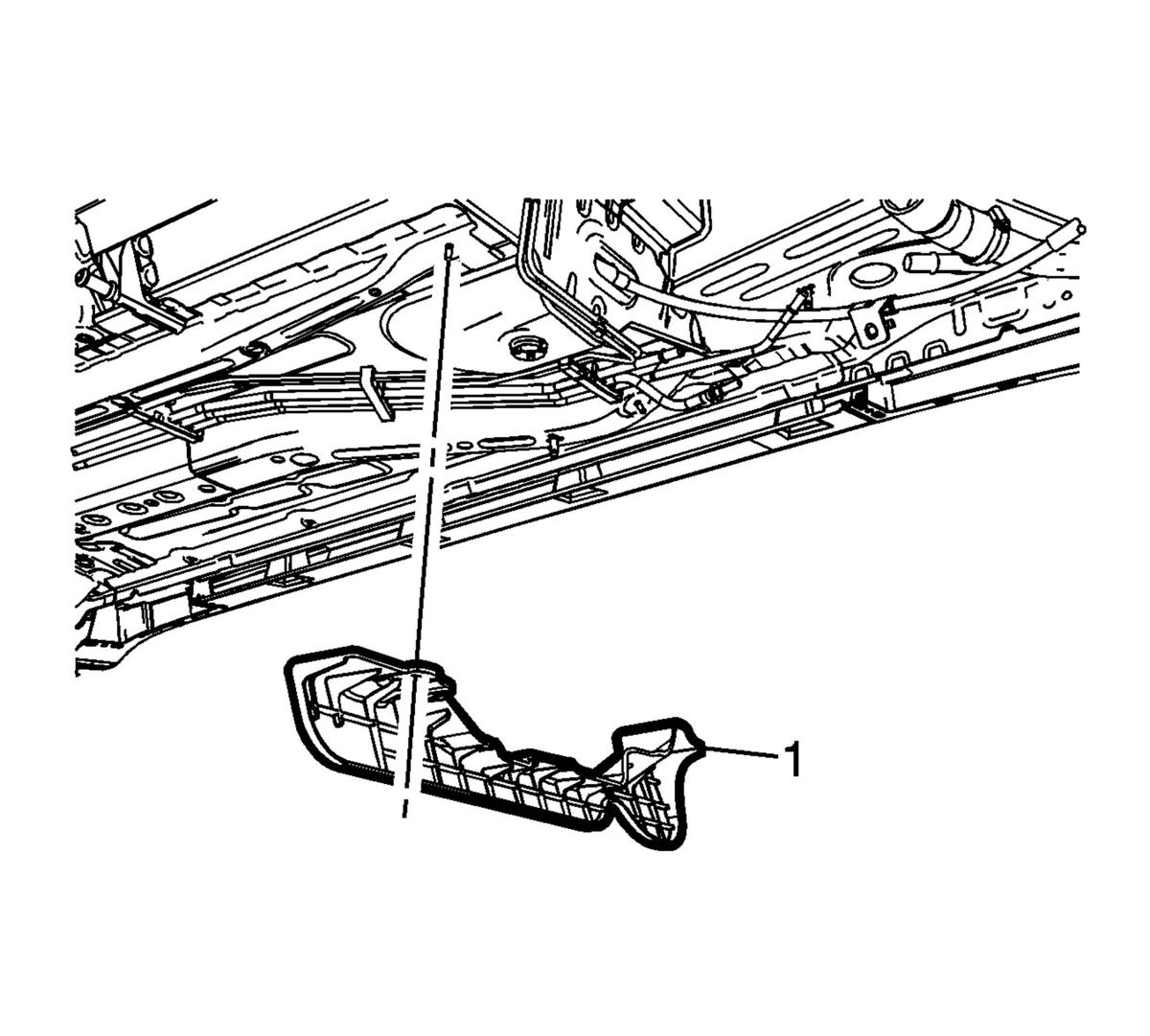

    8. Fig 5: Underbody Cross Sill Shield
    GM2777420Courtesy of GENERAL MOTORS COMPANY
  8. Remove the 2 nuts and the underbody cross sill shield (1).
  9. Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) .

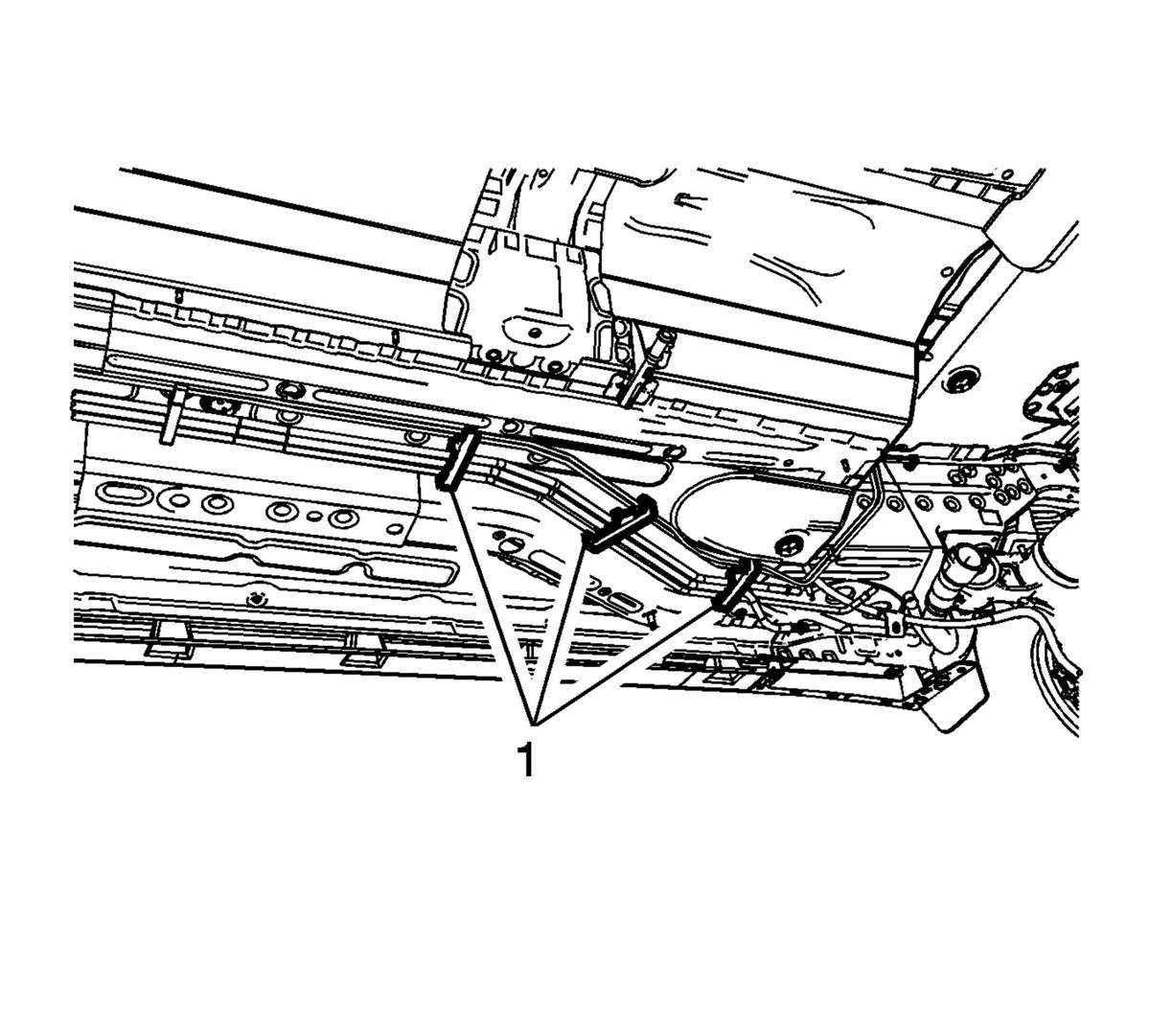

    10. Fig 6: Rear Floor Retaining Clips
    GM2777427Courtesy of GENERAL MOTORS COMPANY
  10. Release the left rear intermediate pipe from the rear floor retaining clips (1).

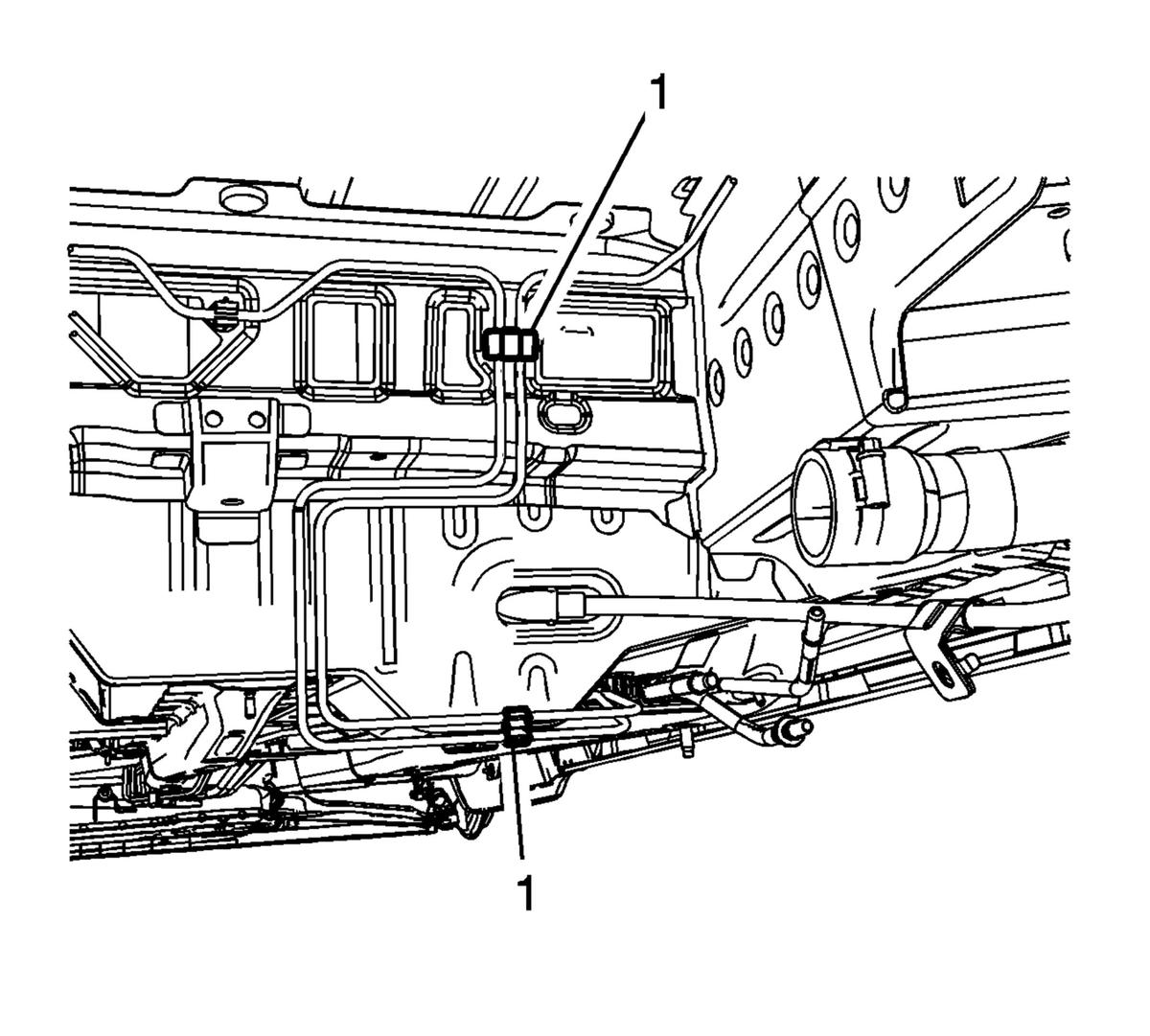

    11. Fig 7: Left Rear Intermediate Pipe
    GM2777518Courtesy of GENERAL MOTORS COMPANY
  11. Release the left rear intermediate pipe from the retaining clips (1).

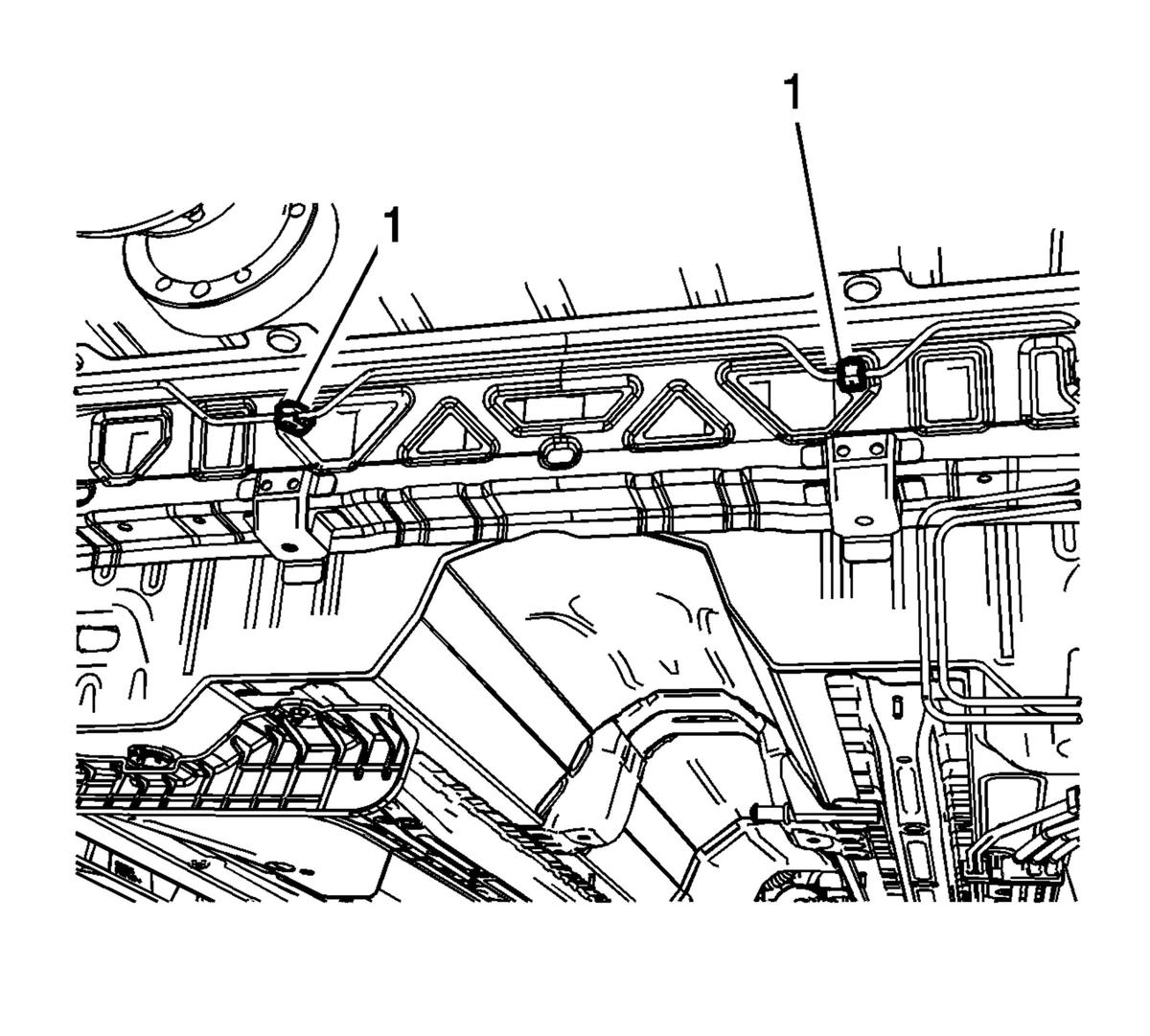

    12. Fig 8: Left Rear Intermediate Pipe And Cross Vehicle Retaining Clips
    GM2777579Courtesy of GENERAL MOTORS COMPANY
  12. Release the left rear intermediate pipe from the cross vehicle retaining clips (1).

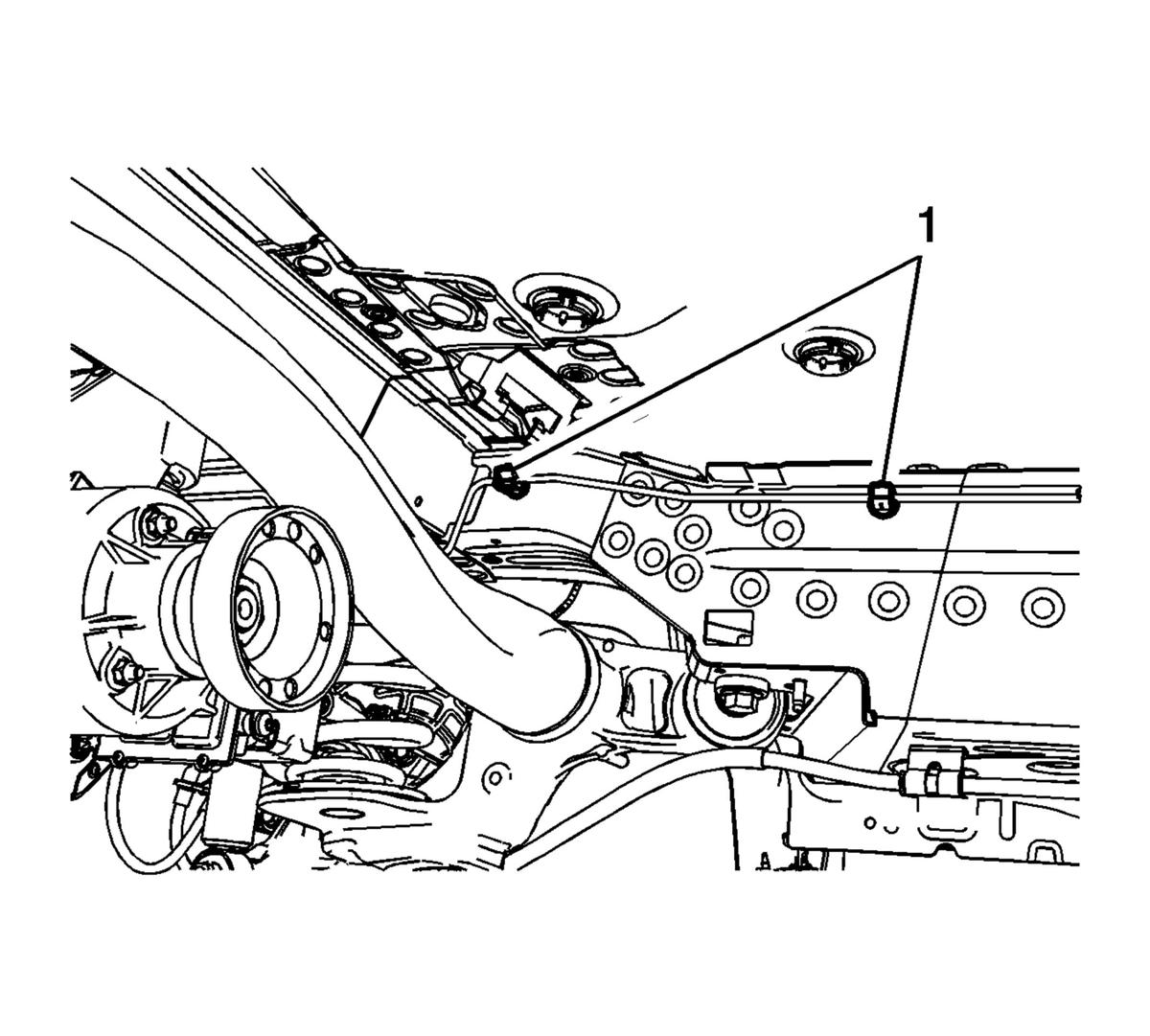

    13. Fig 9: Rear Intermediate Pipe And Left Rail Retaining Clips
    GM2777583Courtesy of GENERAL MOTORS COMPANY
  13. Release the left rear intermediate pipe from the left rail retaining clips (1).

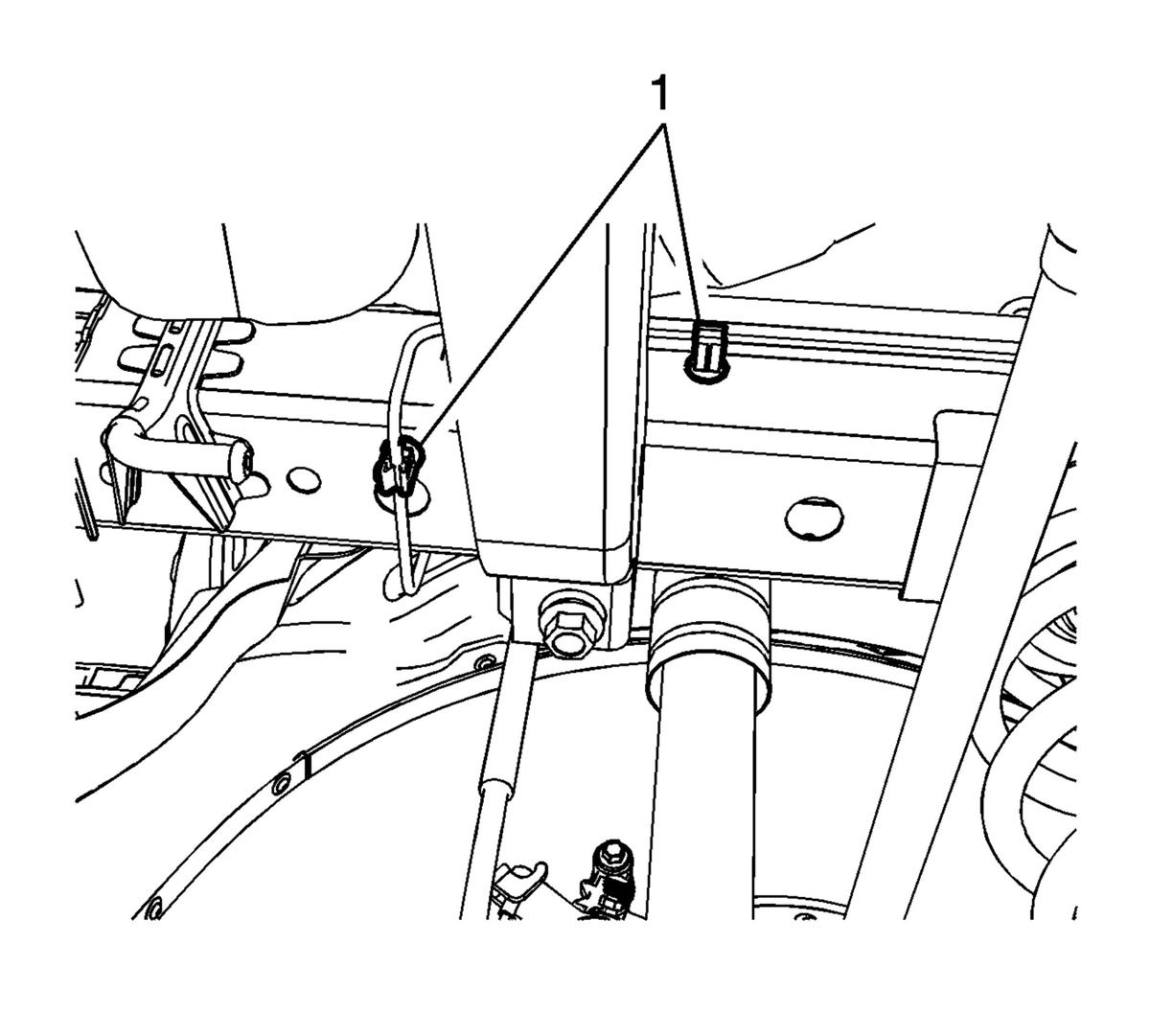

    14. Fig 10: Left Rear Rail Retaining Clips
    GM2777587Courtesy of GENERAL MOTORS COMPANY
  14. Release the left rear intermediate pipe from the left rear rail retaining clips (1).
    15. Fig 11: Left Rear Intermediate Pipe Fitting
    GM2772260Courtesy of GENERAL MOTORS COMPANY
  15. Disconnect the left rear intermediate pipe fitting (1) from the rear brake hose fitting.
  16. Cap the brake hose fitting to prevent brake fluid loss and contamination.
  17. Remove the left rear intermediate pipe from the vehicle.
