Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Install the brake hose.

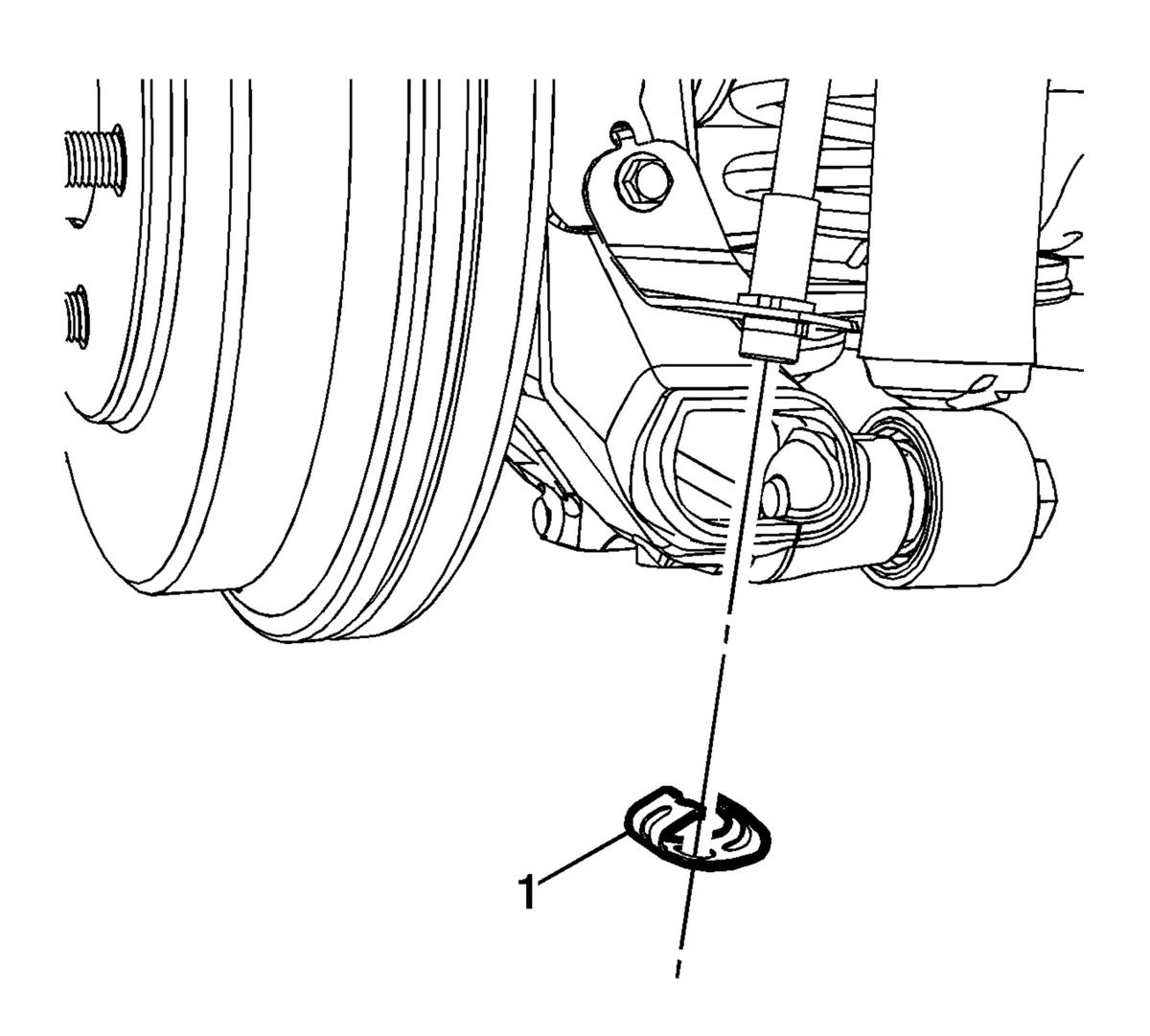

Fig 1: Brake Hose Retainer

Courtesy of GENERAL MOTORS COMPANY

Install the brake hose retainer (1).

CAUTION:

Refer to Fastener Caution .

Install the brake pipe fitting (1) to the rear brake hose and tighten the fitting to 18 N.m (13 lb ft).

Fig 2: Brake Hose Retainer

Courtesy of GENERAL MOTORS COMPANY

Install the brake hose to the wheelhouse bracket and install the retainer (1).

Fig 3: Left Rear Intermediate Pipe Fitting

Courtesy of GENERAL MOTORS COMPANY

Install the brake pipe fitting (1) to the rear brake hose and tighten the fitting to 18 N.m (13 lb ft).
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure) .
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
