Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Install the power brake booster vacuum hose assembly to the vehicle.

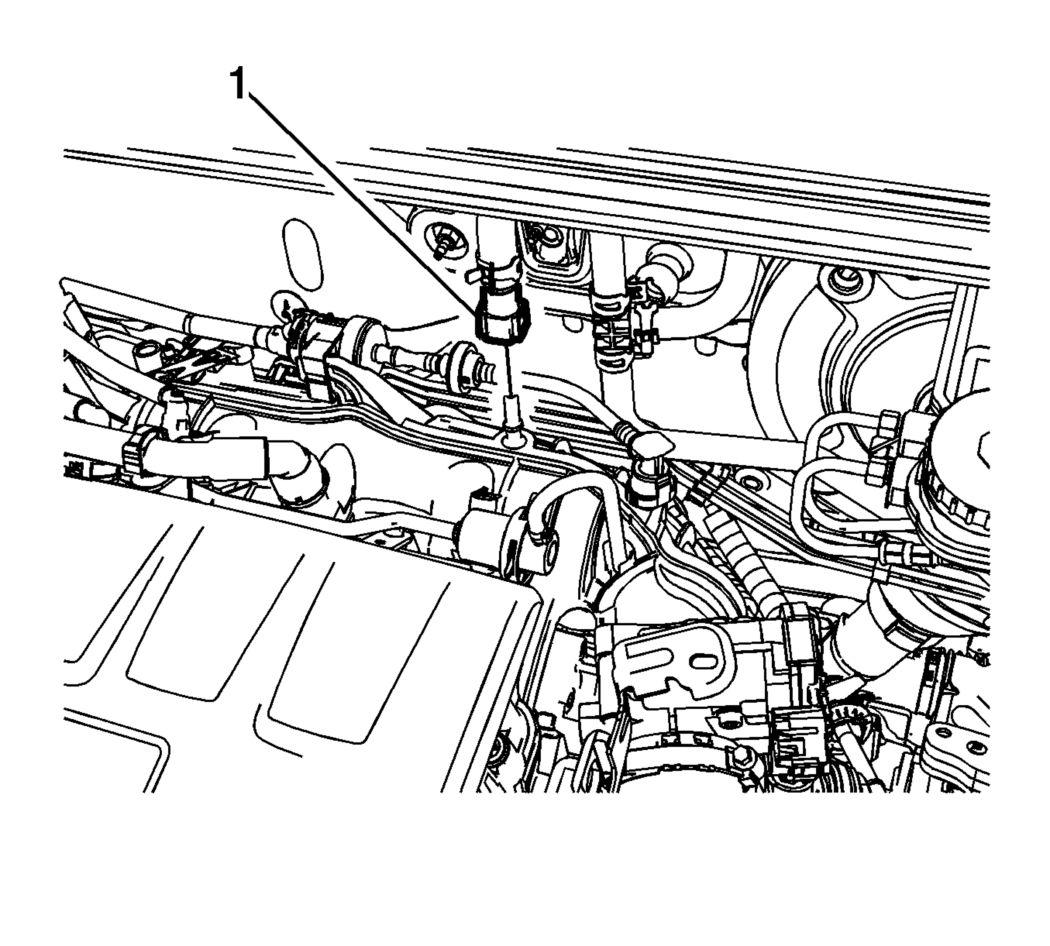

- Release the clamp and install the power brake booster vacuum sensor (1).

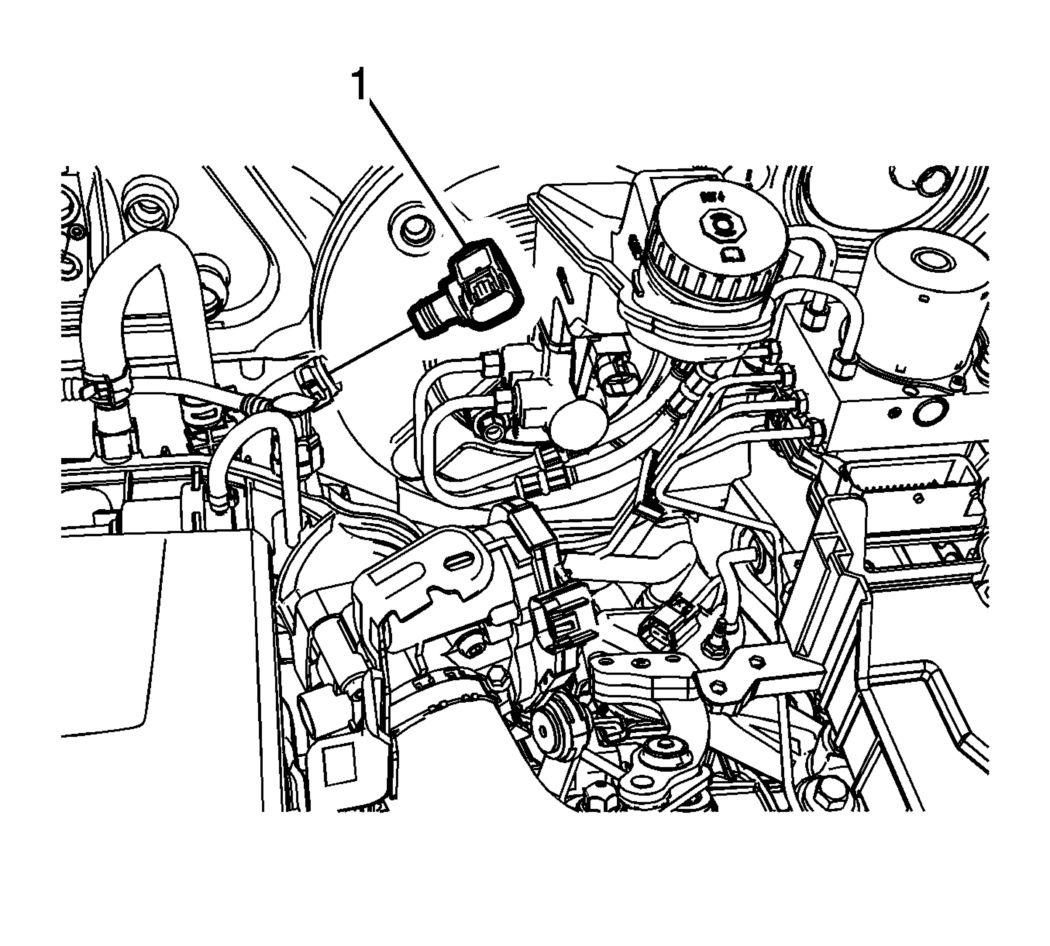

- Install the power brake booster vacuum sensor and hose assembly (1) to the power vacuum brake booster grommet.
- Connect the power brake booster vacuum sensor electrical connector.
- Connect the power brake booster vacuum hose quick connect (1) to the intake manifold vacuum port.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Through the left front wheelhouse, connect the power brake booster vacuum hose quick connect (1) to the power brake booster pump port.
NOTE:
A small amount of denatured alcohol may be used as a lubricant for assembly.
NOTE:
A small amount of denatured alcohol may be used as a lubricant for assembly.
