Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Install the power brake booster pump bracket, if removed. Refer to Power Brake Booster Pump Bracket Replacement .
- Install the power brake booster pump assembly.

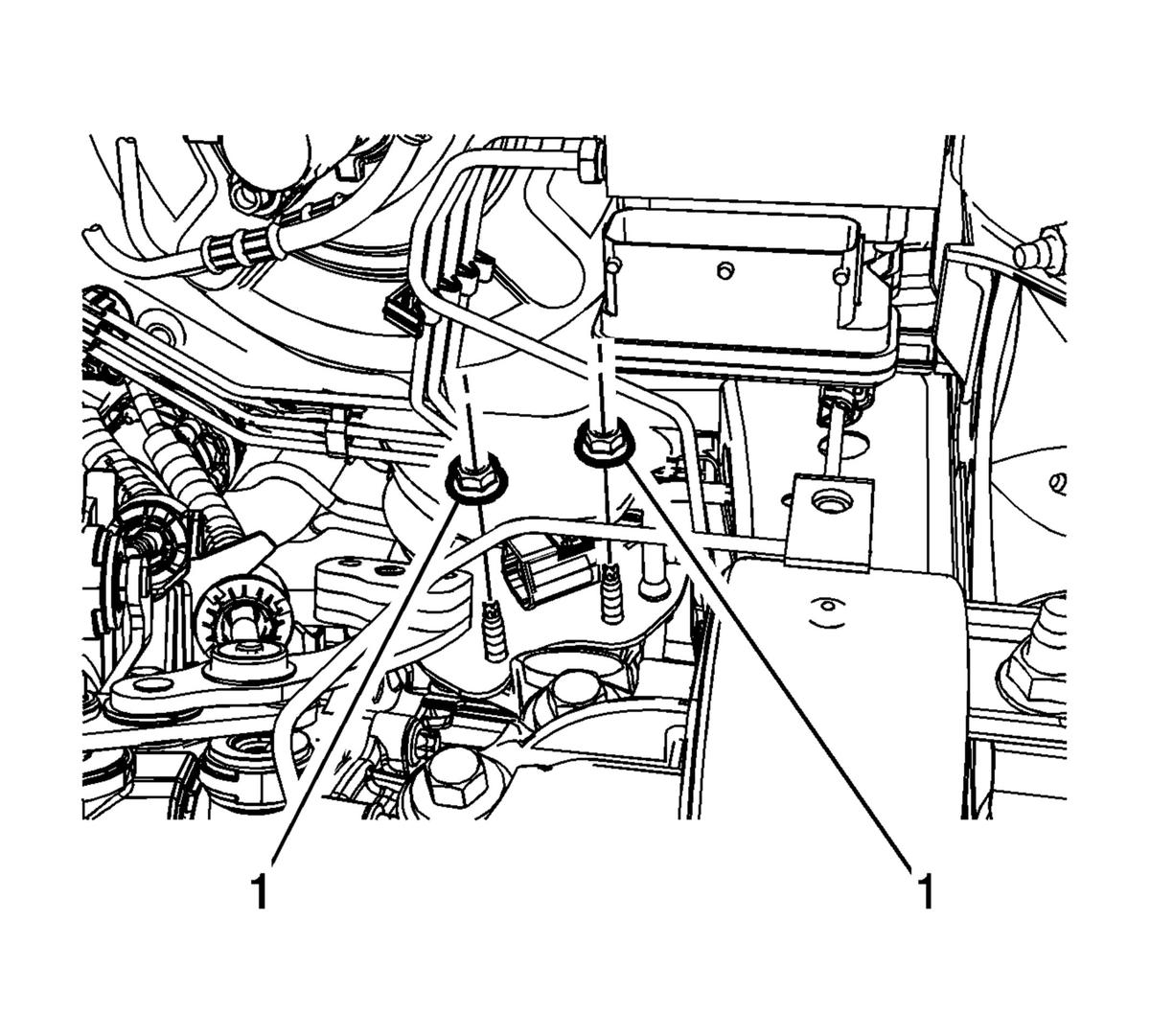

- Install the power brake booster pump bracket nuts (1).
- Tighten the nuts to 22 N.m (16 lb ft)

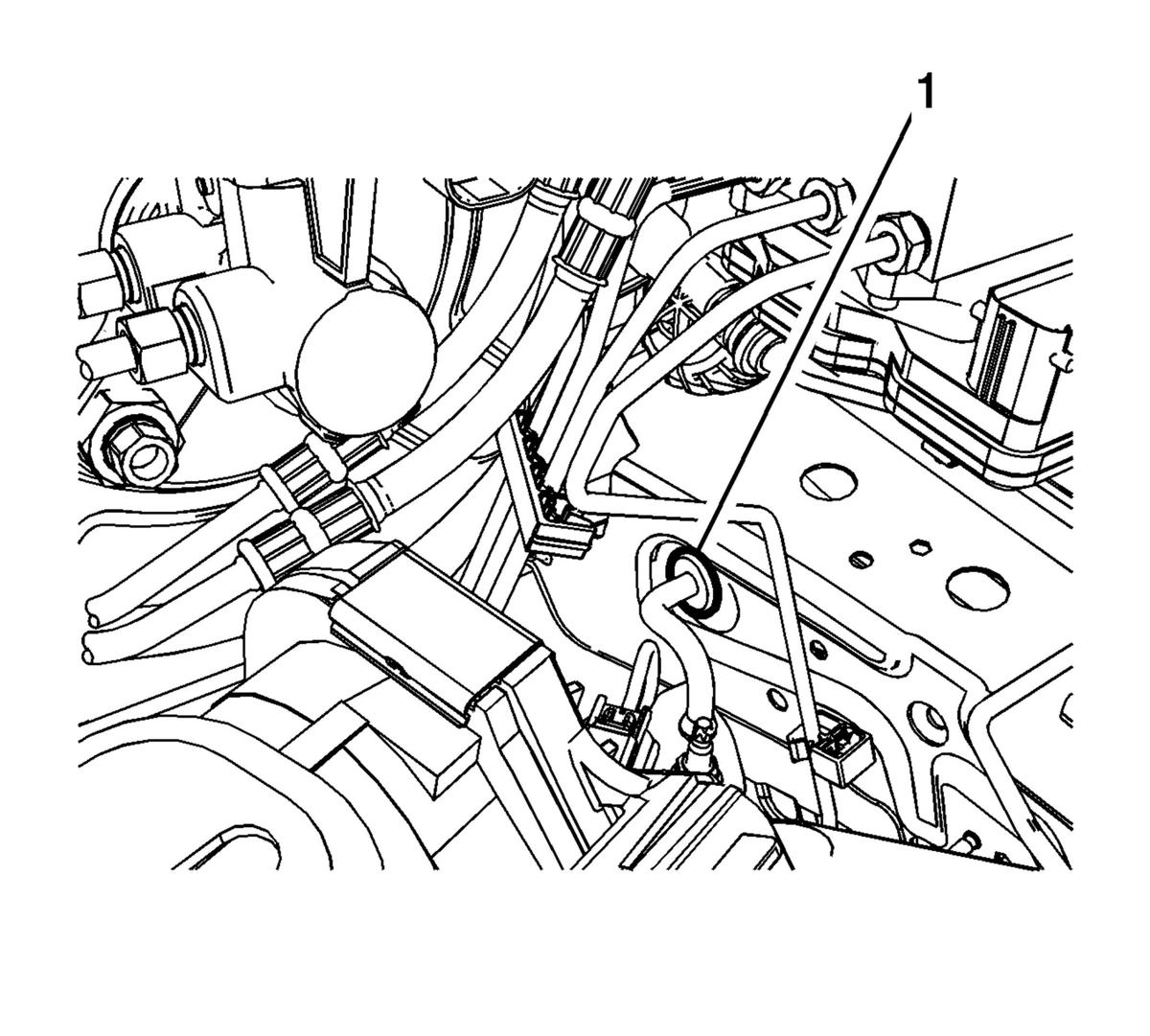

- Install the power brake booster pump vent hose and grommet (1) to the left side rail.
- Connect the power brake booster pump electrical connector.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

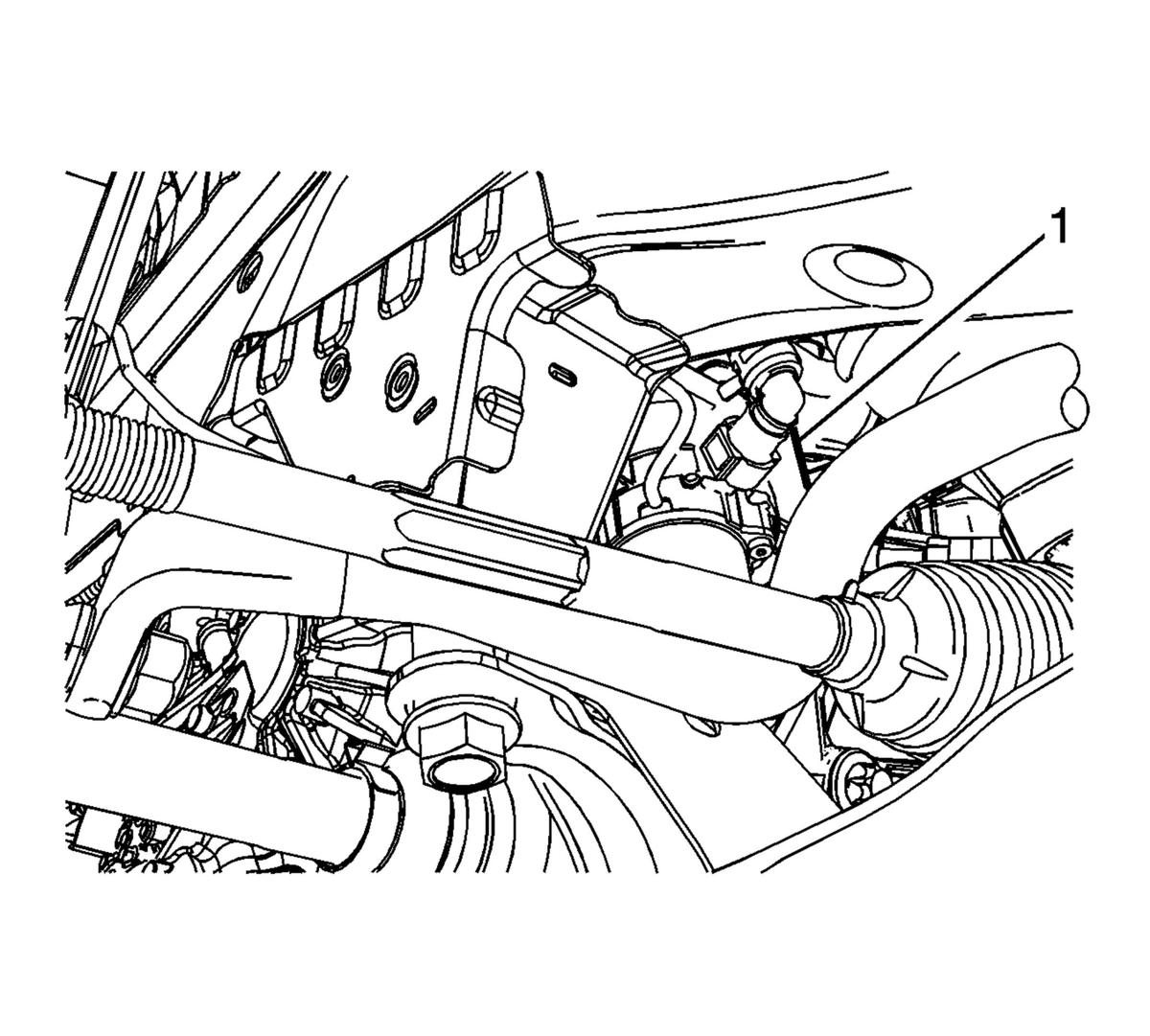

- Through the left front wheelhouse, connect the power brake booster vacuum hose quick connect (1) to the power brake booster pump port.
- Install the battery tray. Refer to Battery Tray Replacement .
CAUTION:
Refer to Fastener Caution .
