Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

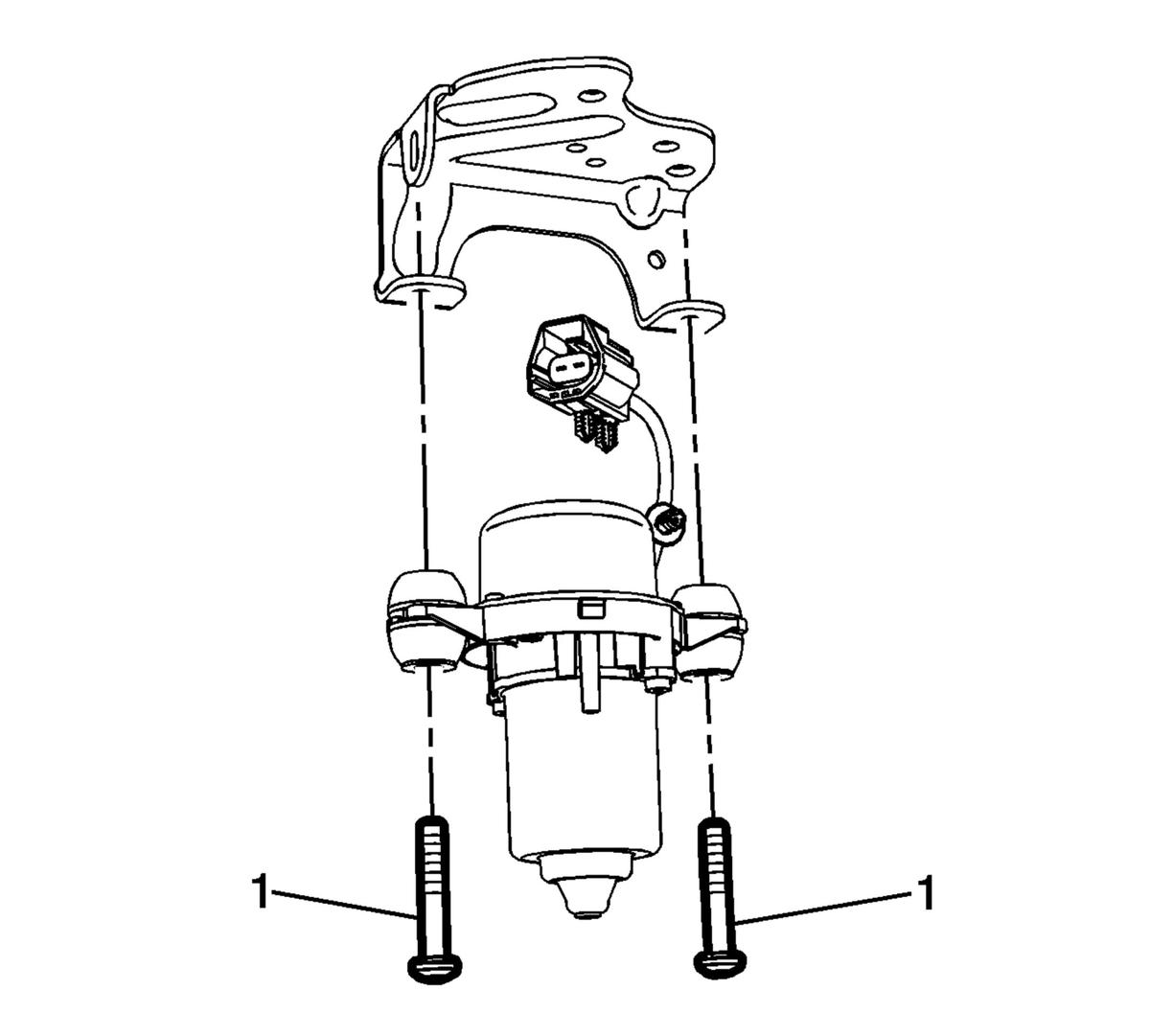

    Fig 1: Power Brake Booster Pump Bolts
    GM2772221Courtesy of GENERAL MOTORS COMPANY
  1. Install the power brake booster pump bracket to the power brake booster pump.
  2. Install the power brake booster pump bolts (1).

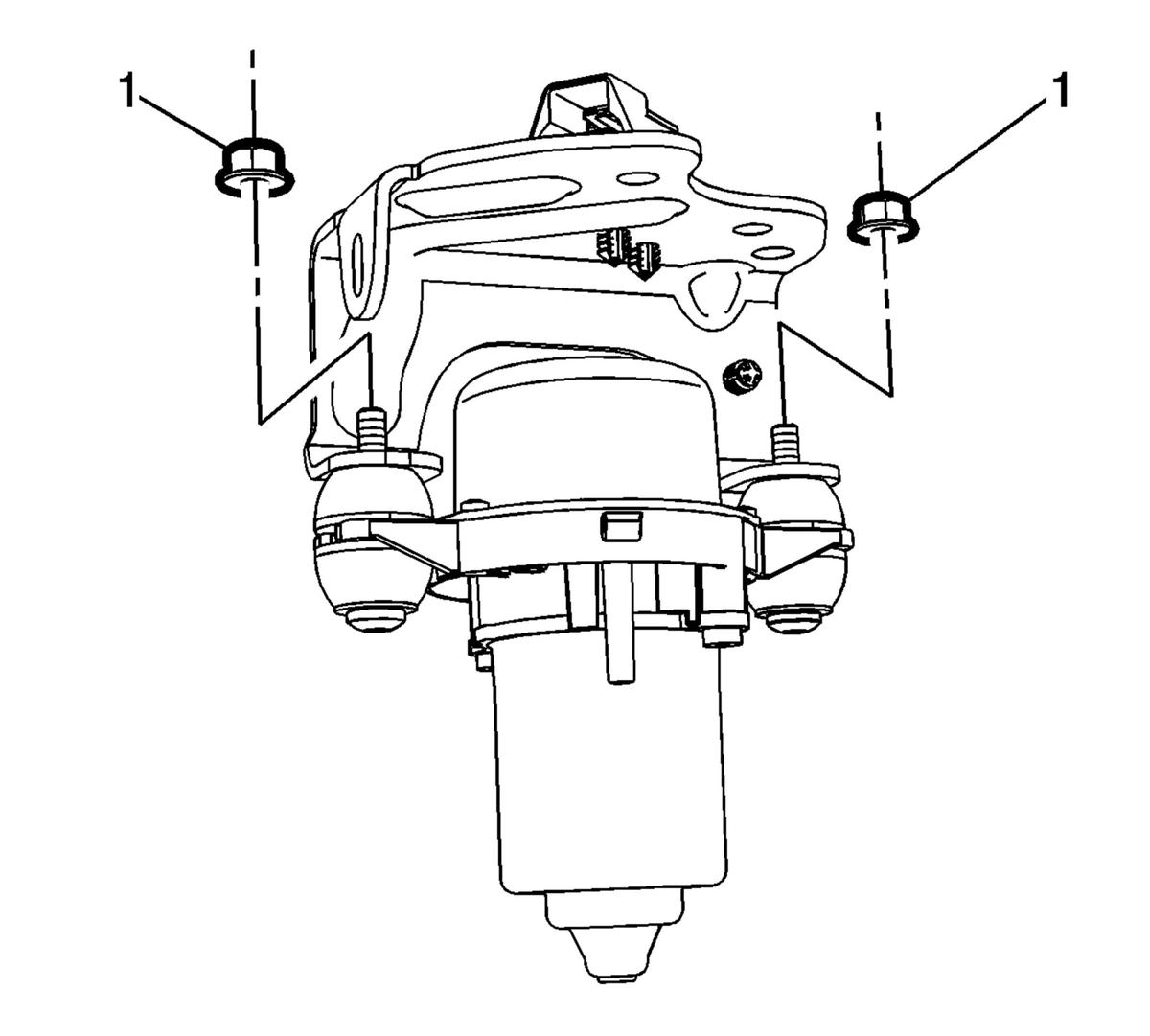

    3. Fig 2: Power Brake Booster Pump Nuts
    GM2772219Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the power brake booster pump nuts (1) and tighten to 7 N.m (62 lb in).

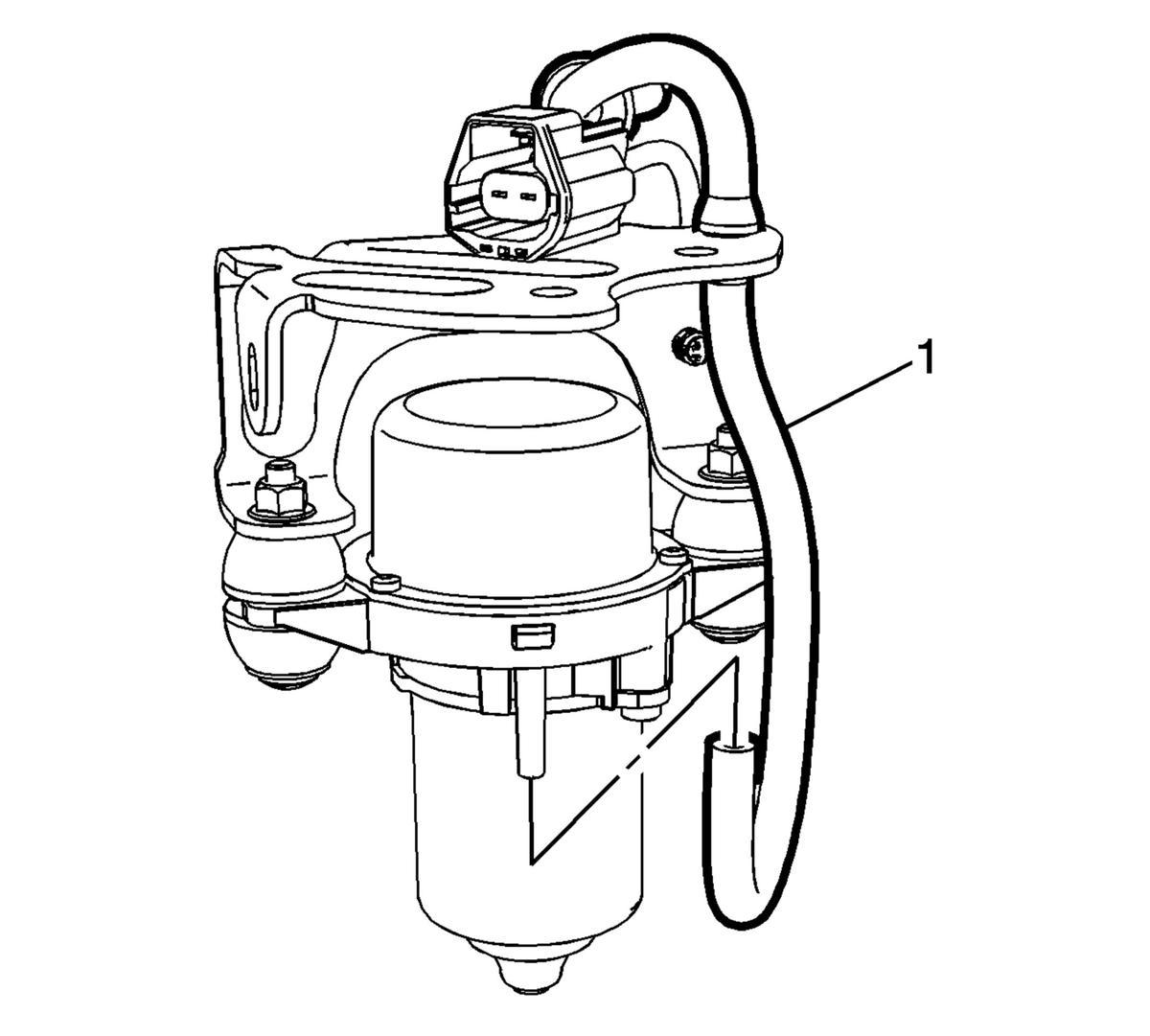

    4. Fig 3: Power Brake Booster Pump
    GM2772218Courtesy of GENERAL MOTORS COMPANY
  4. Connect the power brake booster pump vent hose (1).
  5. Install the power brake booster pump electrical harness and retainer to the power brake booster pump bracket.
  6. Install the power brake booster pump. Refer to Power Brake Booster Pump Replacement .
