Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

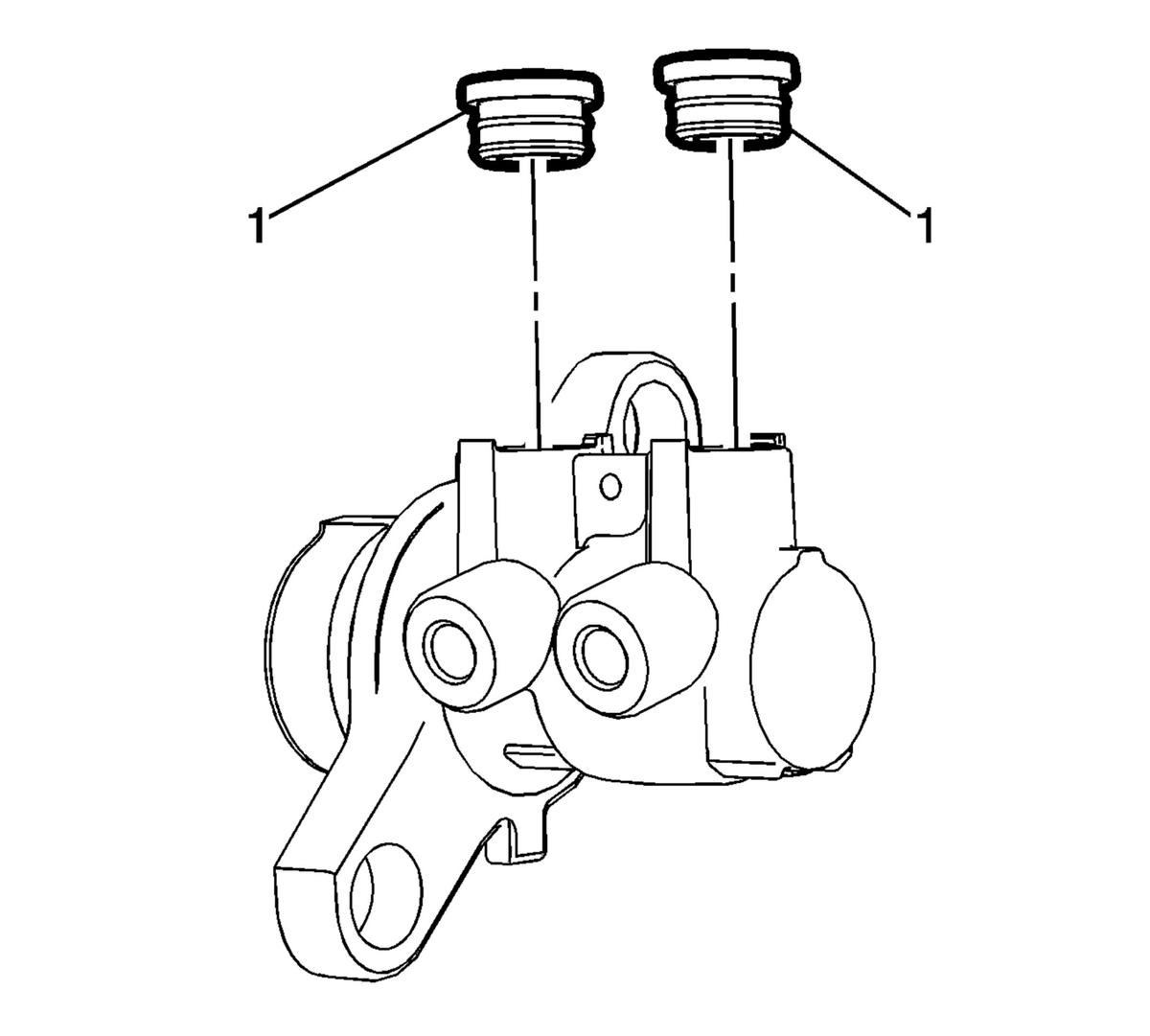

- Lightly lubricate the brake master cylinder reservoir seals (1) with GM approved brake fluid from a clean, sealed, brake fluid container.
- Install the lubricated brake master cylinder reservoir seals to the brake master cylinder.

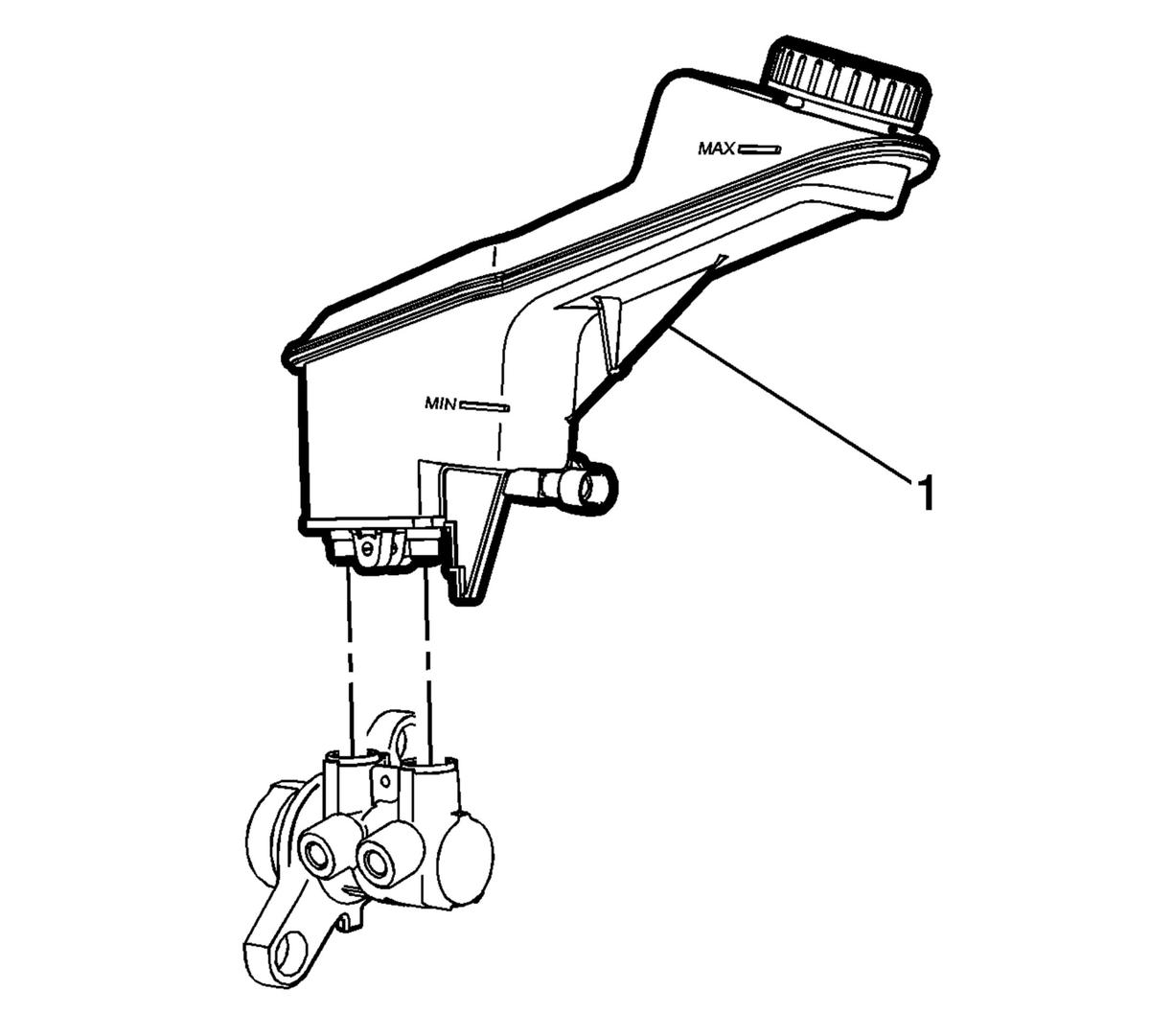

- Install the master cylinder reservoir (1) by firmly pressing straight downward.
- Install the brake fluid level indicator switch, if removed. Refer to Brake Fluid Level Indicator Switch Replacement .

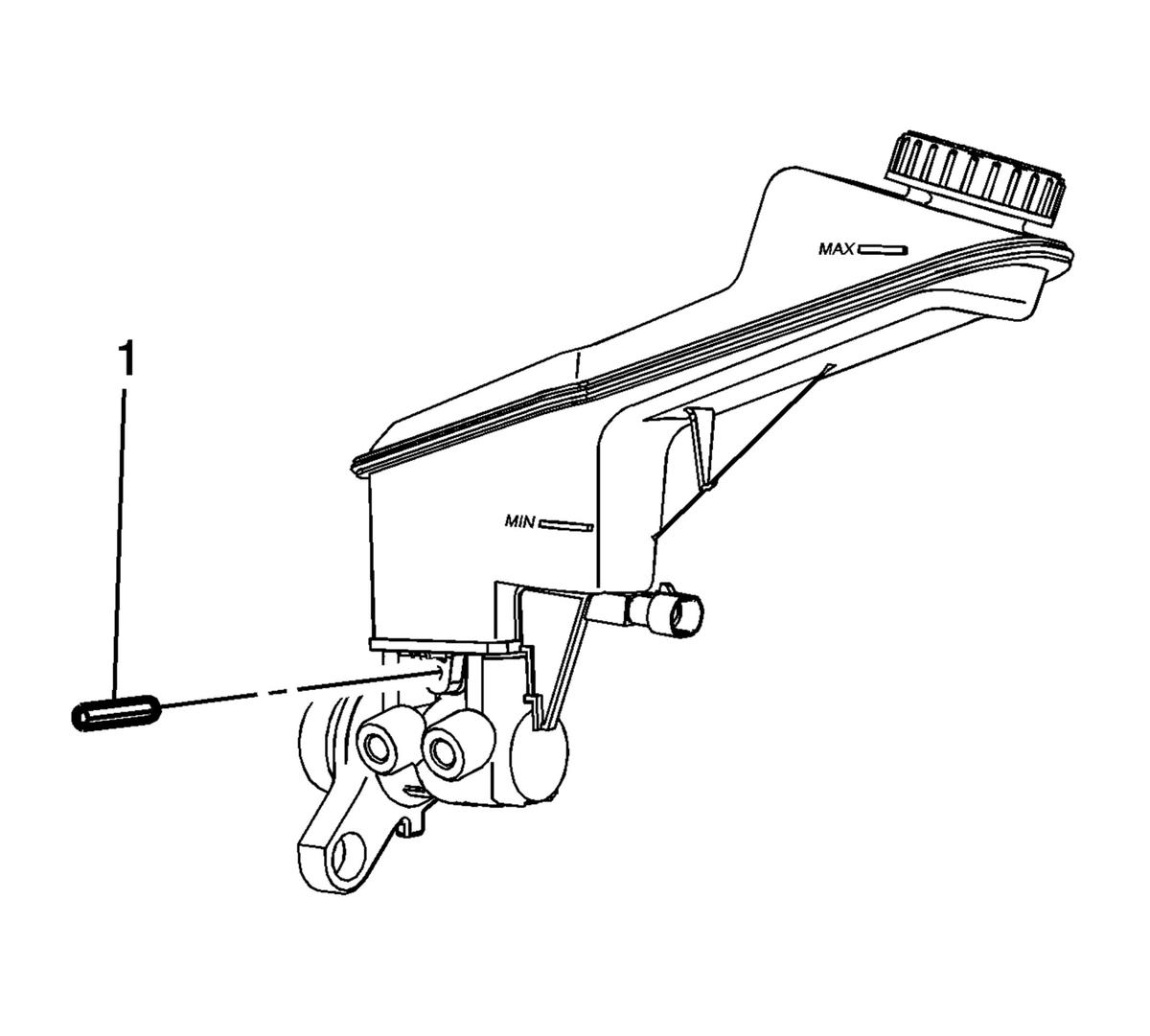

- Install a new brake master cylinder reservoir roll pin (1).
- Install the brake master cylinder. Refer to Master Cylinder Replacement .
