Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the master cylinder reservoir, if removed. Refer to Master Cylinder Reservoir Replacement .
  2. Bench bleed the master cylinder. Refer to Master Cylinder Bench Bleeding .
  3. Install the brake fluid level indicator switch, if removed. Refer to Brake Fluid Level Indicator Switch Replacement .

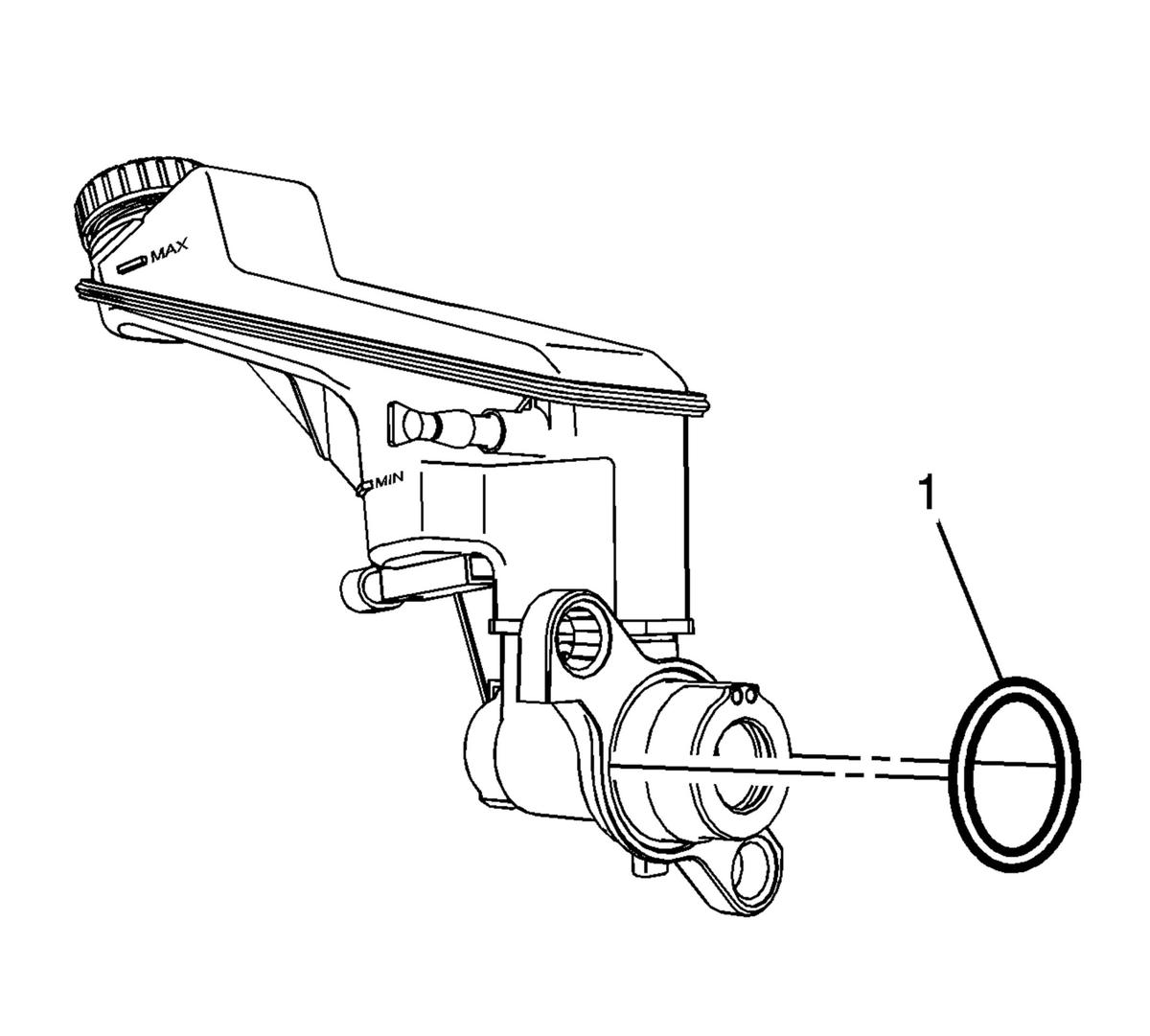

    4. Fig 1: Master Cylinder Seal
    GM2511342Courtesy of GENERAL MOTORS COMPANY
  4. Install the master cylinder seal (1).
  5. Install the master cylinder to the power vacuum brake booster.

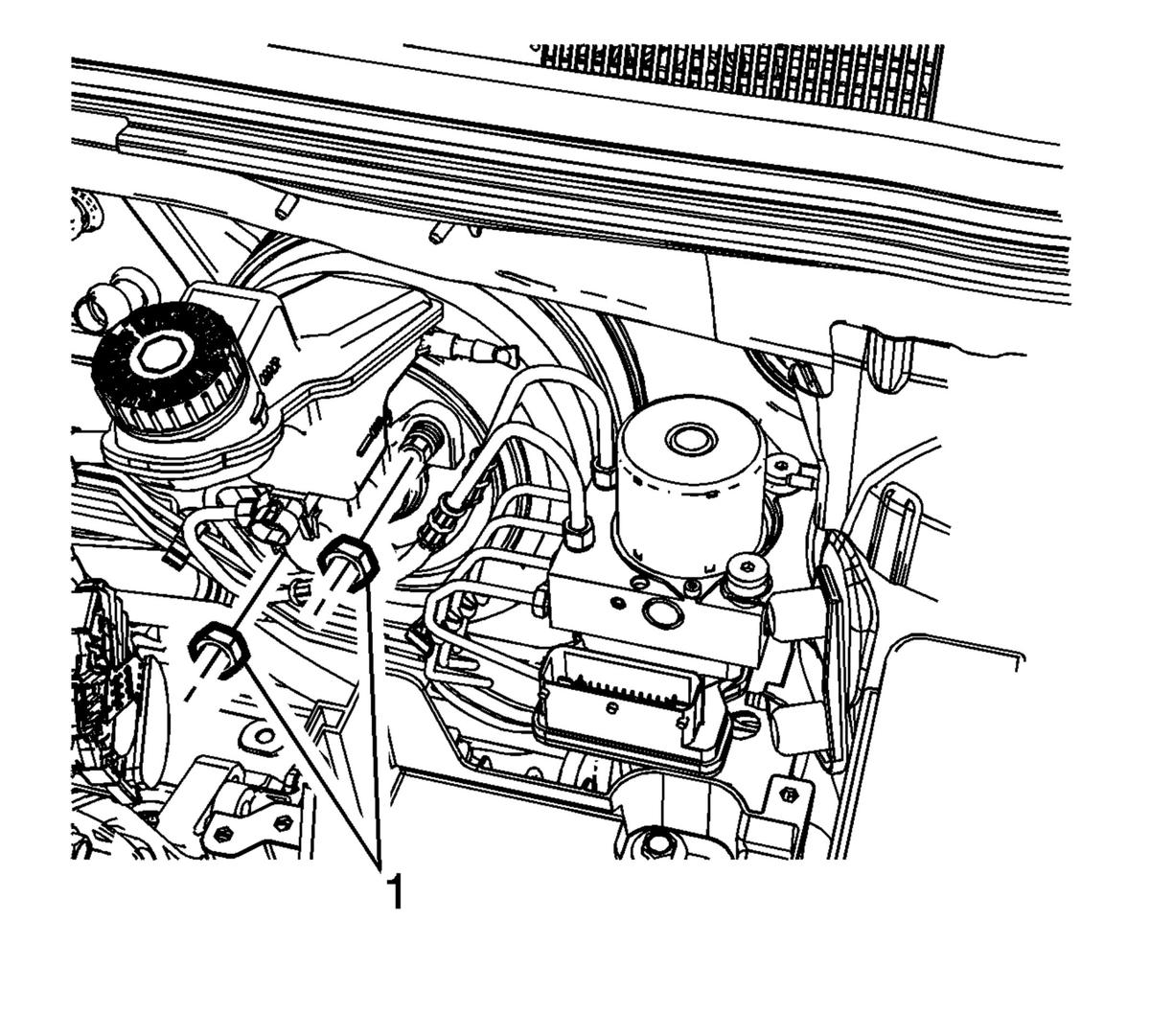

    6. Fig 2: Brake Master Cylinder And Nuts
    GM2910015Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  6. Install the master cylinder nuts (1) and tighten to 19 (14 lb ft).
    7. Fig 3: Master Cylinder Primary Brake Pipe Fitting
    GM2771947Courtesy of GENERAL MOTORS COMPANY
  7. Connect the master cylinder primary brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).
    8. Fig 4: Master Cylinder Outlet Port
    GM2771946Courtesy of GENERAL MOTORS COMPANY
  8. Connect the master cylinder secondary brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).
  9. Connect the brake fluid level indicator switch electrical connector.
  10. Install the battery. Refer to Battery Replacement .
  11. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure) .
