Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

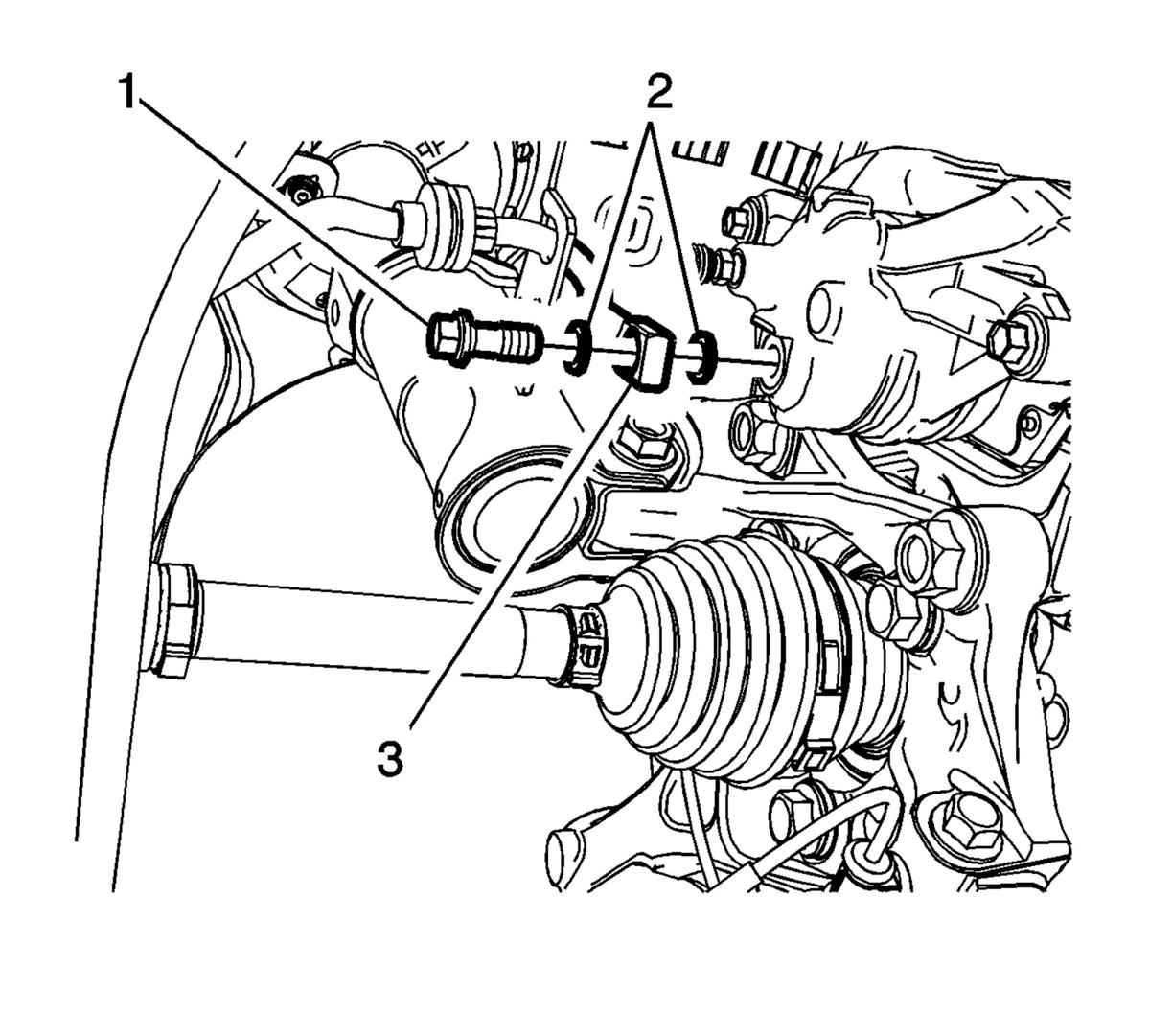

- Assemble the brake hose fitting bolt (1) and the new brake hose fitting gaskets (2) to the brake hose fitting (3).
- Install the brake hose assembly to the brake caliper and tighten the fitting bolt to 40 N.m (30 lb ft).

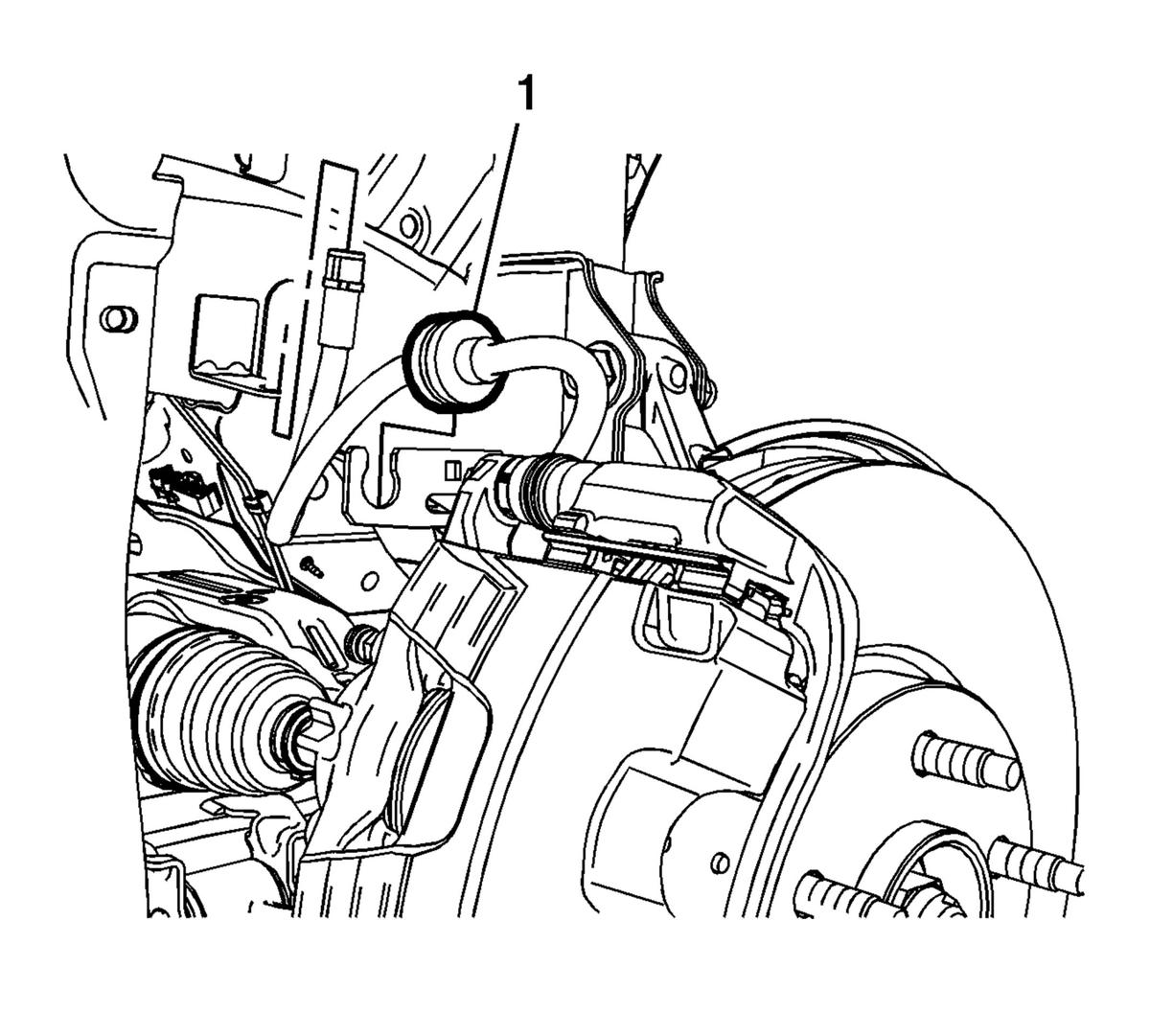

- Install the brake hose grommet (1) to the strut bracket.

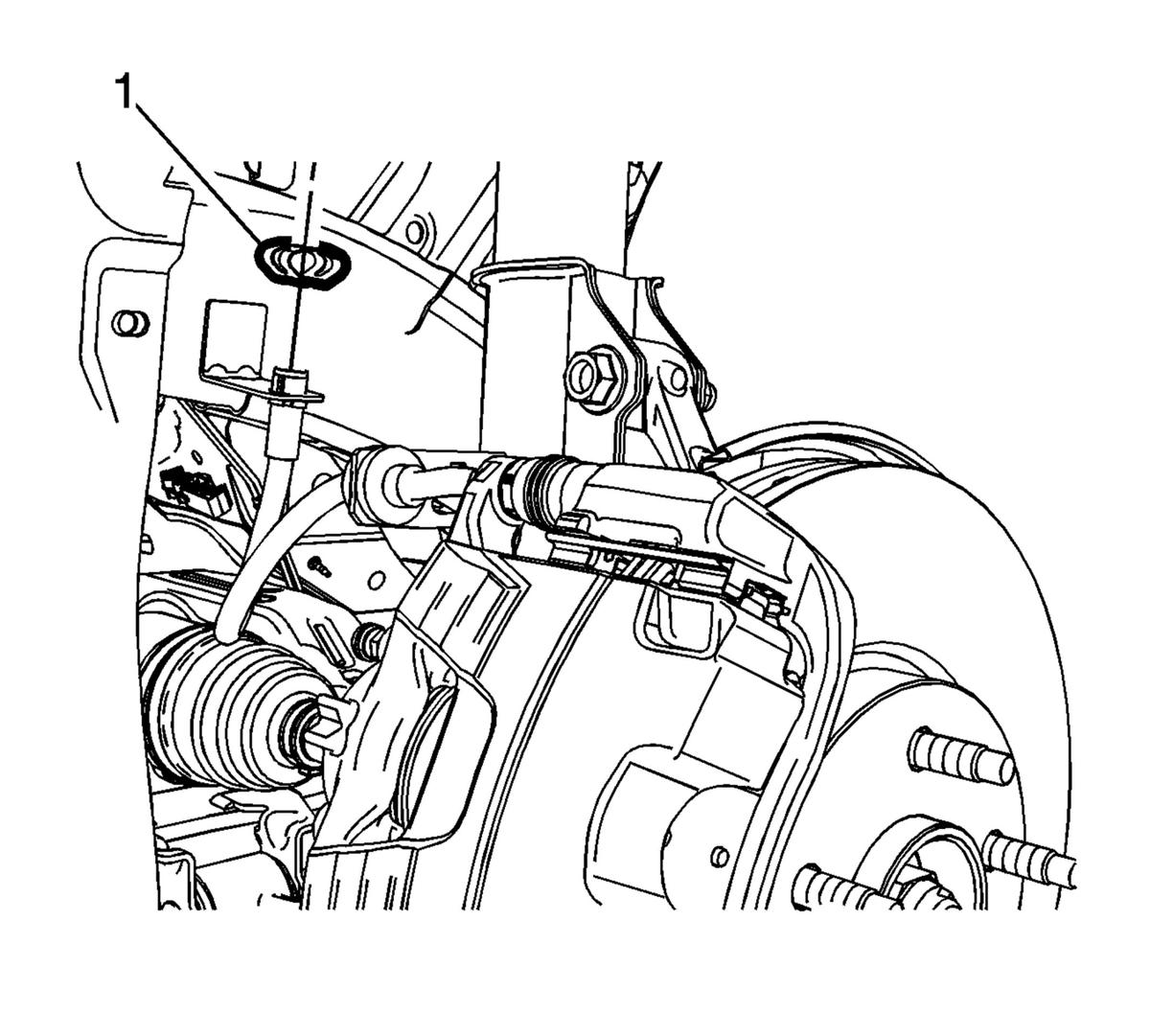

- Install the brake hose to the wheelhouse bracket and install the retainer (1).

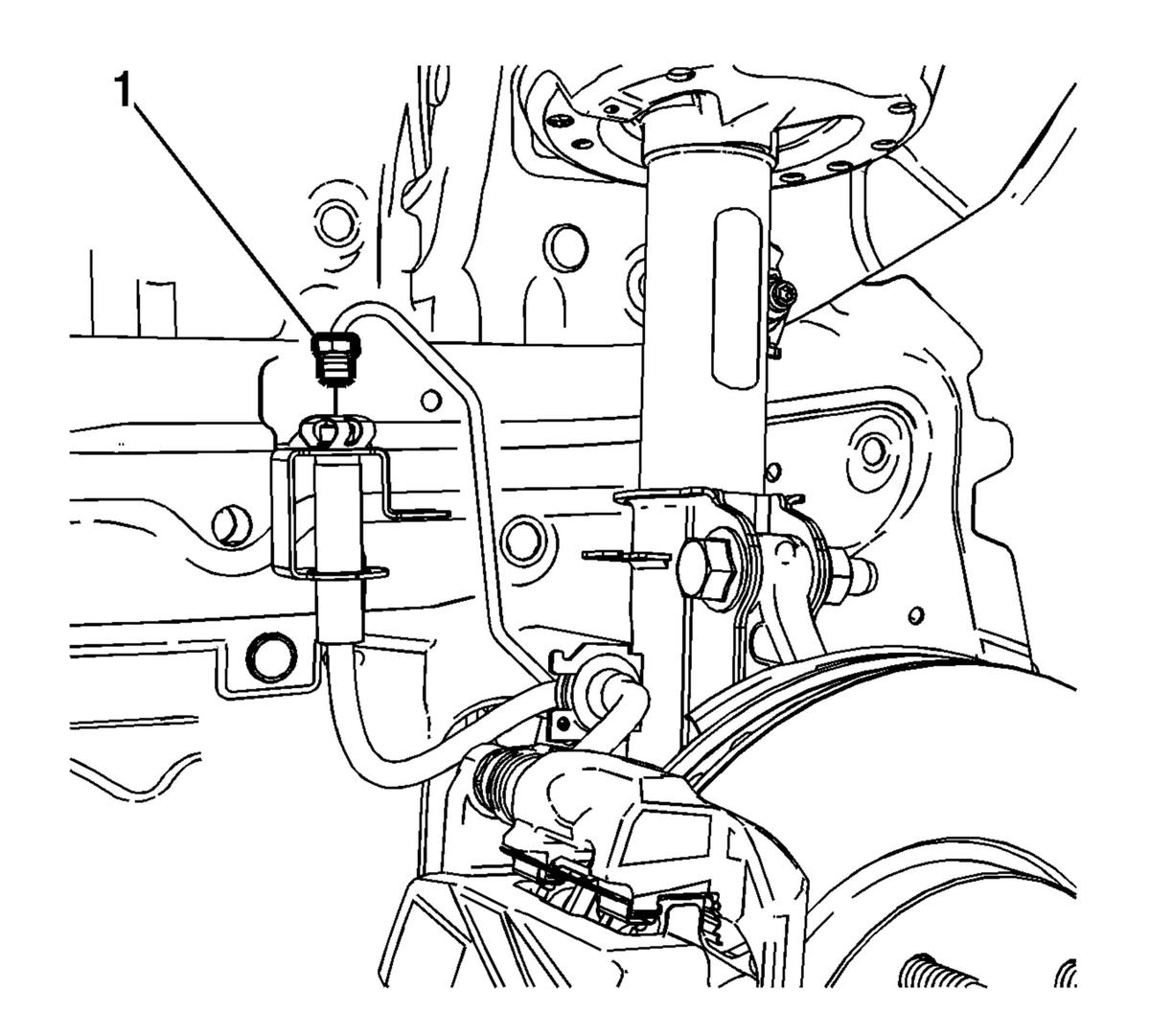

- Install the brake pipe fitting (1) to the front brake hose and tighten the fitting to 18 N.m (13 lb ft).
- Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure) .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
CAUTION:
Refer to Fastener Caution .
