Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Install any removed components from the brake pedal assembly.
- Install the brake pedal assembly to the vehicle.

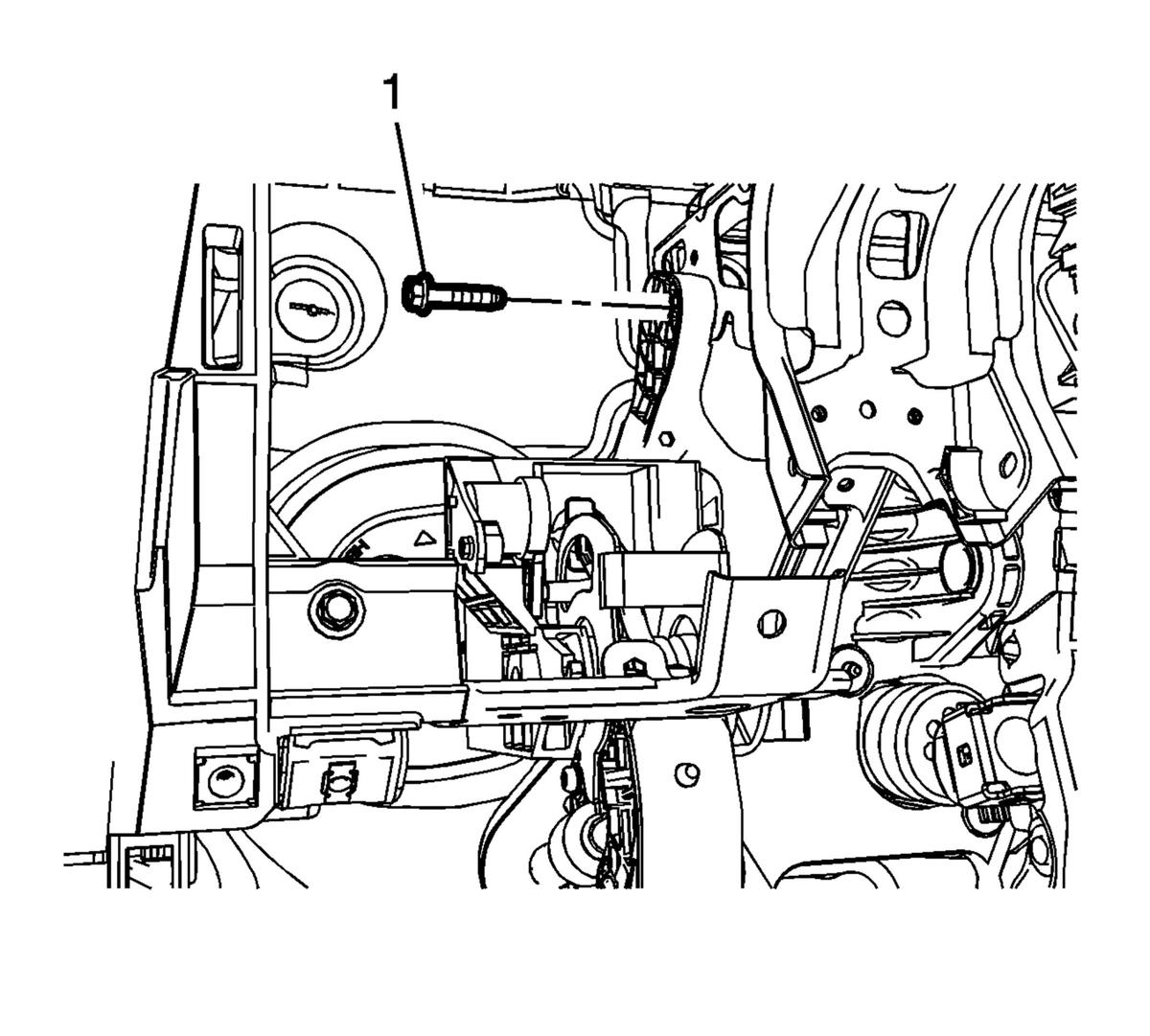

- Install the brake pedal assembly bracket (1).
- Pull the brake pedal assembly away from the dash panel.

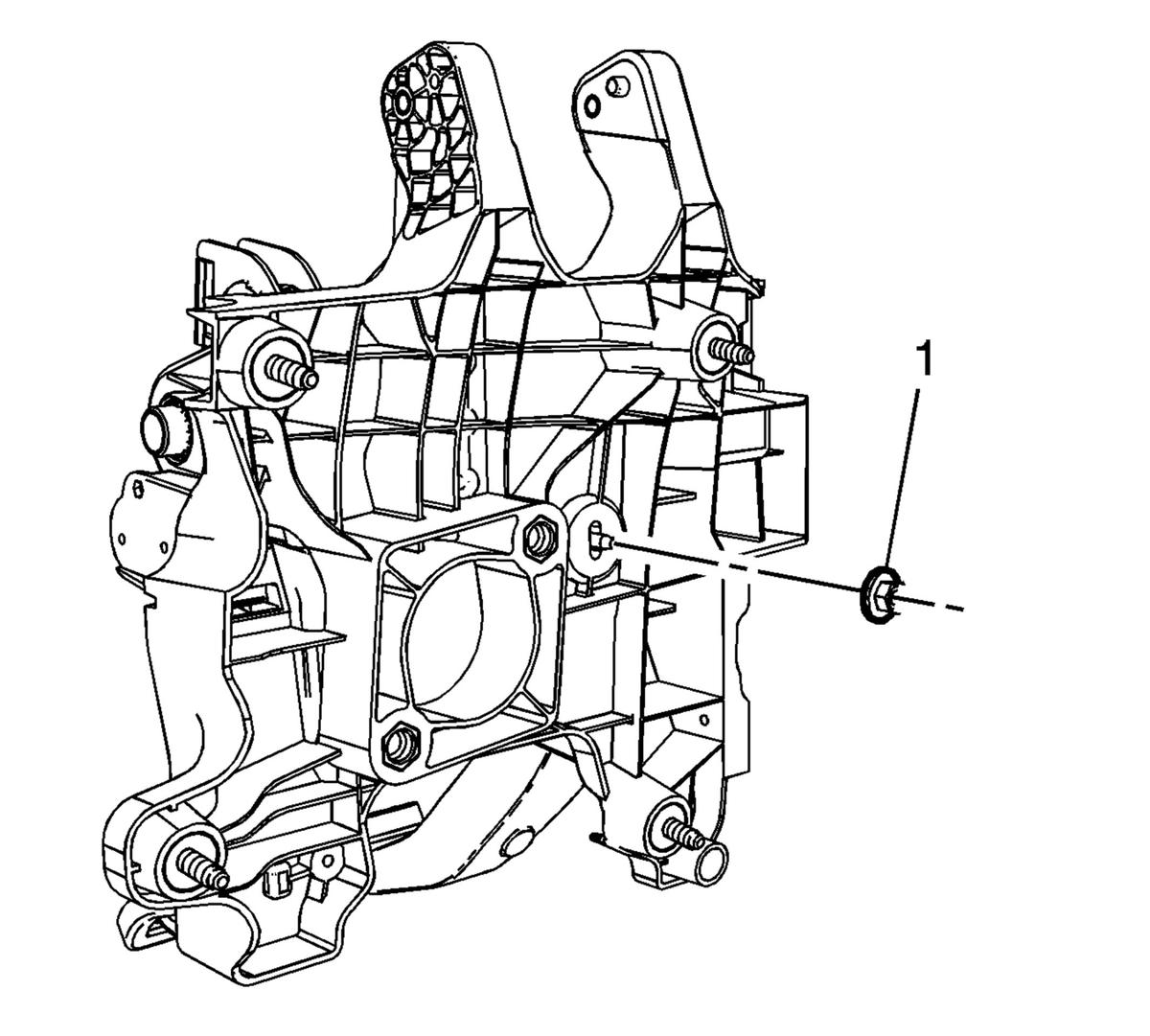

- From behind the brake pedal assembly, install the brake pedal assembly bracket nut (1) and tighten to 9 (80 lb in).

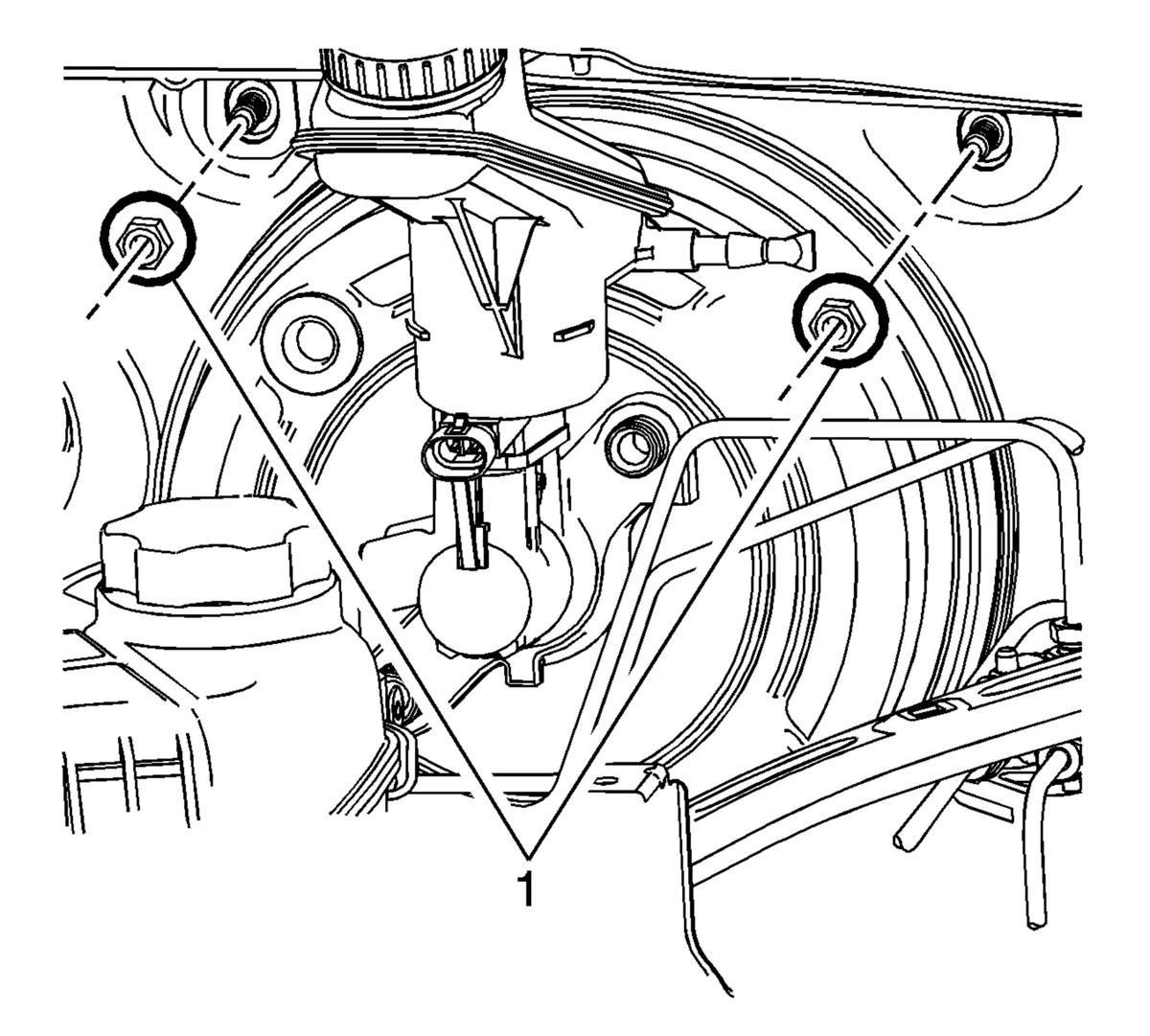

- Install the brake pedal assembly lower nuts (1) and tighten to 19 N.m (14 lb ft).

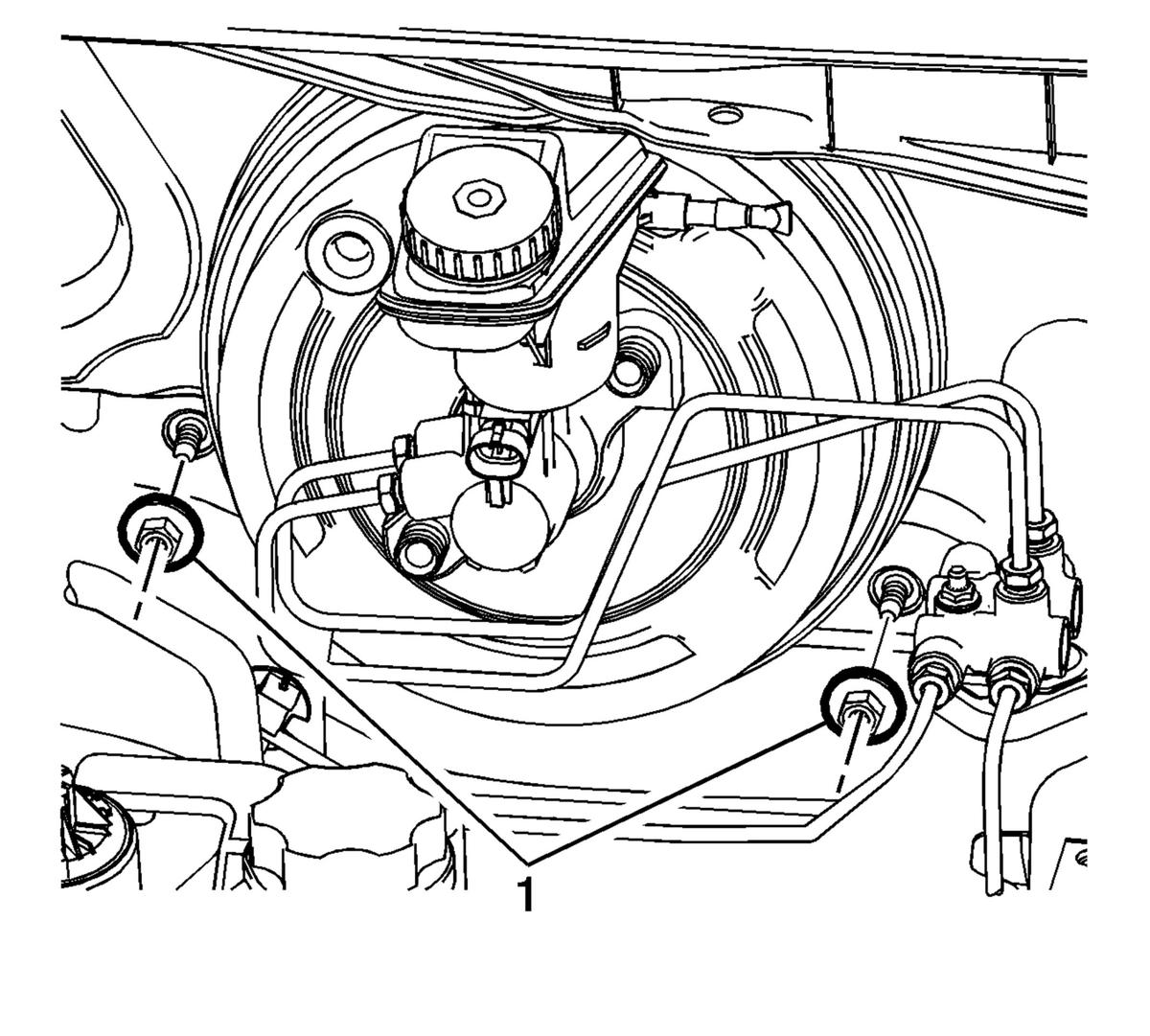

- Install the brake pedal assembly upper nuts (1) and tighten to 19 N.m (14 lb ft).

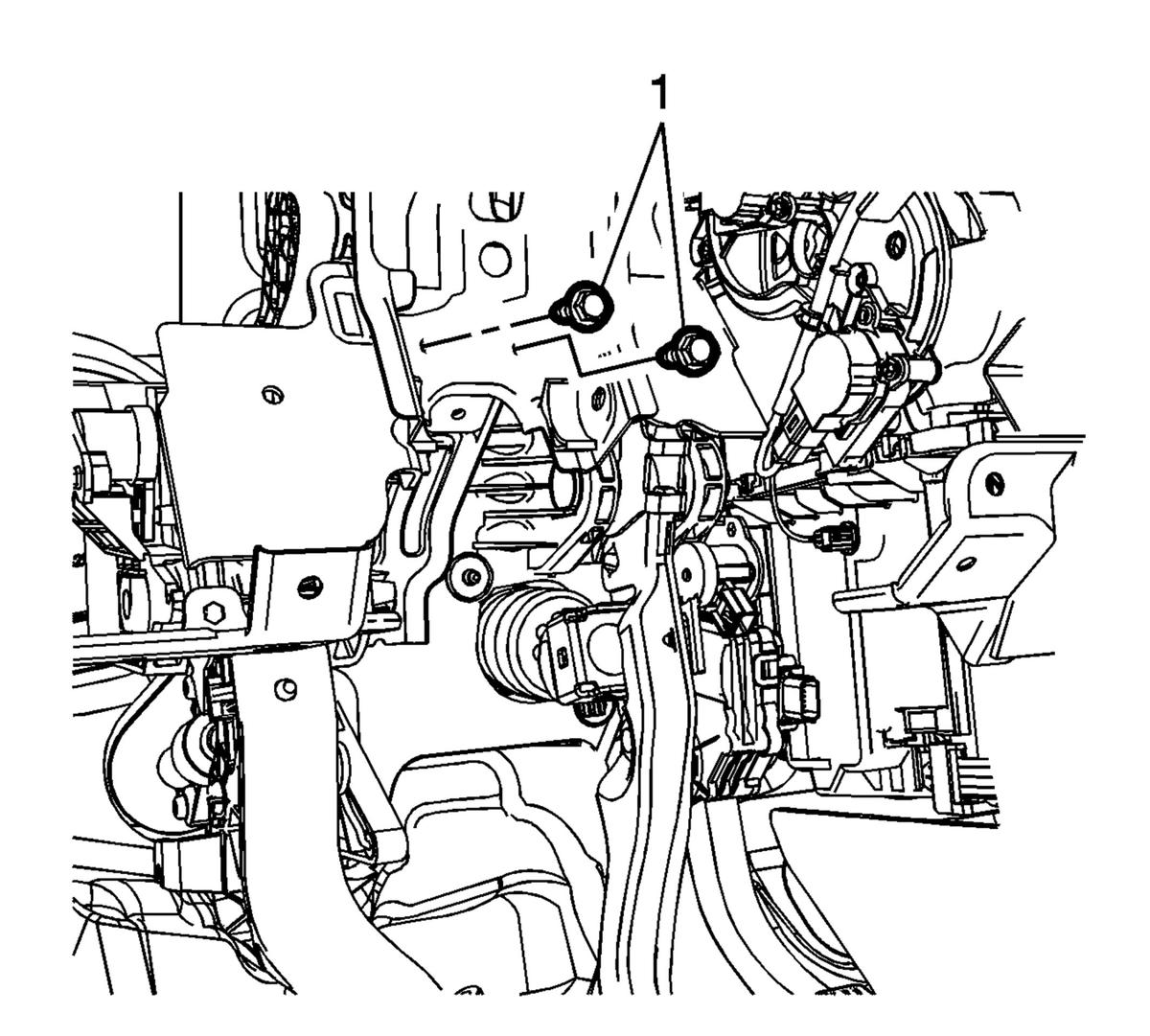

- Install the 2 upper brake pedal assembly bolts (1) and tighten to 9 N.m (80 lb in).
- Reposition any wiring harnesses attached to the brake pedal assembly bracket, as necessary.
- Install the brake pedal position sensor. Refer to Brake Pedal Position Sensor Replacement .
- Install the accelerator pedal position sensor. Refer to Accelerator Pedal Position Sensor Replacement .

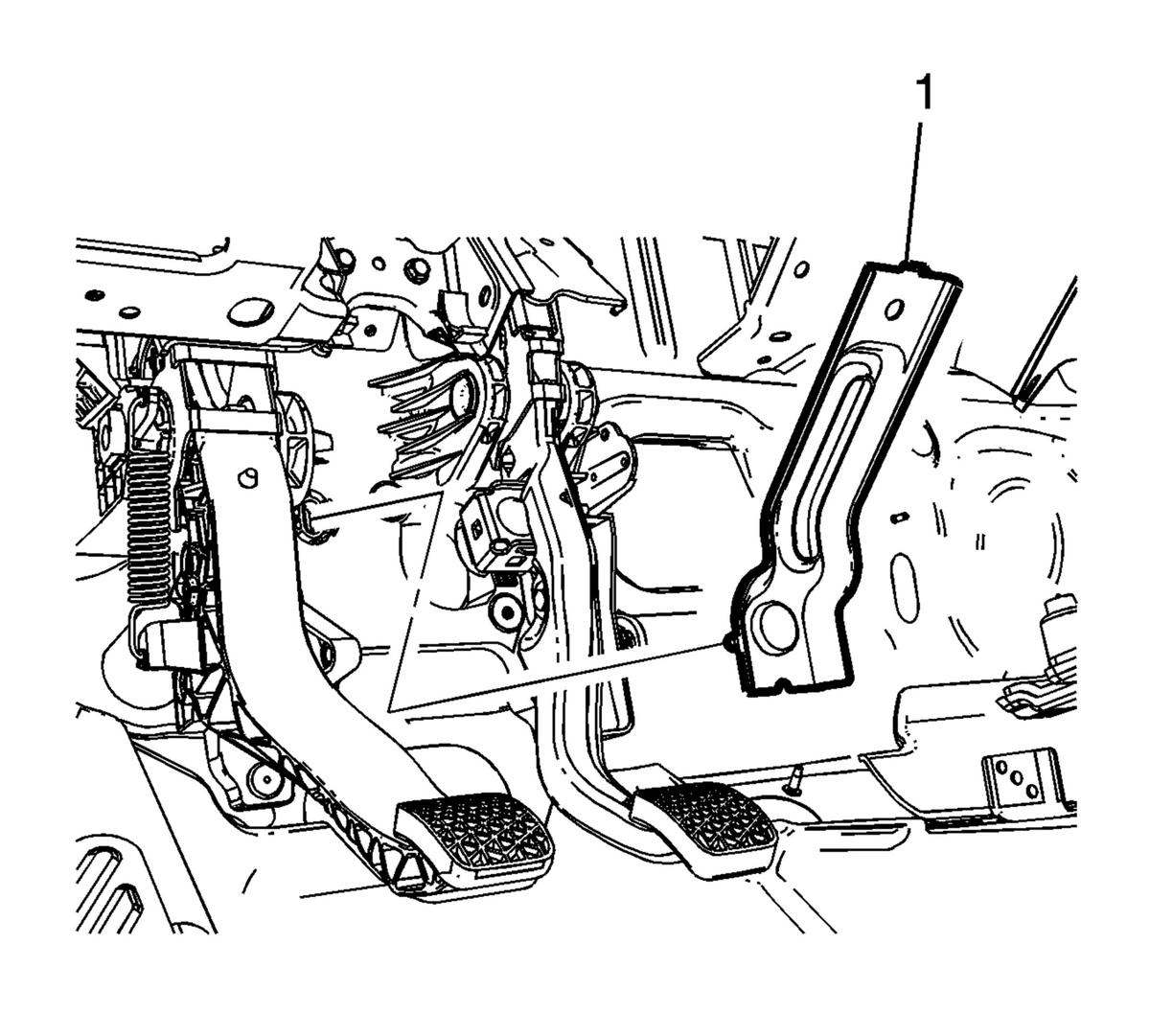

- Install the brake pedal release bracket (1).

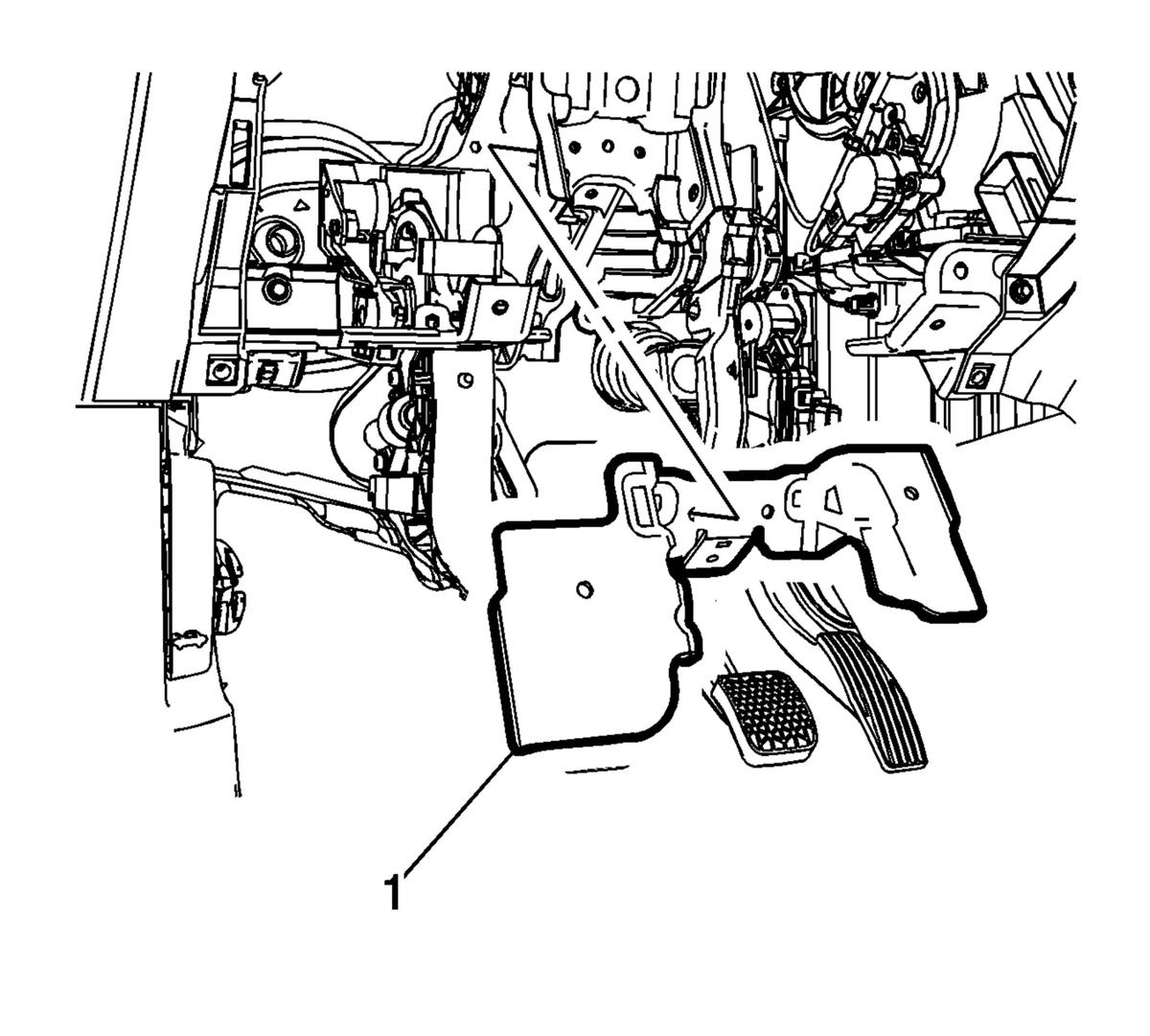

- Install the brake pedal release bracket bolts (1) and tighten to 22 N.m (16 lb ft).

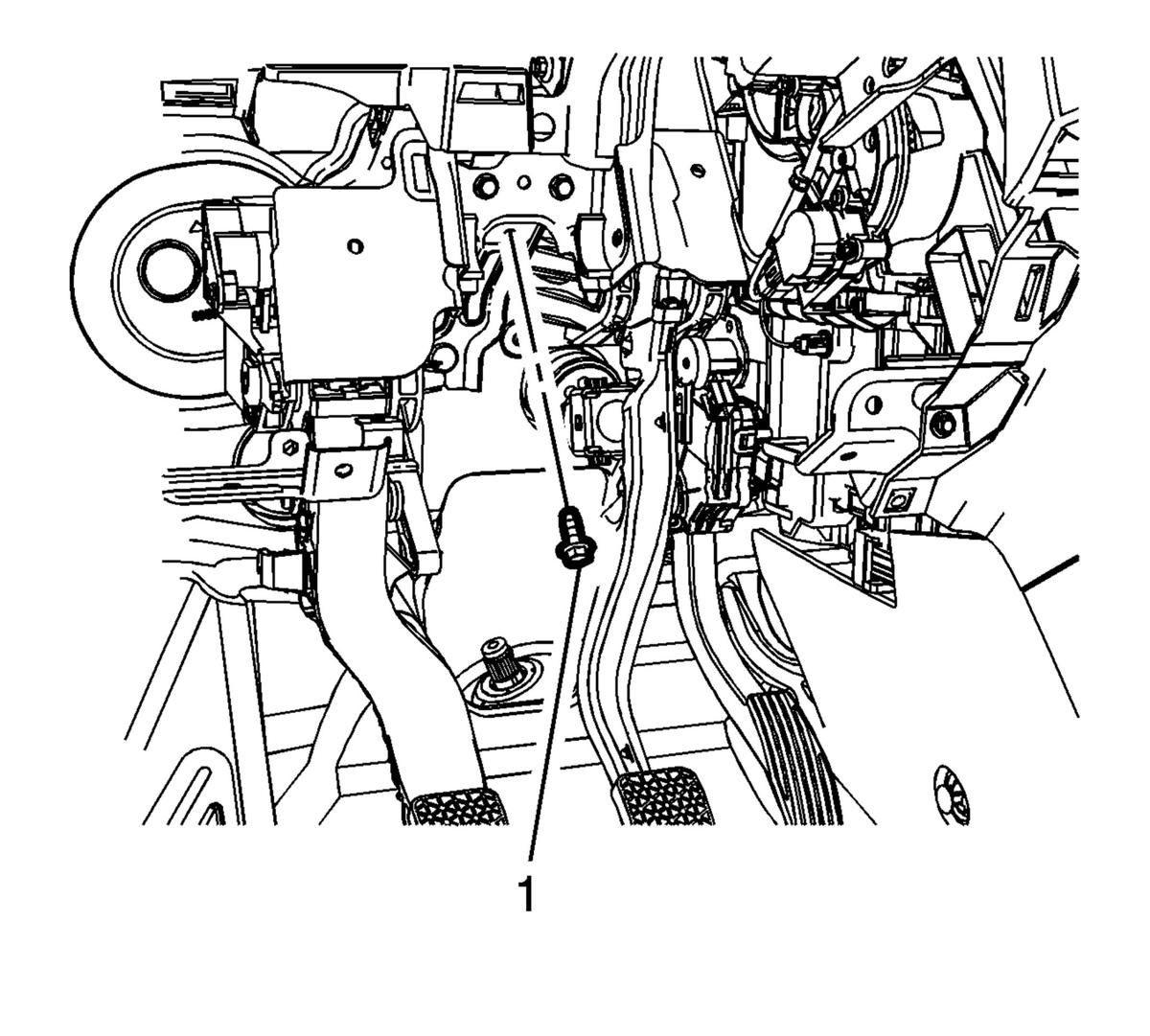

- Install the brake pedal release bracket bolt (1) and tighten to 22 N.m (16 lb ft).
- Connect the brake pedal position sensor electrical connector.
- Install the steering column. Refer to Steering Column Replacement (Mexico, N40)Steering Column Replacement (Canada, NJ1)Steering Column Replacement (United States, NJ1) .

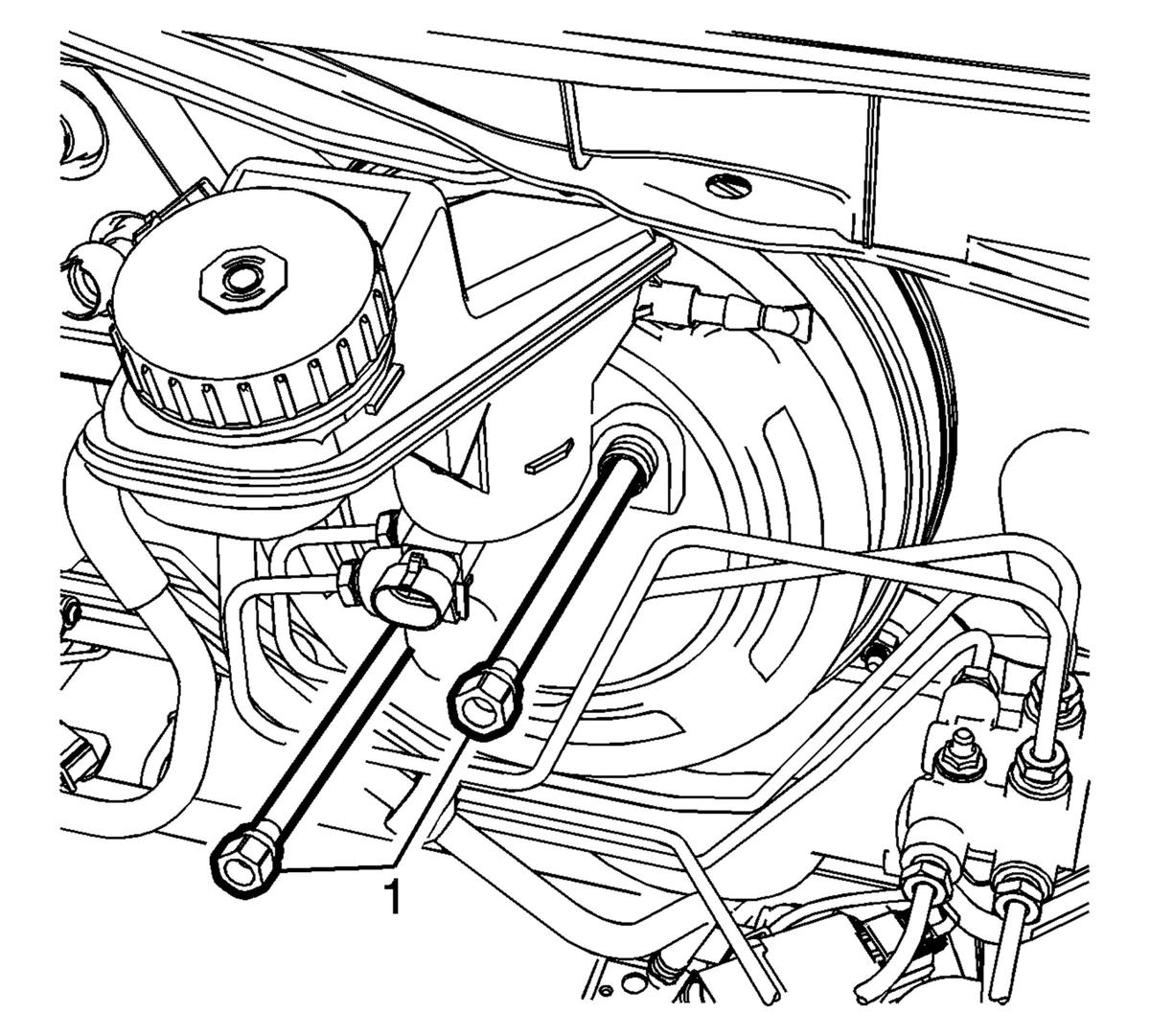

- Install the power vacuum brake booster bolts (1) and tighten to 19 N.m (14 lb ft).
- Install the battery tray. Refer to Battery Tray Replacement .
CAUTION:
Refer to Fastener Caution .
