Removal Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Brake Fluid Irritant Warning .
CAUTION:
Refer to Brake Fluid Effects on Paint and Electrical Components Caution .
- Remove the battery. Refer to Battery Replacement .
- Clean the area surrounding the proportion valve of any accumulated dirt and debris.

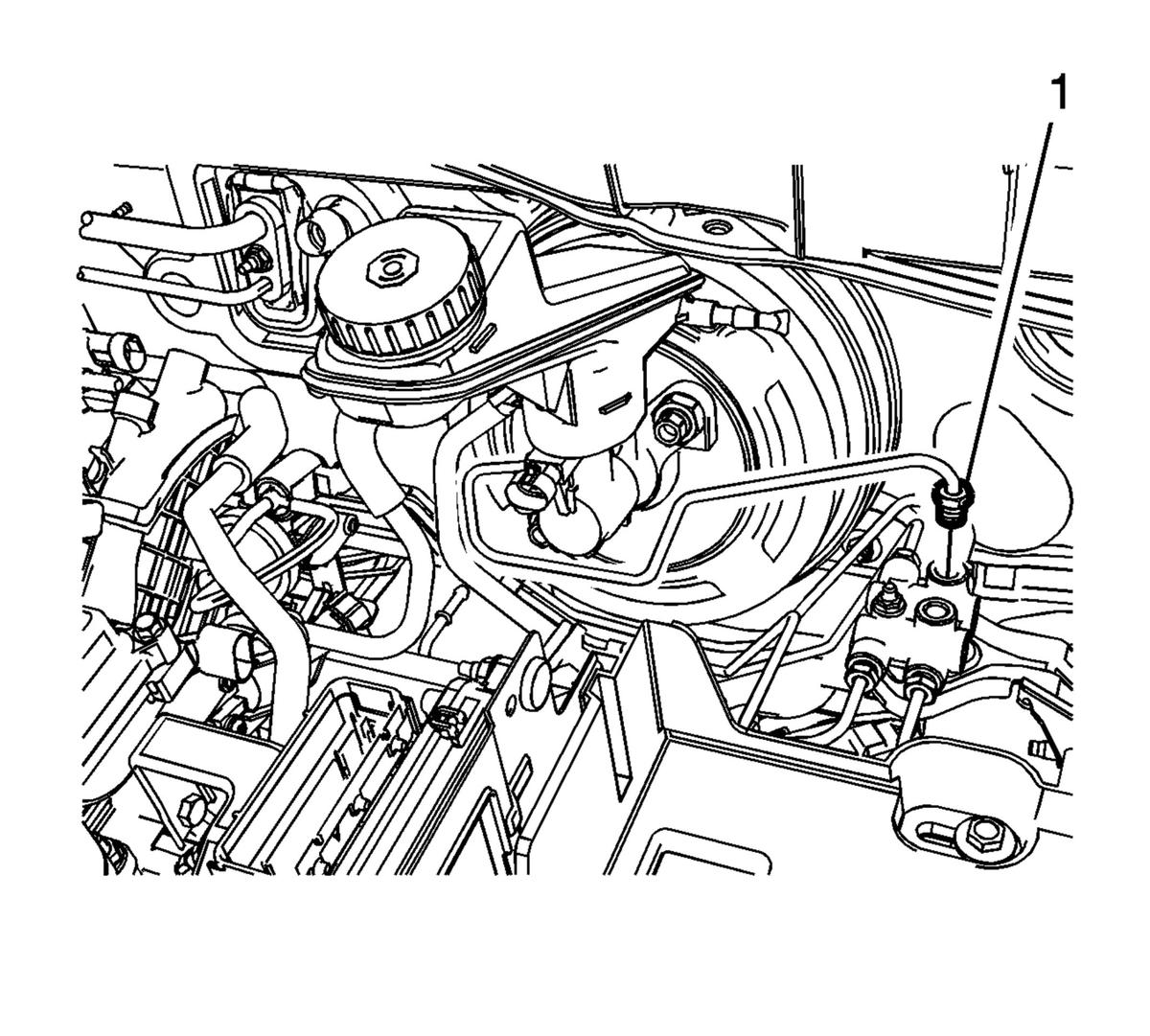

- Disconnect the master cylinder secondary brake pipe fitting (1) from the brake proportion valve.
- Cap the brake pipe fitting and plug the proportion valve inlet port to prevent brake fluid loss and contamination.

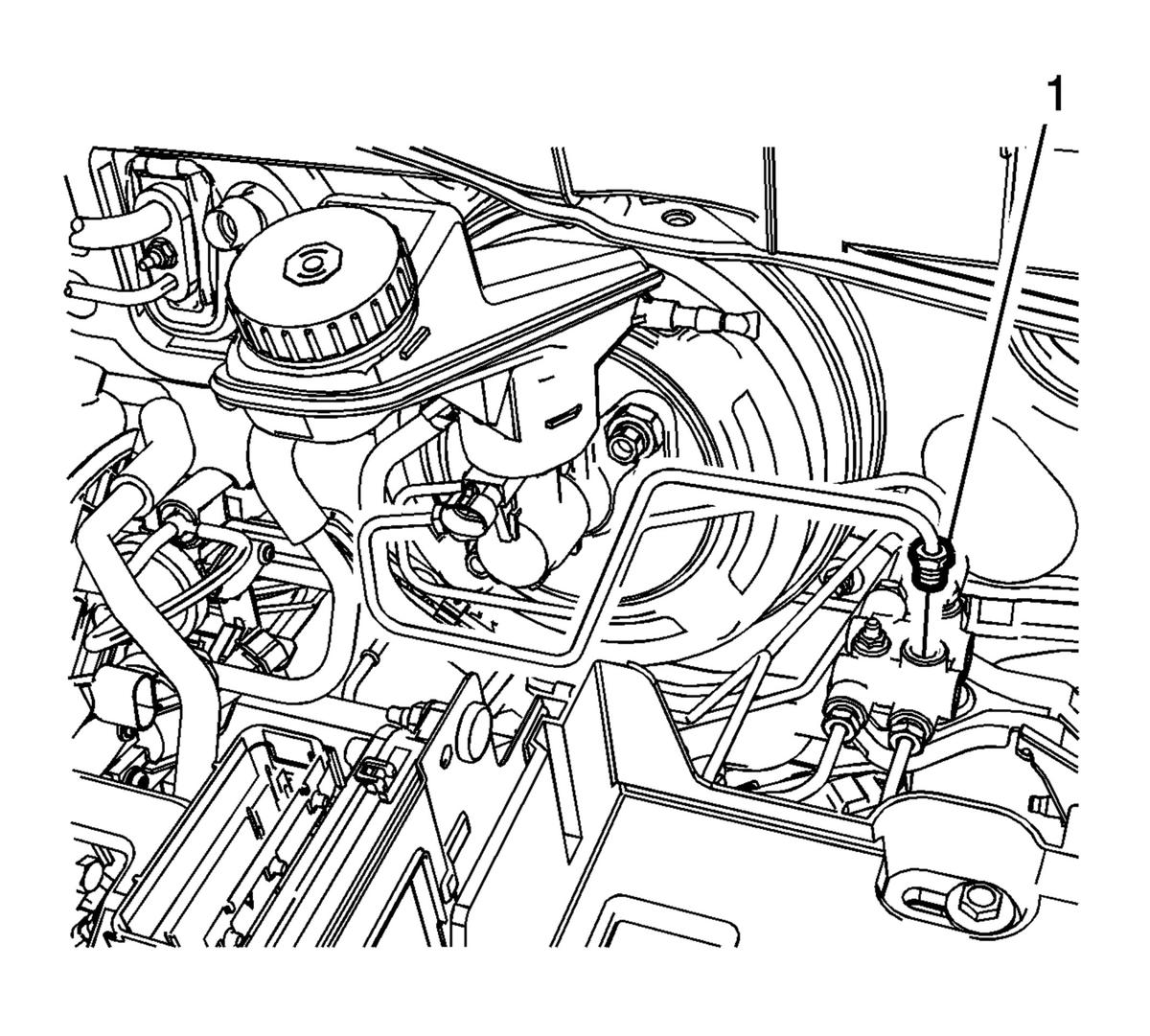

- Disconnect the master cylinder primary brake pipe fitting (1) from the brake proportion valve.
- Cap the brake pipe fitting and plug the proportion valve inlet port to prevent brake fluid loss and contamination.

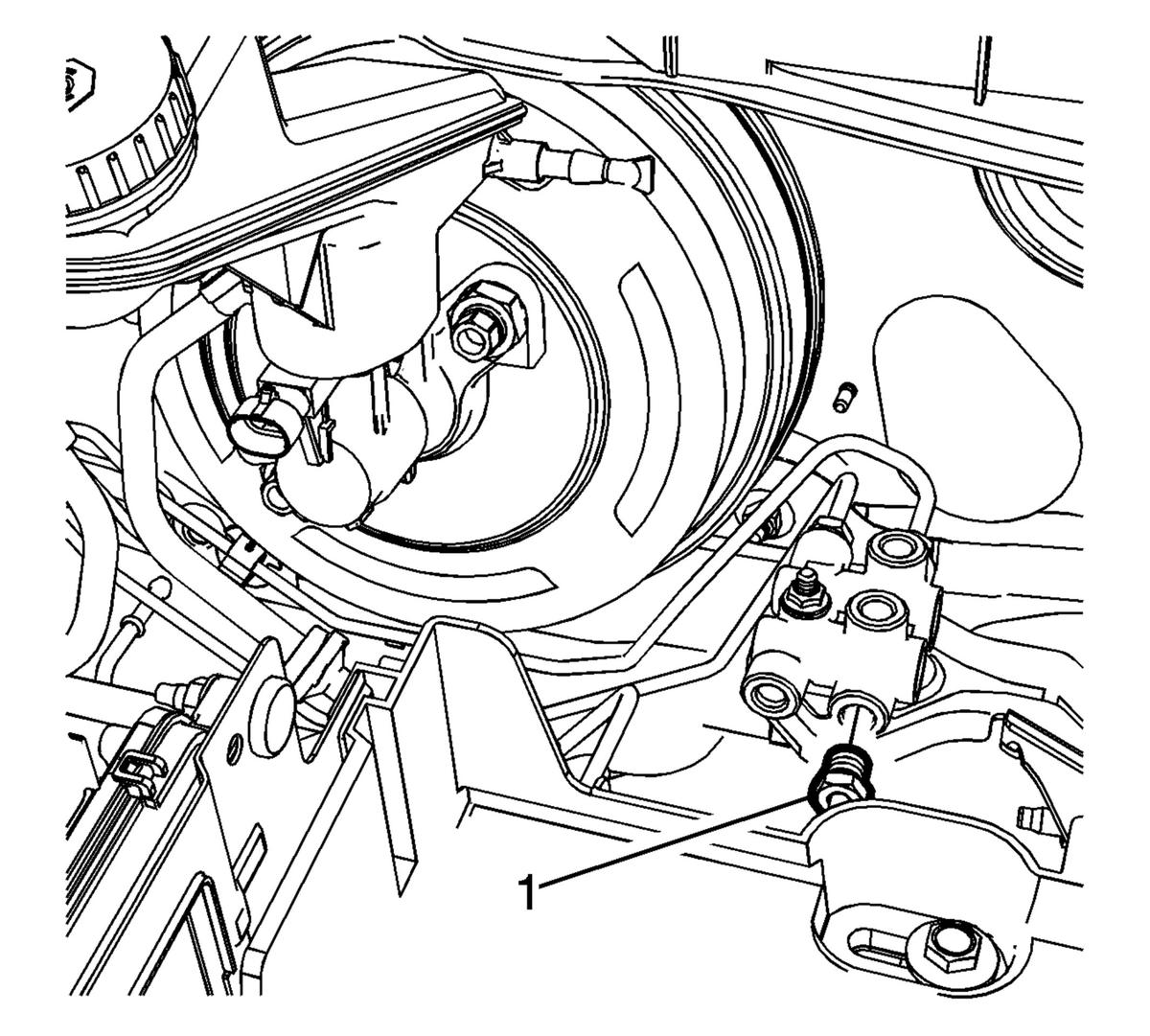

- Disconnect the right rear brake pipe fitting (1).
- Cap the brake pipe fitting and plug the proportion valve outlet port to prevent brake fluid loss and contamination.

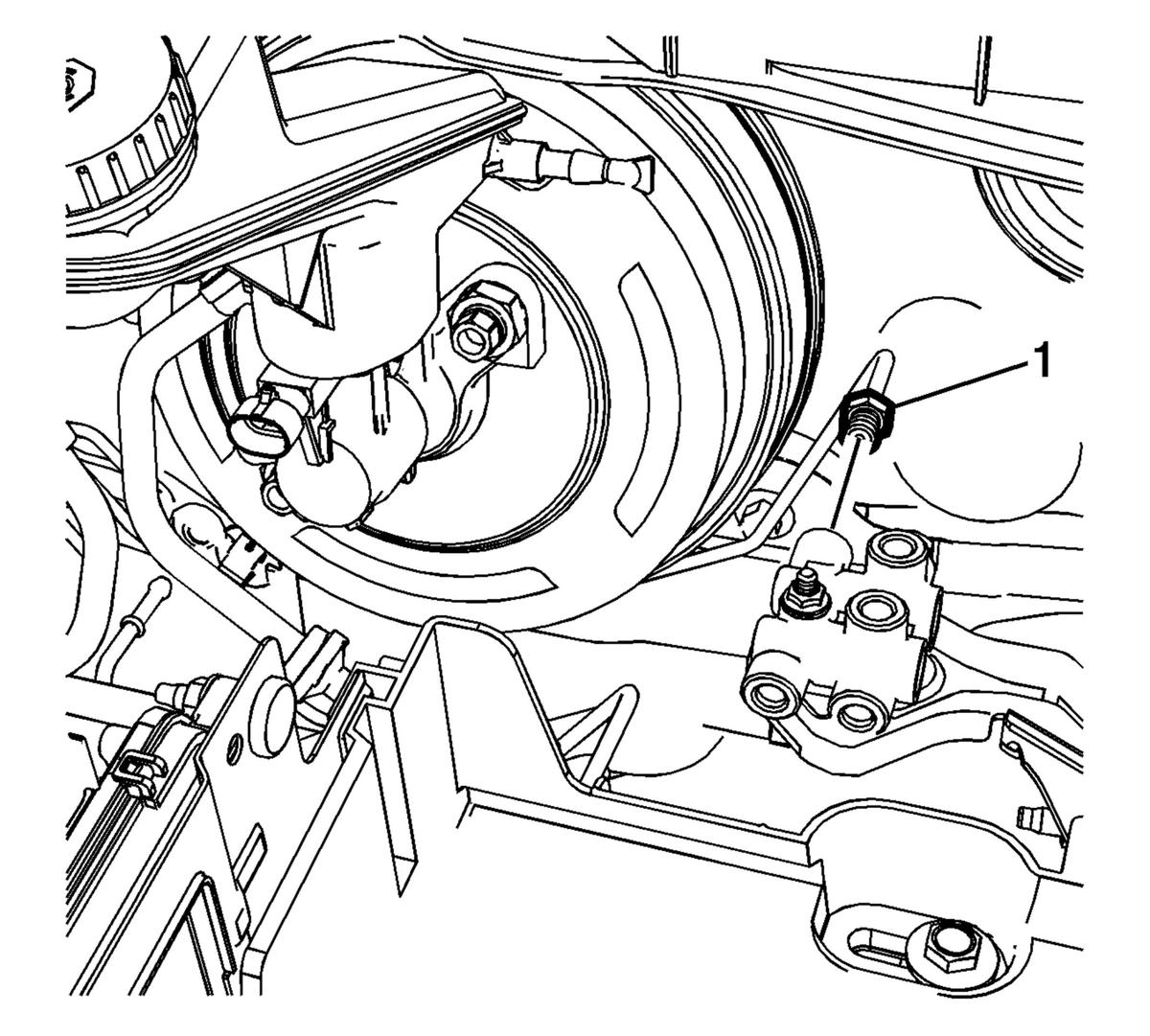

- Disconnect the left front brake pipe fitting (1).
- Cap the brake pipe fitting and plug the proportion valve outlet port to prevent brake fluid loss and contamination.

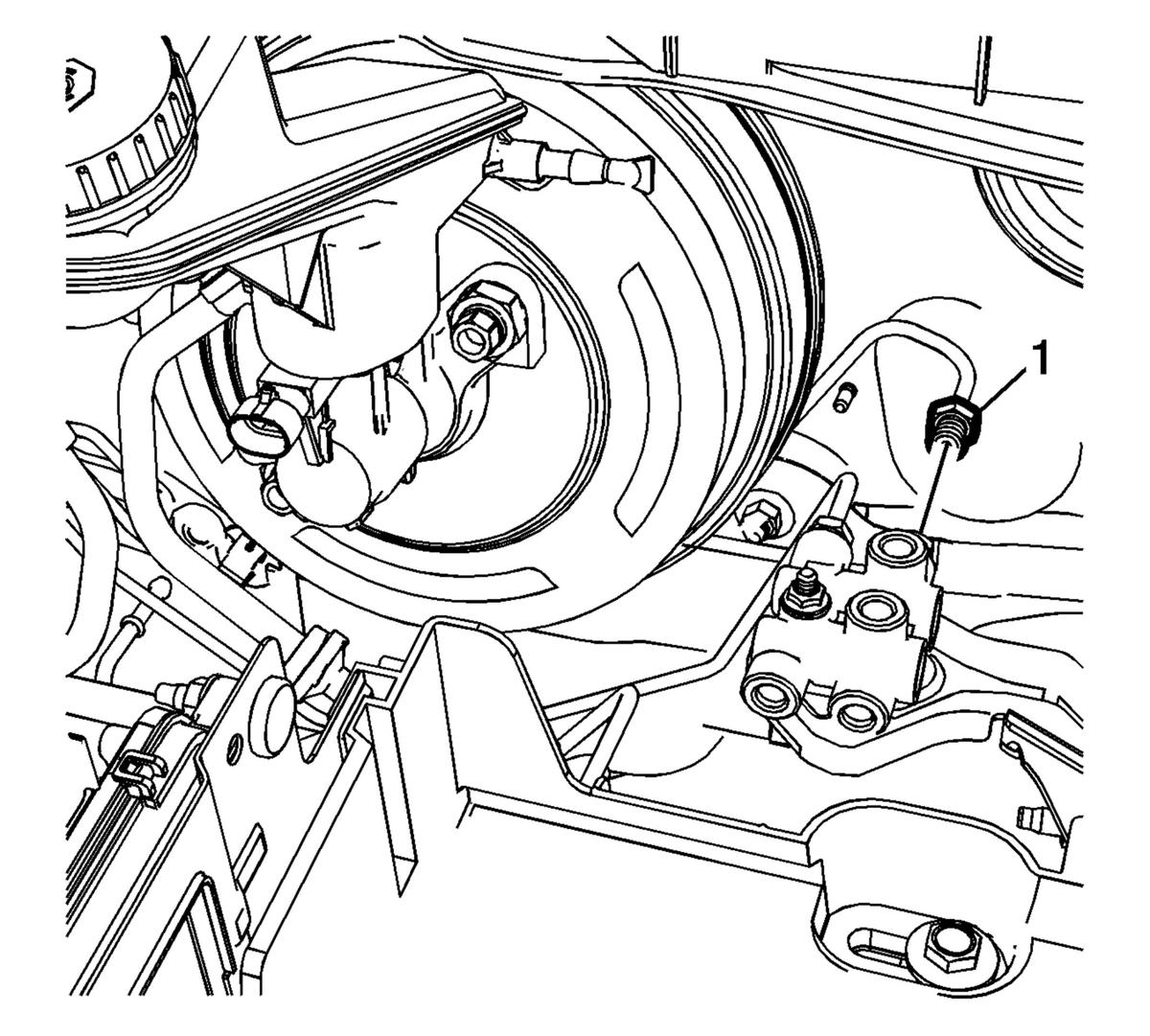

- Disconnect the right front brake pipe fitting (1).
- Cap the brake pipe fitting and plug the proportion valve outlet port to prevent brake fluid loss and contamination.

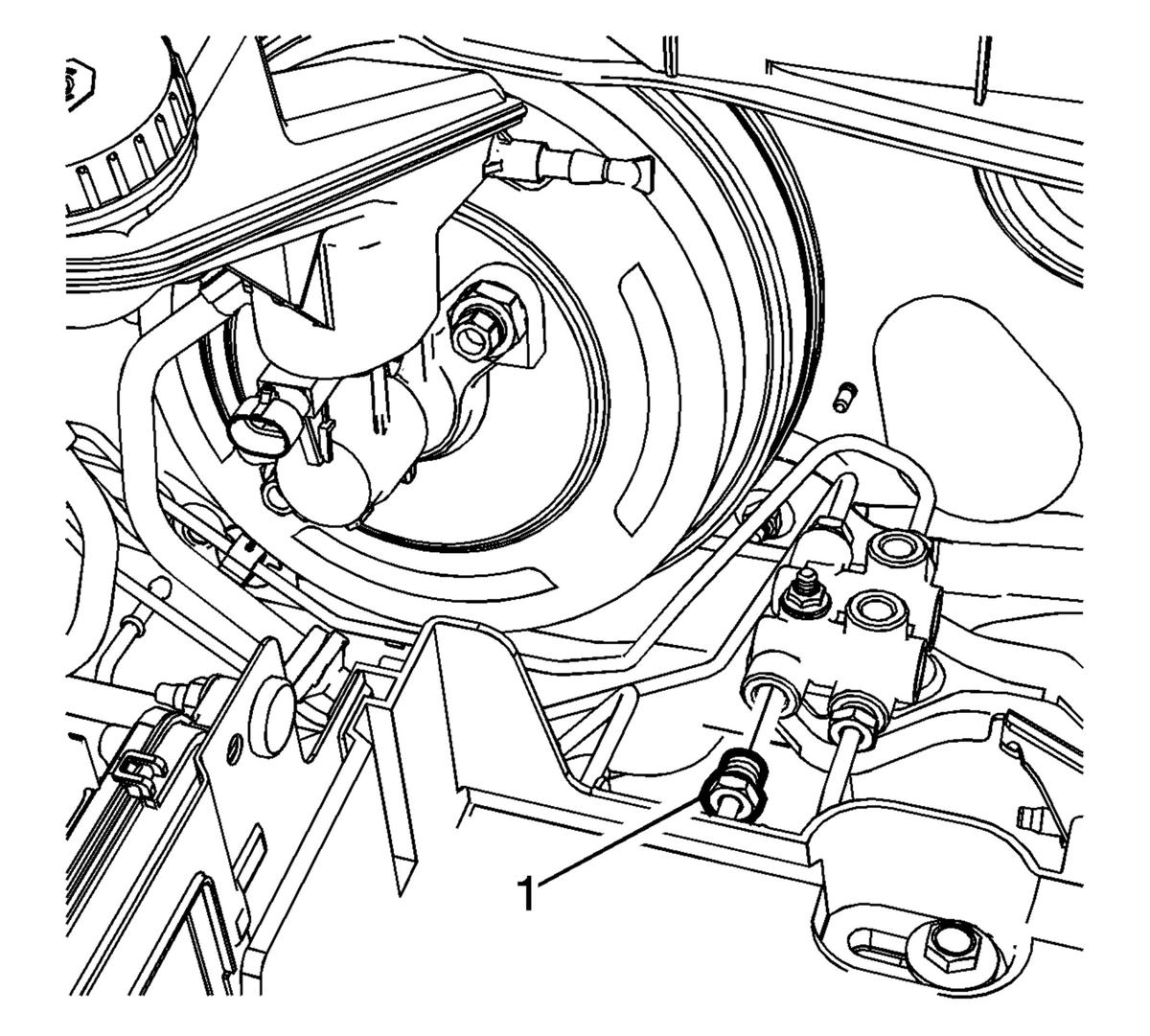

- Disconnect the left rear brake pipe fitting (1).
- Cap the brake pipe fitting and plug the proportion valve outlet port to prevent brake fluid loss and contamination.

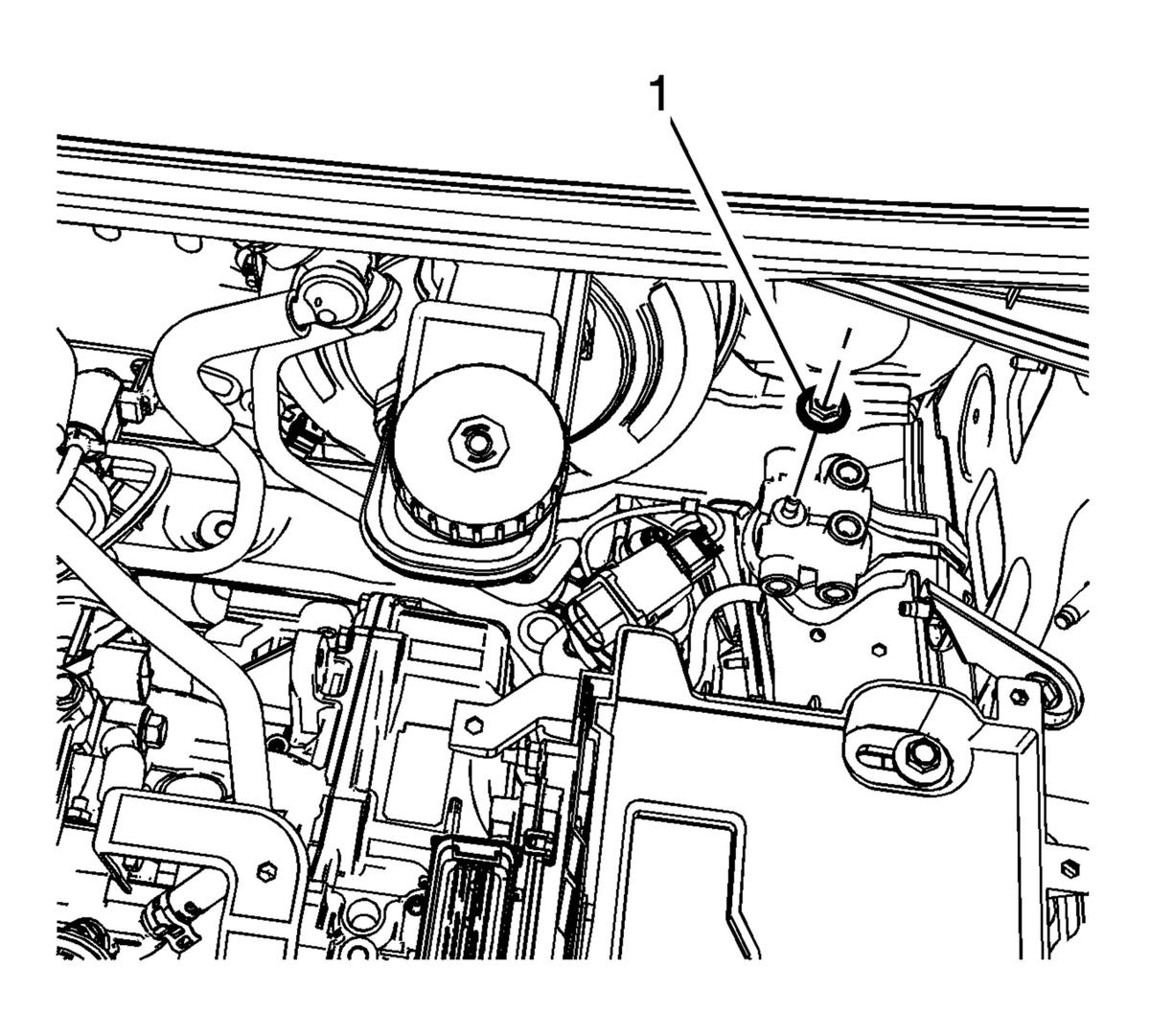

- Remove the proportion valve nut (1).

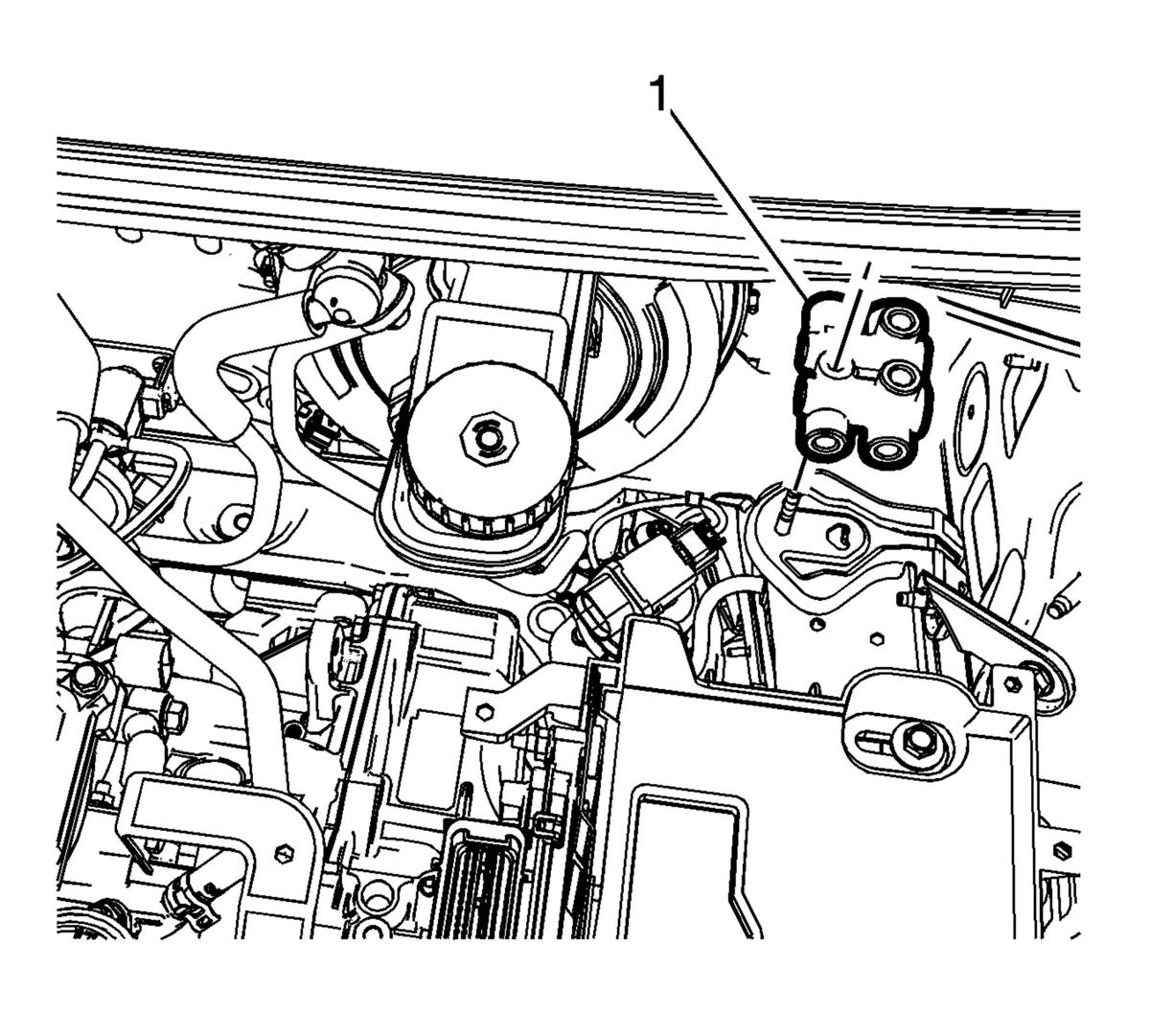

- Remove the proportion valve (1).
