Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the brake pipe to the vehicle.

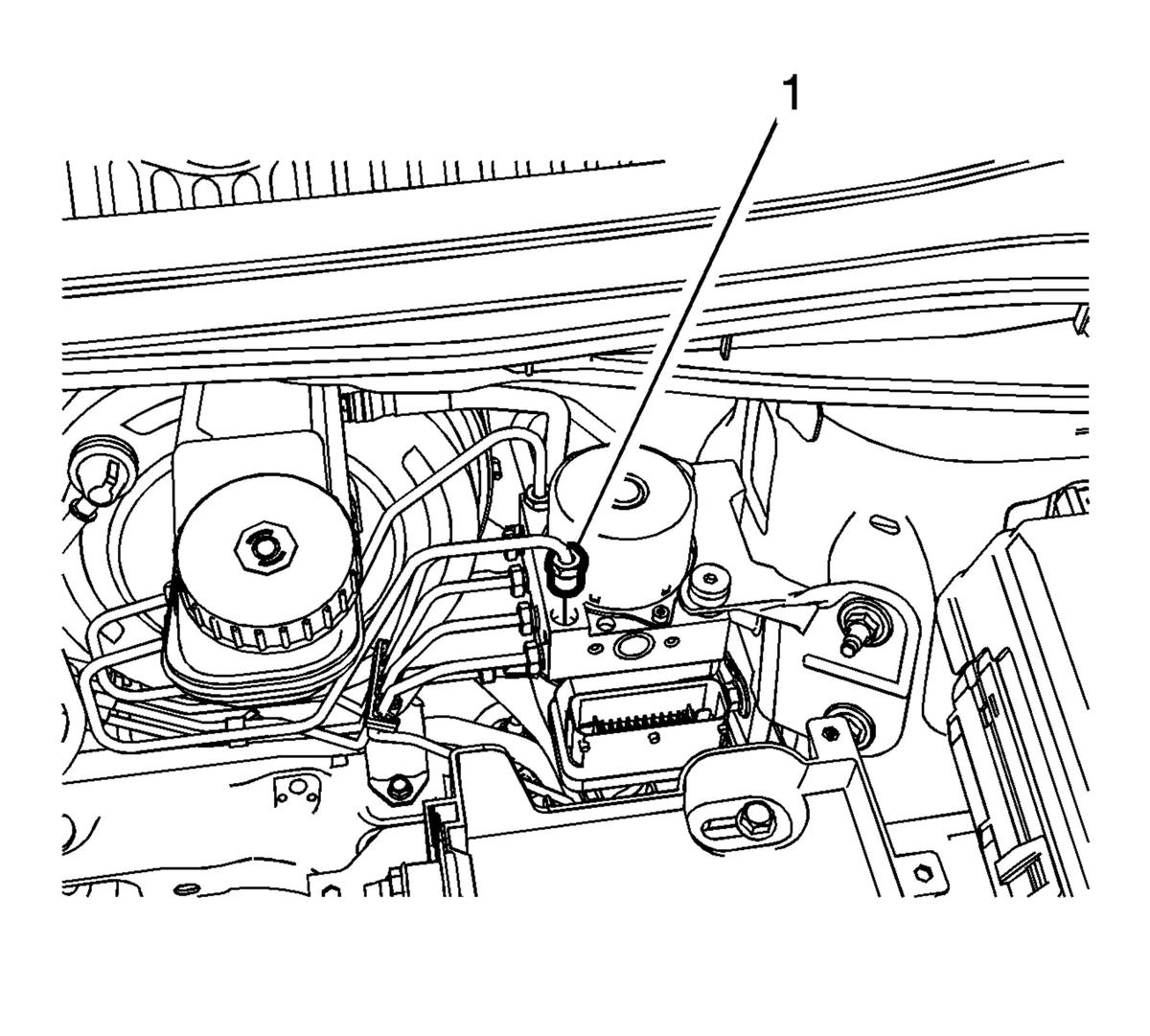

    2. Fig 1: Master Cylinder Secondary Brake Pipe Fitting
    GM2495345Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the BPMV pipe fitting (1) to the BPMV and tighten the fitting to 18 N.m (13 lb ft).

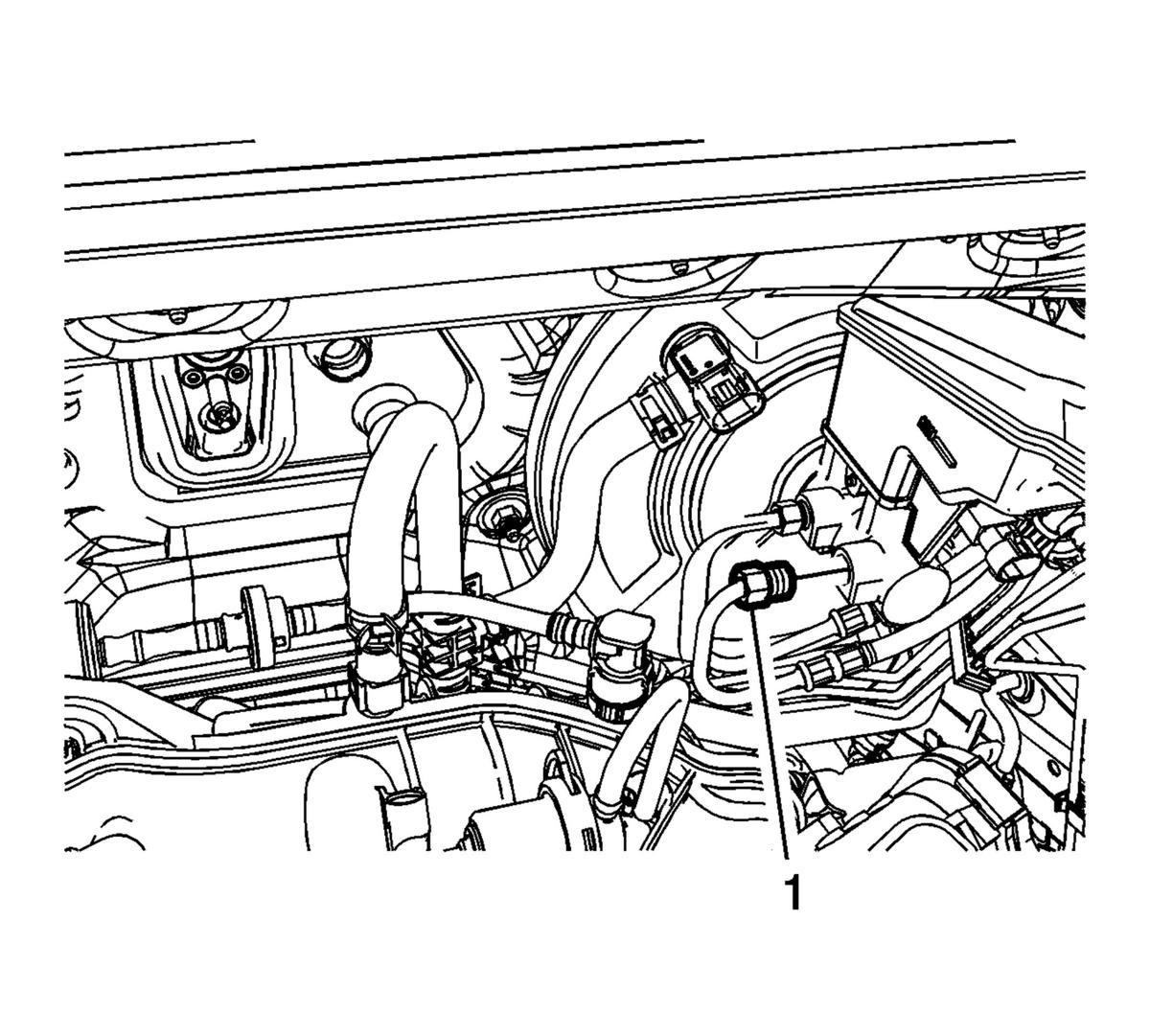

    3. Fig 2: Master Cylinder Outlet Port
    GM2771946Courtesy of GENERAL MOTORS COMPANY
  3. Install the BPMV front pipe fitting (1) to the master cylinder and tighten the fitting to 18 N.m (13 lb ft).
  4. Install the battery. Refer to Battery Replacement .
  5. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure) .
