Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to Brake Fluid Irritant Warning .

CAUTION:

Refer to Brake Fluid Effects on Paint and Electrical Components Caution .

  1. Remove the battery. Refer to Battery Replacement .

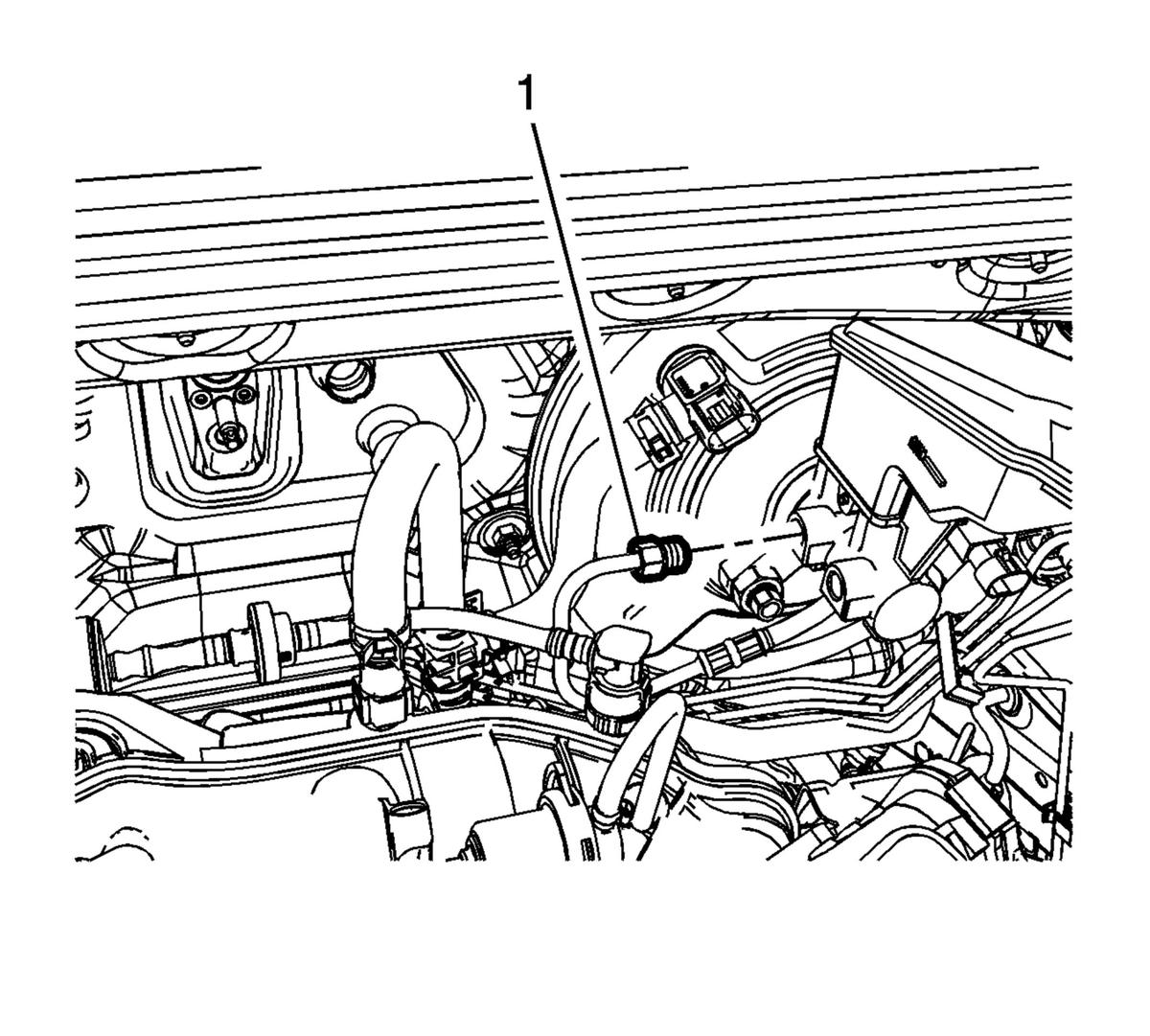

    2. Fig 1: Master Cylinder Primary Brake Pipe Fitting
    GM2771947Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the brake pressure modulator valve (BPMV) front pipe fitting (1) from the master cylinder.
  3. Plug the master cylinder outlet port to prevent brake fluid loss and contamination.

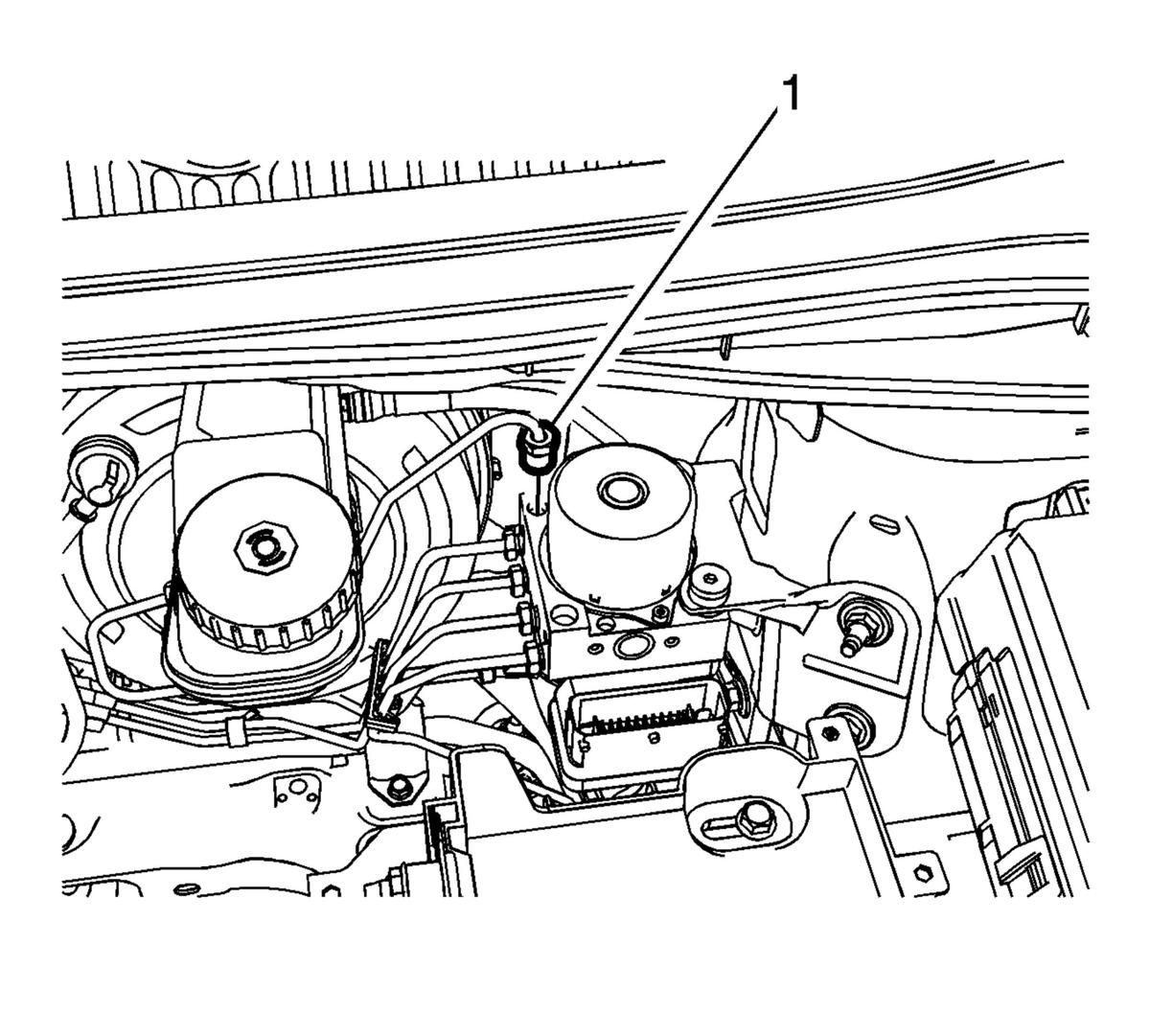

    4. Fig 2: Master Cylinder Primary Brake Pipe Fitting
    GM2495349Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the BPMV front pipe fitting (1) from the BPMV.
  5. Plug the BPMV inlet port to prevent brake fluid loss and contamination.
  6. Remove the brake pipe from the vehicle.
