Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Install the BPMV front brake pipe to the vehicle.
Position, but do not secure, the BPMV front brake pipe to the retaining clip.

Fig 1: Brake Pipe Fitting

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install the BPMV front brake pipe fitting (1) to the left front brake hose and tighten the fitting to 18 N.m (13 lb ft).
Lower the vehicle to access the brake pipe retaining clip.

Fig 2: Front Brake Pipe Retaining Clip

Courtesy of GENERAL MOTORS COMPANY

Secure the BPMV front brake pipe to the retaining clip (1).

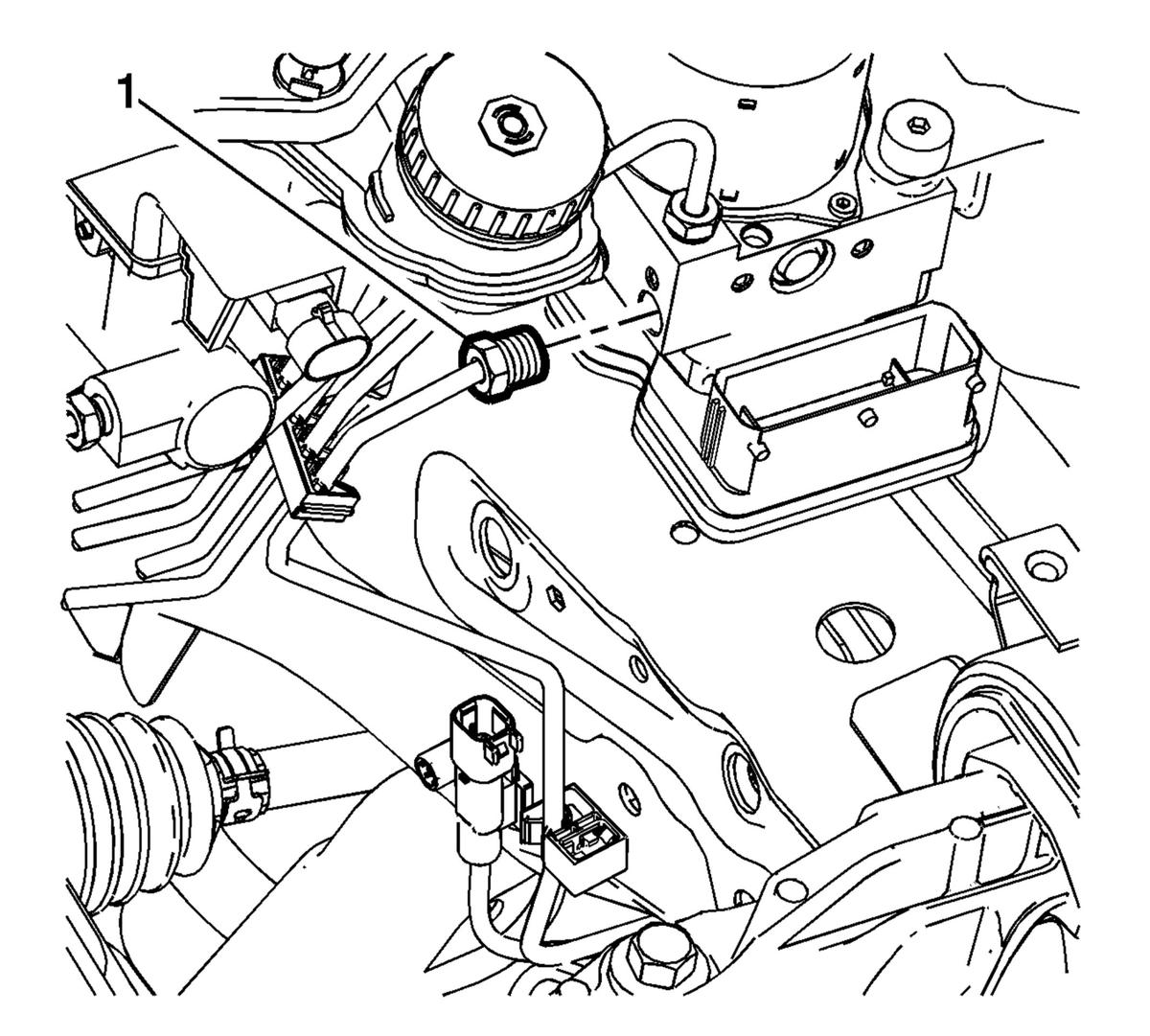

Fig 3: Brake Pressure Modulator Valve (BPMV) Front Brake Pipe Fitting

Courtesy of GENERAL MOTORS COMPANY

Install the BPMV front brake pipe fitting (1) to the BPMV and tighten the fitting to 18 N.m (13 lb ft).
Install the battery. Refer to Battery Replacement .
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure) .
Install the left front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
