Brake Pedal Pushrod Inspection
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

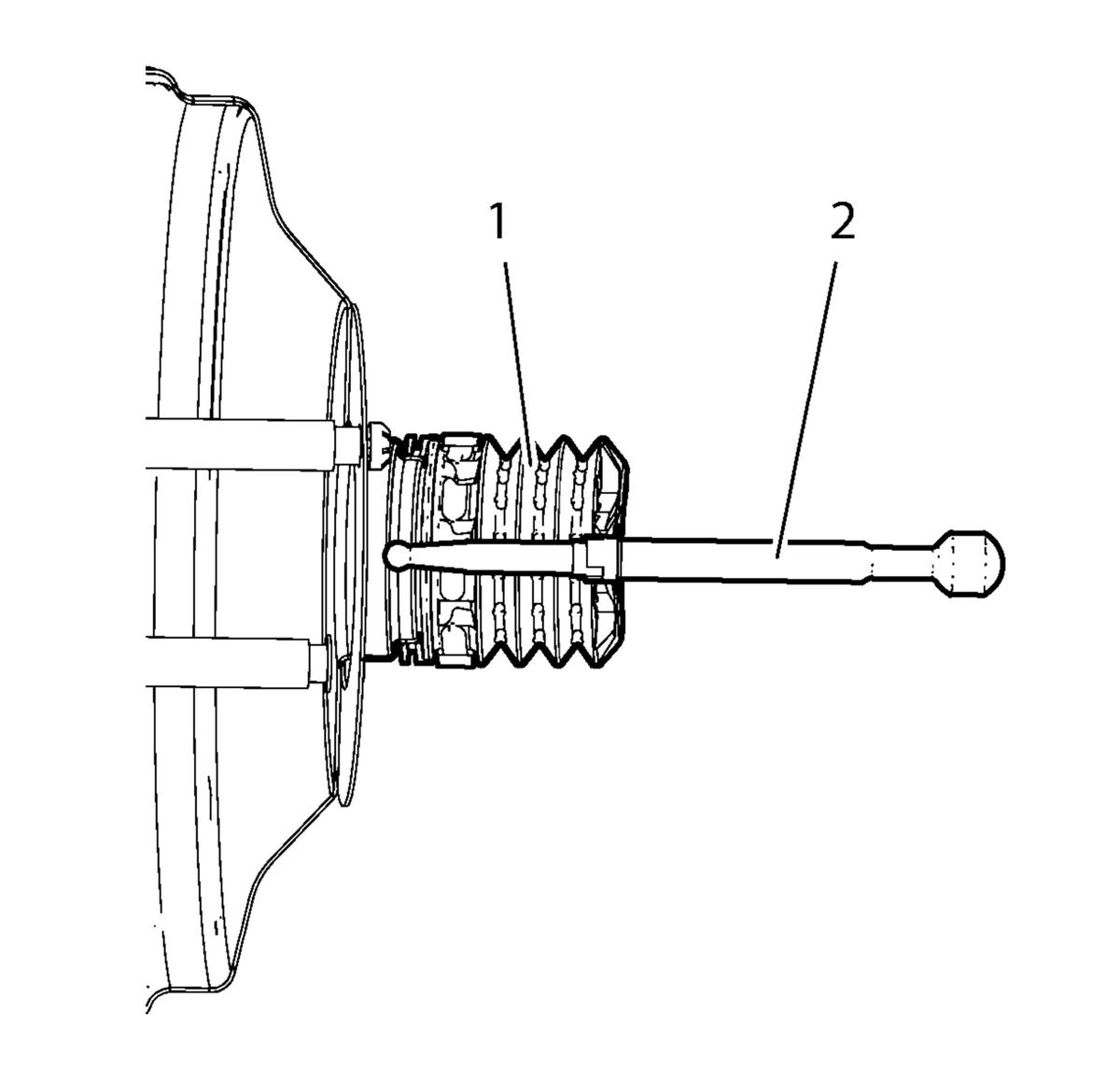

- Disconnect the brake pedal pushrod (2) from the brake pedal.
- Reposition the pedal pushrod boot (1) toward the front of the vehicle to expose as much of the pedal pushrod (2) as possible.
- Inspect the brake pedal pushrod (2) for straightness.
- If the brake pedal pushrod (2) is not straight, then the pushrod requires replacement.
- Return the pedal pushrod boot (1) to its original position on the pedal pushrod (2).
- Connect the brake pedal pushrod (2) to the brake pedal.
