Brake Warning System Description and Operation
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

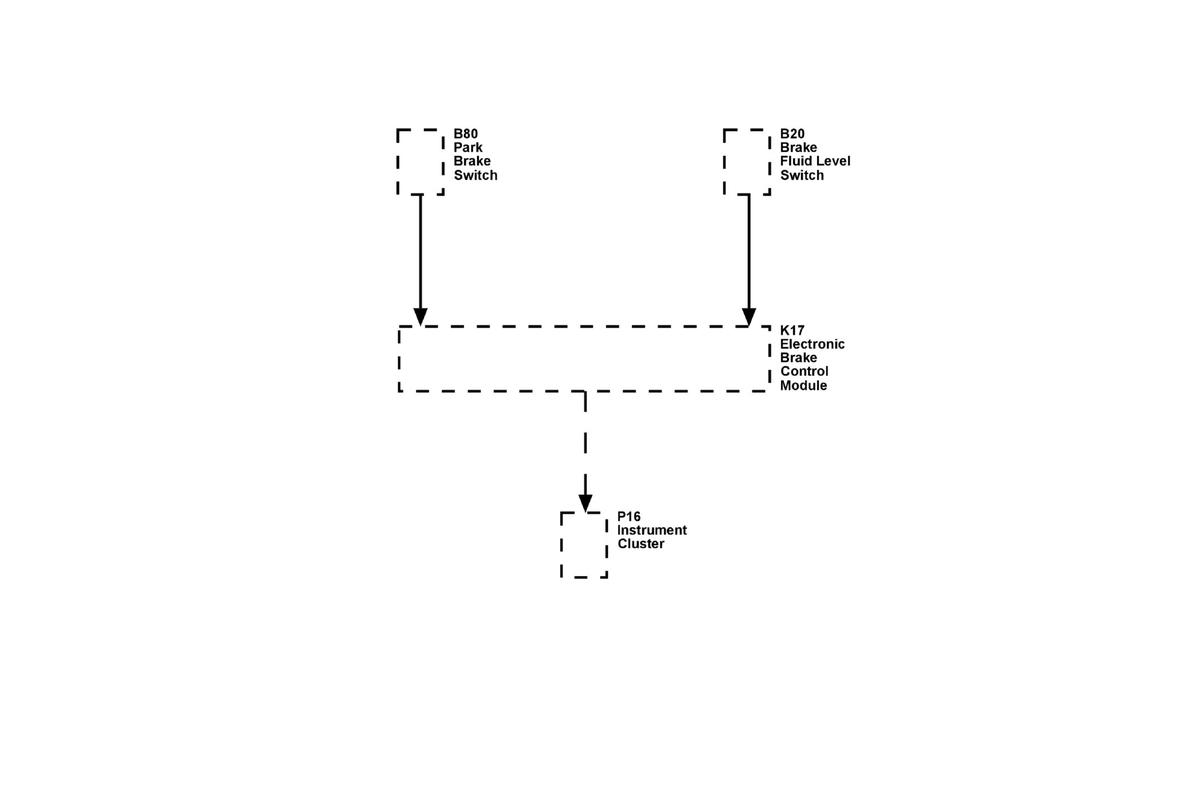

| Callout | Component Name |
|---|---|
| B80 | B80 Park Brake Switch |
| B20 | B20 Brake Fluid Level Switch |
| K17 | K17 Electronic Brake Control Module |
| P16 | P16 Instrument Cluster |
The purpose of the brake warning system is to warn the driver of the park brake being applied while the vehicle is being driven, a brake electronic brake distribution (EBD) failure and/or a low brake fluid level condition.
- When the ignition switch in the ON position and park brake is applied, the brake warning indicator lamp is illuminated. While the ignition switch is turned to the ON position, the battery voltage is provided to the brake warning indicator on the instrument panel cluster (IPC). When the park brake is applied, the park brake switch is grounded and the brake warning indicator is illuminated.
- EBCM monitors the EBD system. If EBCM detects EBD failure condition, EBCM sends a signal to IPC and IPC illuminates the brake warning indicator.
- Brake fluid level indicator switch is negative thermal coefficient (NTC) type. When the brake fluid level is too low, the brake warning indicator is illuminated by being grounded through the brake fluid level indicator switch.
