M8 Blower Motor
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|

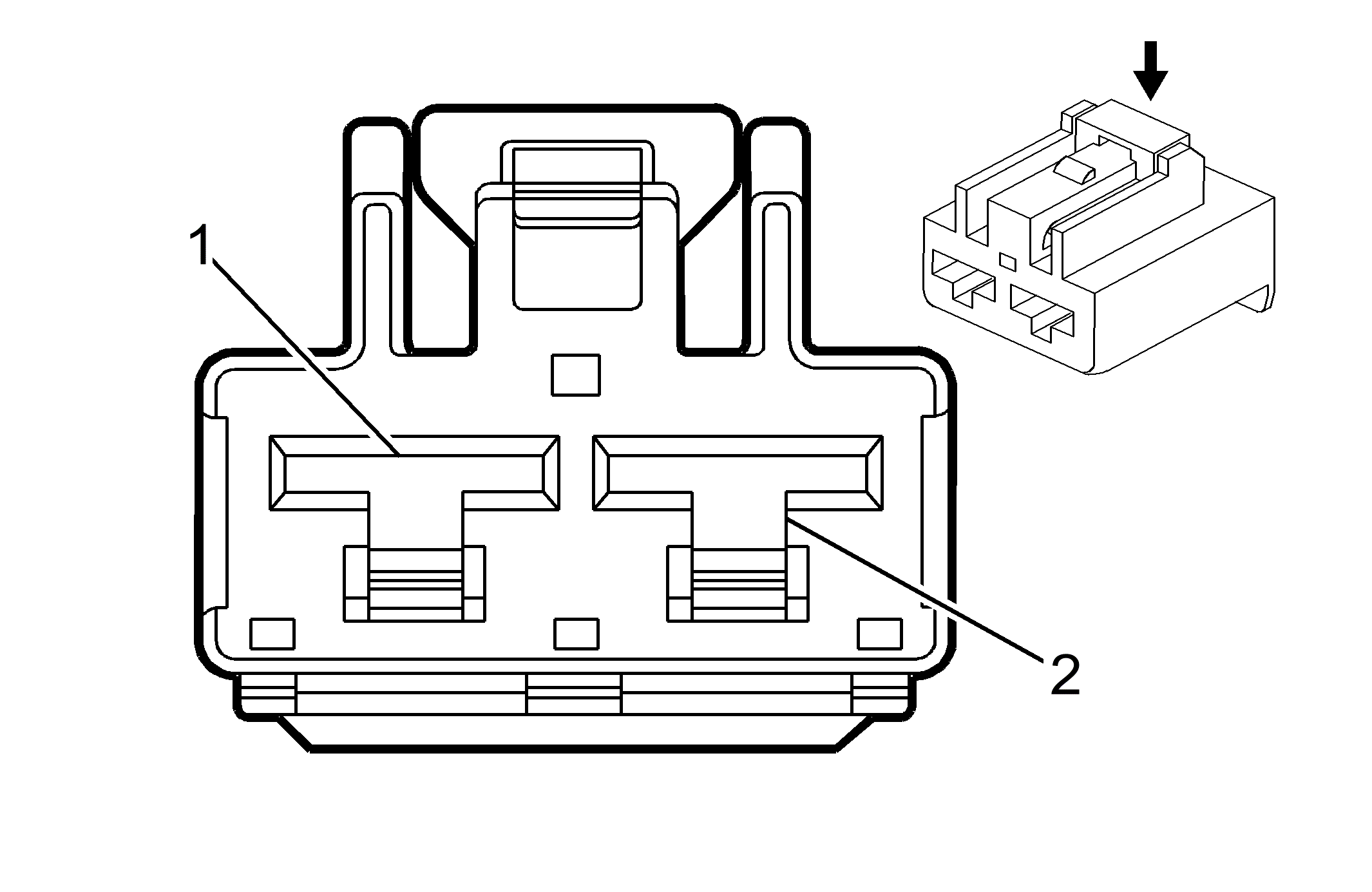

Connector Part Information
- Harness Type: Blower Motor
- OEM Connector: 6098-1104
- Service Connector: 15193791
- Description: 2-Way F (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
4 |
VT |
65 |
Blower Motor Supply Voltage |
I |
- |
| 2 |
4 |
VT/BK |
5987 |
Front Blower Motor Return |
I |
- |
