M75 Windshield Wiper Motor
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

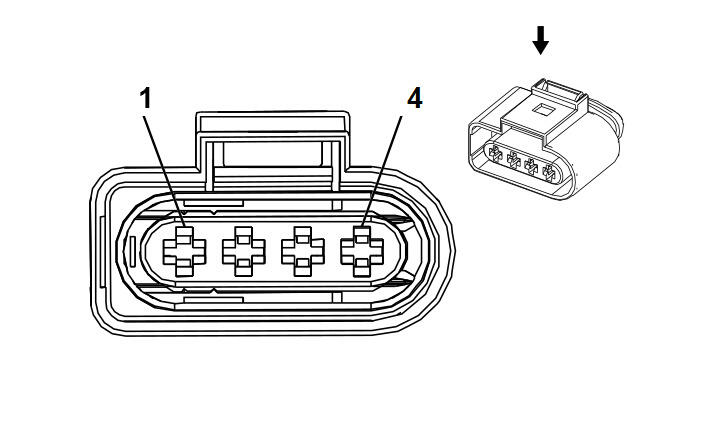

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Available | J-35616-35 (VT) | Not Available | Not Available | Not Available | Not Available | Not Available |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 2.5 0.5 |
RD/YE L-GN/BN |
3740 6132 |
Battery Positive Voltage Linear Interconnect Network Bus 1 |
I | - |
| 2 | 2.5 0.5 |
BK GY |
1950 91 |
Ground Windshield Wiper Motor Relay Coil Supply Voltage |
I | - |
| 3 | 0.5 2.5 |
GY BK |
91 1950 |
Windshield Wiper Motor Relay Coil Supply Voltage Ground |
I | - |
| 4 | 0.5 2.5 |
L-GN/BN RD/YE |
6132 3740 |
Linear Interconnect Network Bus 1 Battery Positive Voltage |
I | - |
