M74D Window Motor - Driver

WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

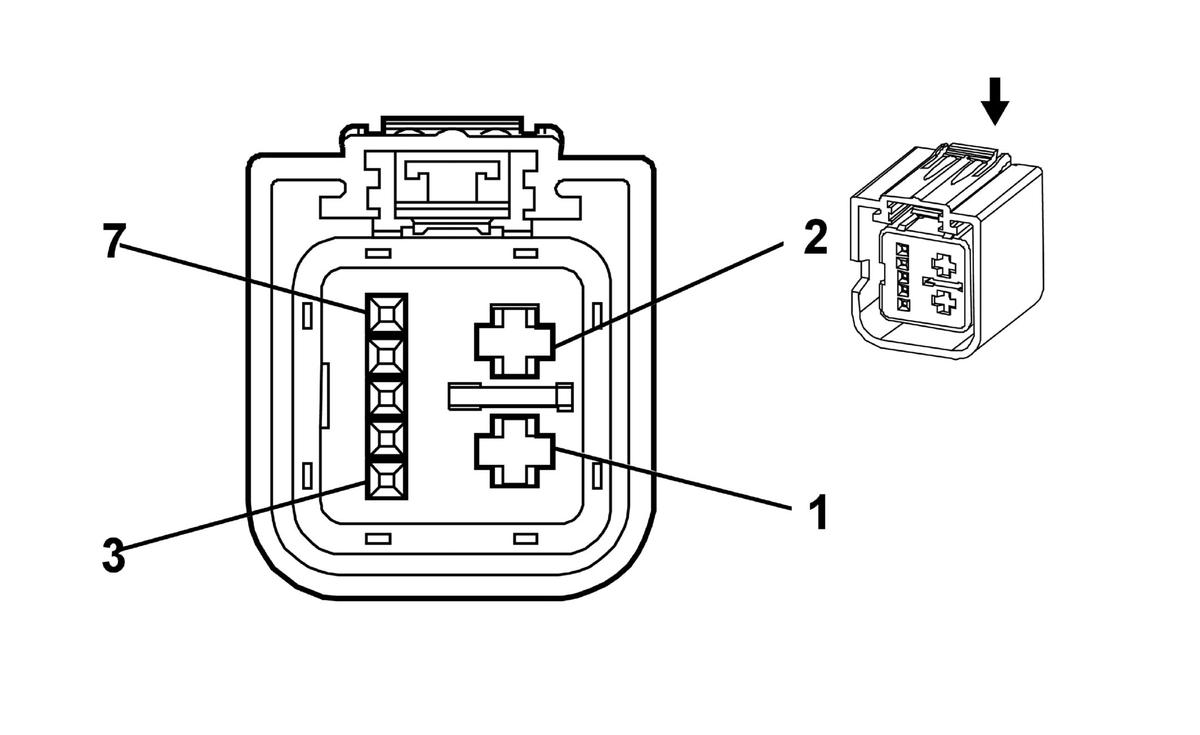

GM2173867
Connector Part Information
  • Harness Type: Driver Door
  • OEM Connector: 19152718
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 7-Way F 0.64 Kaizen 2.8 Timer Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I Not Available J-35616-35 (VT) Not Available Not Available Not Available Not Available Not Available
Pin Size Color Circuit Function Terminal Type ID Option
1 2.5
2.5		 BK
BK		 1550
2050		 Ground
Ground		 I -
2 2.5 RD/BN 3640 Battery Positive Voltage I -
3 0.35 L-GN/WH 3379 Power Window Switch Driver Up Signal I -
4 0.35 L-GN/YE 6134 Linear Interconnect Network Bus 3 I -
5 0.35 L-GN 3381 Power Window Switch Driver Express Signal I -
6 0.35 GY/BK 745 Left Front Door Ajar Switch Signal I -
7 0.35 GY 3380 Power Window Switch Driver Down Signal I -
