K114B Hybrid/EV Powertrain Control Module 2 X2 X2

WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

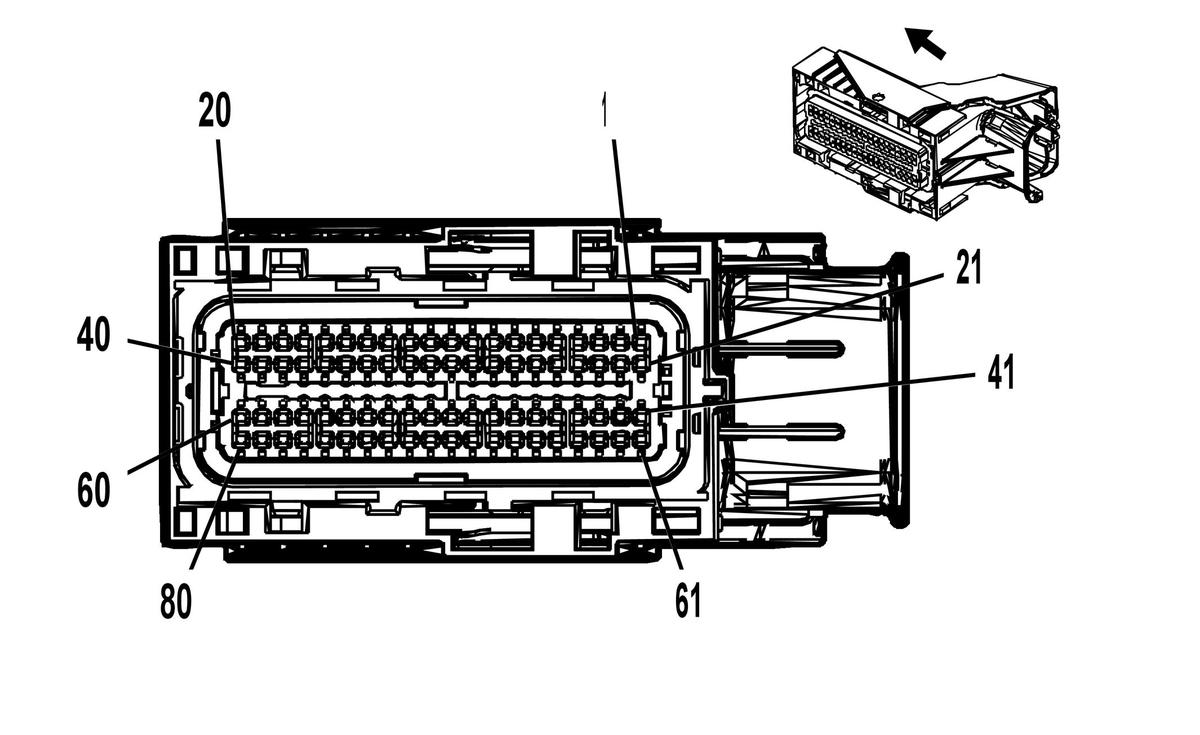

GM3604216
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 34566-4383
  • Service Connector: 19115670
  • Description: 80-Way F 0.64 Series, Sealed (BK with GY Terminal Position Assurance)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 13575813 J-35616-64B (LT BU) J-38125-213 Not Available Not Available Not Available Not Available
Pin Size Color Circuit Function Terminal Type ID Option
1-6 - - - Not Occupied - -
7 0.5 BN/WH 3827 Refuel Request Switch Signal I -
8 0.5 GY/L-GN 3954 Control Pilot Signal 1 I -
9 0.5 L-BU/VT 2364 Cooling Fan Speed Signal I -
10 0.5 L-BU/GY 5139 High Voltage Fault Signal I -
11 0.5 BN/L-GN 3793 Accessory Power Module Cooling Fan Feedback Signal I -
12-13 - - - Not Occupied - -
14 0.5 VT/L-BU 3790 Electric Coolant Motor Feedback Signal I -
15 0.5 L-BU/YE 3953 Proximity Status Signal 1 I -
16-17 - - - Not Occupied - -
18 0.5 L-GN 5060 Low Speed GMLAN Serial Data I -
19-24 - - - Not Occupied - -
25 0.5 WH/L-BU 3697 Charge Port Door Sensor Signal I -
26 - - - Not Occupied - -
27 0.5 VT/GY 2339 Run/Crank Ignition 1 Voltage I -
28-32 - - - Not Occupied - -
33 0.5 YE/GY 3796 Rechargeable Energy Storage System 1 Coolant Motor Feedback Signal I -
34-37 - - - Not Occupied - -
38 0.5 L-GN 5060 Low Speed GMLAN Serial Data I -
39-40 - - - Not Occupied - -
41 0.5 L-BU/BK 6801 Fuel Door Lock/Unlock (1) Reference I -
42 0.5 WH/L-GN 3794 Rechargeable Energy Storage System 1 Coolant Motor Enable I -
43-46 - - - Not Occupied - -
47 0.5 BN/L-BU 3788 Electric Coolant Motor Enable I -
48 0.5 L-BU/BN 3787 High Voltage Energy Management Communication Enable I -
49 0.5 L-GN/VT 3791 Accessory Power Module Cooling Fan Enable I -
50-51 - - - Not Occupied - -
52 0.5 WH 2368 Cooling Fan Control Signal I -
53 - - - Not Occupied - -
54 0.5 VT 3195 Auxiliary Heater Control I -
55-58 - - - Not Occupied - -
59 0.5 L-BU/VT 3818 Rechargeable Energy Storage System Coolant HVAC Mode Motor High Control I -
60 - - - Not Occupied - -
61 0.5 L-BU 6800 Fuel Door Lock/Unlock (1) Signal I -
62 0.5 GY/L-GN 3957 Charging Pilot Signal Indicator Control I -
63 - - - Not Occupied - -
64 0.5 YE/VT 3956 Charging Status Indicator Control I -
65-66 - - - Not Occupied - -
67 0.5 VT/YE 5985 Accessory Wake up Serial Data I -
68 - - - Not Occupied - -
69 0.5 L-BU/WH 3977 Accessory Wakup Serial Data 2 I -
70 - - - Not Occupied - -
71 0.5 YE/GY 3792 Accessory Power Module Cooling Fan Control I -
72 0.5 YE/L-BU 5125 Heater Solenoid Valve Control I -
73 0.5 L-BU/VT 3795 Rechargeable Energy Storage System 1 Coolant Motor Control I -
74 0.5 YE/L-GN 3789 Electric Coolant Motor Control I -
75-78 - - - Not Occupied - -
79 0.5 WH/YE 3819 Rechargeable Energy Storage System Coolant HVAC Mode Motor Low Control I -
80 - - - Not Occupied - -
