K112A Hybrid/EV Battery Interface Control Module 1 X4 X4
WARNING: This page is about a different car, the 2015 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.
|
|

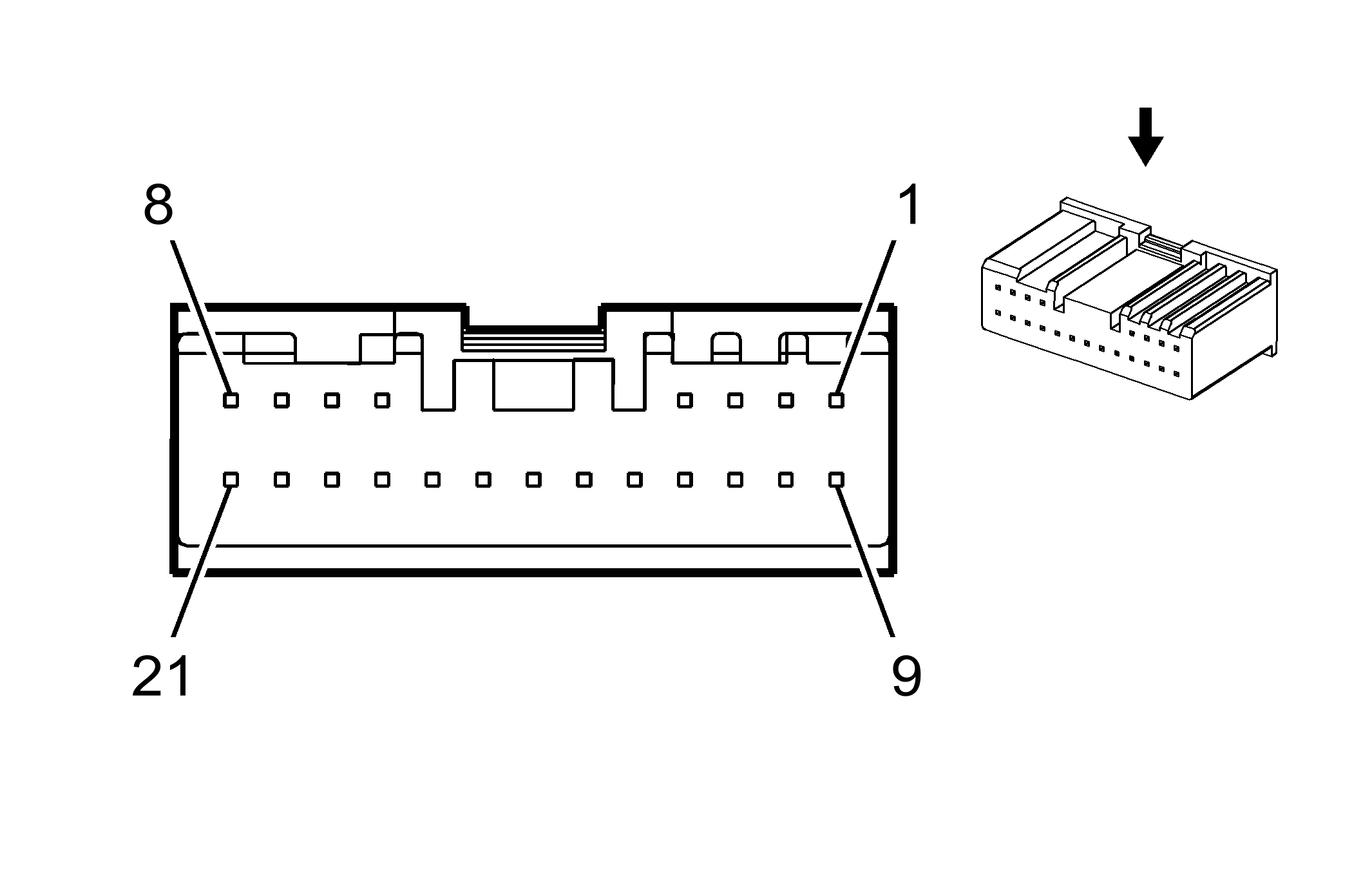

Connector Part Information
- Harness Type: High Voltage
- OEM Connector: ATLPB-21-2DD
- Service Connector: Service by Harness - See Part Catalog
- Description: 21-Way F
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
J-35616-64B (LT BU) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
L-GN/GY |
5407 |
Battery Module Temperature Signal (3) |
I |
- |
| 2 |
0.35 |
BK/L-GN |
3775 |
Battery Module Temperature Sensor Low Reference (3) |
I |
- |
| 3-8 |
- |
- |
- |
Not Occupied |
- |
- |
| 9 |
0.35 |
L-GN/VT |
5577 |
Battery Voltage Signal (18) |
I |
- |
| 10 |
0.35 |
WH/L-BU |
5576 |
Battery Voltage Signal (17) |
I |
- |
| 11 |
0.35 |
BN/WH |
5575 |
Battery Voltage Signal (16) |
I |
- |
| 12 |
0.35 |
WH/BK |
5574 |
Battery Voltage Signal (15) |
I |
- |
| 13 |
0.35 |
YE |
5573 |
Battery Voltage Signal (14) |
I |
- |
| 14 |
0.35 |
YE/GY |
5572 |
Battery Voltage Signal (13) |
I |
- |
| 15 |
0.35 |
BN |
5571 |
Battery Voltage Signal (12) |
I |
- |
| 16-21 |
- |
- |
- |
Not Occupied |
- |
- |
