Rear Side Door Window Outer Sealing Strip Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

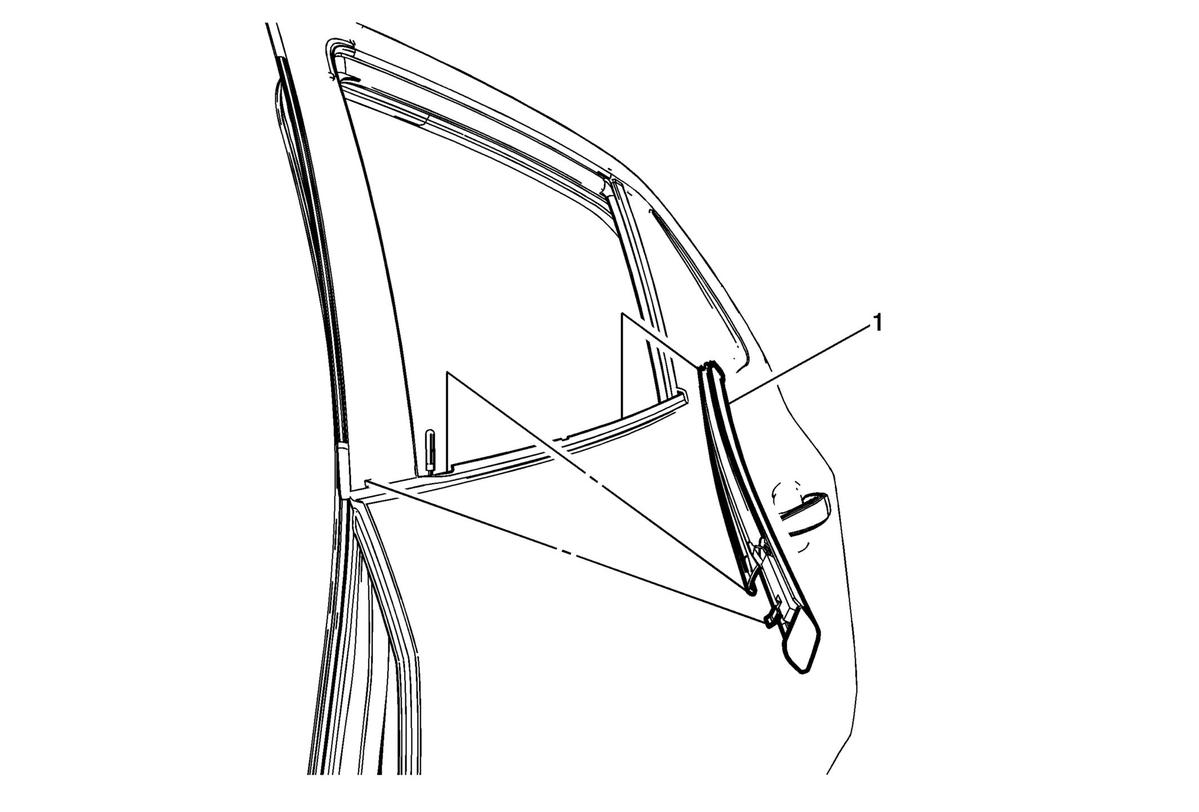

Fig 1: Rear Side Door Window Outer Sealing Strip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Window Outer Sealing Strip Procedure Use the appropriate tool, lift the front edge of the sealing strip and pull upward and away from the door flange. Press firmly to insert the rear side door window sealing strip back on the door flange. Inspect the door window for proper operation.

Callout

Component Name

Rear Side Door Window Outer Sealing Strip

Procedure

Use the appropriate tool, lift the front edge of the sealing strip and pull upward and away from the door flange.
Press firmly to insert the rear side door window sealing strip back on the door flange.
Inspect the door window for proper operation.
