Front Side Door Window Inner Sealing Strip Replacement (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement (Encore) . |
|

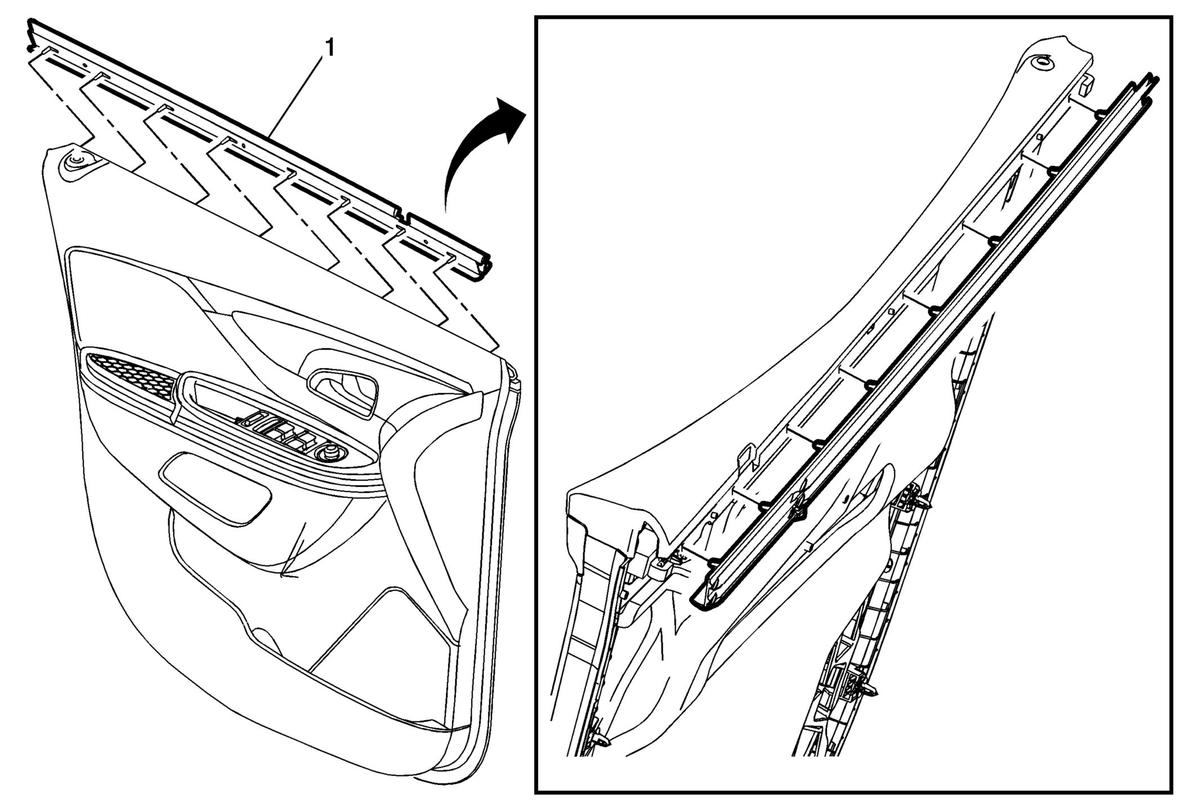

| 1 | Front Side Door Window Inner Sealing Strip Assembly Procedure Pull outward to disengage sealing strip from door trim panel. |
