Left Rear, Right Rear Express Up and Express Down Window Motors

The left rear and right rear doors contains a window motor is smart motor that will detect excessive resistance while performing the express up function and automatically reverse direction to prevent injury to any occupants that may become trapped between the closing window and the door frame. The automatic reverse safety feature can be overridden by pulling and holding the window switch.

The logic circuit within the window motor monitors the up, down and express signal circuits which are normally equal to B+ voltage. When a switch is used on the appropriate rear window switch, the contacts close causing a voltage drop within the appropriate signal circuit. The window motor will detect the voltage drop and will command the window to move in the direction requested.

The driver window switch communicates to the BCM by a serial data circuit. When the driver wishes to control a rear window, the driver will use the appropriate switch on the driver window switch. When this switch is used, a serial data message is sent to the BCM requesting the rear window motor command, the BCM will then send a serial data message to the rear window motor which will then move in the direction requested.

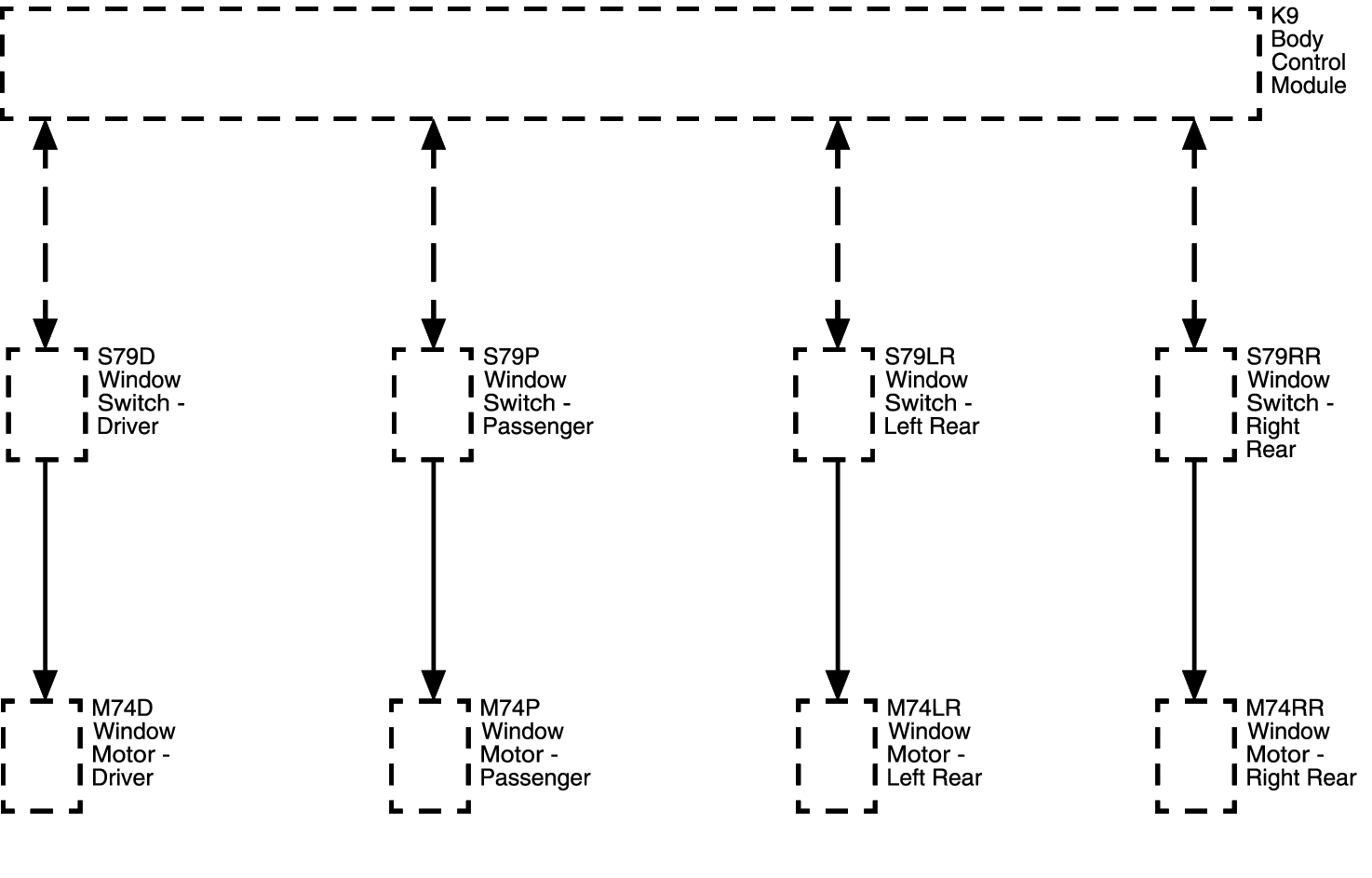

Fig 1: 14 Power Windows AEC-AER-AEQ Block Diagram

Courtesy of GENERAL MOTORS COMPANY
